JAGUAR XFR 2010 1.G Workshop Manual 6. Installation 5. CAUTION: Protect the surrounding paintwork to avoid damage. NOTE: Do not disassemble further if the componen

Page 2218 of 3039

JAGUAR XFR 2010 1.G Workshop Manual (100-00 General Information, Description and Operation) / Body Repairs (501-25A Body Repairs - General Information, Description and Operation) / Corrosion Protection (501-25B Body Repairs - Corrosio

Page 2219 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 7. NOTE: Do not disassemble further if the component is removed for access only. Remove the luggage compartment lid moulding. For additional information, refer to: Luggage Compartment Lid M

Page 2220 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com

Page 2221 of 3039

JAGUAR XFR 2010 1.G Workshop Manual (100-00 General Information, Description and Operation) / Body Repairs (501-25A Body Repairs - General Information, Description and Operation) / Corrosion Protection (501-25B Body Repairs - Corrosio

Page 2222 of 3039

JAGUAR XFR 2010 1.G Workshop Manual (501-11 Glass, Frames and Mechanisms, Removal and Installation). 8. Remove the rear door latch. For additional information, refer to: Rear Door Latch (501-14 Handles, Locks, Latches and Entry Syst

Page 2223 of 3039

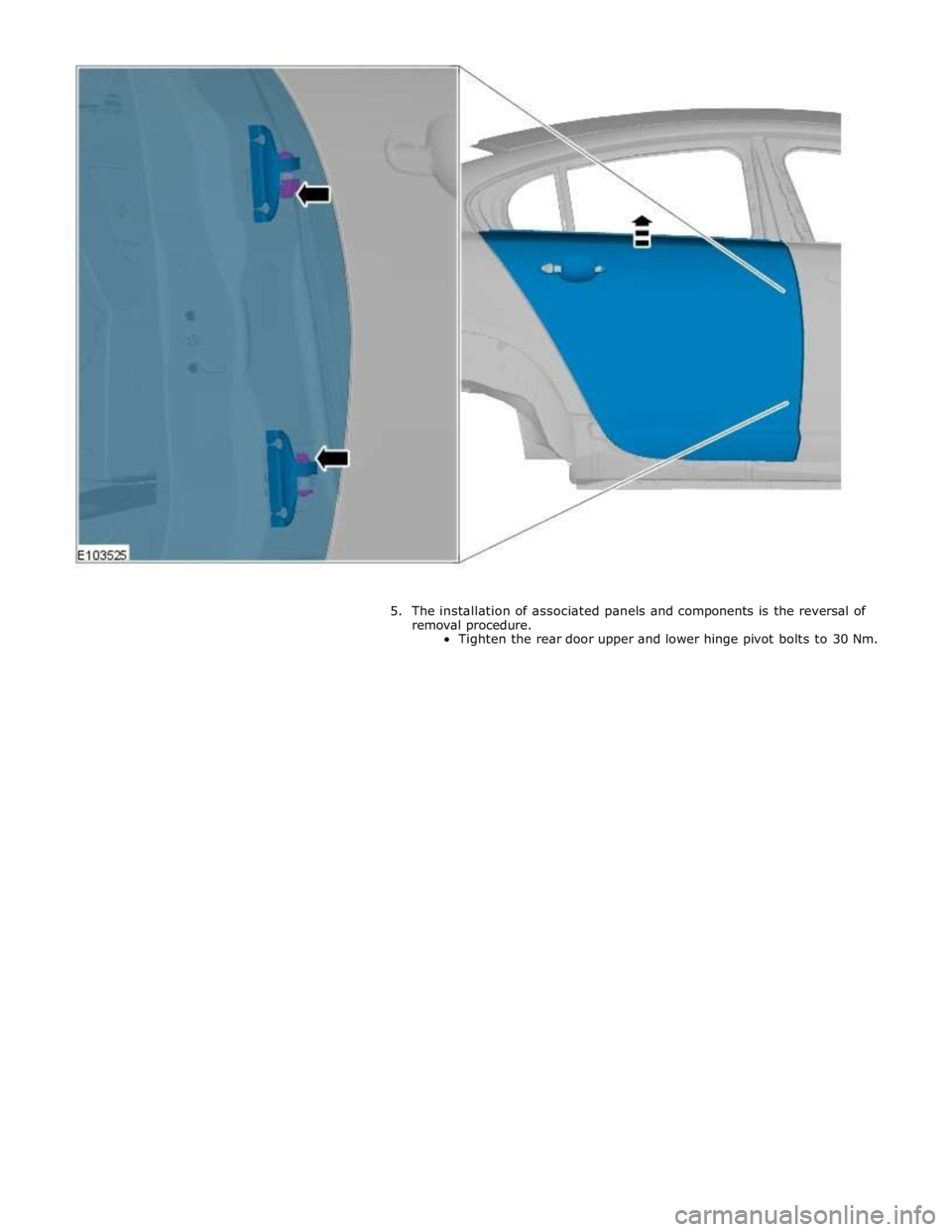

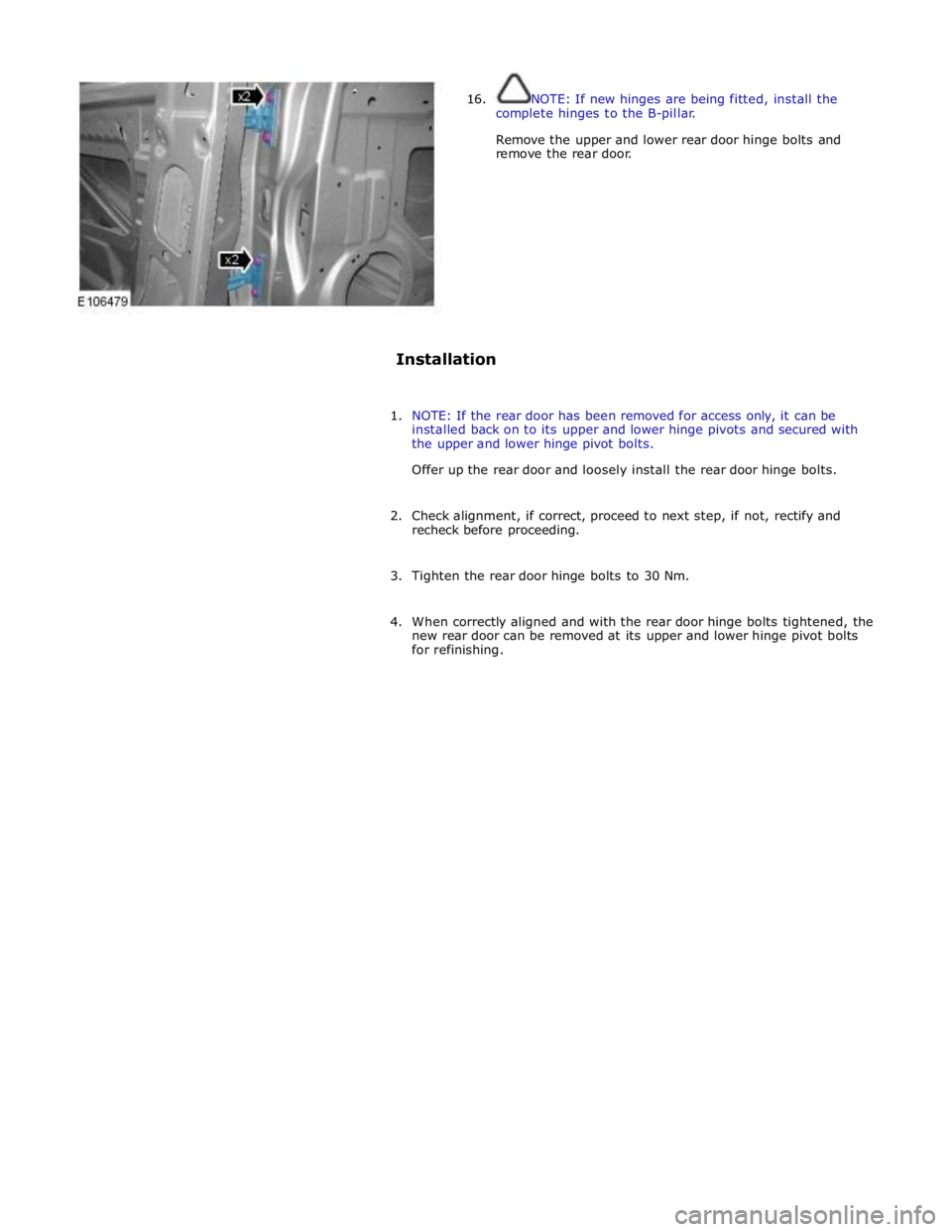

JAGUAR XFR 2010 1.G Workshop Manual 16. NOTE: If new hinges are being fitted, install the complete hinges to the B-pillar. Remove the upper and lower rear door hinge bolts and remove the rear door. Installati

Page 2224 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
