Page 2001 of 3039
Published: 11-May-2011
Information and Entertainment System - Steering Wheel Audio Controls
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Make the SRS system safe.
Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
2. Refer to: Driver Air Bag Module (501-20B Supplemental Restraint System, Removal and Installation).
3. Refer to: Upshift Paddle Switch (307-05A Automatic Transmission/Transaxle External Controls - V6 3.0L Petrol, Removal and
Installation).
4. Refer to: Downshift Paddle Switch (307-05A Automatic Transmission/Transaxle External Controls - V6 3.0L Petrol, Removal and
Installation).
5. Torque: 3 Nm 6. Torque: 3 Nm
Page 2002 of 3039
8.
9.
1. To install, reverse the removal procedure.
Page 2003 of 3039
Information and Entertainment System - Subwoofer Amplifier
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Loadspace Trim Panel LH (501-05 Interior Trim and Ornamentation, Removal and Installation).
3. Torque: 7 Nm 4. Torque: 7 Nm
Page 2004 of 3039
7. Torque: 7 Nm
1. To install, reverse the removal procedure.
Page 2005 of 3039
Information and Entertainment System - Subwoofer Speaker
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

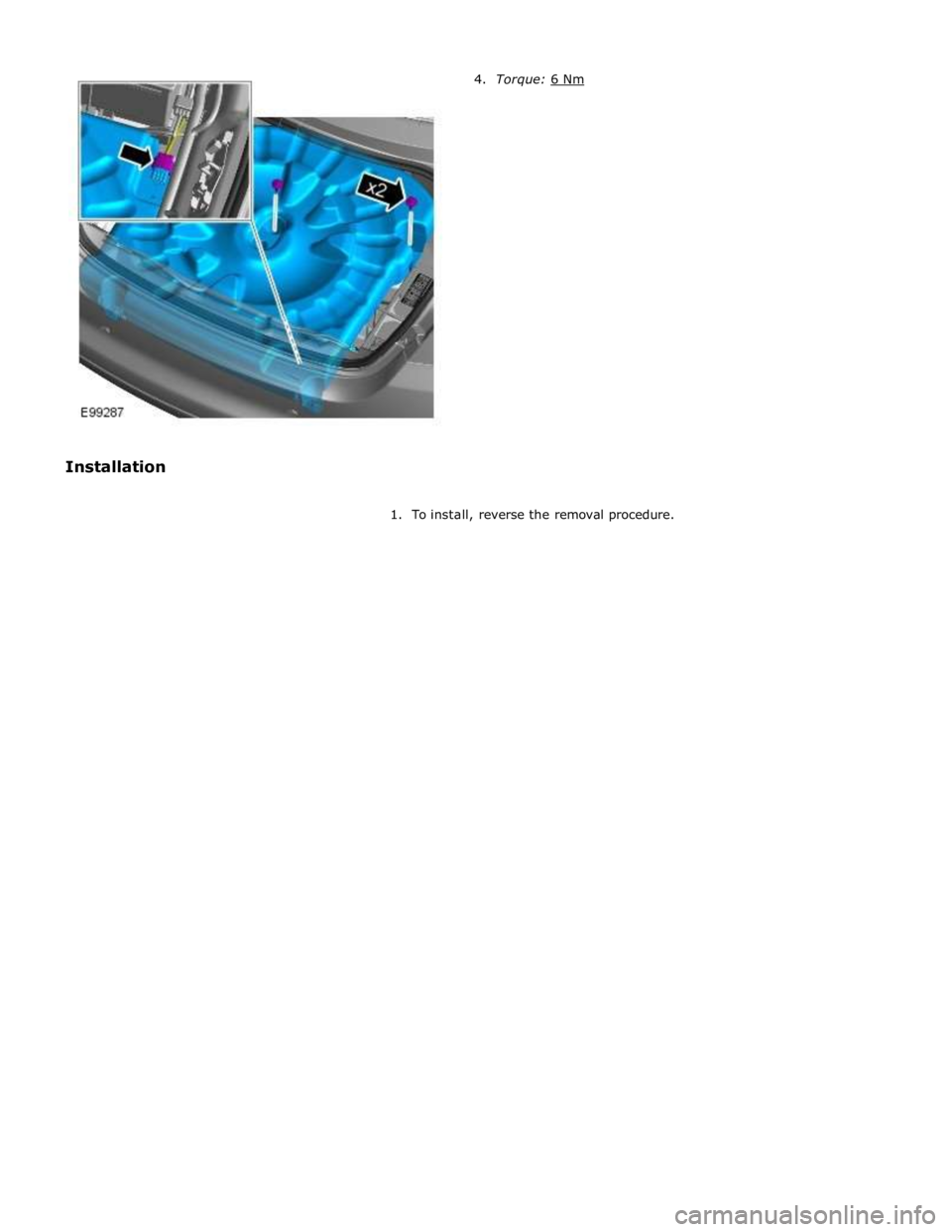

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2.
3. Torque: 6 Nm www.JagDocs.com
Page 2006 of 3039
1. To install, reverse the removal procedure.
Page 2007 of 3039
Information and Entertainment System - Satellite Radio Tuner
Removal and Installation
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct. Published: 09-Dec-2012
1. Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

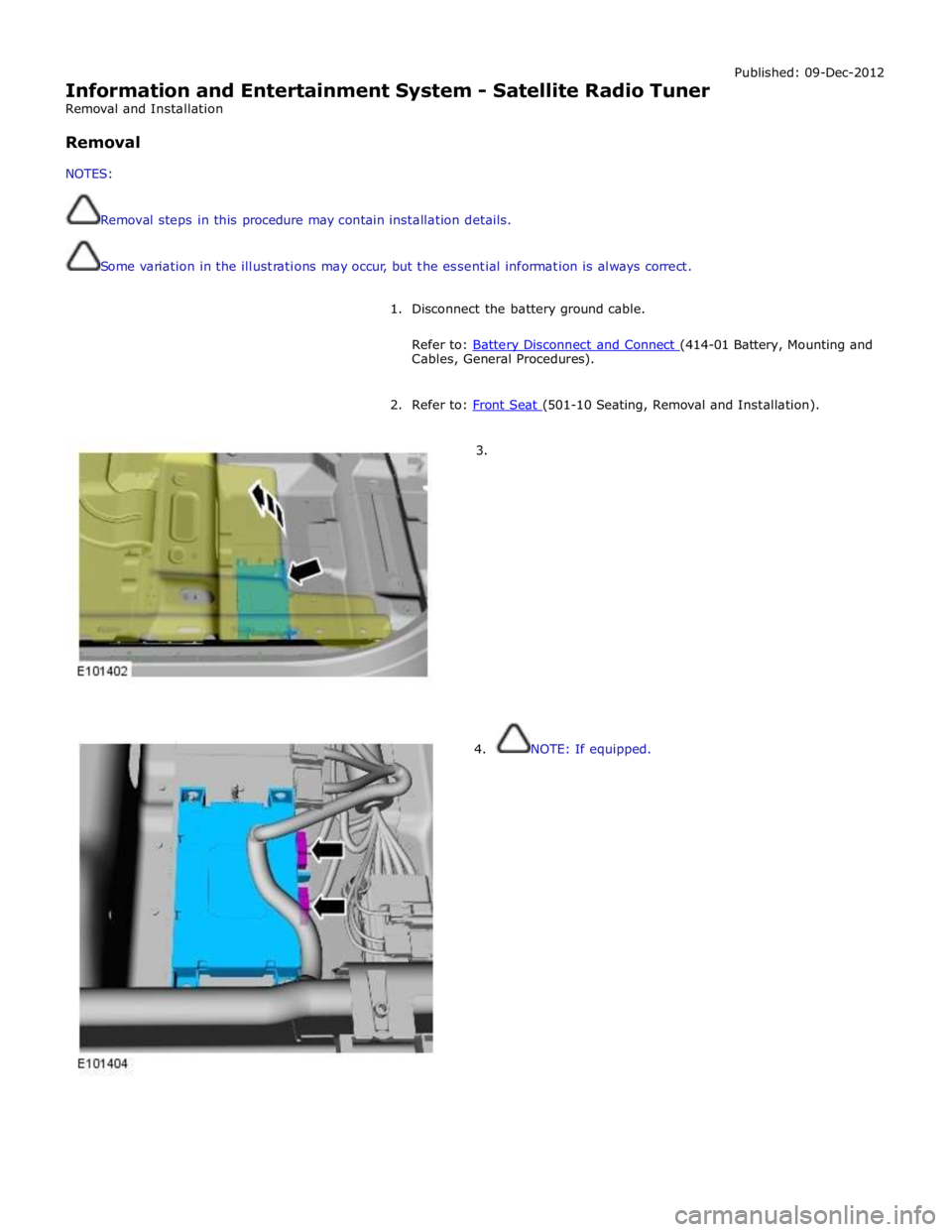

2. Refer to: Front Seat (501-10 Seating, Removal and Installation).
3.
4. NOTE: If equipped.
Page 2008 of 3039

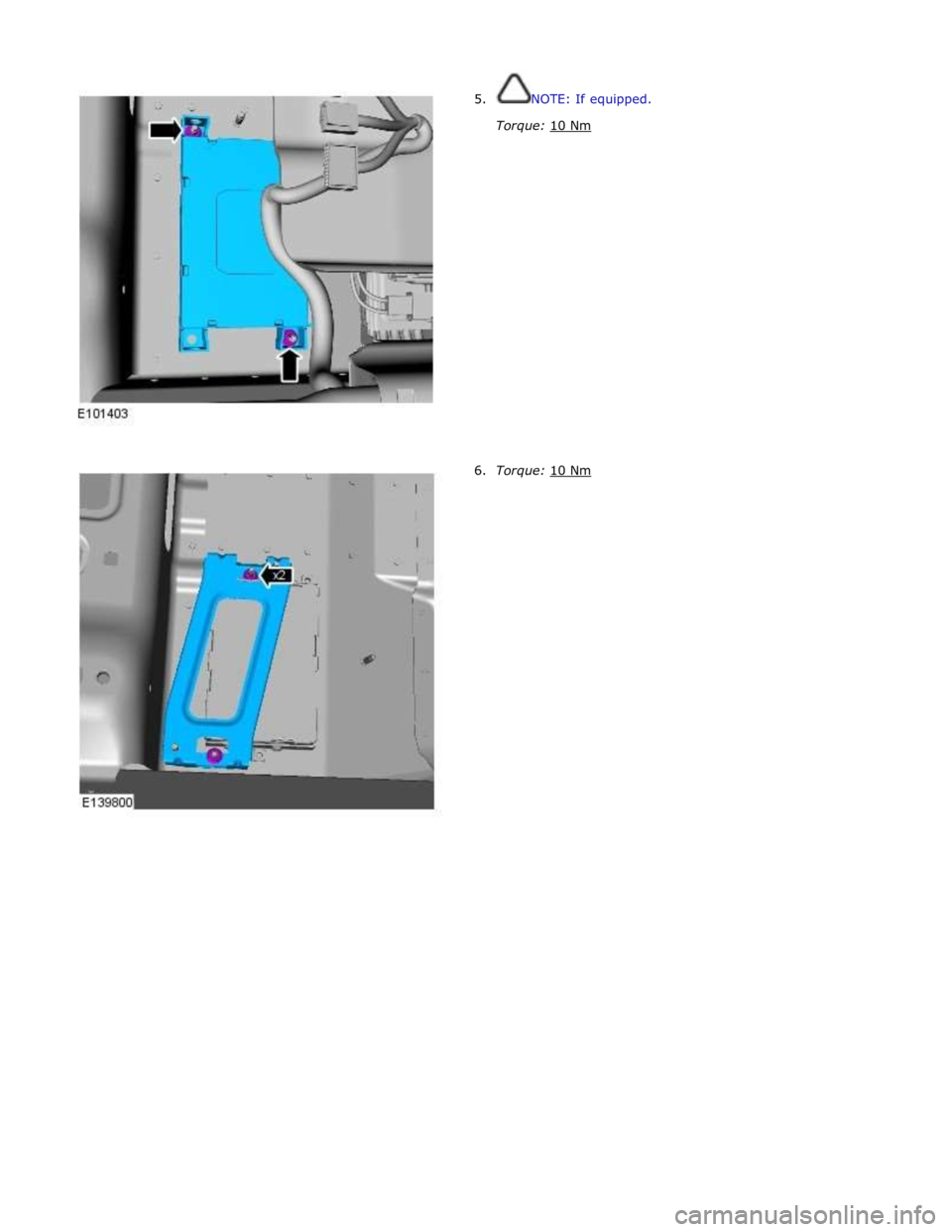

5. NOTE: If equipped.
Torque: 10 Nm
6. Torque: 10 Nm
