JAGUAR XFR 2010 1.G Workshop Manual

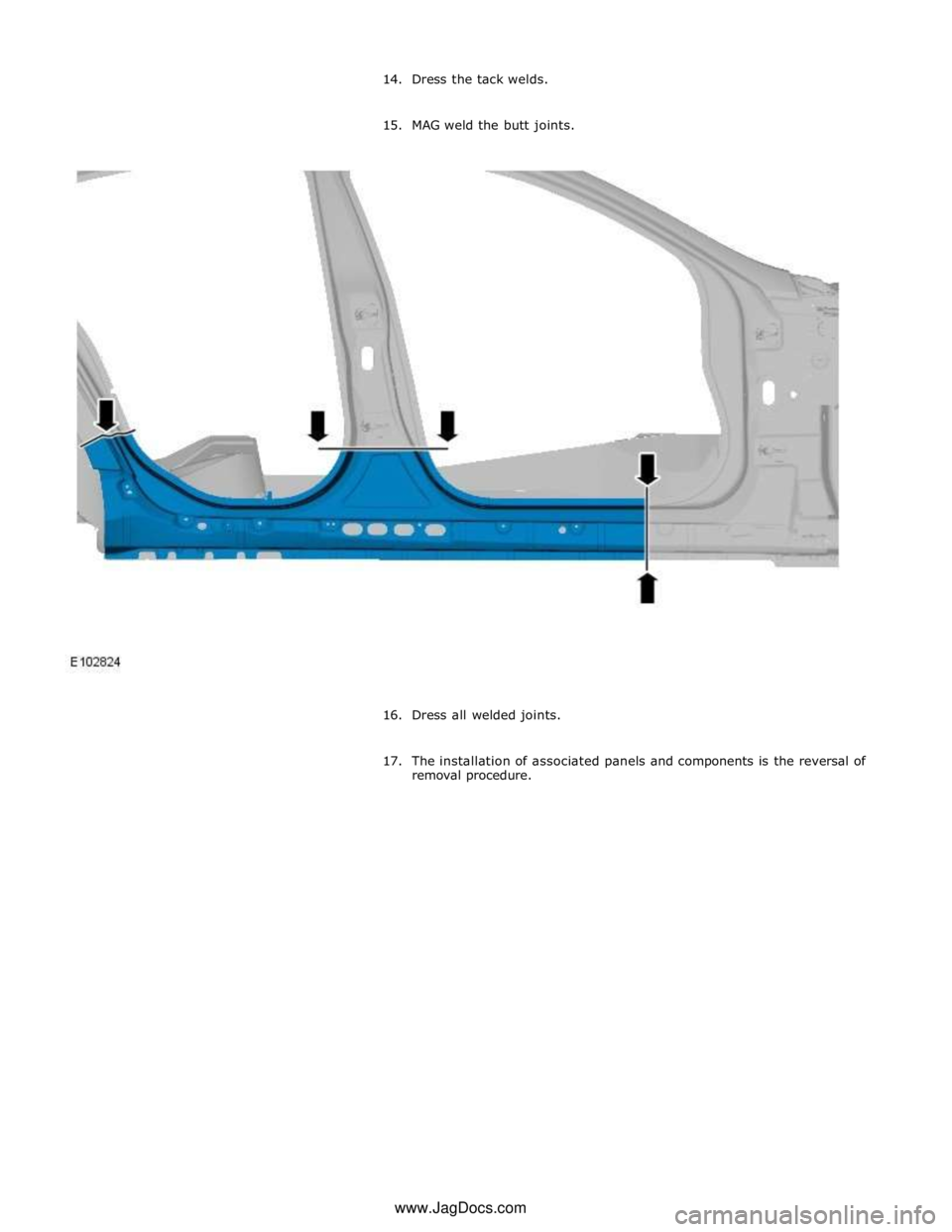

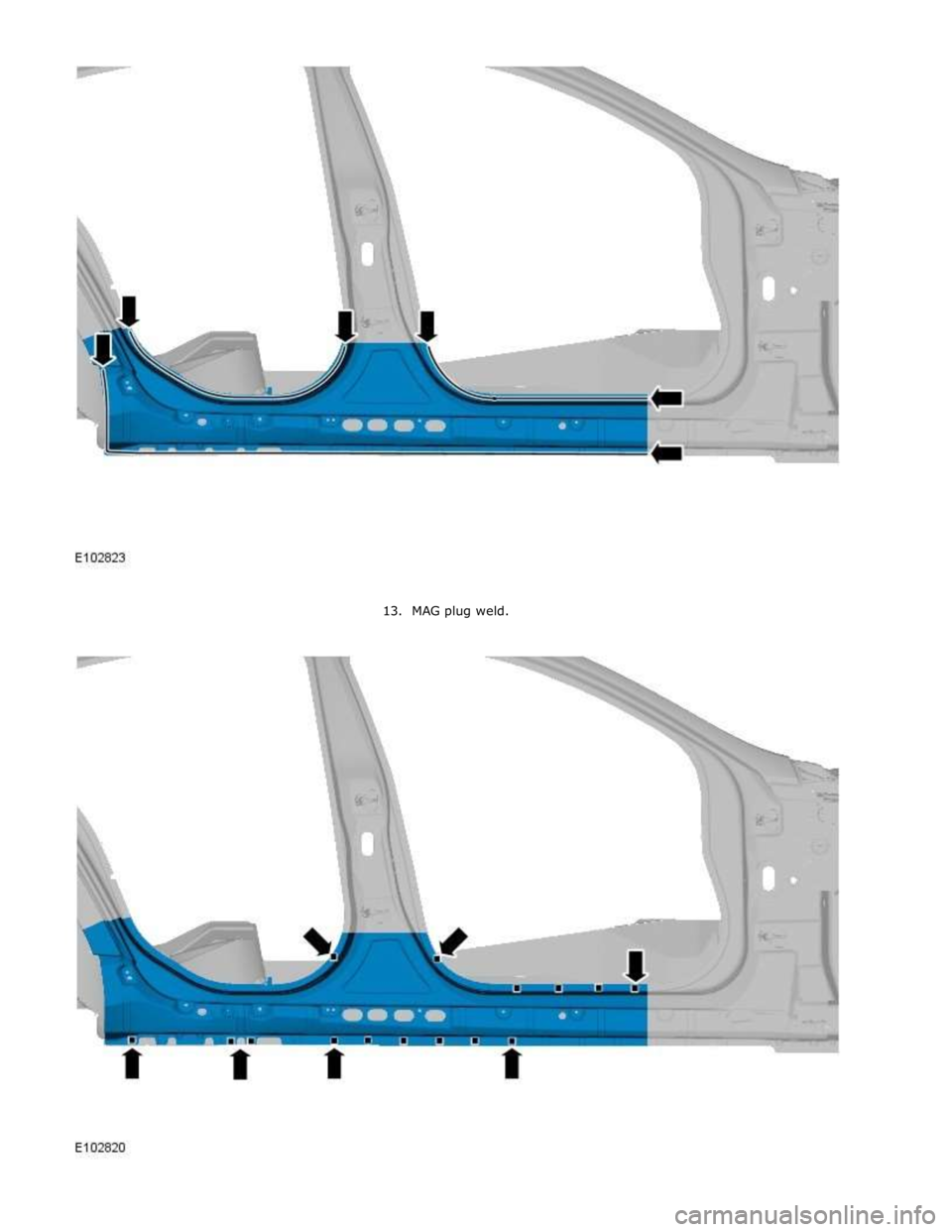

10. Offer up the new rocker panel rear section, align and clamp into position.

11. Tack weld the butt joints.

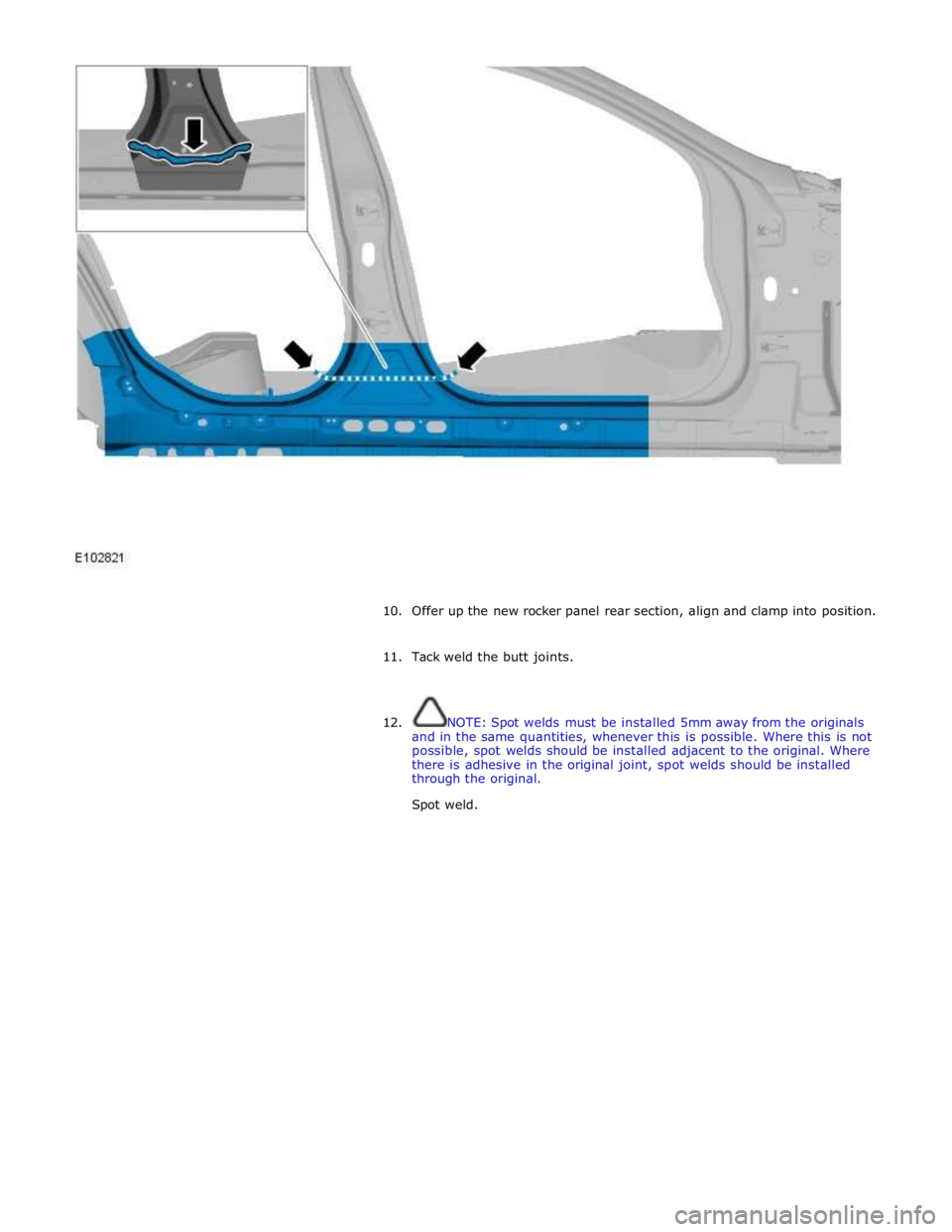

12. NOTE: Spot welds must be installed 5mm away from the originals
and in t

Page 2938 of 3039

Page 2939 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com

Page 2940 of 3039

Page 2941 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
NOTE: The illustration may indicate either hand of the service panel, the opposite hand will be similar.

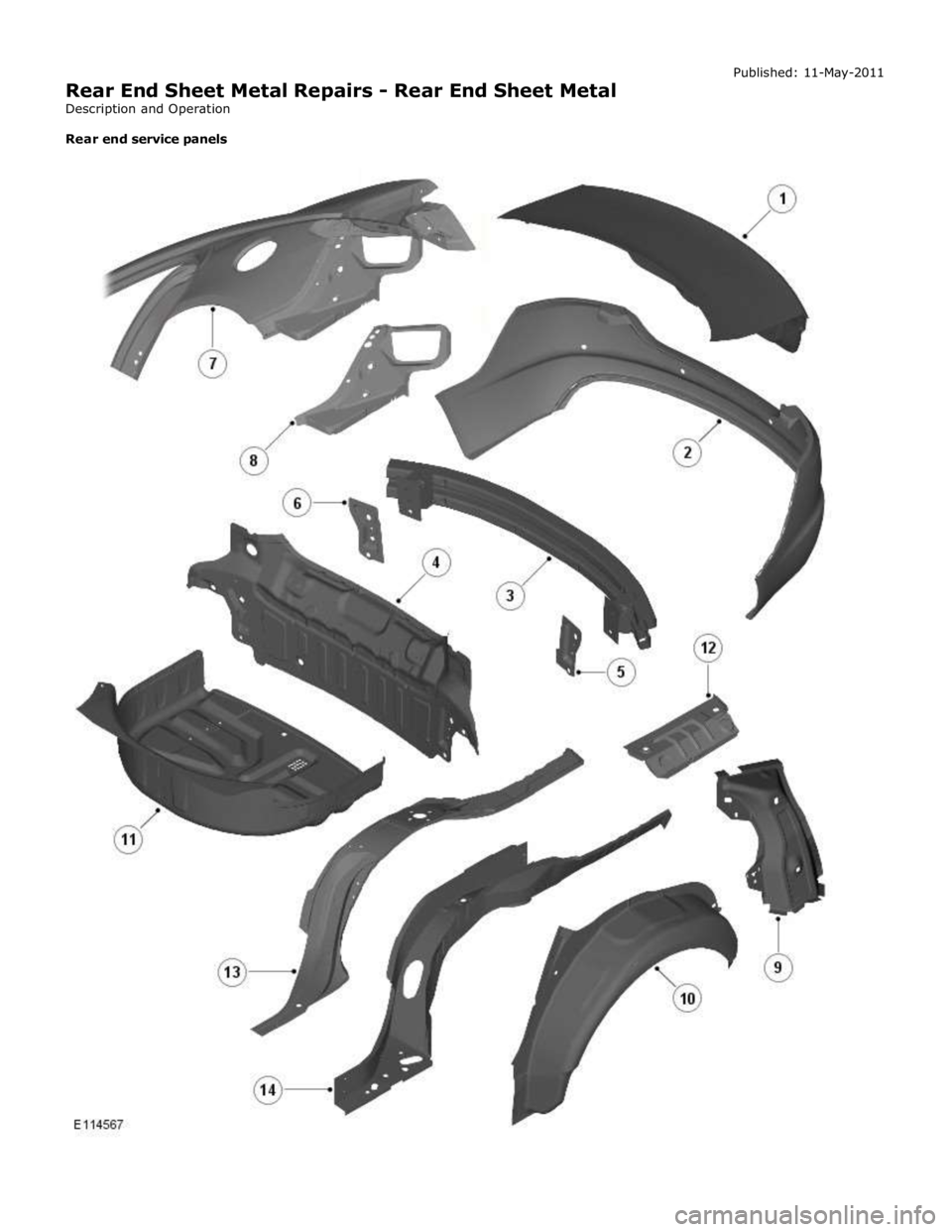

Item Description 1 Luggage compartment lid 2 Rear bumper cover 3 Rear bumper 4 Back panel

NOTE: The illustration may indicate either hand of the service panel, the opposite hand will be similar.

Item Description 1 Luggage compartment lid 2 Rear bumper cover 3 Rear bumper 4 Back panel 5 Rear bumper mounting L/H 6 Rear bumper mounting R/H 7 Quarter panel 8 Quarter panel lower extension 9 Rear wheelhouse outer 10 Spare wheel well 11 Rear floor side extension 12 Rear side member section 13 Rear side member closing panel section Time schedules, rear end

The following information shows the total time taken to replace single panels and complete assemblies. This time includes
removal of Mechanical, Electrical and Trim, (MET), items, plus paint times based on Metallic Clear Over Base Paint, (blends to
adjacent panels are not included)

The times shown were generated by Thatcham, (the Motor Insurance Repair Research Centre), and are to be used as a guide
only.

Single panel times
Panel Description Hours Luggage compartment lid 7.5 Rear bumper cover 6.6 Back panel 9.4 Quarter panel L/H 23.2 Quarter panel R/H 24.2 Headliner remove and install 3.3 Rear window glass remove and install 1.7 Rear subframe and rear suspension remove and install 5.2 Combination panel replacement times

The following panel combination times show the total time to remove/install body panels, MET items and paint times based on
Metallic Clear Over Base Paint process, (blends to adjacent panels are not included).

Combination panel times
Panel Description Hours Luggage compartment lid Rear bumper cover Rear bumper Quarter panel Back panel Headliner remove and install Rear window glass remove and install Total Time L/H 35.2
R/H 35.9 Combination panel times
Panel Description Hours Luggage compartment lid Rear bumper cover Rear bumper Quarter panel L/H and R/H Back panel Headliner remove and install Rear window glass remove and install Total Time 44.7 Combination panel times
Panel Description Hours Luggage compartment lid Rear bumper cover Rear bumper Quarter panel Back panel Rear wheelhouse outer Rear side member section

Page 2942 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Rear side member closing panel section Spare wheel well Rear floor side extension Rear subframe and rear suspension remove and install Headliner remove and install Rear window glass remove and in

Page 2943 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Rear End Sheet Metal Repairs - Back Panel
Removal and Installation
Removal Published: 11-May-2011

1. NOTE: The back panel is manufactured from mild
steel.

The back panel is serviced as a

Page 2944 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Interior Trim and Ornamentation, Removal and Installation).

14.
15. Remove the spare wheel and tire (if equipped).

Remove the subwoofer speaker (if equippe
