Page 1033 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Some variation in the illustrations may occur, but the essential information is always correct. 1. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery

Page 1034 of 3039

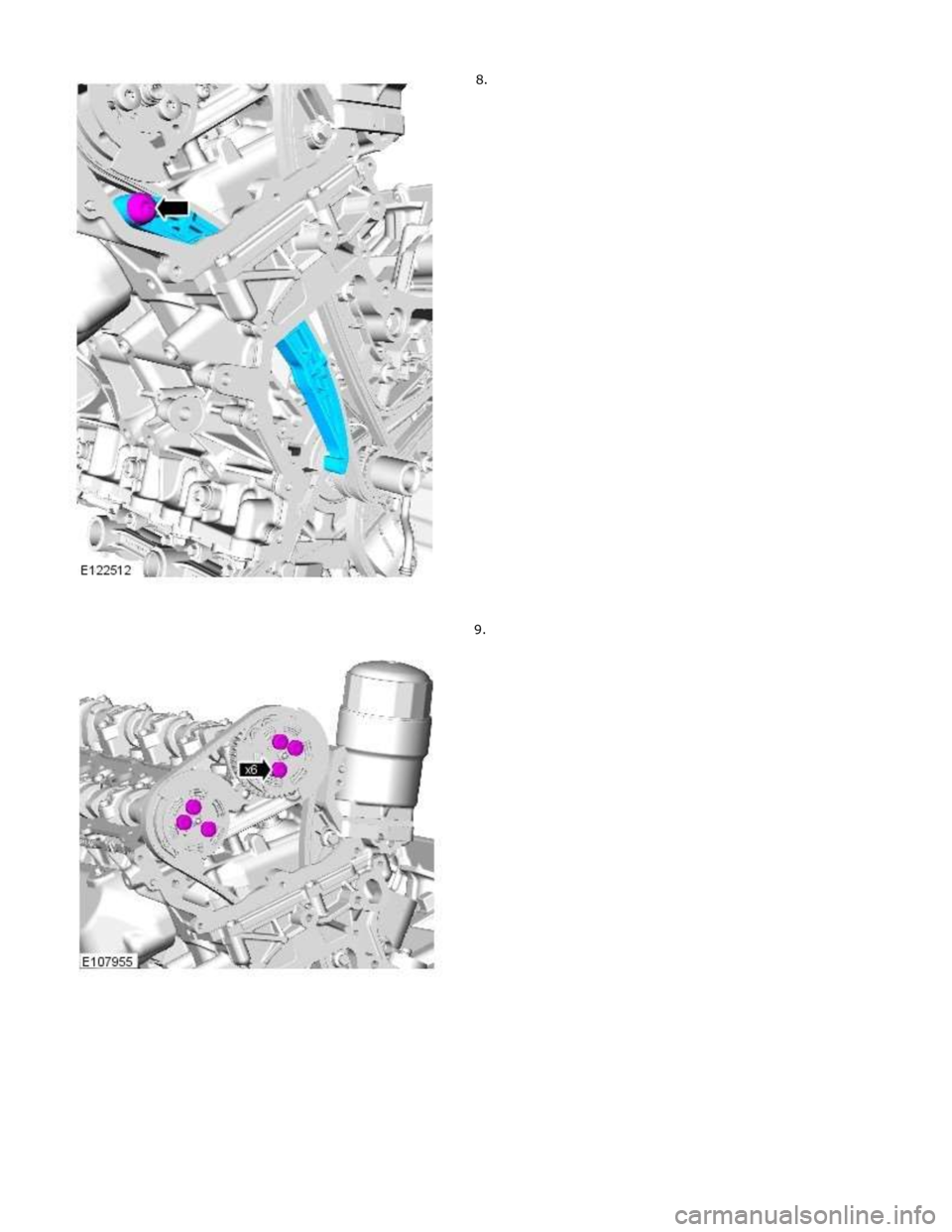

JAGUAR XFR 2010 1.G Workshop Manual 6. CAUTION: If the noted postion of the woodruff key is at the 9 oclock position, then a new flexplate must be installed. If the woodruff key is in the 6 oclock position then proceed with the

Page 1035 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1036 of 3039

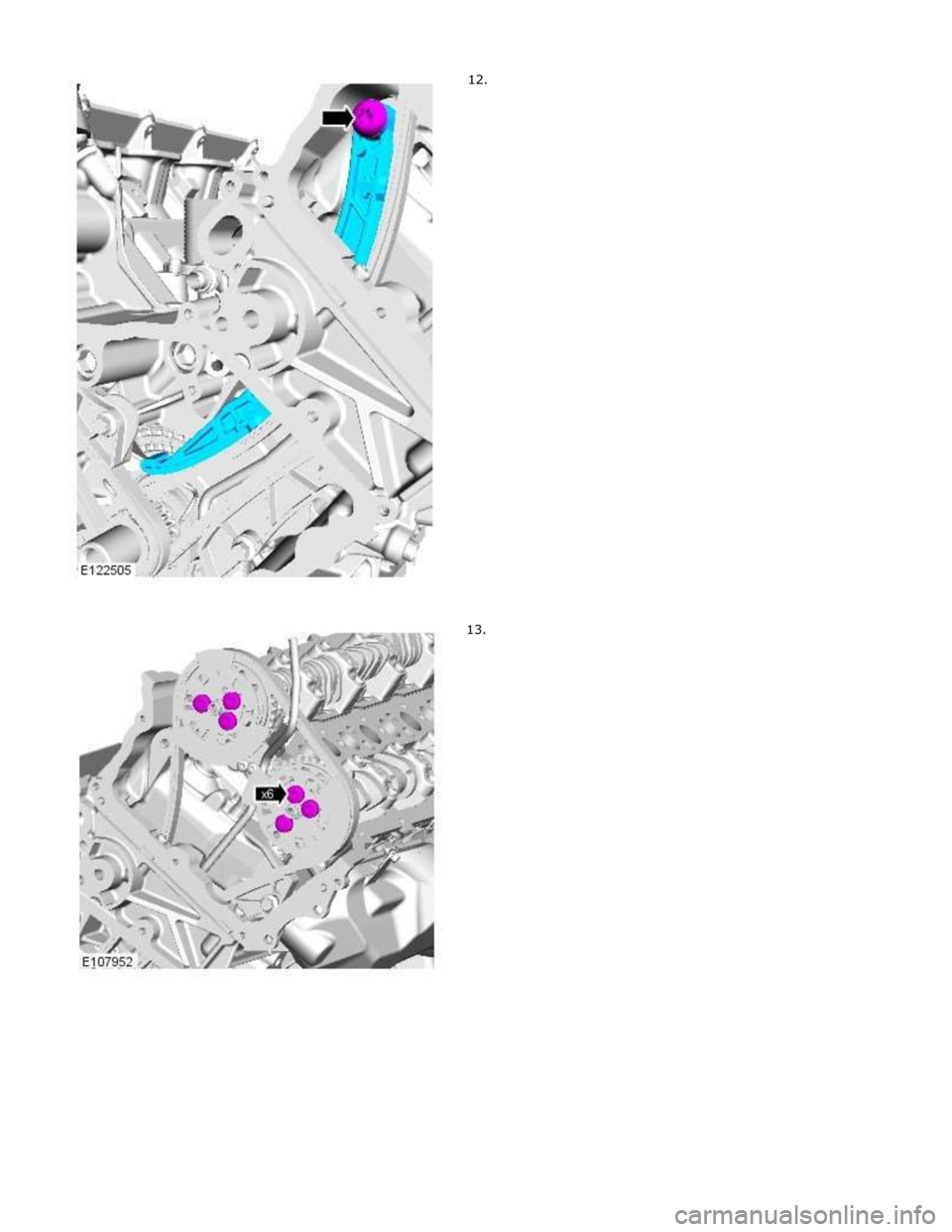

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. CAUTION: If the variable valve timing (VVT) units are knocked or dropped then the VVT must be replaced. Remove the timi

Page 1037 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1038 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 14. 15. CAUTION: If the VVT is knocked or dropped then the VVT must be replaced. Remove the timing chain with the VVT units.

Page 1039 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 16. CAUTION: Discard the friction washer. 1. CAUTION: Install a new friction washer.

Page 1040 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 2. Torque: 12 Nm 3. Install the special tool to each Camshaft. Special Tool(s): 303-1452 Torque: 10 Nm 4. Carefully rotate the camshafts if the position is not
