Body wiring harness / connectors
Door wiring harness / connectors
Alarm control module
Central junction box (CJB)
Door Latch ajar switch
To investigate the functioning of the door ajar switch contained within the door latch, to prove or eliminate the door
latch mounted door ajar switch as the root cause, follow the process below. This will prevent the unnecessary replacement of
a correctly functioning door latch 1 Remove door trim from door 2 Disconnect door harness from latch for access to connector pins for latch electrical testing 3 Inspect latch module for any visual damage NOTES:
Figure 1 - Unlatched position shown
Figure 2 - First safety latched position shown
Figure 3 - Fully latched position shown
Test will not work if latch is only in first safety latch position 4 Using a small screw driver or similar, rotate latch claw to the second fully latched position (figure 3)
5 Carry out continuity test between terminals 1 and 4 (left side) or 8 and 4 (right side) with claw closed Does the continuity test pass? Yes
The latch ajar switch is working correctly. Do not replace latch.
Investigate for fault elsewhere in vehicle system
Page 2506 of 3039
No
Release latch claw and repeat test from step 4 to confirm
result. If this is a repeat test and you are sure that the ajar
switch does not provide continuity when fully latched. Replace
the latch. If replacing latch as part of a warranty claim, please
quote reference code AJARINOP in the technician comments
section of the warranty claim
Page 2507 of 3039
Published: 11-May-2011
Handles, Locks, Latches and Entry Systems - Door Lock Cylinder Cover
Removal and Installation
Removal
1. CAUTION: Make sure that excessive force is not used.
Failure to follow this instruction may result in damage to
the vehicle.
2.
Page 2508 of 3039
3.

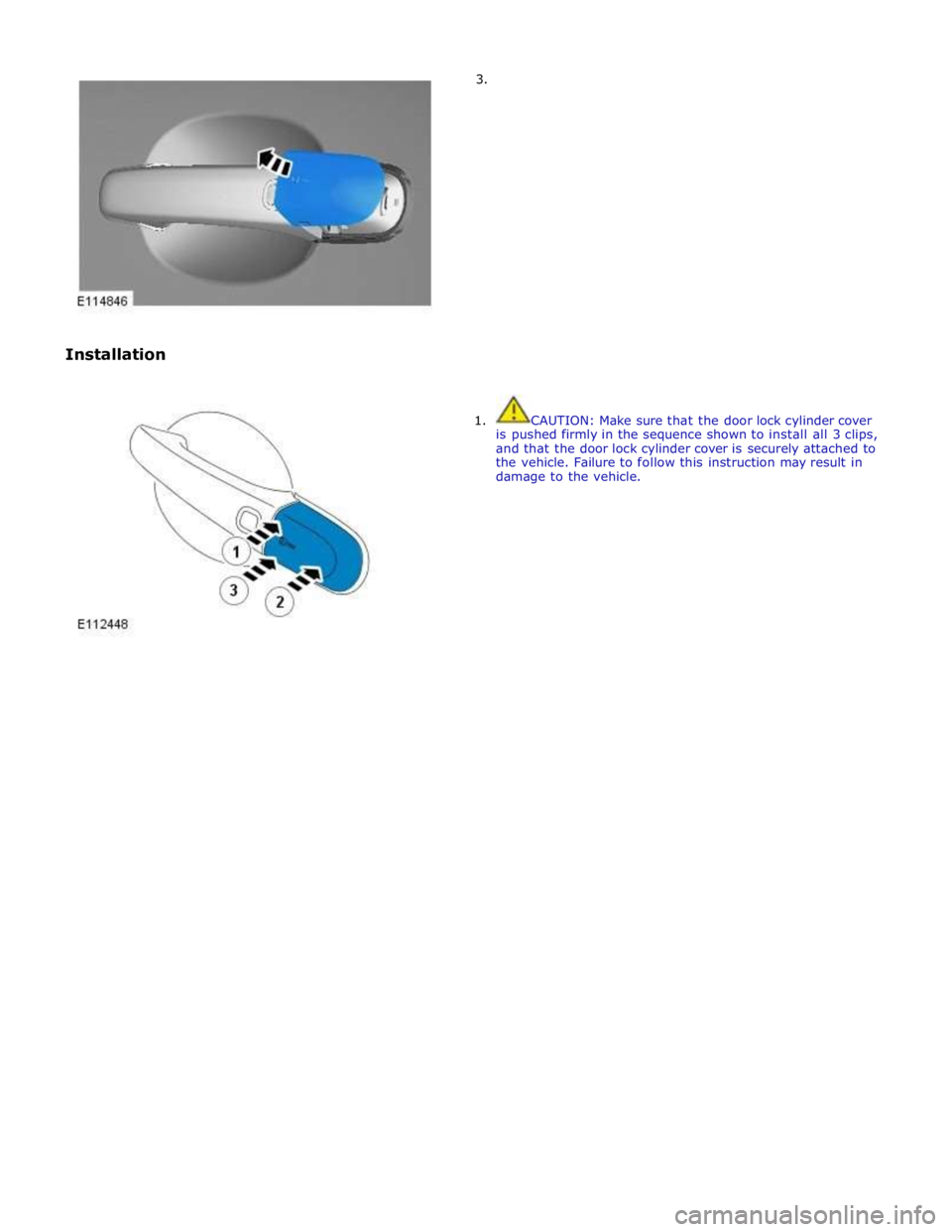

Installation
1. CAUTION: Make sure that the door lock cylinder cover
is pushed firmly in the sequence shown to install all 3 clips,
and that the door lock cylinder cover is securely attached to
the vehicle. Failure to follow this instruction may result in
damage to the vehicle.
Page 2509 of 3039
Published: 11-May-2011
Handles, Locks, Latches and Entry Systems - Exterior Front Door Handle
Removal and Installation

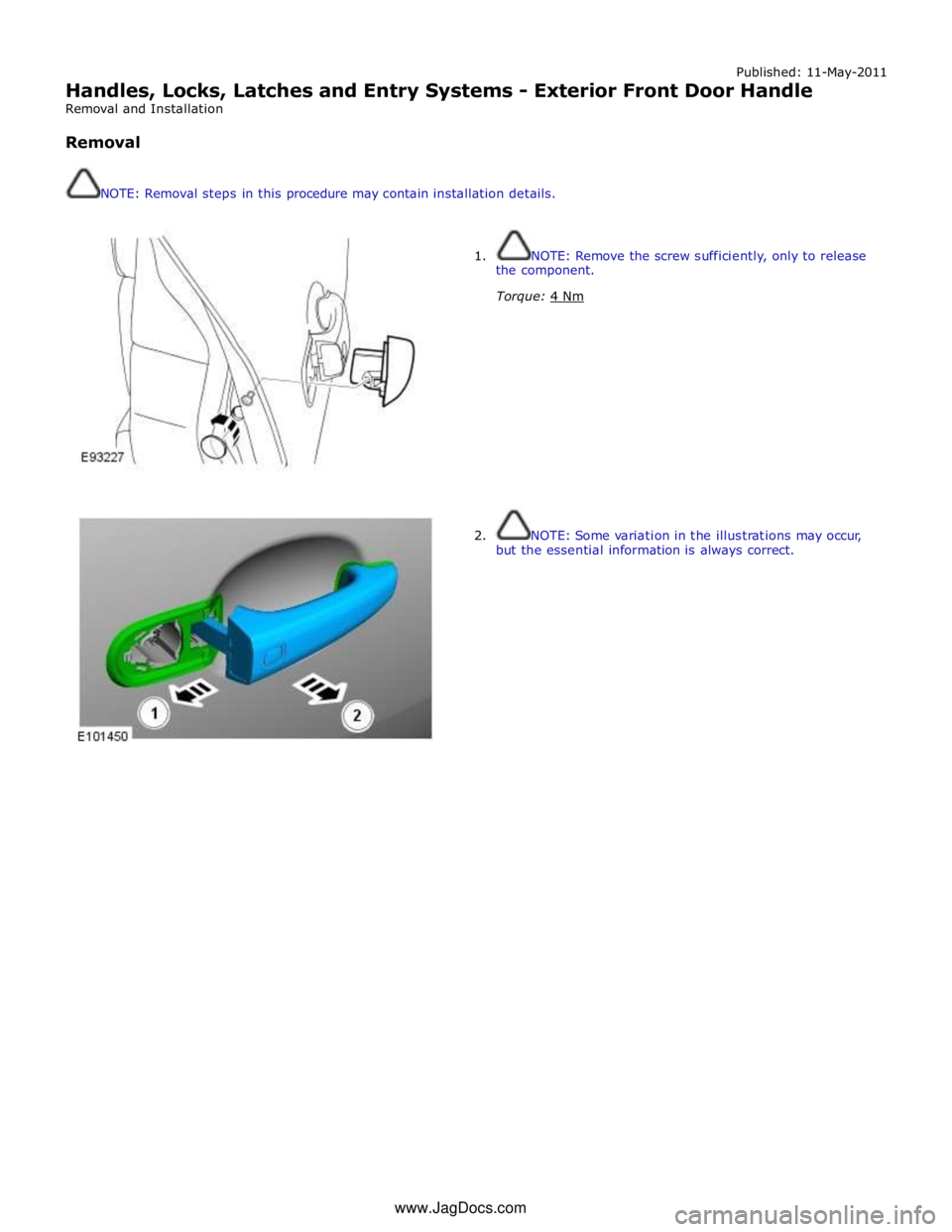

Removal
NOTE: Removal steps in this procedure may contain installation details.
1. NOTE: Remove the screw sufficiently, only to release
the component.
Torque: 4 Nm
2. NOTE: Some variation in the illustrations may occur,
but the essential information is always correct. www.JagDocs.com
Page 2510 of 3039

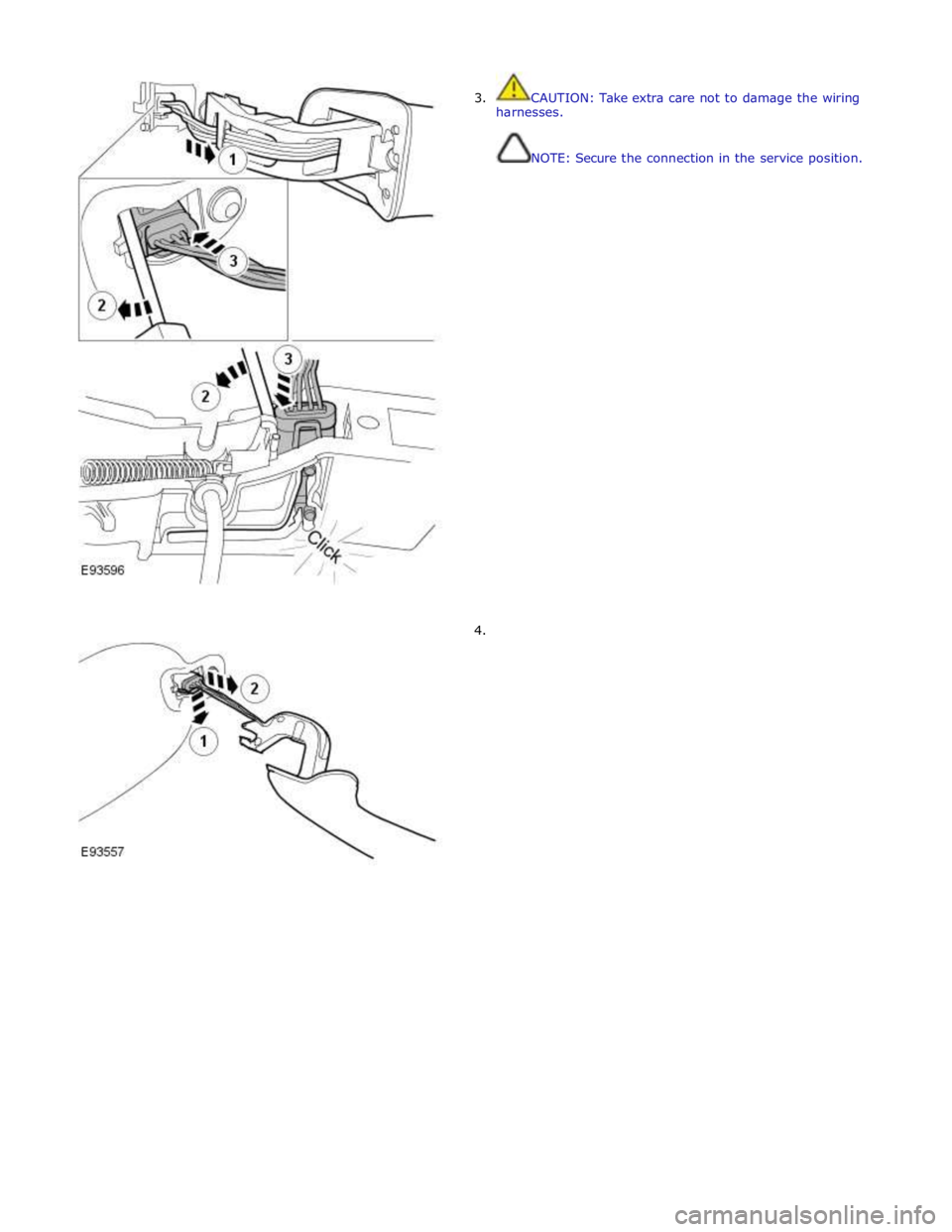

3. CAUTION: Take extra care not to damage the wiring
harnesses.
NOTE: Secure the connection in the service position.
4.
Page 2511 of 3039

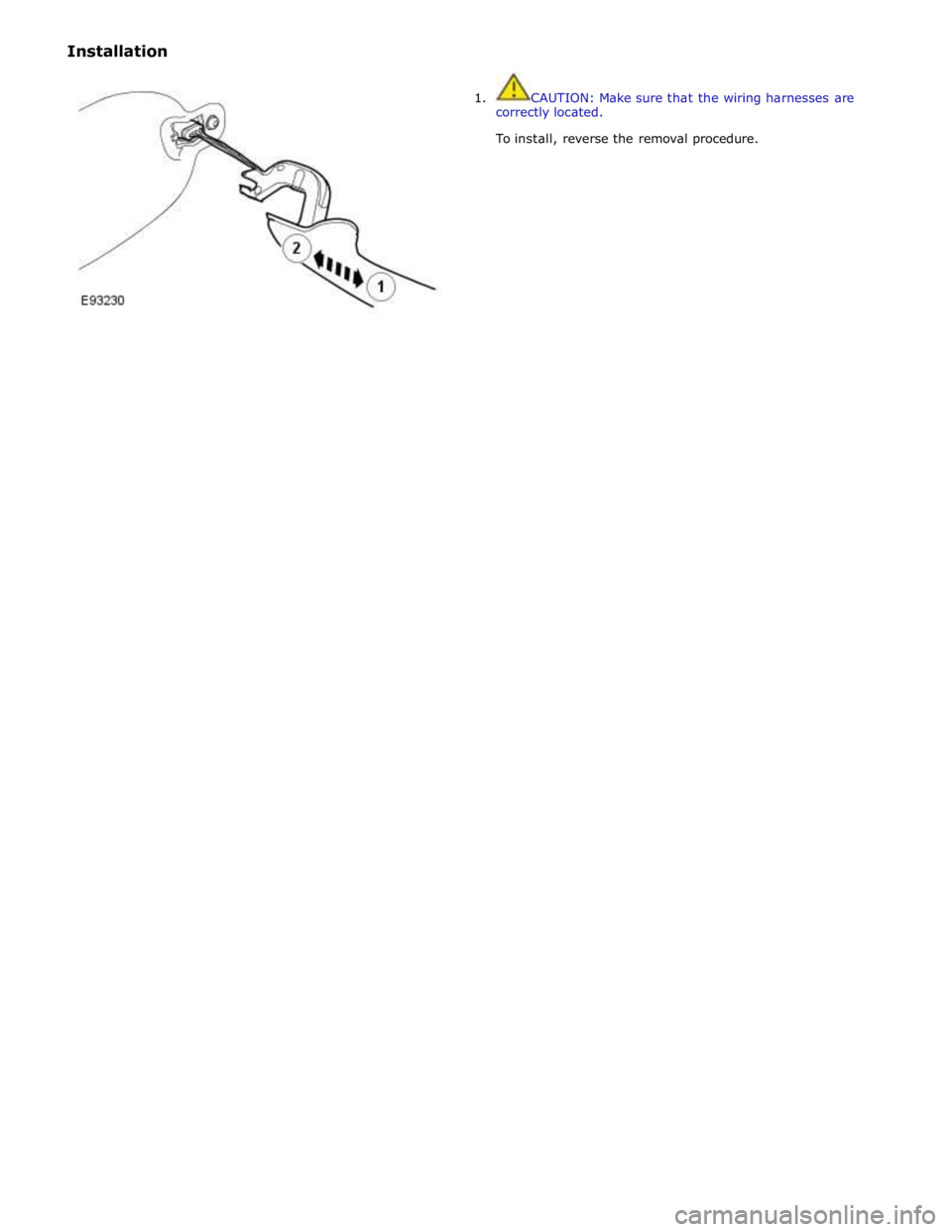

Installation
1. CAUTION: Make sure that the wiring harnesses are
correctly located.
To install, reverse the removal procedure.
Page 2512 of 3039
Published: 11-May-2011
Handles, Locks, Latches and Entry Systems - Exterior Luggage Compartment Lid Release Switch
Removal and Installation

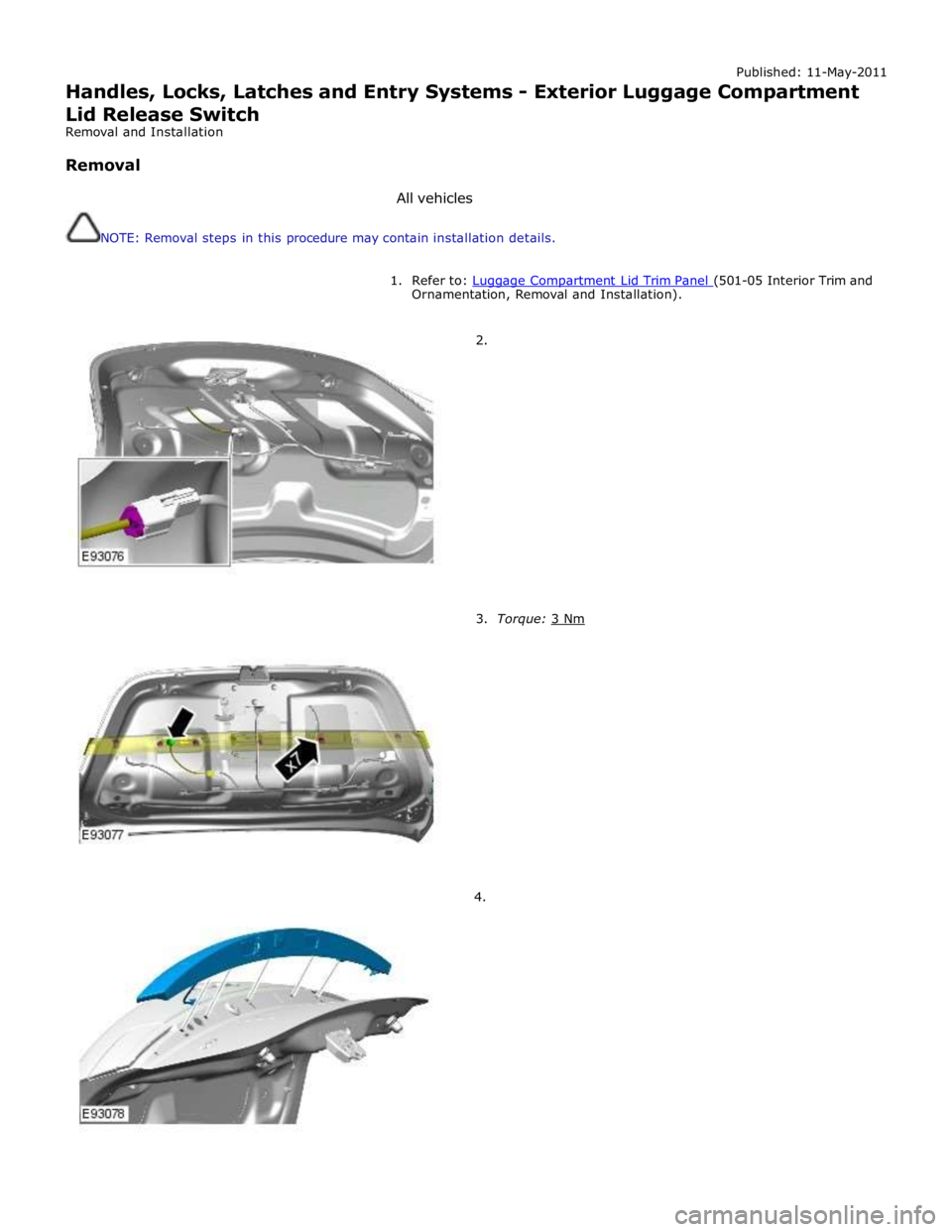

Removal
All vehicles
NOTE: Removal steps in this procedure may contain installation details.
1. Refer to: Luggage Compartment Lid Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
2.
3. Torque: 3 Nm 4.
