JAGUAR XFR 2010 1.G Workshop Manual

Page 2242 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Interior Trim and Ornamentation - Cowl Side Trim Panel Removal and Installation Removal Published: 11-May-2011 1. Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentatio

Page 2243 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2244 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Interior Trim and Ornamentation - Engine Cover V8 5.0L Petrol/V8 S/C 5.0L Petrol Removal and Installation Removal NOTE: Removal steps in this procedure may contain in

Page 2245 of 3039

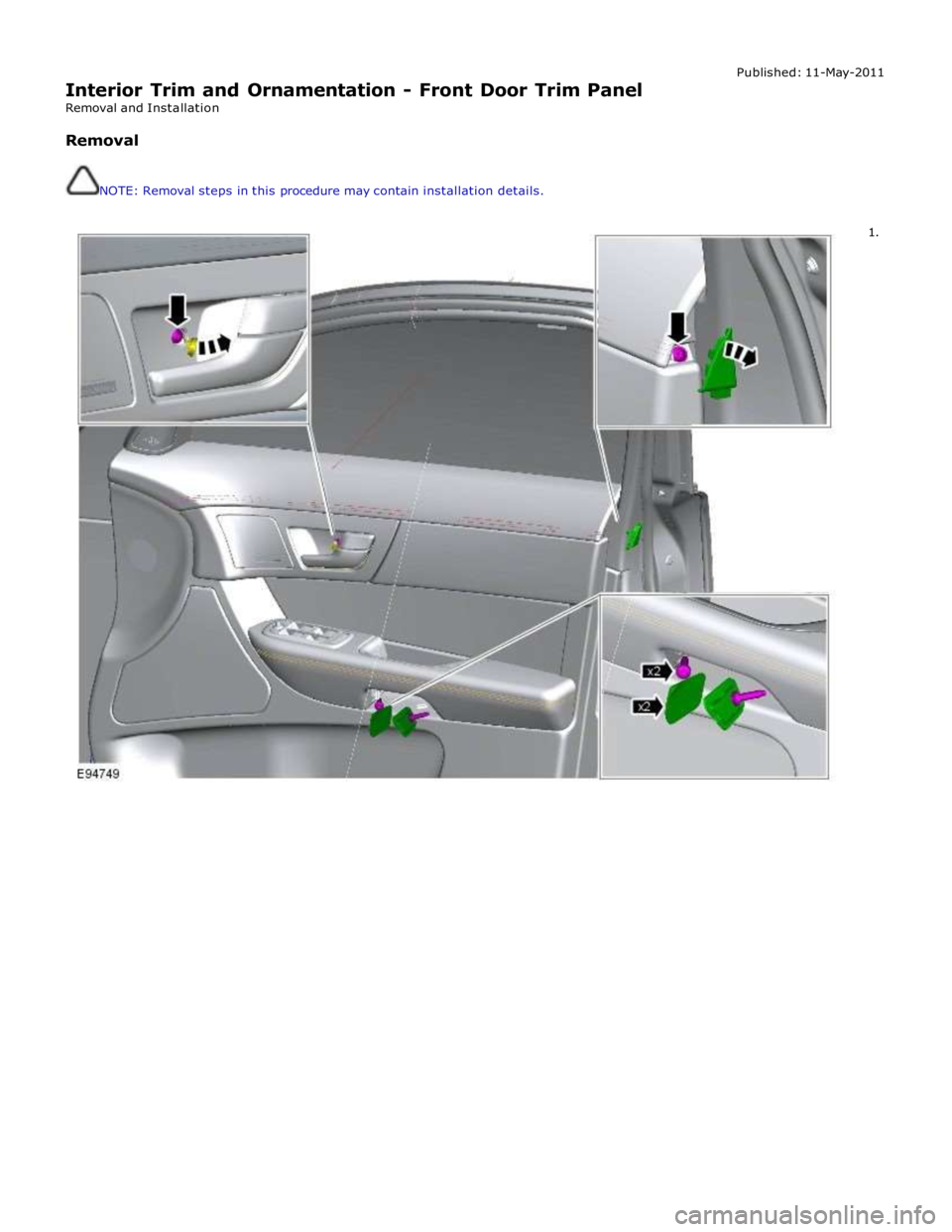

JAGUAR XFR 2010 1.G Workshop Manual Interior Trim and Ornamentation - Front Door Trim Panel Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011 1.

Page 2246 of 3039

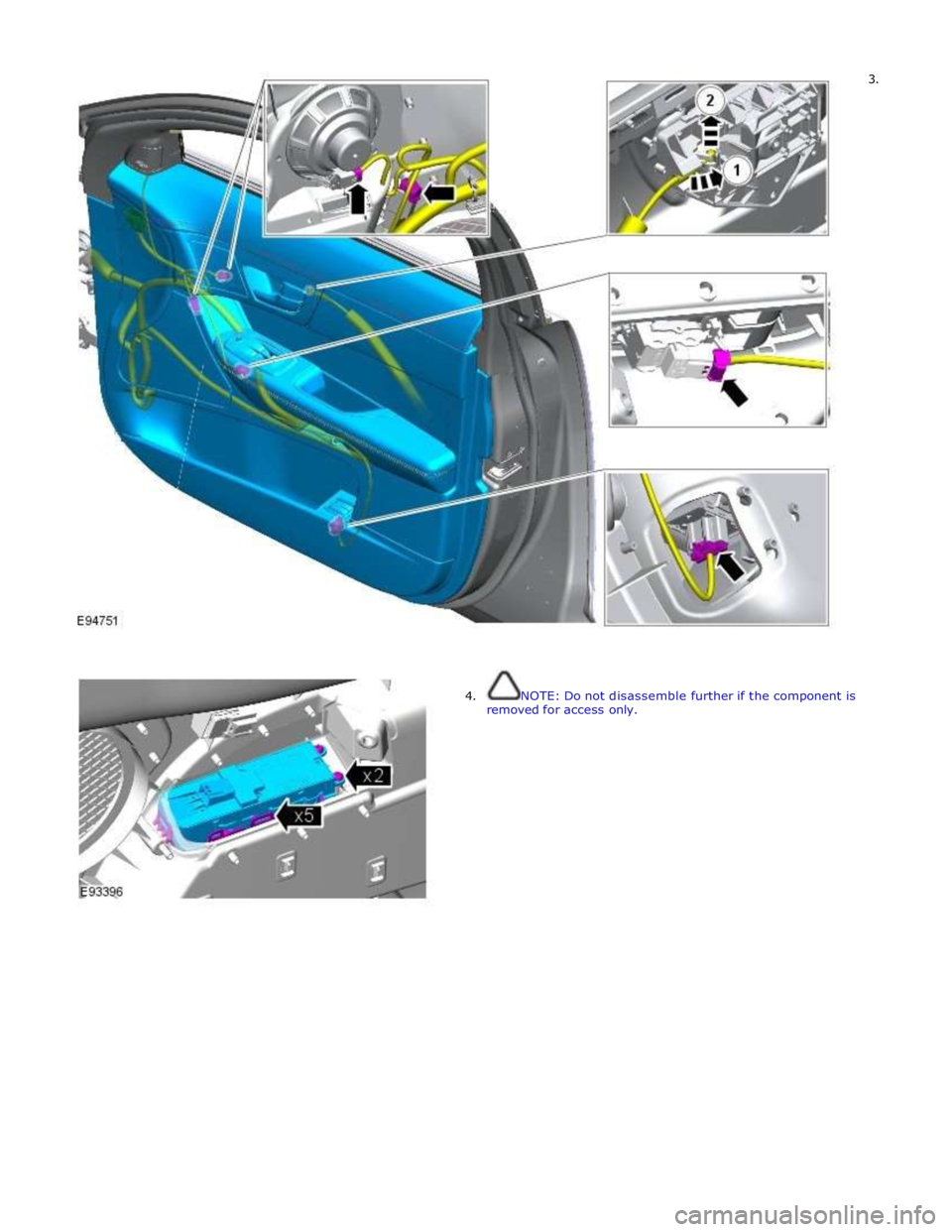

JAGUAR XFR 2010 1.G Workshop Manual 2. X13 E94750

Page 2247 of 3039

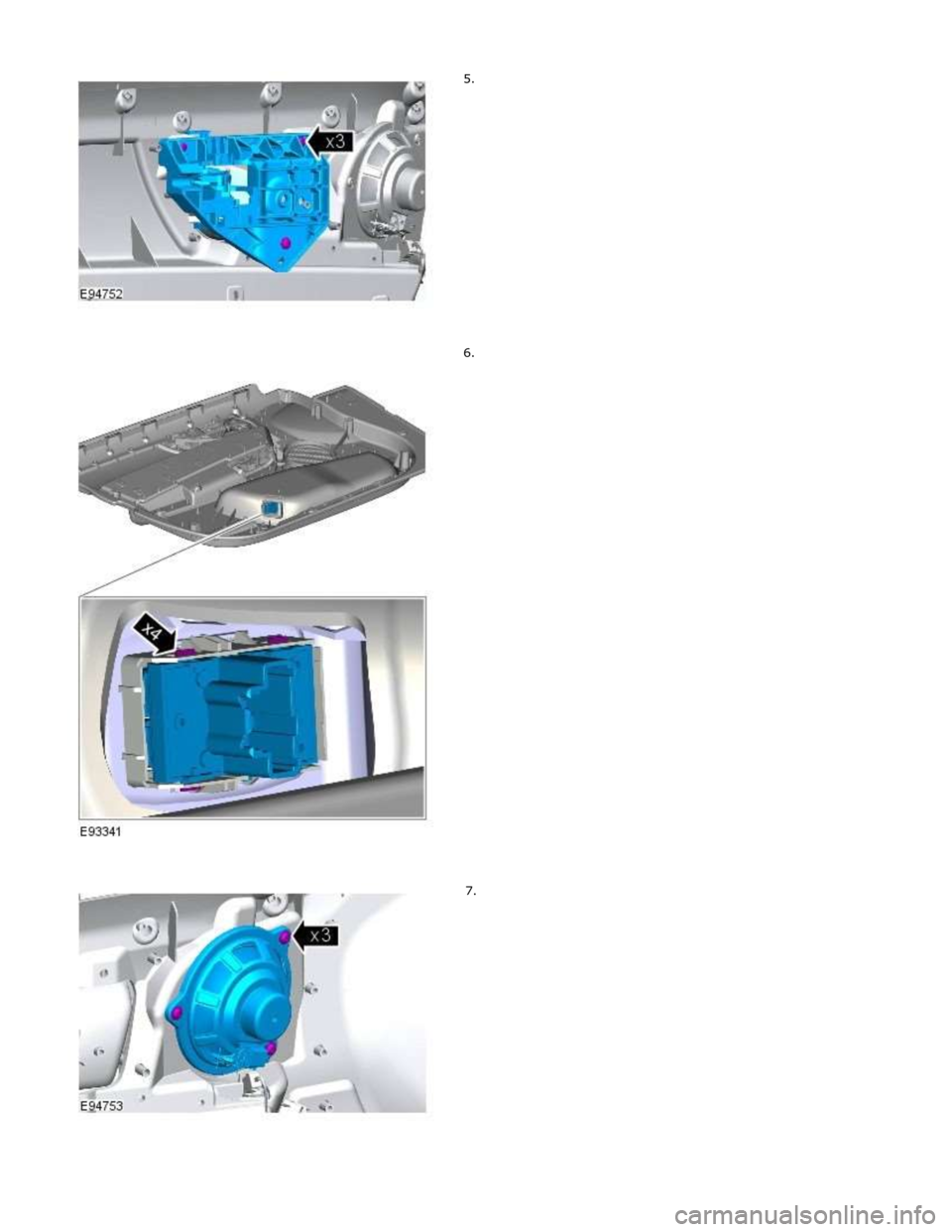

JAGUAR XFR 2010 1.G Workshop Manual 3. 4. NOTE: Do not disassemble further if the component is removed for access only.

Page 2248 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
