Page 1193 of 3039

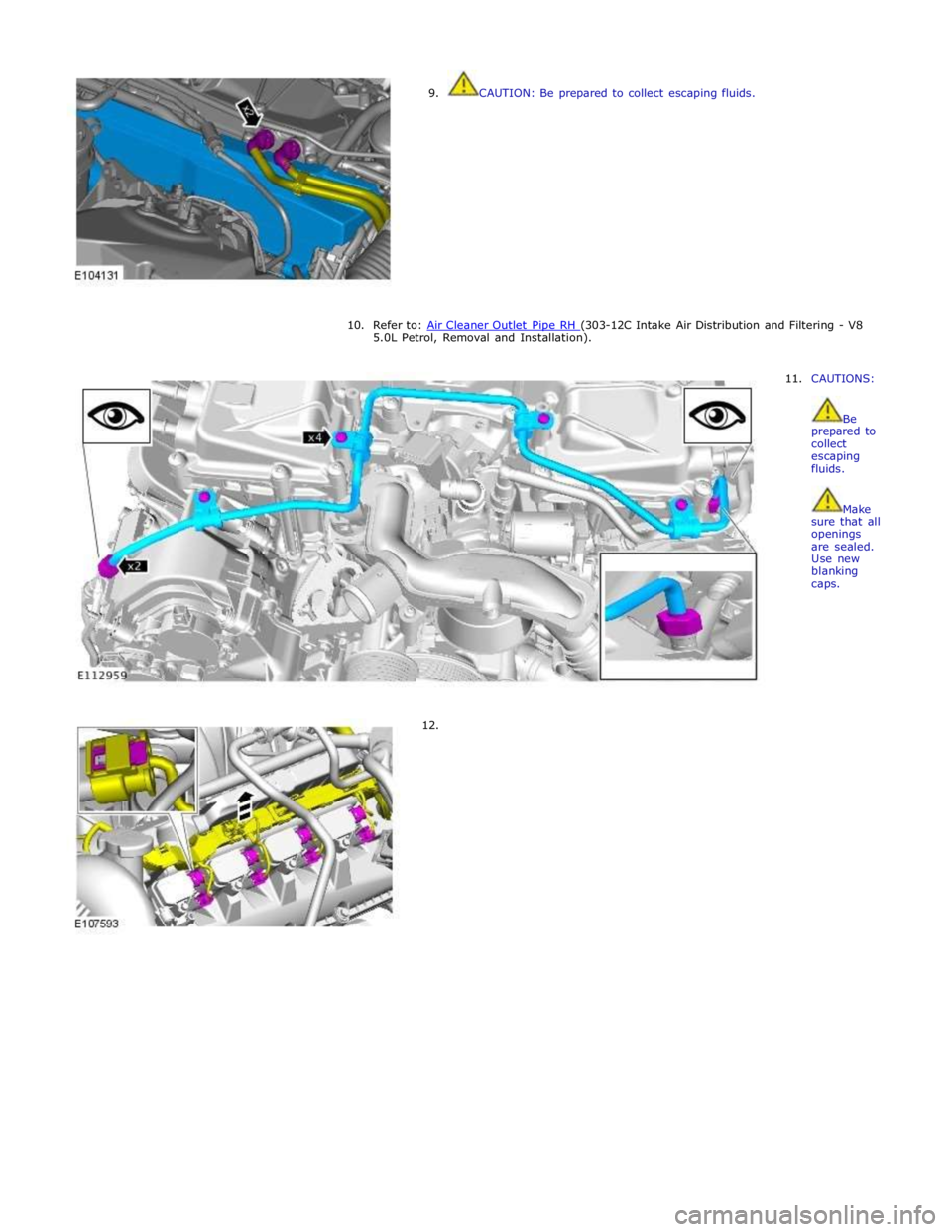

JAGUAR XFR 2010 1.G Workshop Manual 9. CAUTION: Be prepared to collect escaping fluids. 10. Refer to: Air Cleaner Outlet Pipe RH (303-12C Intake Air Distribution and Filtering - V8 5.0L Petrol, Removal and Inst

Page 1194 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 13. 14. 15. NOTE: RH shown LH similar. Special Tool(s): 303-1450 CAUTION: Make a note of the fuel i

Page 1195 of 3039

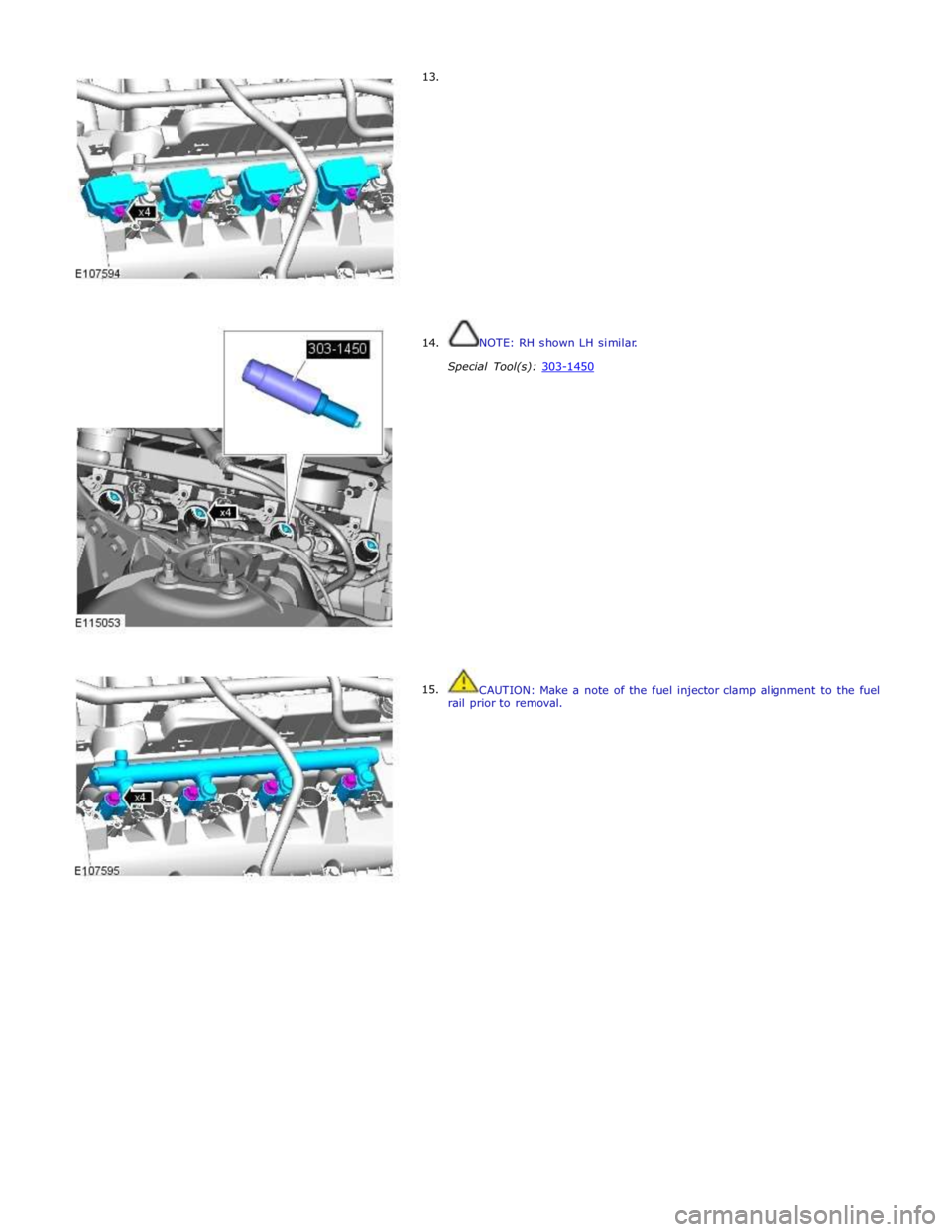

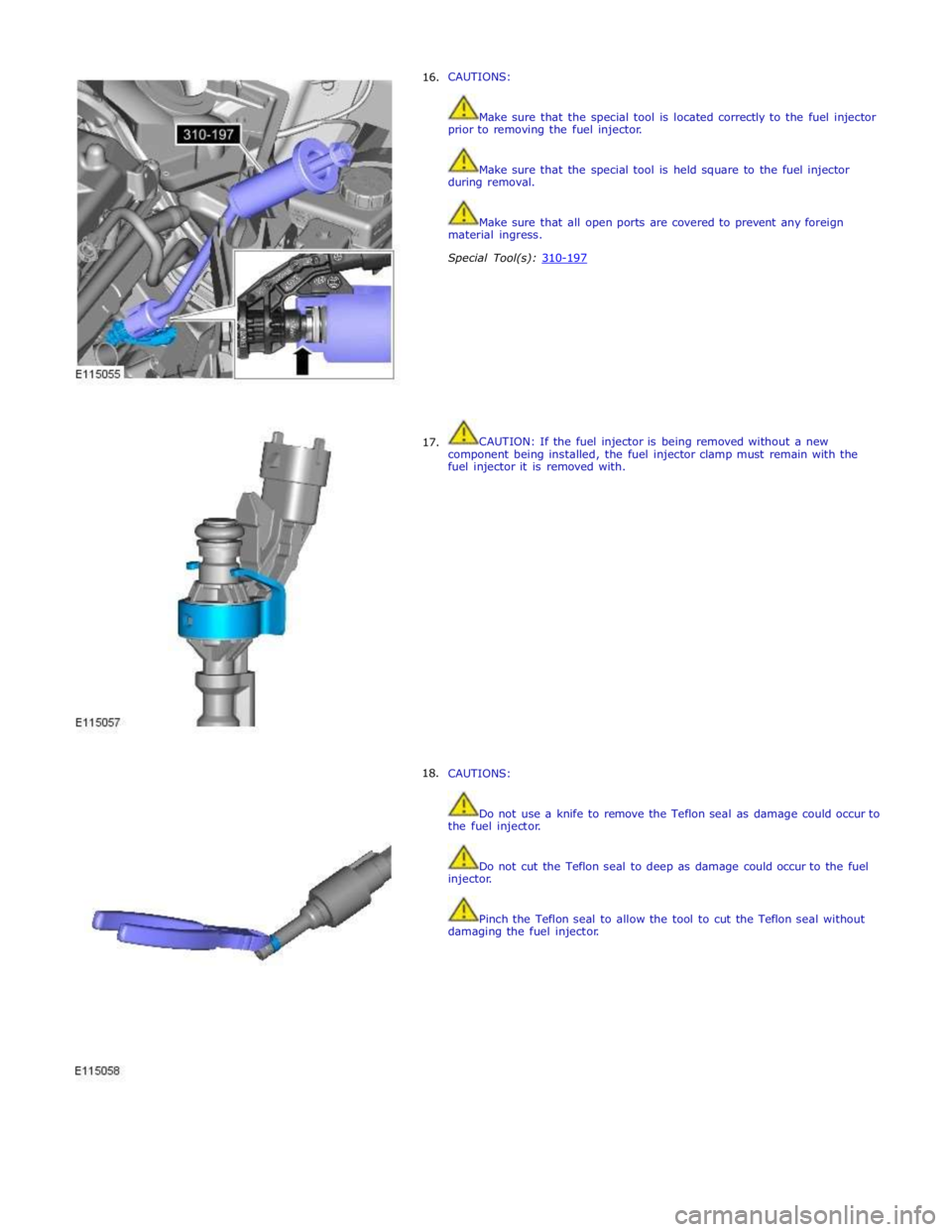

JAGUAR XFR 2010 1.G Workshop Manual 16. 17. 18. CAUTIONS: Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector. Make sure that the special tool is held squa

Page 1196 of 3039

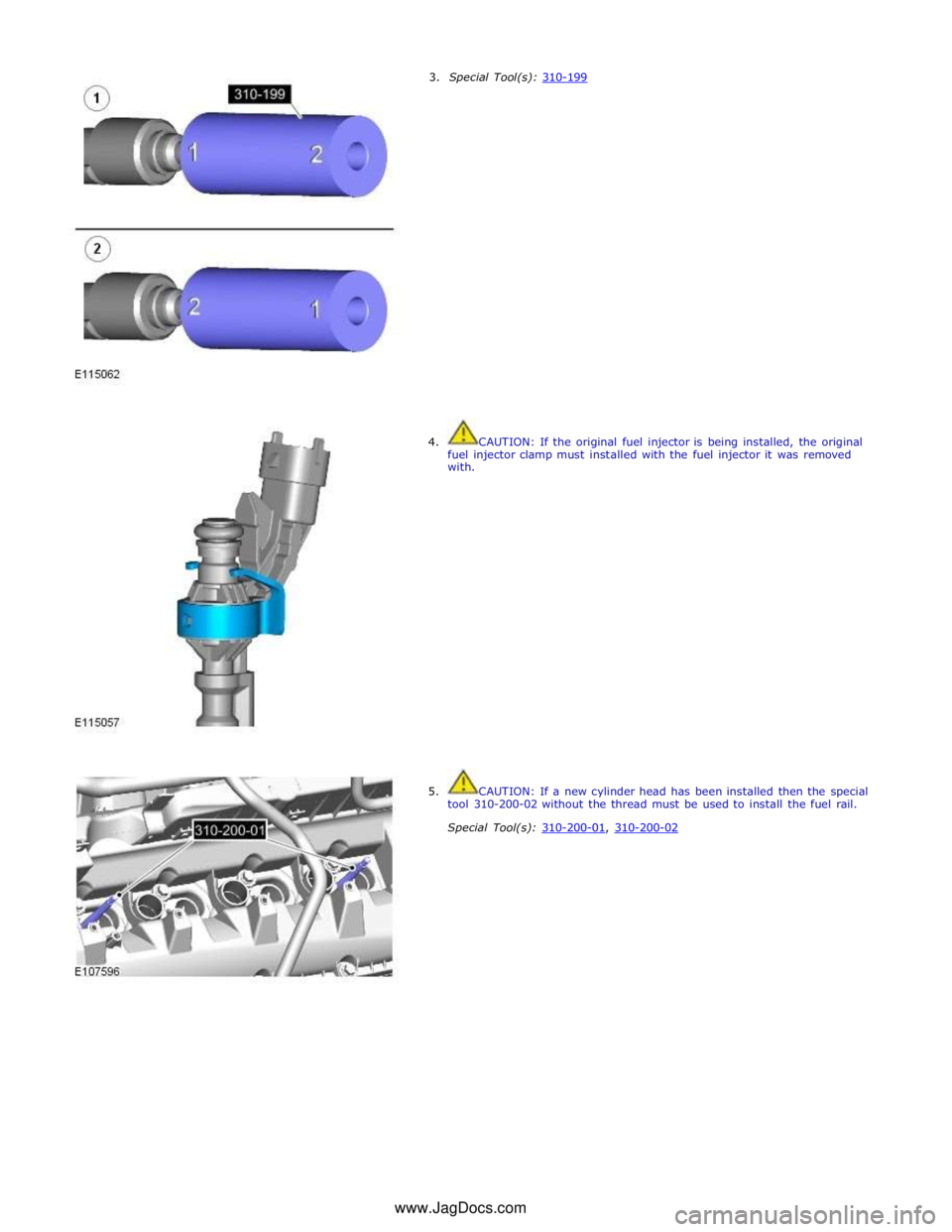

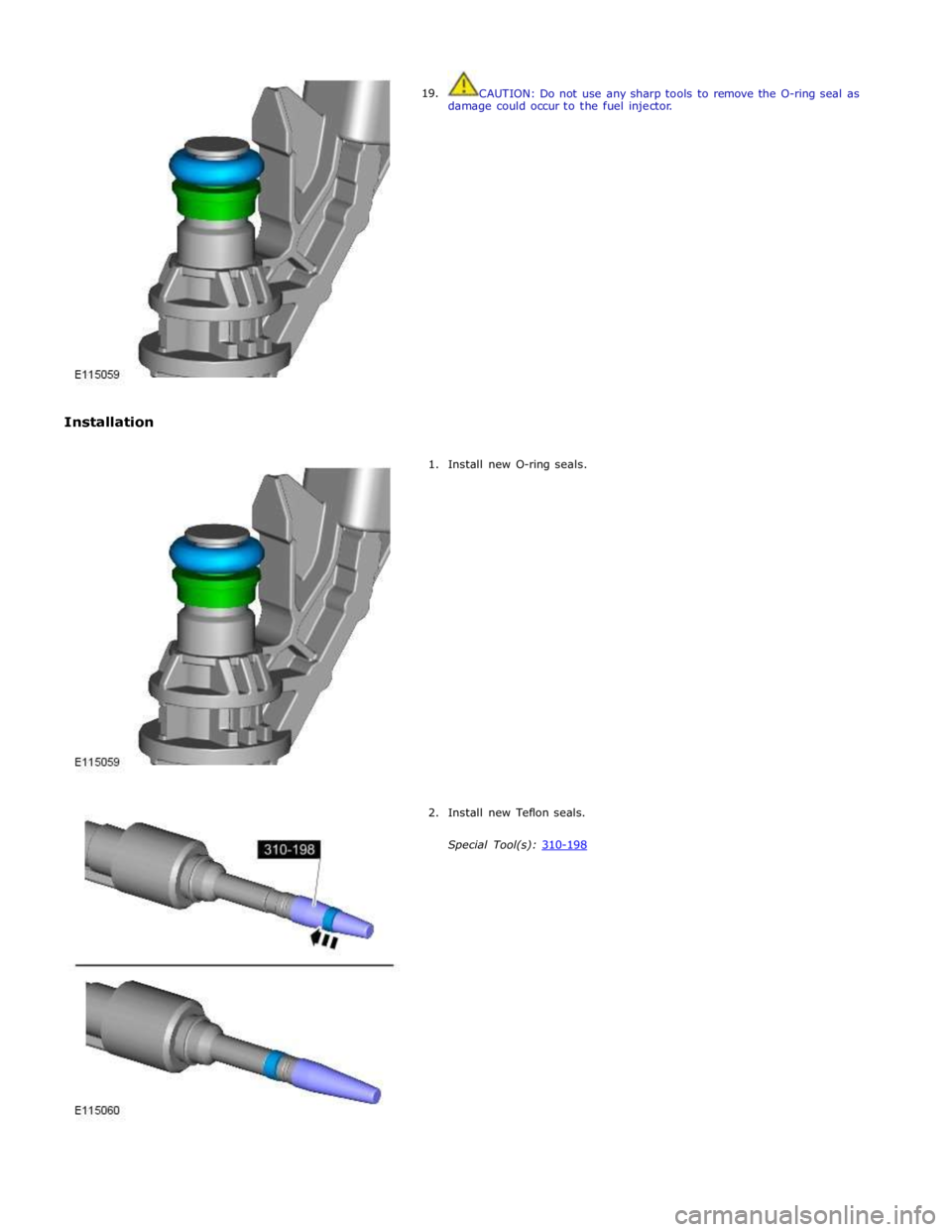

JAGUAR XFR 2010 1.G Workshop Manual Installation 19. 1. 2. CAUTION: Do not use any sharp tools to remove the O-ring sea

Page 1197 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 4. CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.

Page 1198 of 3039

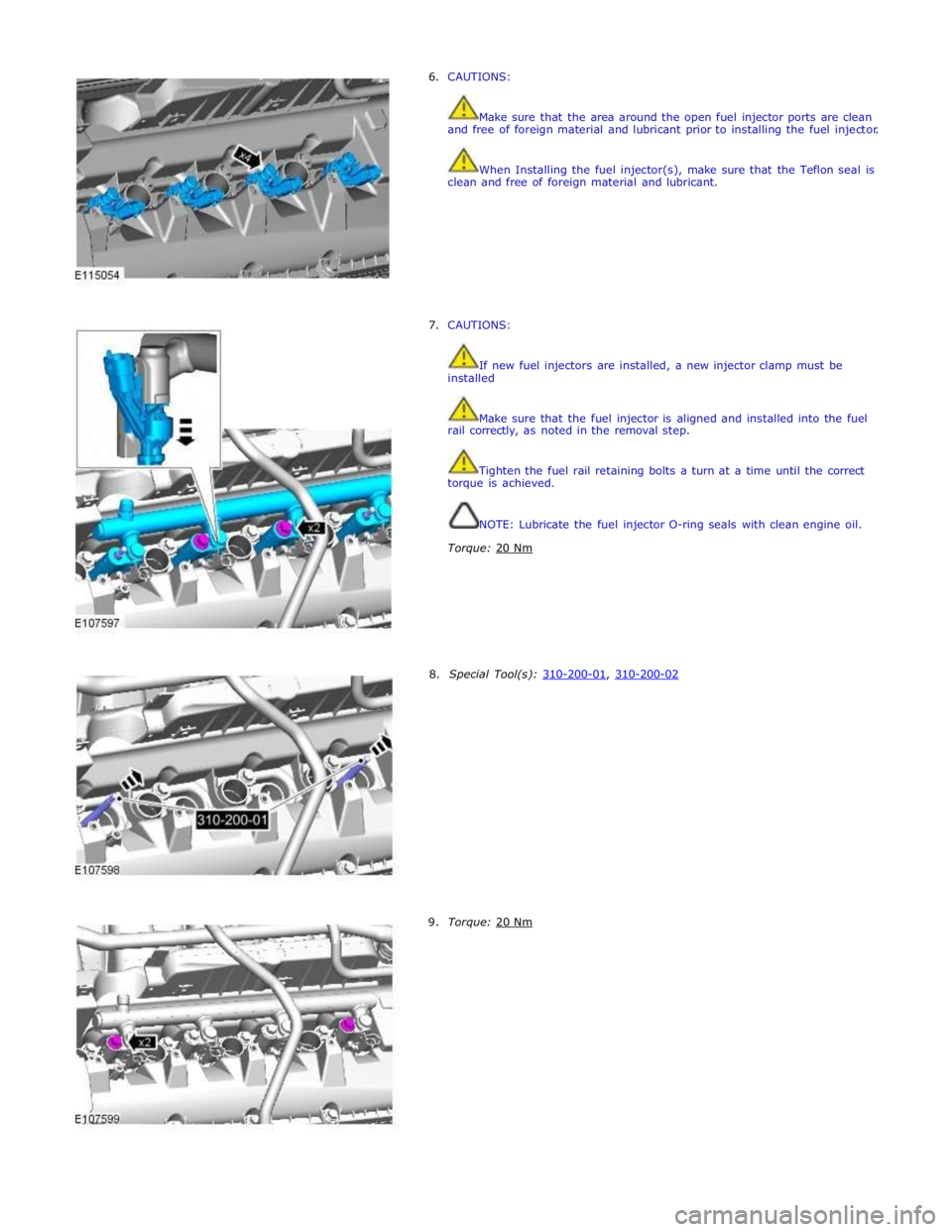

JAGUAR XFR 2010 1.G Workshop Manual 6. CAUTIONS: Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector. When Installing the fuel

Page 1199 of 3039

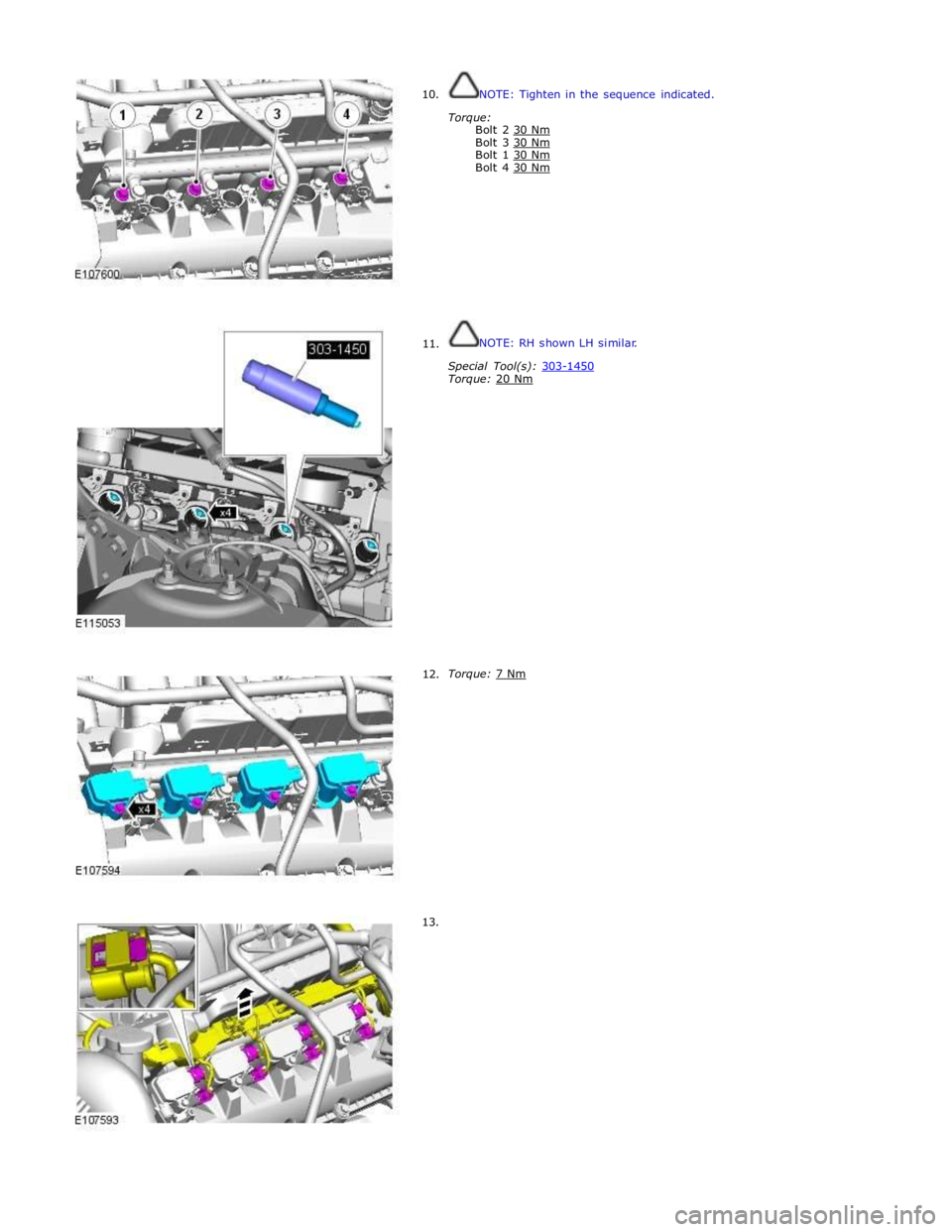

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. 12. 13. NOTE: Tighten in the sequence indicated. Torque: Bolt 2 30 Nm Bolt 3 30 Nm Bolt 1 30 Nm Bolt 4 30 Nm NOTE: RH

Page 1200 of 3039

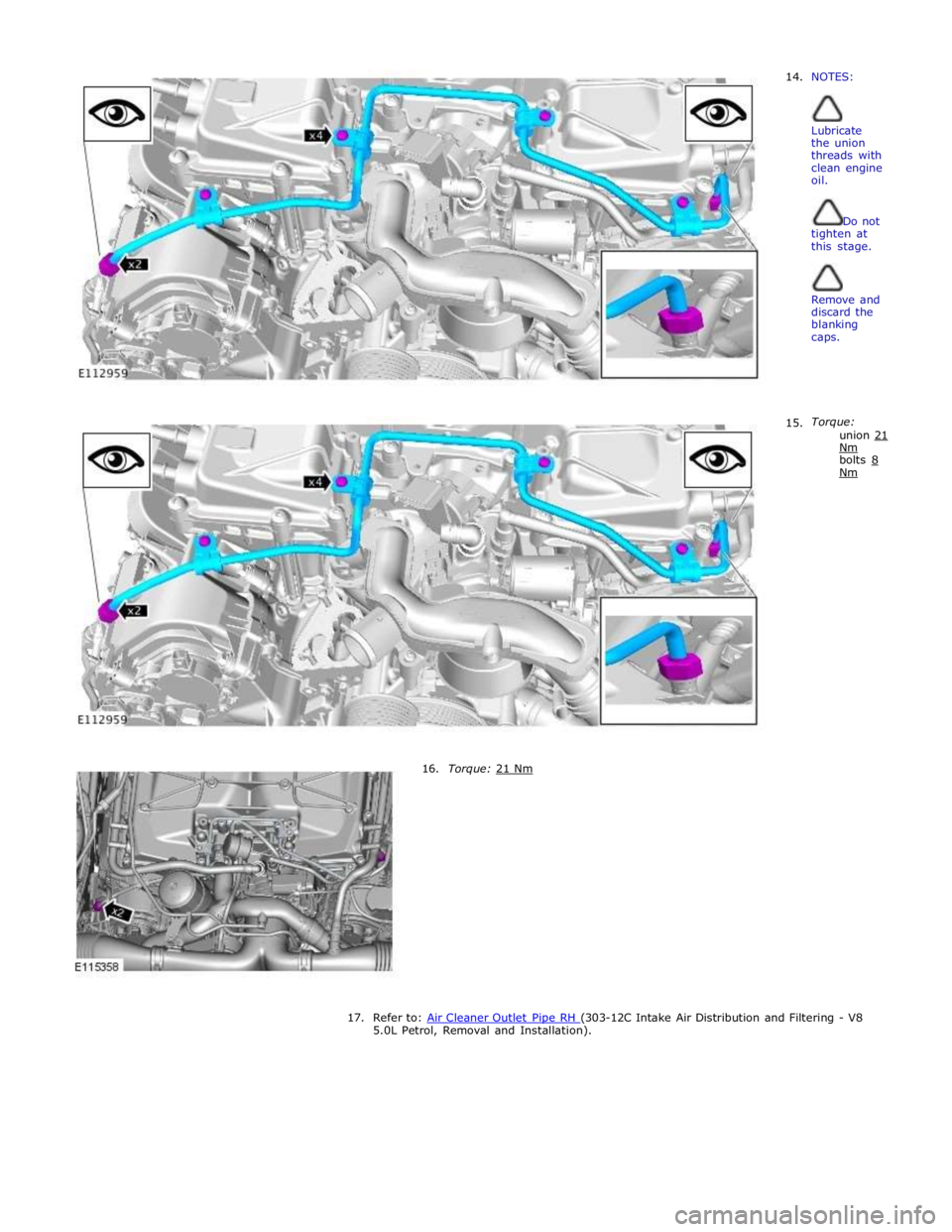

JAGUAR XFR 2010 1.G Workshop Manual 14. 15. NOTES: Lubricate the union threads with clean engine oil. Do not tighten at this stage. Remove and discard the blanking caps. Torque: union 21 Nm bolt
