Page 1905 of 3039

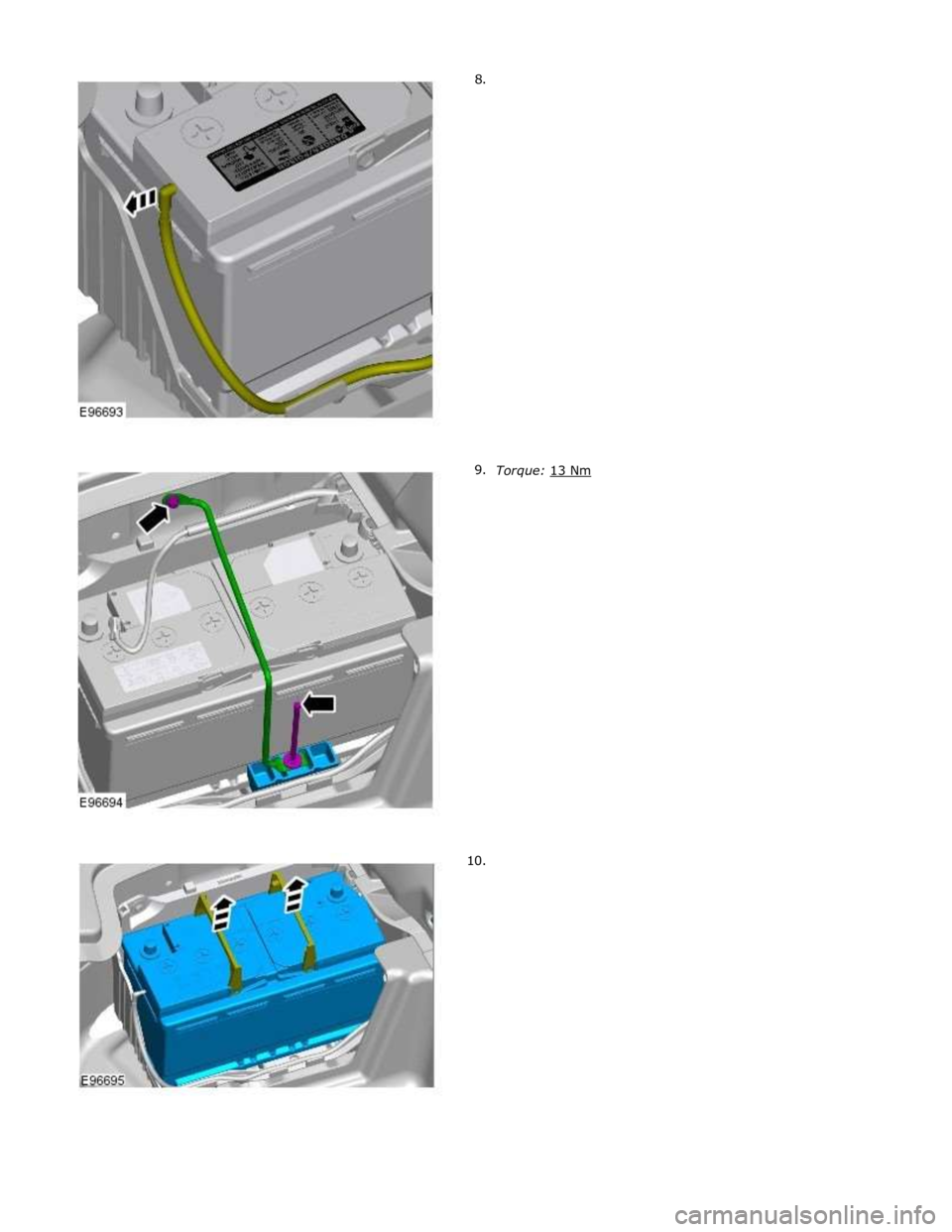

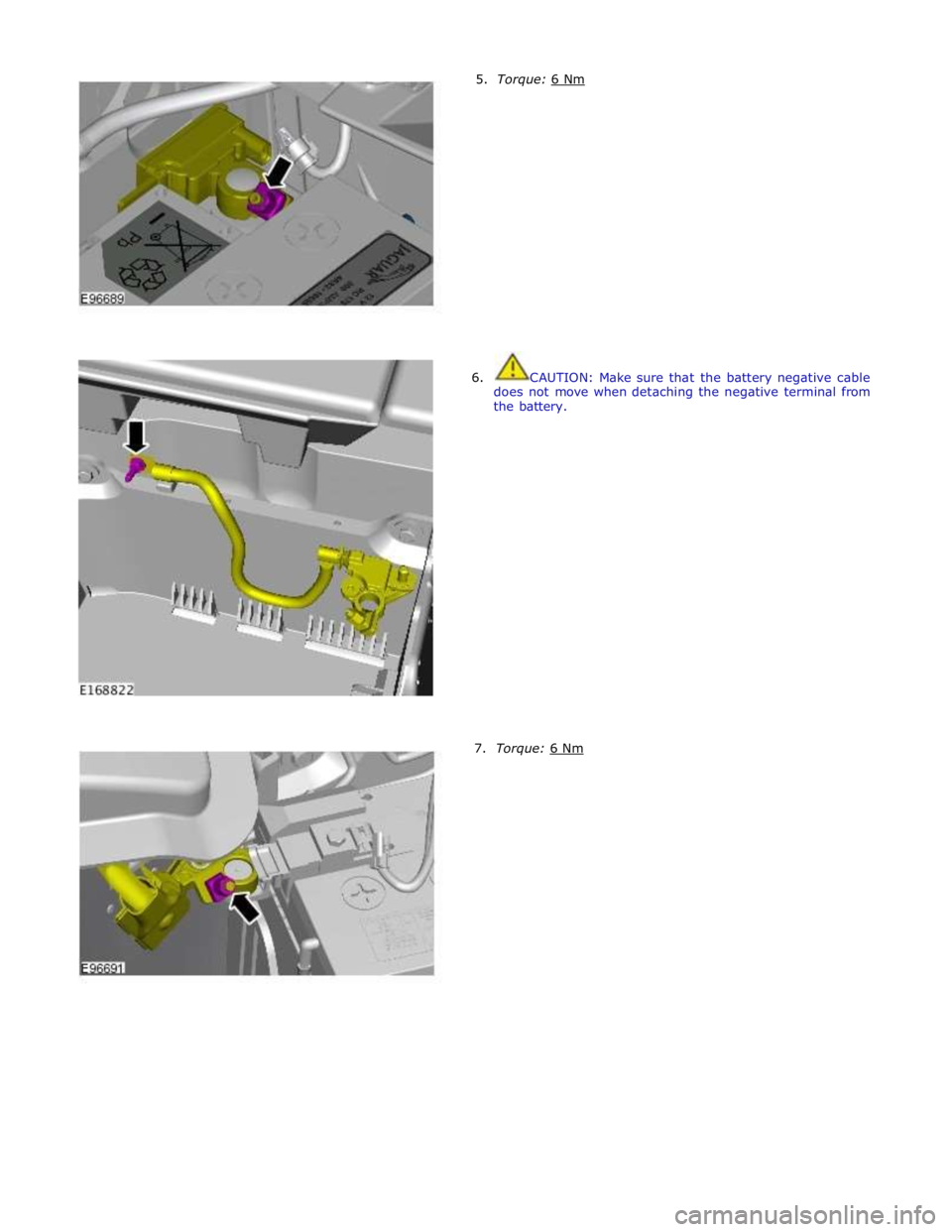

6. CAUTION: Make sure that the battery negative cable
does not move when detaching the negative terminal from
the battery.
7. Torque: 6 Nm
Page 1906 of 3039
Page 1907 of 3039
Installation
1. CAUTION: Make sure that the battery negative cable
to the body retaining bolt is not loose and fully tightened.
Torque: 9 Nm
2. NOTE: Make sure that both the positive and negative battery
terminals are correctly located.
To install, reverse the removal procedure.
3. NOTE: This step is only necessary when installing a new
component.
Using the Jaguar approved diagnostic equipment, reset the battery
monitoring system.
4. Refer to: Door Window Motor Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
5. Enter the audio unit preset radio frequencies.
6. Reset the clock to the correct time.
7. Start the engine and allow to idle until the engine reaches normal
operating temperature.
8. Switch the engine off. www.JagDocs.com
Page 1908 of 3039
Generator retaining bolts 47 35 - Battery positive cable retaining nut 12 9 -
Page 1909 of 3039
Page 1910 of 3039
Published: 11-May-2011

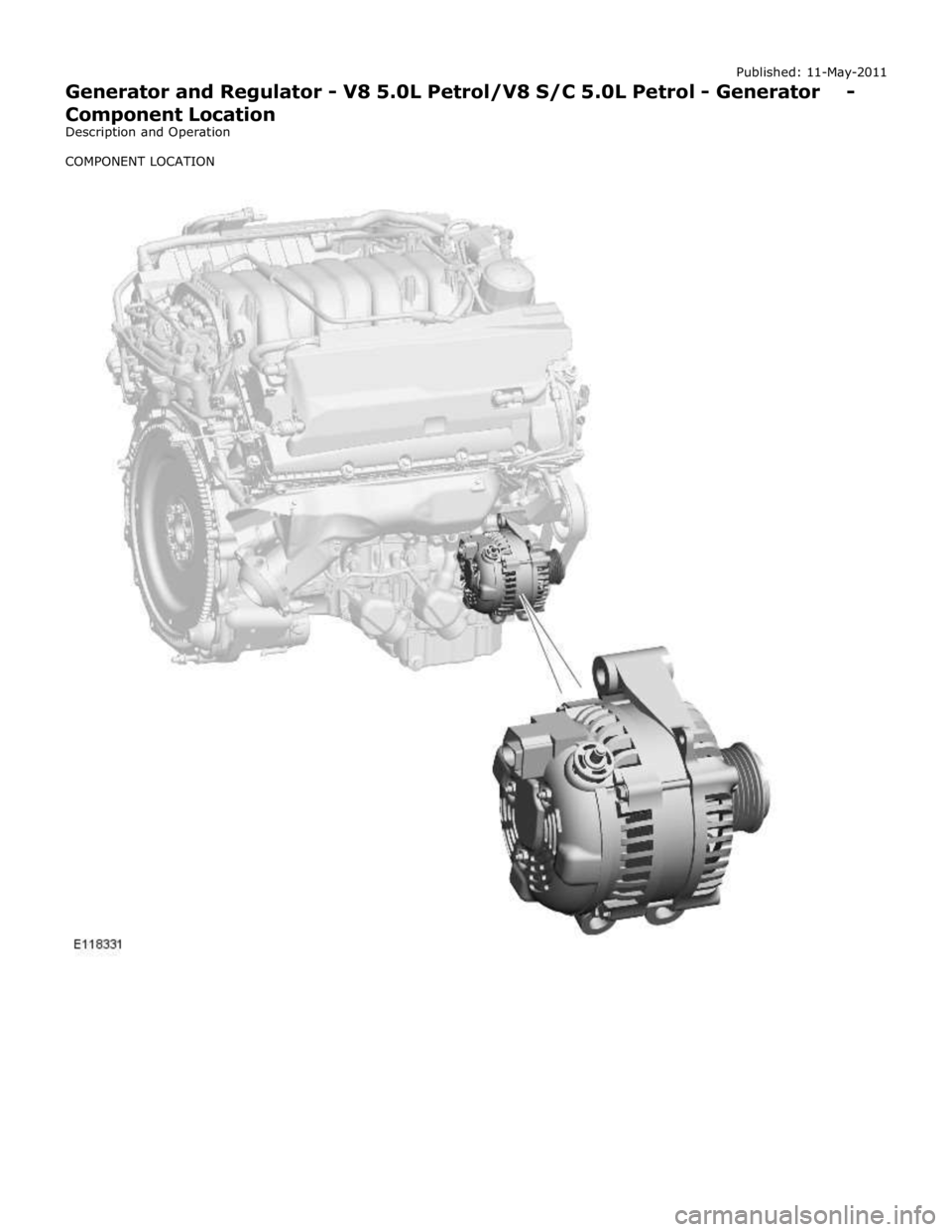

Generator and Regulator - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Generator - Overview
Description and Operation
OVERVIEW
On 5.0L V8 vehicles (naturally aspirated and supercharger), the charging system consists of a 150 Amp output generator and
regulator assembly. The generator and regulator assembly generates electrical power for the vehicle electrical system and
maintains the battery in a charged state.
When the engine is running the generator produces an alternating current, which is converted to a direct current internally. The
output from the generator is controlled by the voltage regulator (located inside the generator) and then supplied to the battery
through the main battery positive cable. The generator is mounted on the front right side of the engine and driven at
approximately 3 times engine speed by the accessory drive belt.
Page 1911 of 3039
Published: 11-May-2011
Generator and Regulator - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Generator - System Operation and Component Description
Description and Operation
Control Diagram
NOTE: A = Hardwired;
interconnect network) bus
D = High speed CAN (controller area network) bus; N = Medium speed CAN bus; O = LIN (local
Item Description 1 Battery monitoring system module 2 Battery 3 BJB (battery junction box) 4 Generator and regulator 5 ECM (engine control module) 6 Instrument cluster 7 RJB (rear junction box)
Page 1912 of 3039
transmits the calculated voltage to the generator and regulator on the LIN bus connection.
The ECM will over-ride the voltage value requested by the battery monitoring system if it detects a fault in the generator and regulator. The ECM also signals the instrument cluster to display a warning message if it detects a fault with the generator and regulator. For additionalinformation refer to Instrument Cluster 413-01.
GENERATOR AND REGULATOR Component Description
The regulator provides a controlled variable voltage output from the generator. Two electrical terminals are provided on the
outer casing of the generator. One terminal supplies the DC (direct current) voltage output from the generator to the battery
positive terminal. The second terminal provides the LIN bus connection between the regulator and the ECM. www.JagDocs.com
