Page 1313 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. 12. 13. CAUTION: Be prepared to collect escaping fluids.

Page 1314 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 14. 15. WARNINGS: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any

Page 1315 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Make sure that all openings are sealed. Use new blanking caps. 16. 17. 18. Torque: 10 Nm NOTE: Some variation in the illustrations may occur

Page 1316 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 21. NOTES: Install and lightly tighten bolts in sequence illustrated. Complete the tightening sequence. Remove and discard the gasket. Torque: 25 Nm www.JagDocs.com

Page 1317 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. To install, reverse the removal procedure. 2. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related

Page 1318 of 3039

JAGUAR XFR 2010 1.G Workshop Manual this stage. Remove and discard the blanking caps. 3. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related compon

Page 1319 of 3039

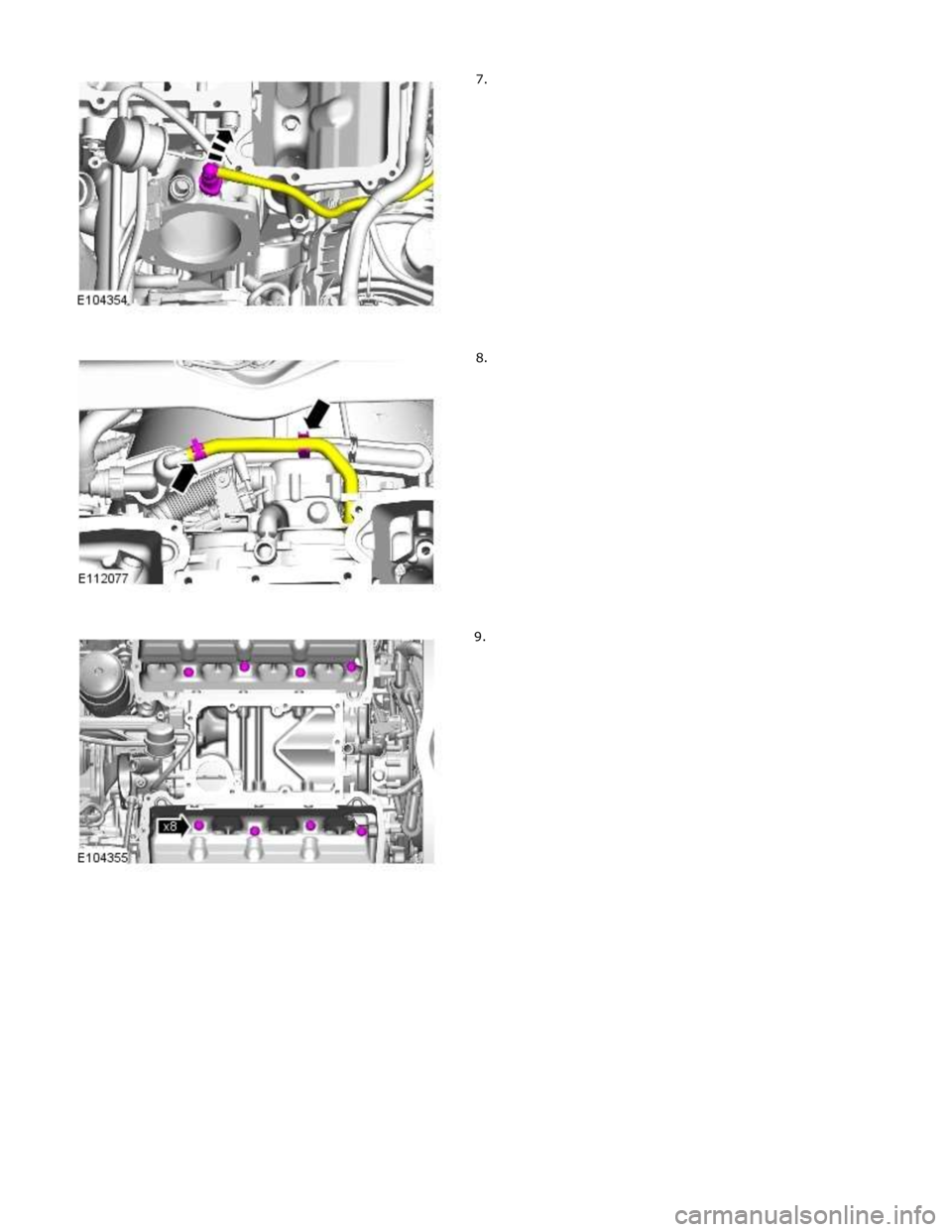

JAGUAR XFR 2010 1.G Workshop Manual Published: 30-Jan-2014 Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol - Supercharger Removal and Installation Special Tool(s) 303-1449-01 Supercharger Installation Guide Pins -

Page 1320 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
