JAGUAR XFR 2010 1.G Workshop Manual

Page 2762 of 3039

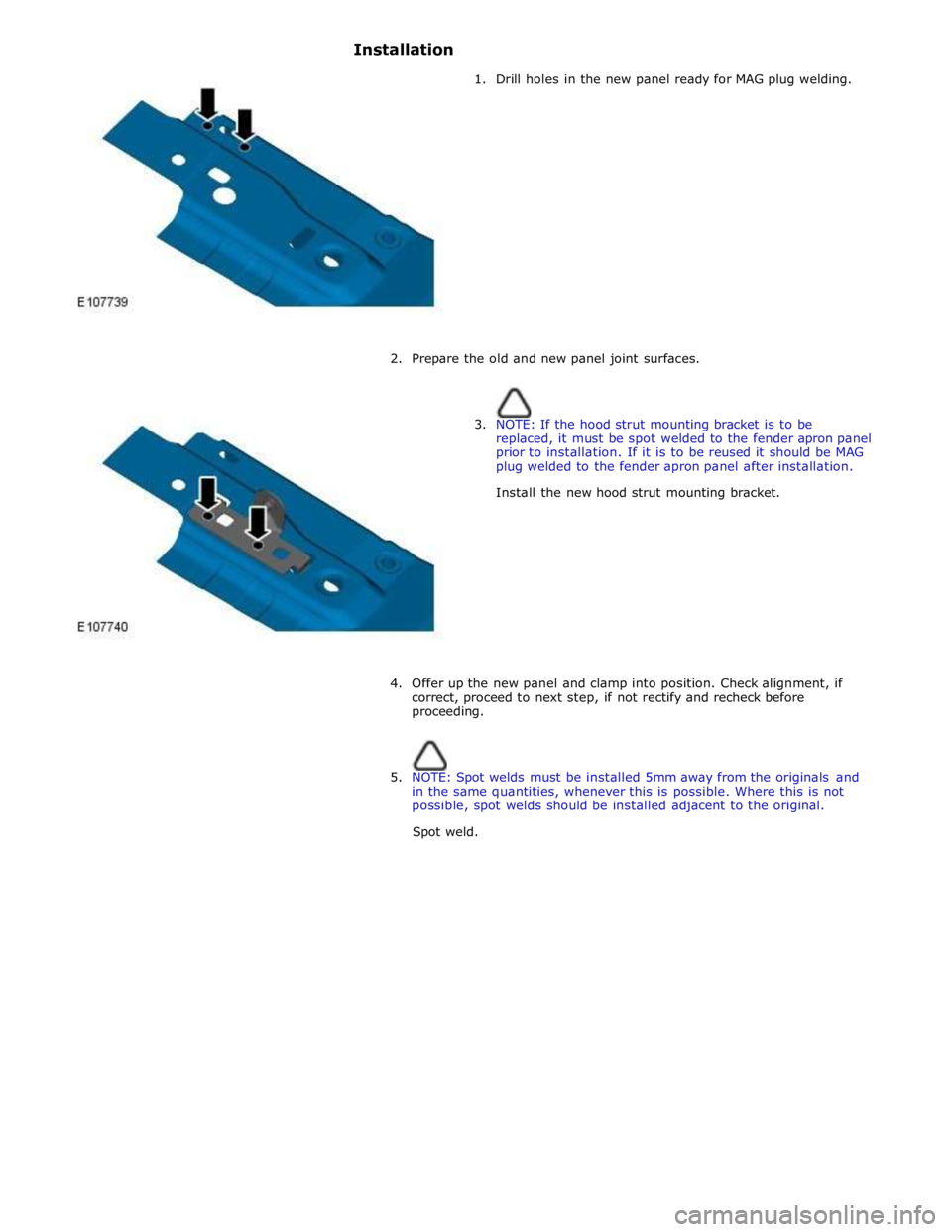

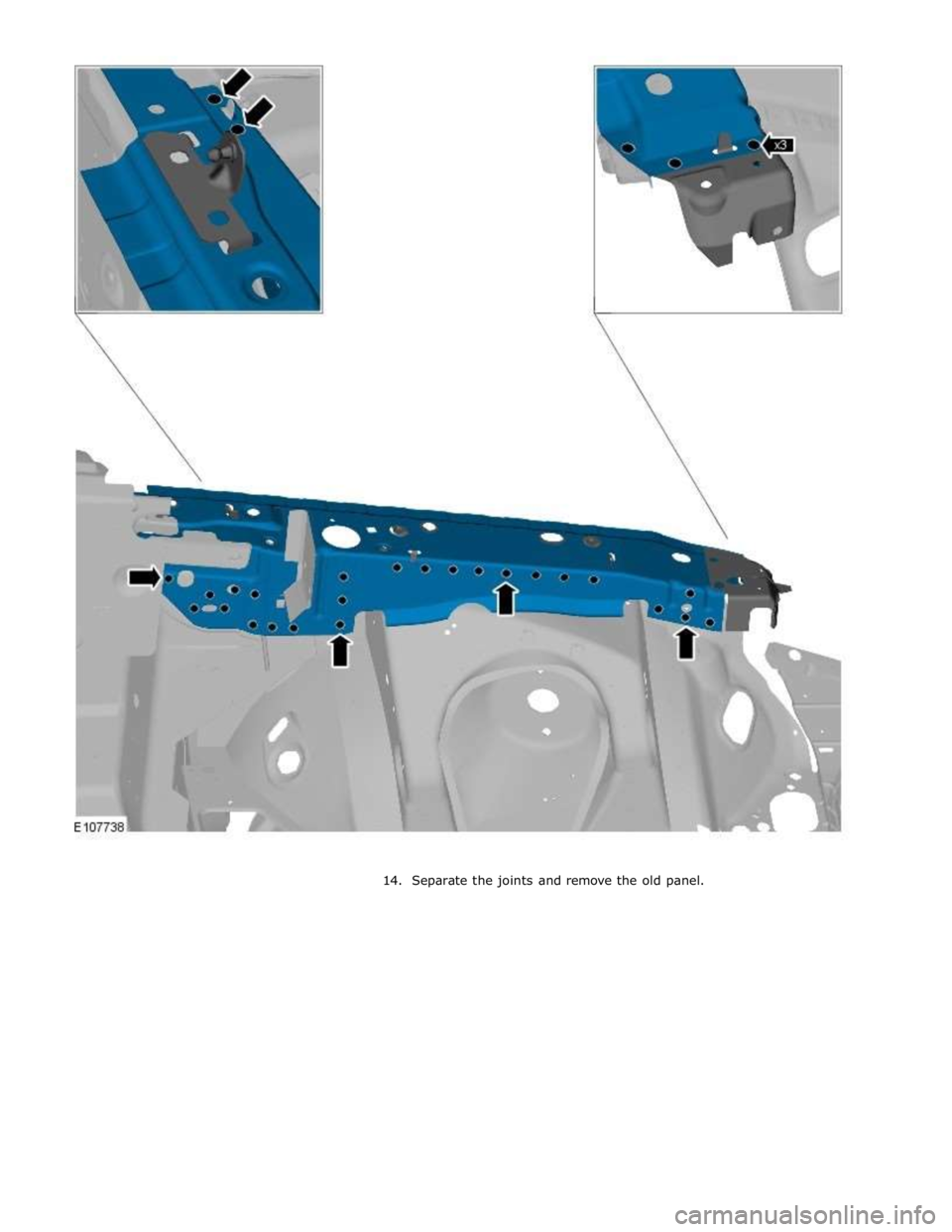

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. Drill holes in the new panel ready for MAG plug welding. 2. Prepare the old and new panel joint surfaces. 3. NOTE: If the hood strut mounting brack

Page 2763 of 3039

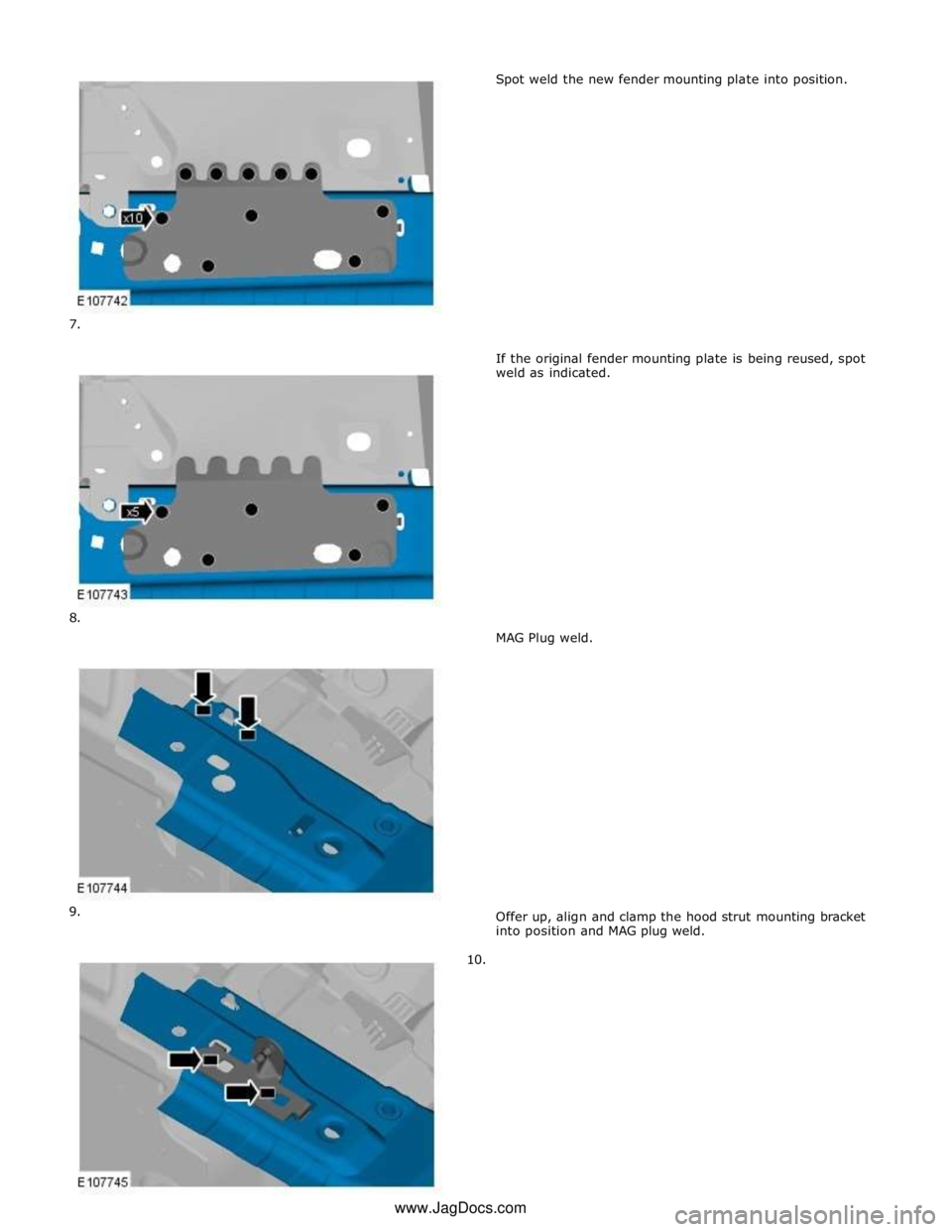

JAGUAR XFR 2010 1.G Workshop Manual

Page 2764 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com

Page 2765 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2766 of 3039

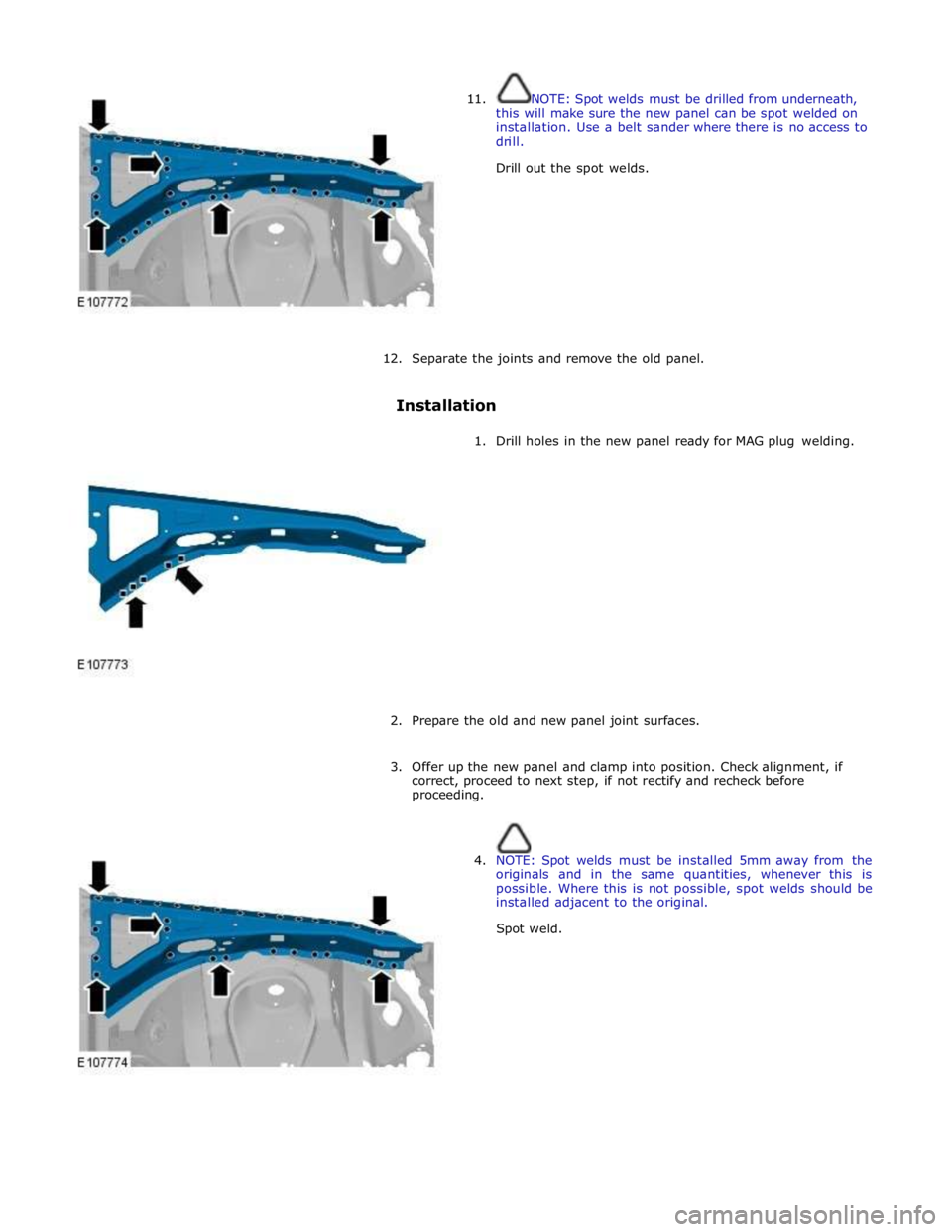

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Front End Sheet Metal Repairs - Fender Apron Panel Closing Panel Removal and Installation Removal 1. NOTE: The fender apron panel closing panel is manufactured from m

Page 2767 of 3039

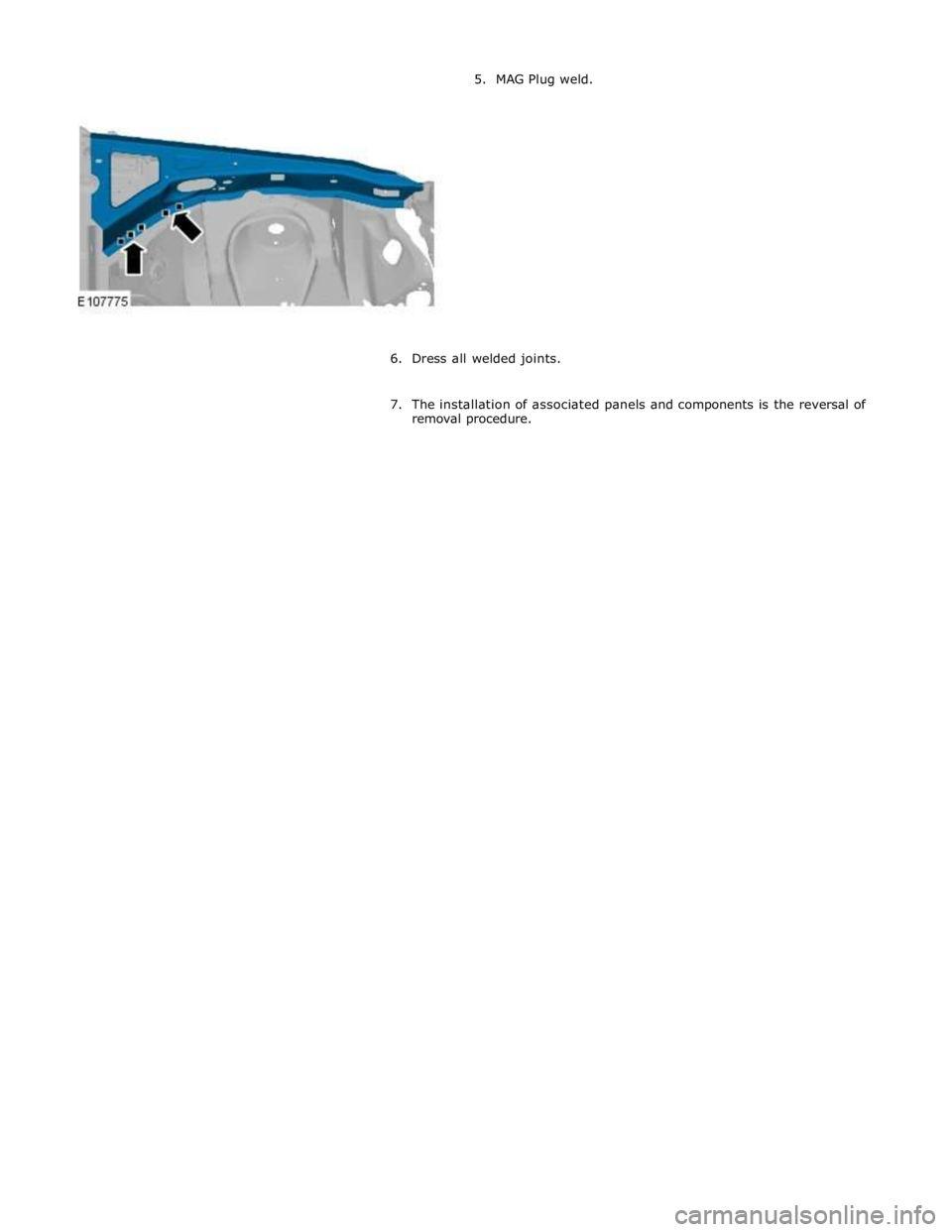

JAGUAR XFR 2010 1.G Workshop Manual 11. NOTE: Spot welds must be drilled from underneath, this will make sure the new panel can be spot welded on installation. Use a belt sander where there is no access to drill. Drill out the spo

Page 2768 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
