Page 2905 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 29. 30. Measure and mark out a section on the B-pillar upper, on the vehicle as indicated. CAUTION: Care should be take

Page 2906 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 33. Remove the template from the new panel. 34. NOTE: This procedure shows the rocker panel part of the rocker panel and B-pillar outer panel being installed to its service condition. The

Page 2907 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2908 of 3039

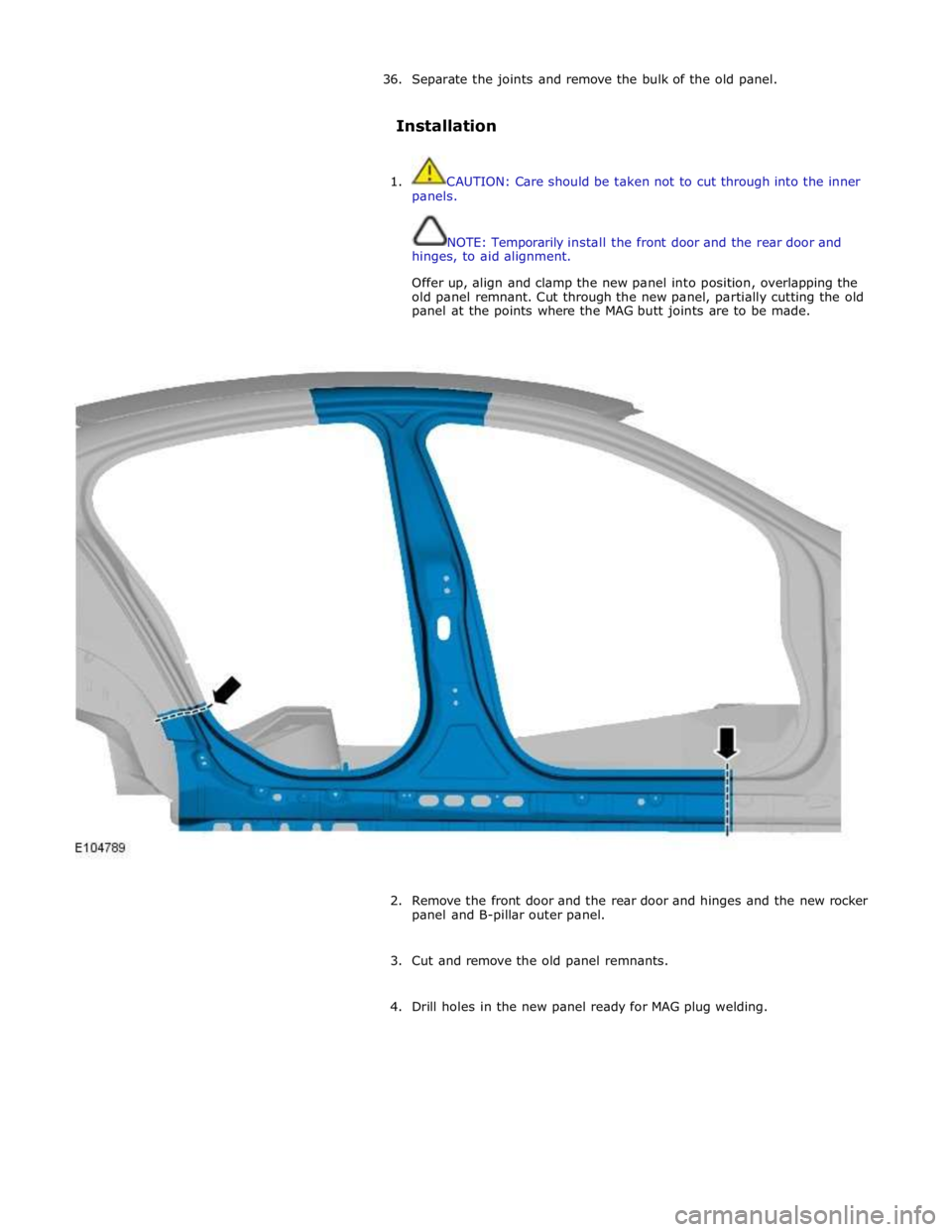

JAGUAR XFR 2010 1.G Workshop Manual 36. Separate the joints and remove the bulk of the old panel. Installation 1. CAUTION: Care should be taken not to cut through into the inner panels. NOTE: Temporarily install the front d

Page 2909 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com

Page 2910 of 3039

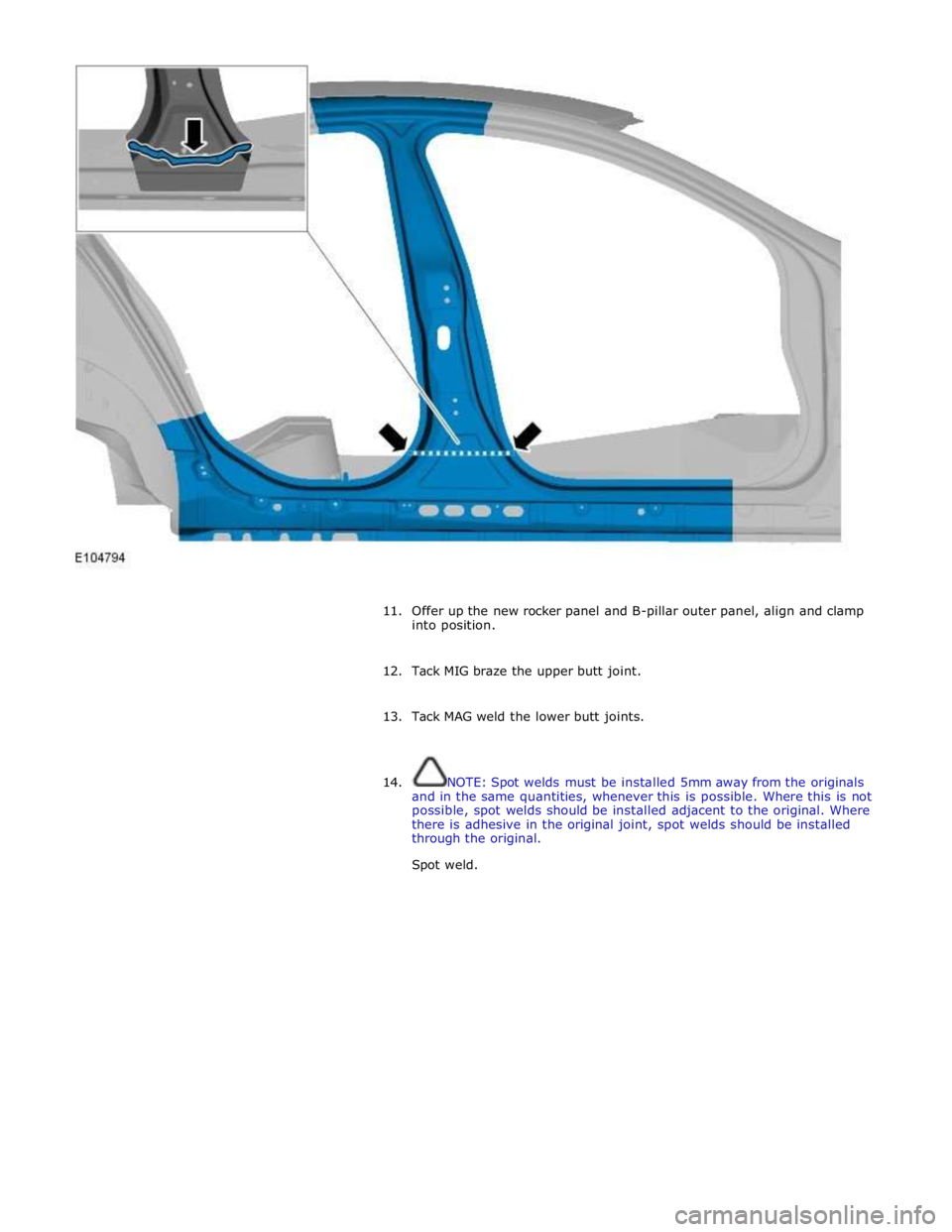

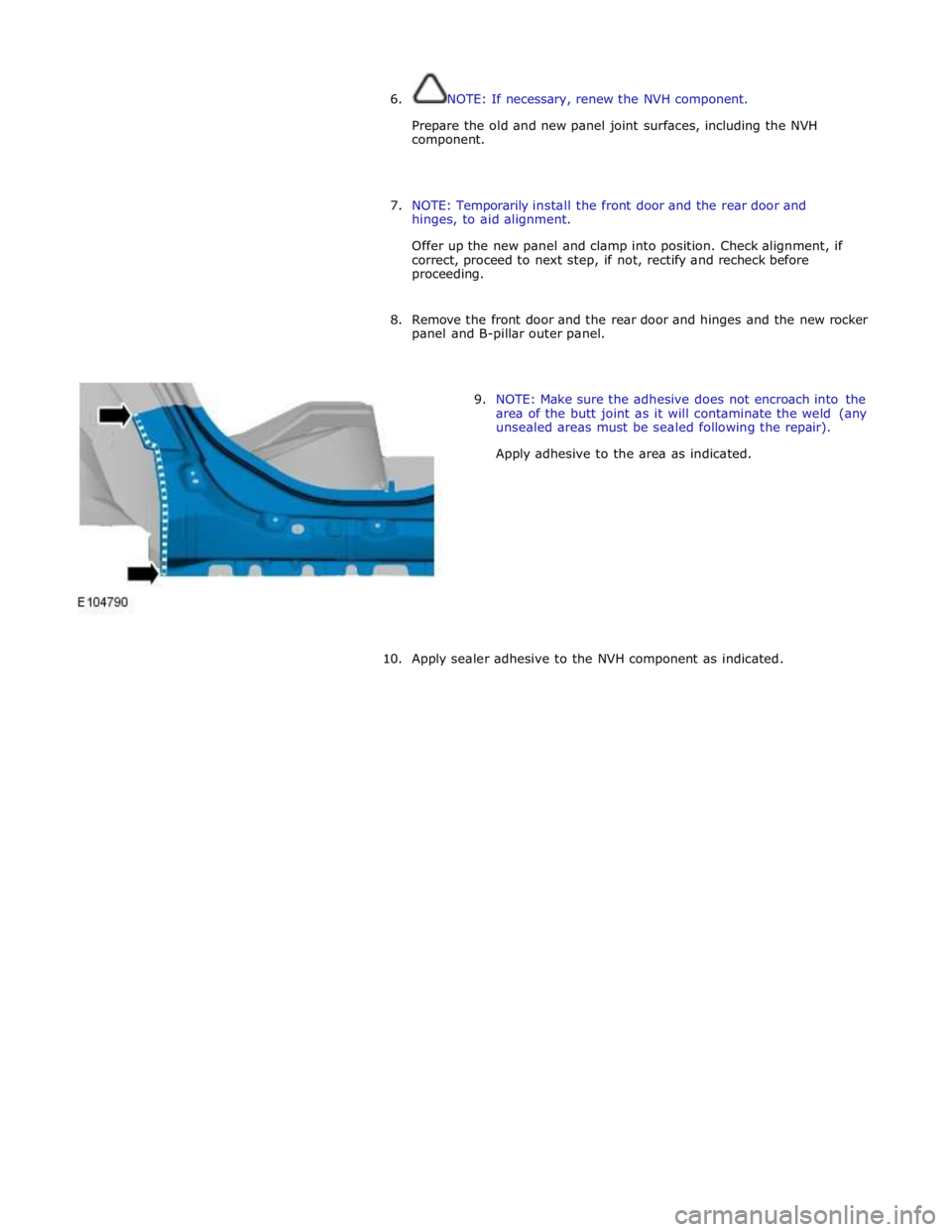

JAGUAR XFR 2010 1.G Workshop Manual 6. NOTE: If necessary, renew the NVH component. Prepare the old and new panel joint surfaces, including the NVH component. 7. NOTE: Temporarily install the front door and the rear door and

Page 2911 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 11. Offer up the new rocker panel and B-pillar outer panel, align and clamp into position. 12. Tack MIG braze the upper butt joint. 13. Tack MAG weld the lower butt joints. 14. NOTE:

Page 2912 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
