Mechanisms, Removal and Installation).
2. Refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).

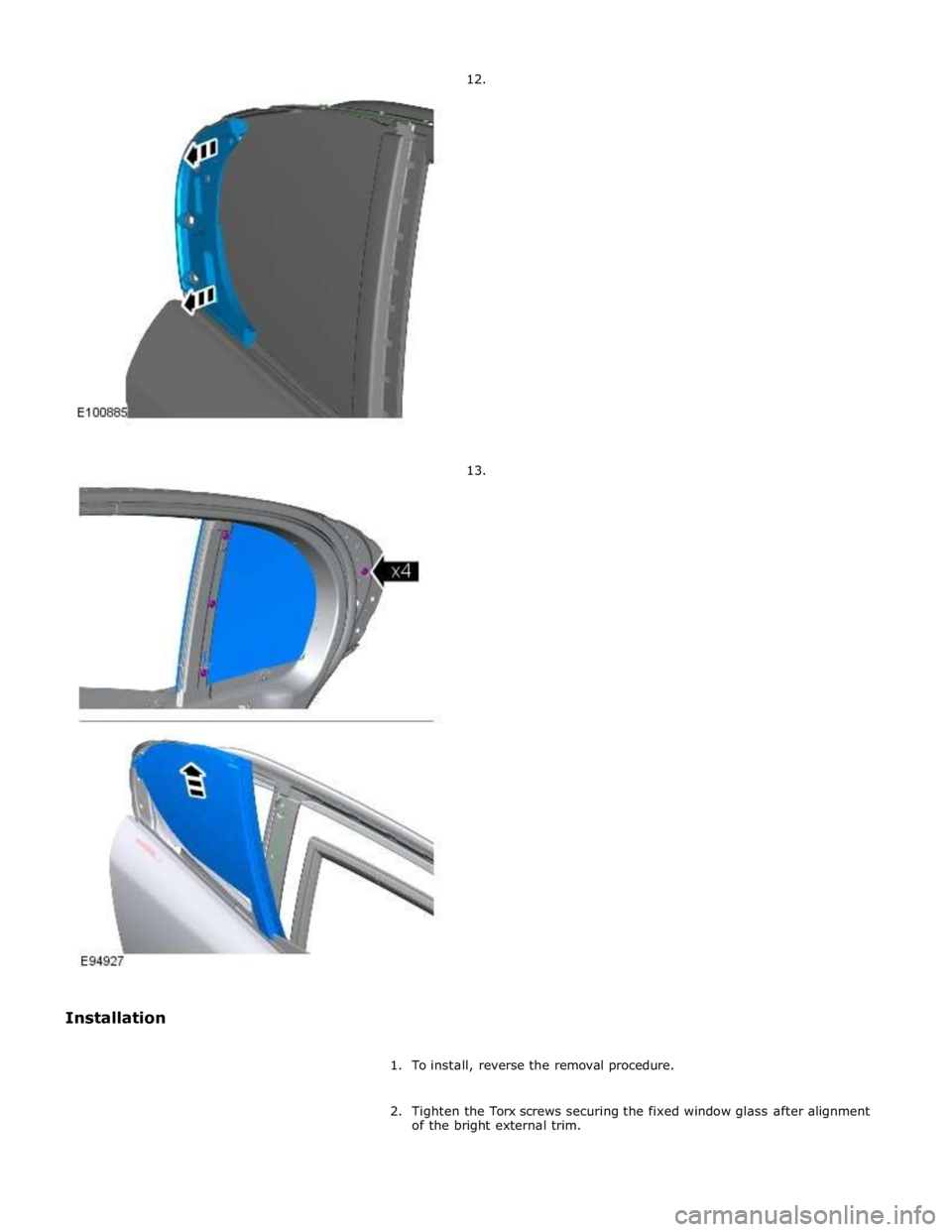

3.
Installation
1. To install, reverse the removal procedure. www.JagDocs.com
Page 2435 of 3039
Published: 11-May-2011
Glass, Frames and Mechanisms - Rear Door Window Regulator and Motor
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Remove the rear door speaker.
Refer to: Rear Door Speaker (415-01A Information and Entertainment System, Removal and Installation).
2.
3. WARNING: Do not allow the glass to drop.
NOTE: The door glass should be lowered by
approximately one third.
Torque: 7 Nm
Installation
1. To install, reverse the removal procedure.
Page 2436 of 3039
Glass, Frames and Mechanisms - Rear Window Glass
Removal and Installation
Removal
CAUTIONS:
Always protect paintwork and glass when removing exterior components.
Always protect the interior components when removing body glass. Published: 04-Sep-2013
Lay the glass on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into
cracks.
NOTE: The following equipment is required: l Cutting wire and handles l Kent knife l Glazing knife l Windshield
replacement kit l Sealant applicator gun l Suction cups l A felt covered table or stand to support glass
1. Refer to: C-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
2.
Remove the polyurethane (PU) adhesive cap and heat
the PU adhesive for a minimum of 30 minutes.

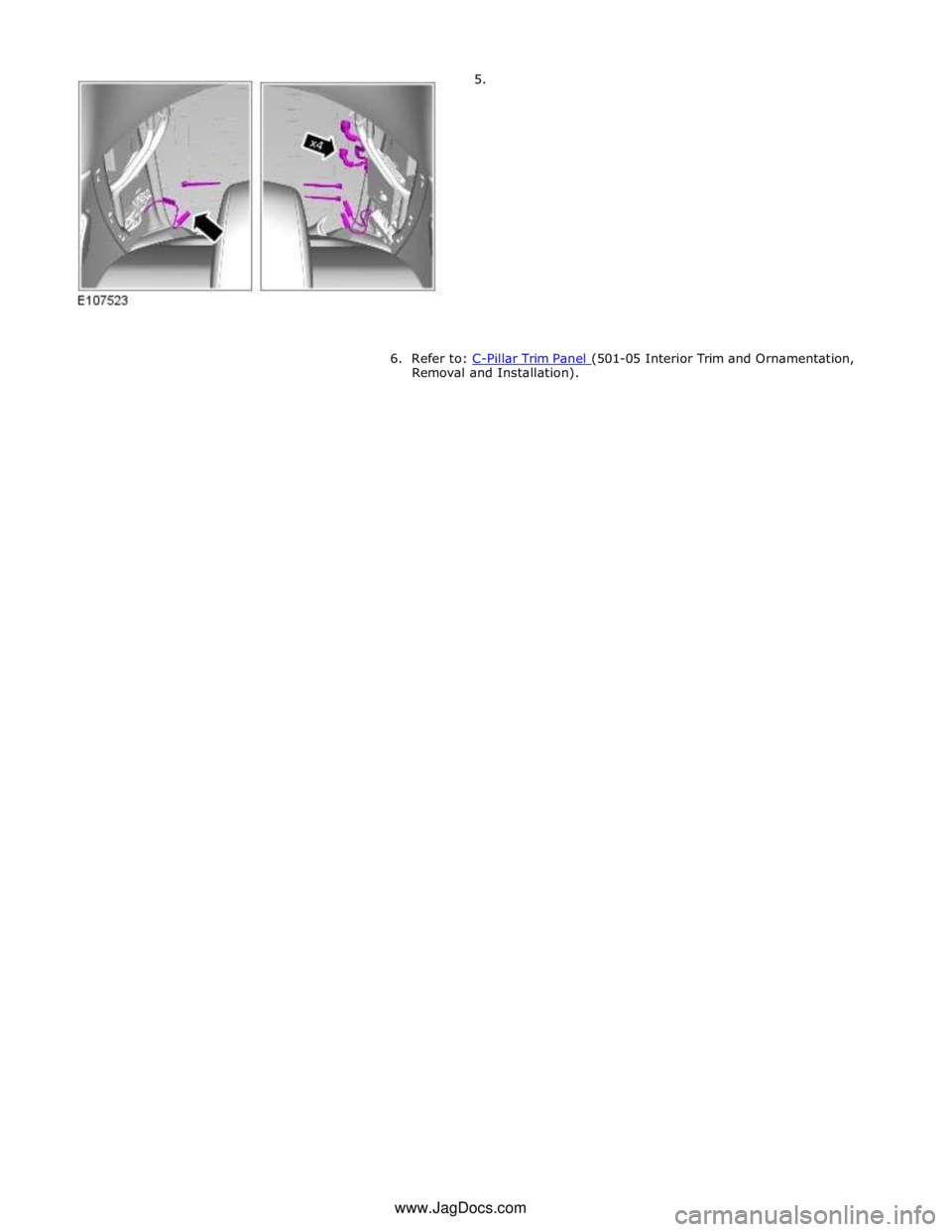

3.
Page 2437 of 3039

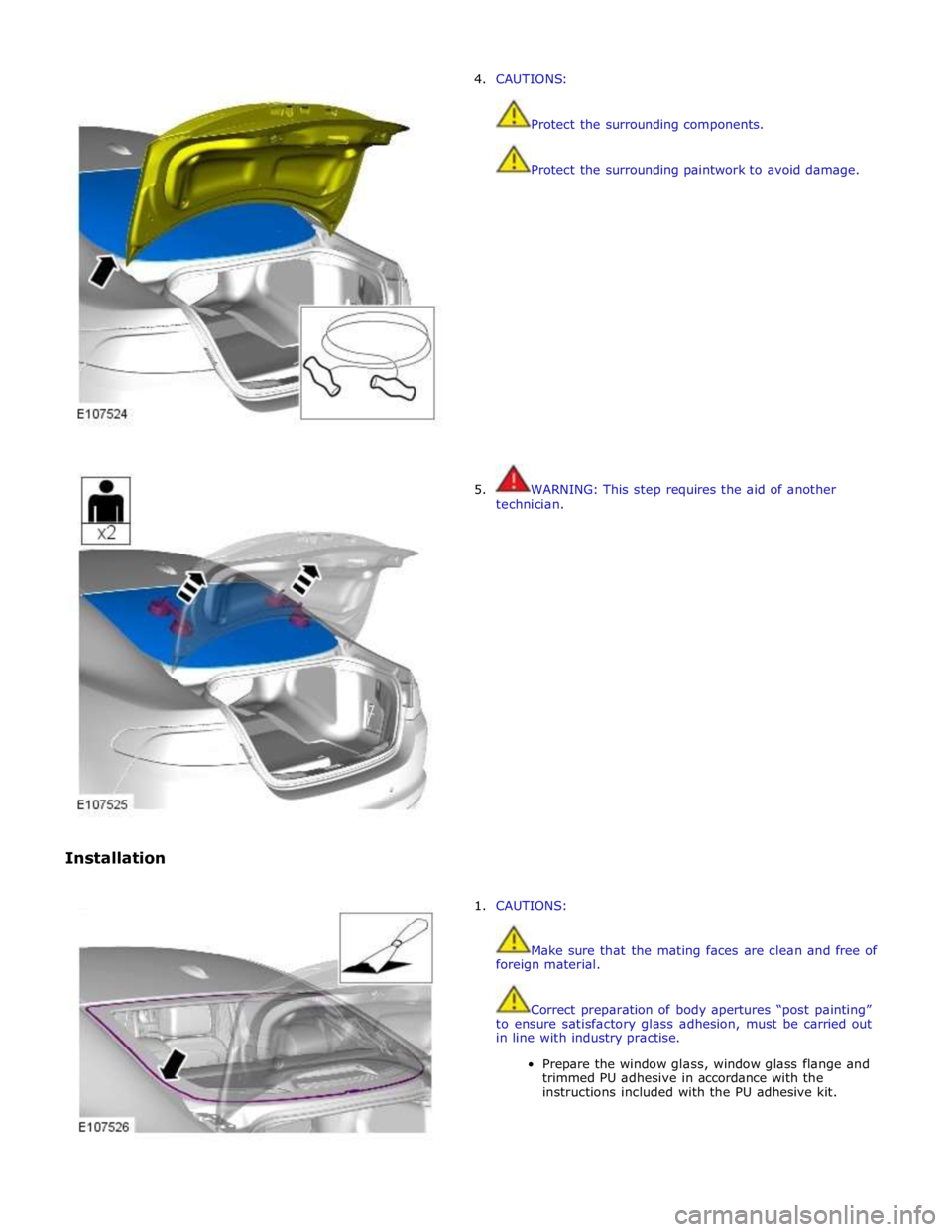

Installation 4. CAUTIONS:
Protect the surrounding components.
Protect the surrounding paintwork to avoid damage.
5. WARNING: This step requires the aid of another
technician.
1. CAUTIONS:
Make sure that the mating faces are clean and free of
foreign material.
Correct preparation of body apertures “post painting”
to ensure satisfactory glass adhesion, must be carried out
in line with industry practise.
Prepare the window glass, window glass flange and
trimmed PU adhesive in accordance with the
instructions included with the PU adhesive kit.
Page 2438 of 3039

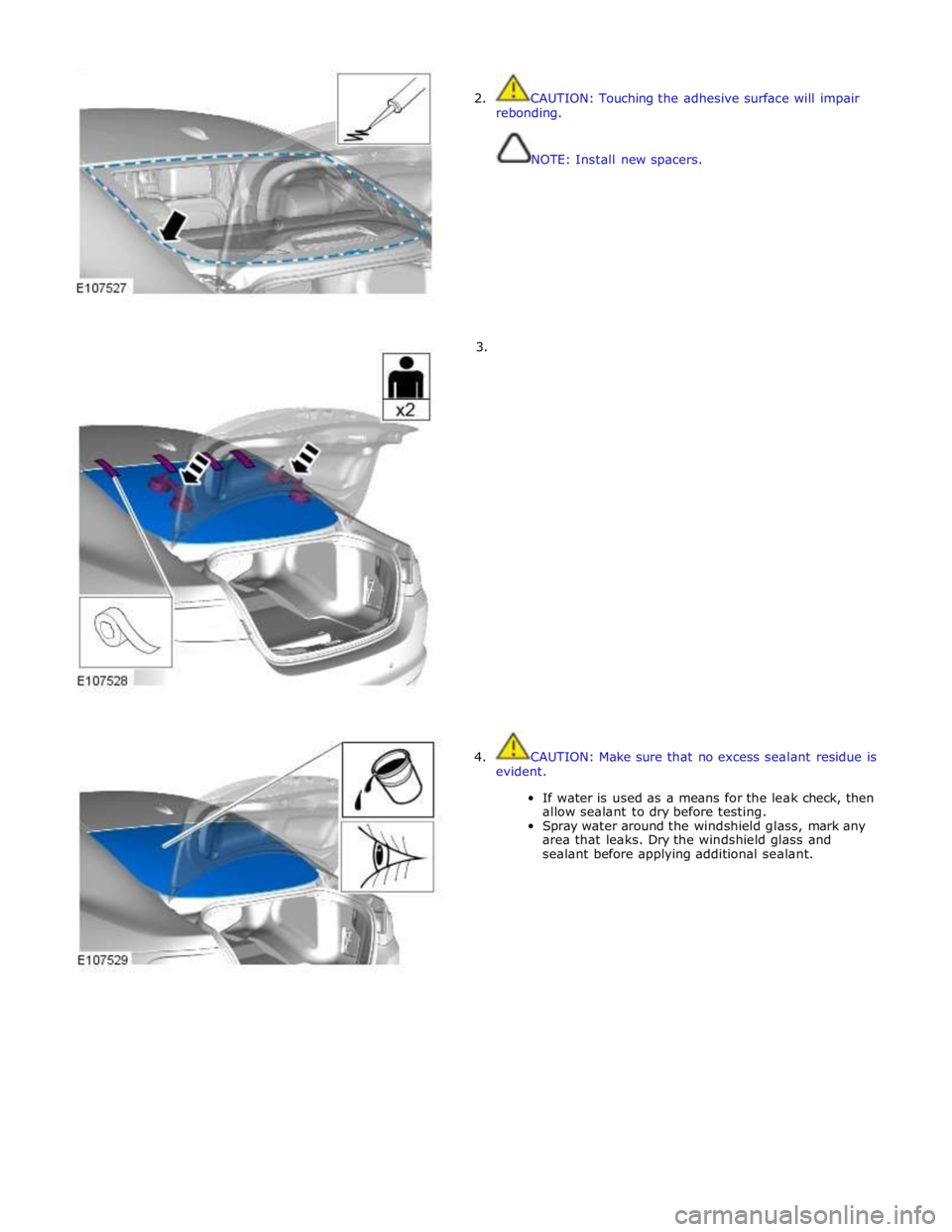

2. CAUTION: Touching the adhesive surface will impair
rebonding.
NOTE: Install new spacers.
3.
4. CAUTION: Make sure that no excess sealant residue is
evident.
If water is used as a means for the leak check, then
allow sealant to dry before testing.
Spray water around the windshield glass, mark any
area that leaks. Dry the windshield glass and
sealant before applying additional sealant.
Page 2439 of 3039
Removal and Installation).
www.JagDocs.com
Page 2440 of 3039
Glass, Frames and Mechanisms - Windshield Glass
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 04-Sep-2013
1. Refer to: Cowl Vent Screen (501-02 Front End Body Panels, Removal and Installation).
2. Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
3. Refer to: Rain Sensor (501-16 Wipers and Washers, Removal and Installation).

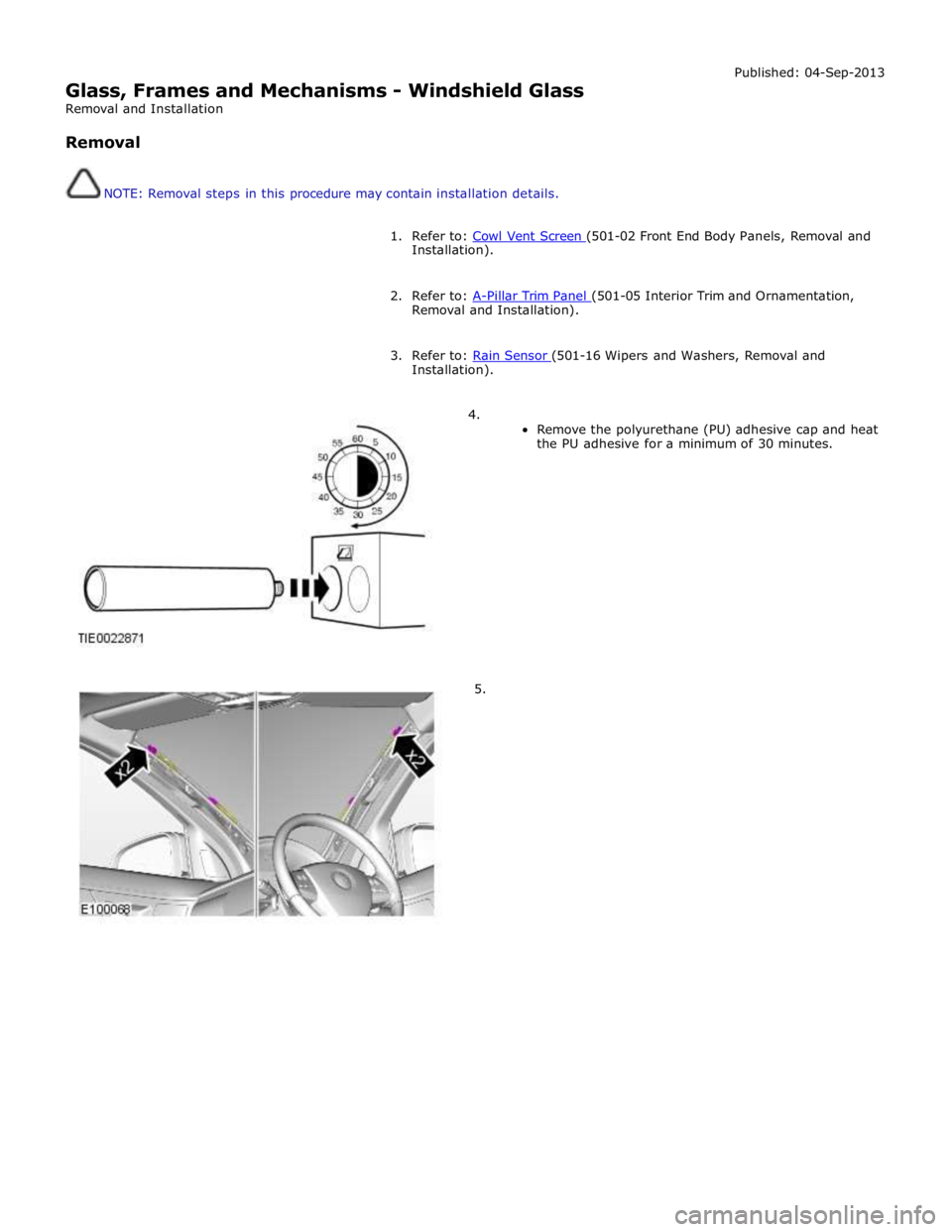

4.
Remove the polyurethane (PU) adhesive cap and heat
the PU adhesive for a minimum of 30 minutes.
5.
