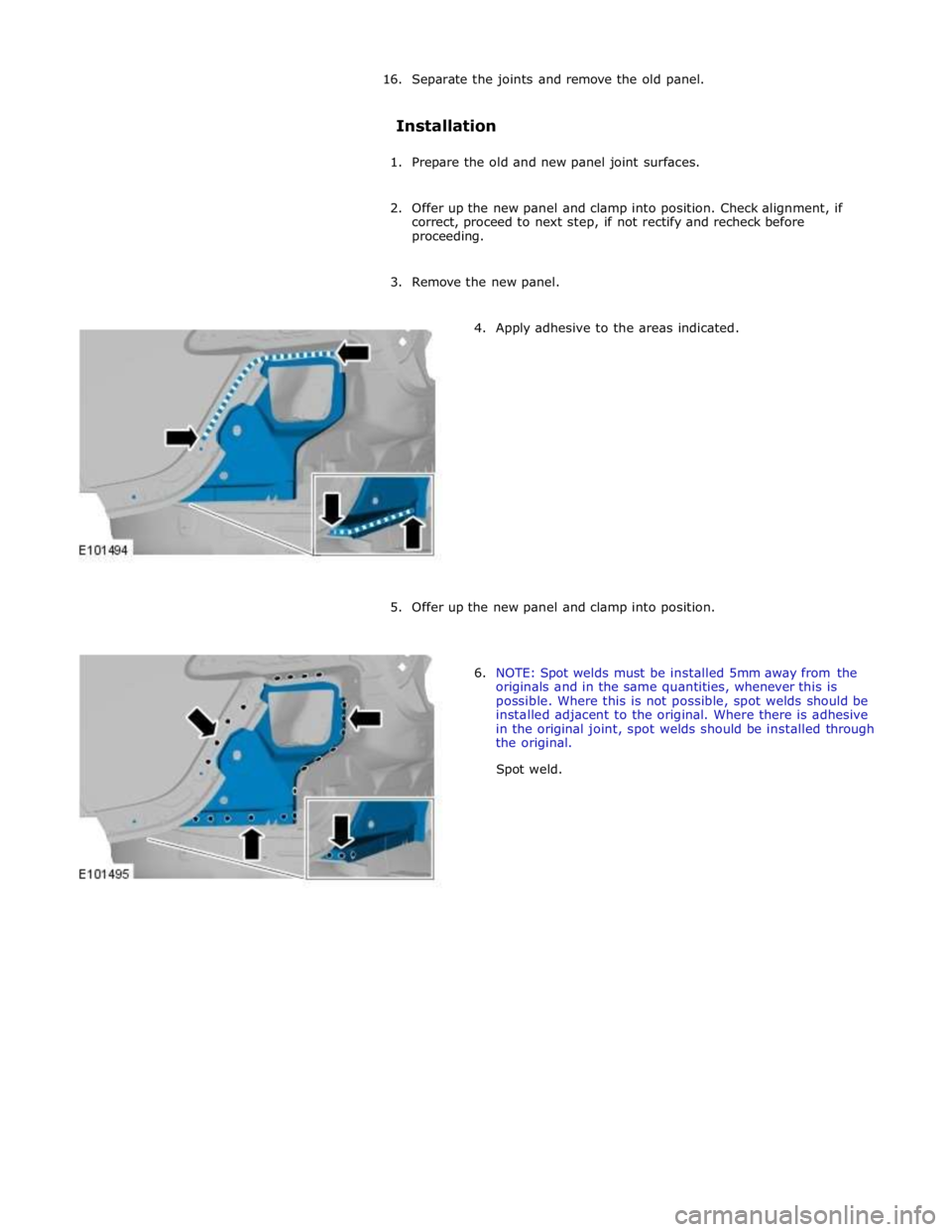

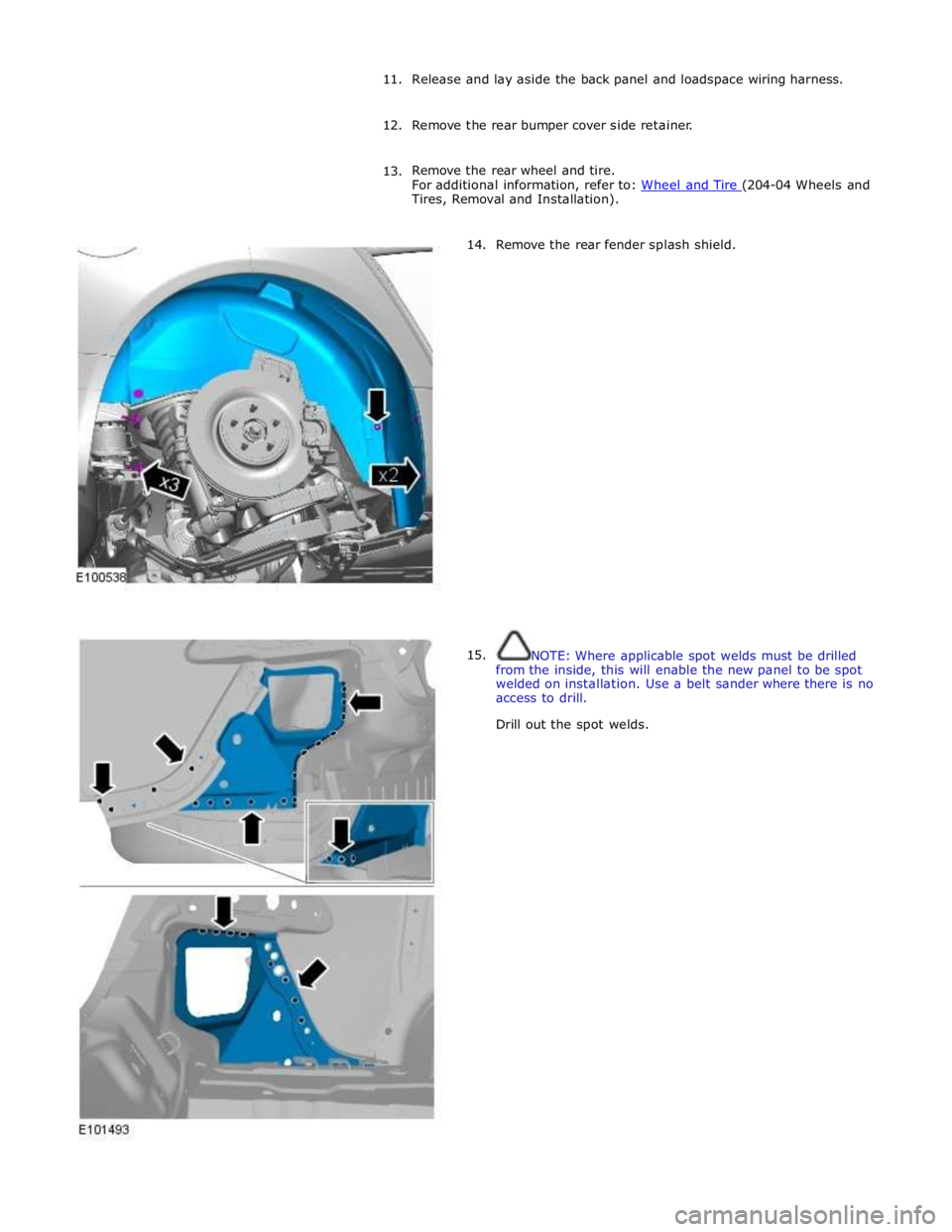

Page 2961 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 11. Release and lay aside the back panel and loadspace wiring harness. 12. Remove the rear bumper cover side retainer. 13. Remove the rear wheel and tire. For additional information, refer to:

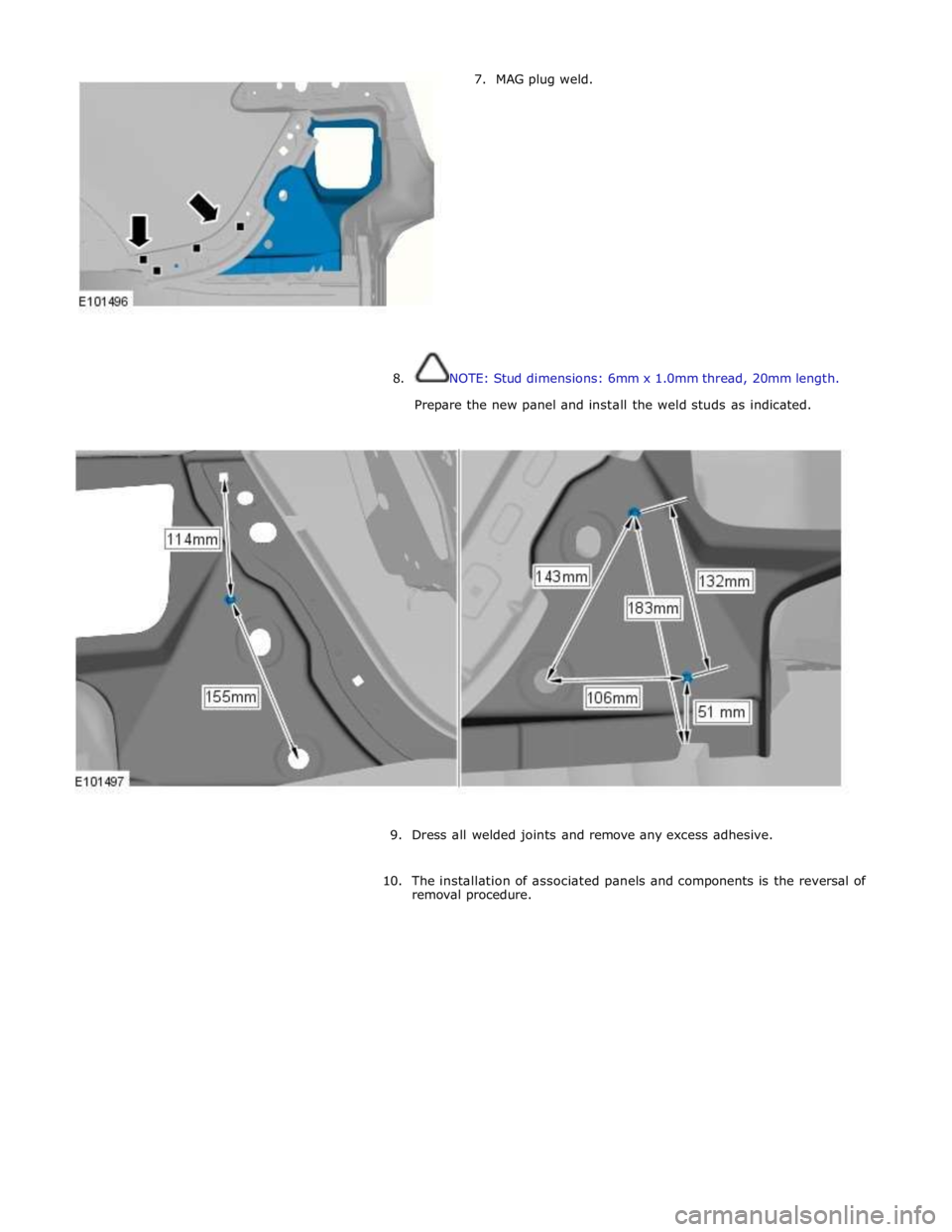

Page 2962 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2963 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

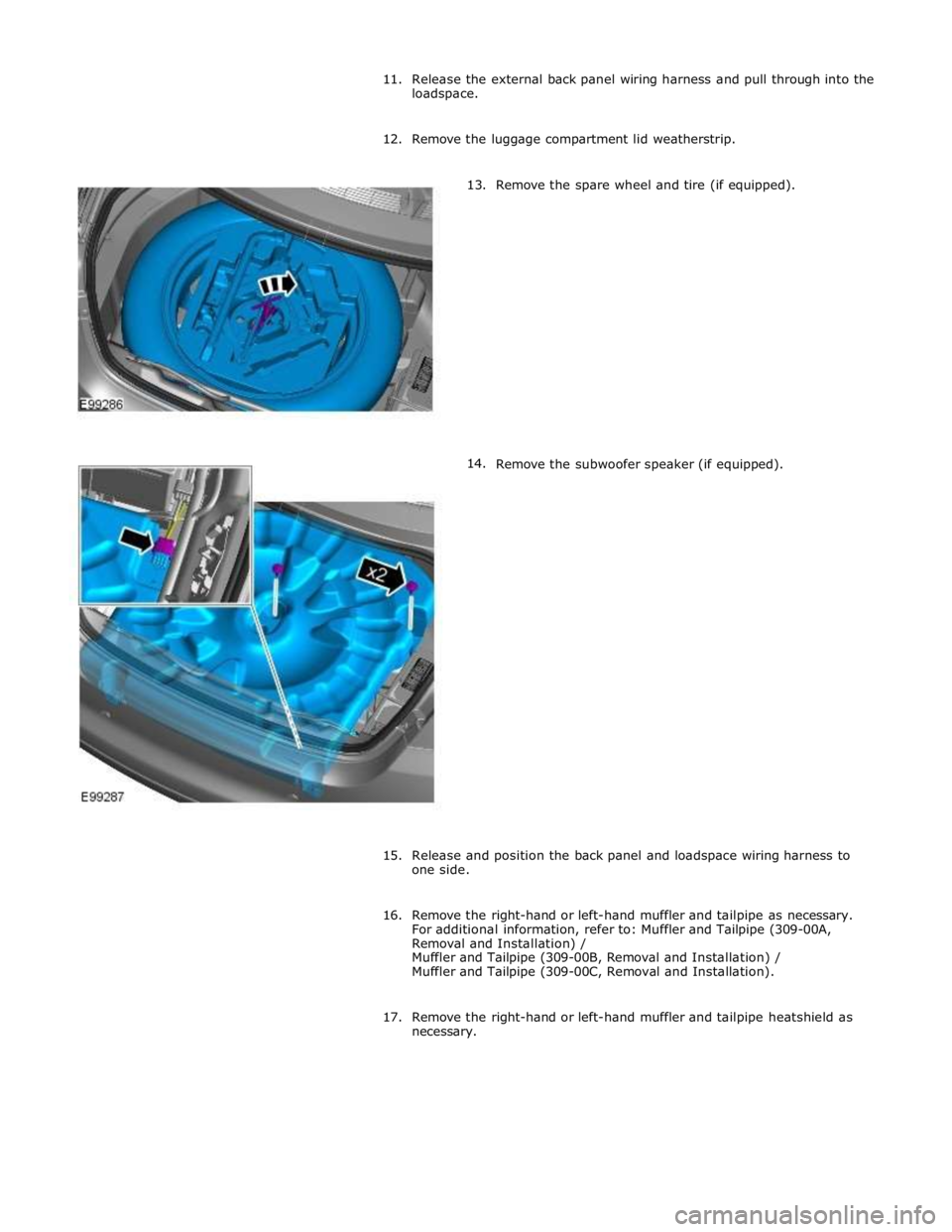

Page 2964 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Rear End Sheet Metal Repairs - Rear Bumper Mounting Removal and Installation Removal Published: 11-May-2011 1. NOTE: The rear bumper mounting is manufactured from mild steel. The rear b

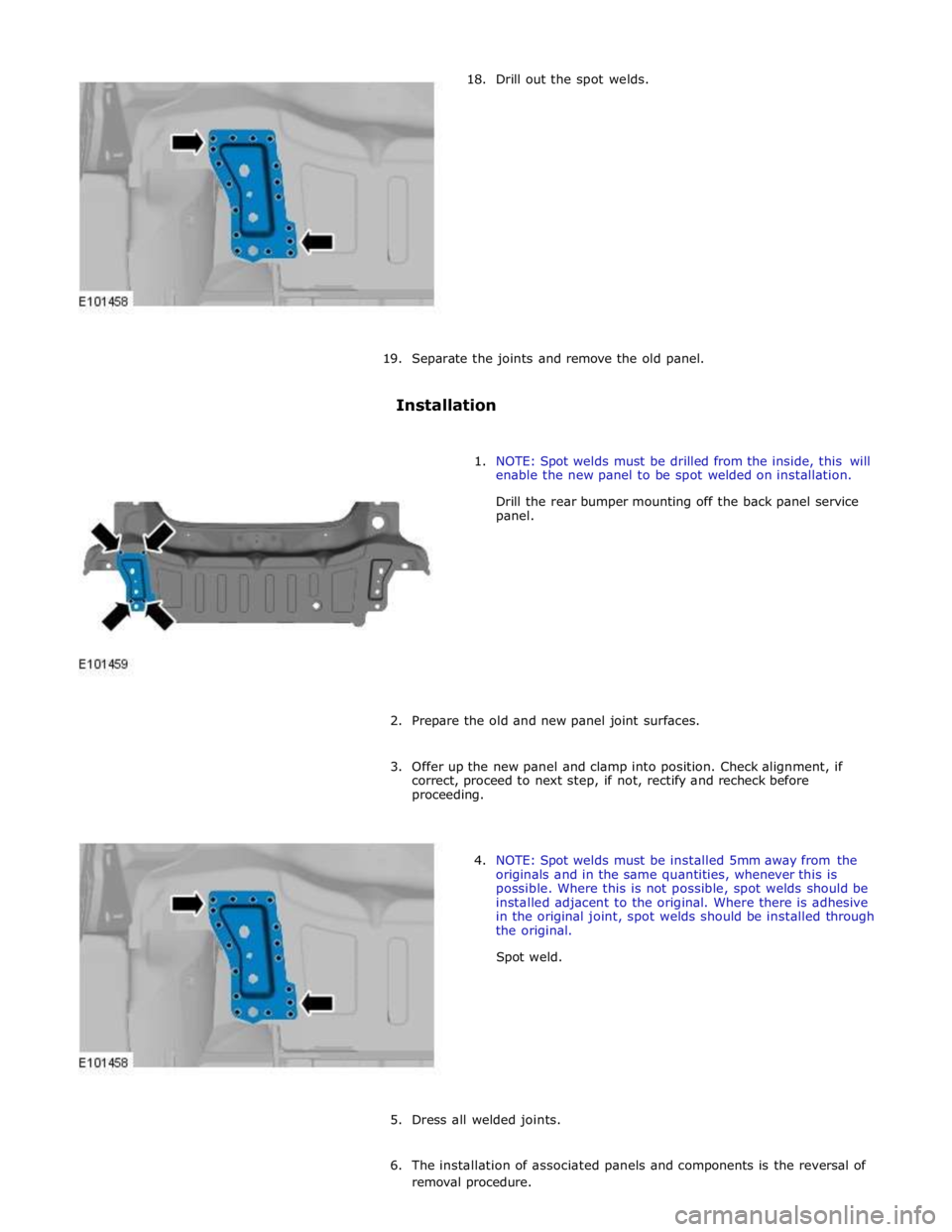

Page 2965 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2966 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2967 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Rear End Sheet Metal Repairs - Rear Floor Side Extension Removal and Installation Removal Published: 11-May-2011 1. NOTE: The rear floor side extension is manufactured from mild steel.

Page 2968 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 8. drill. NOTE: Use a belt sander where there is no access to Drill out the spot welds. 9. NOTE: Retain the old panel for reference to the we
