JAGUAR XFR 2010 1.G Workshop Manual

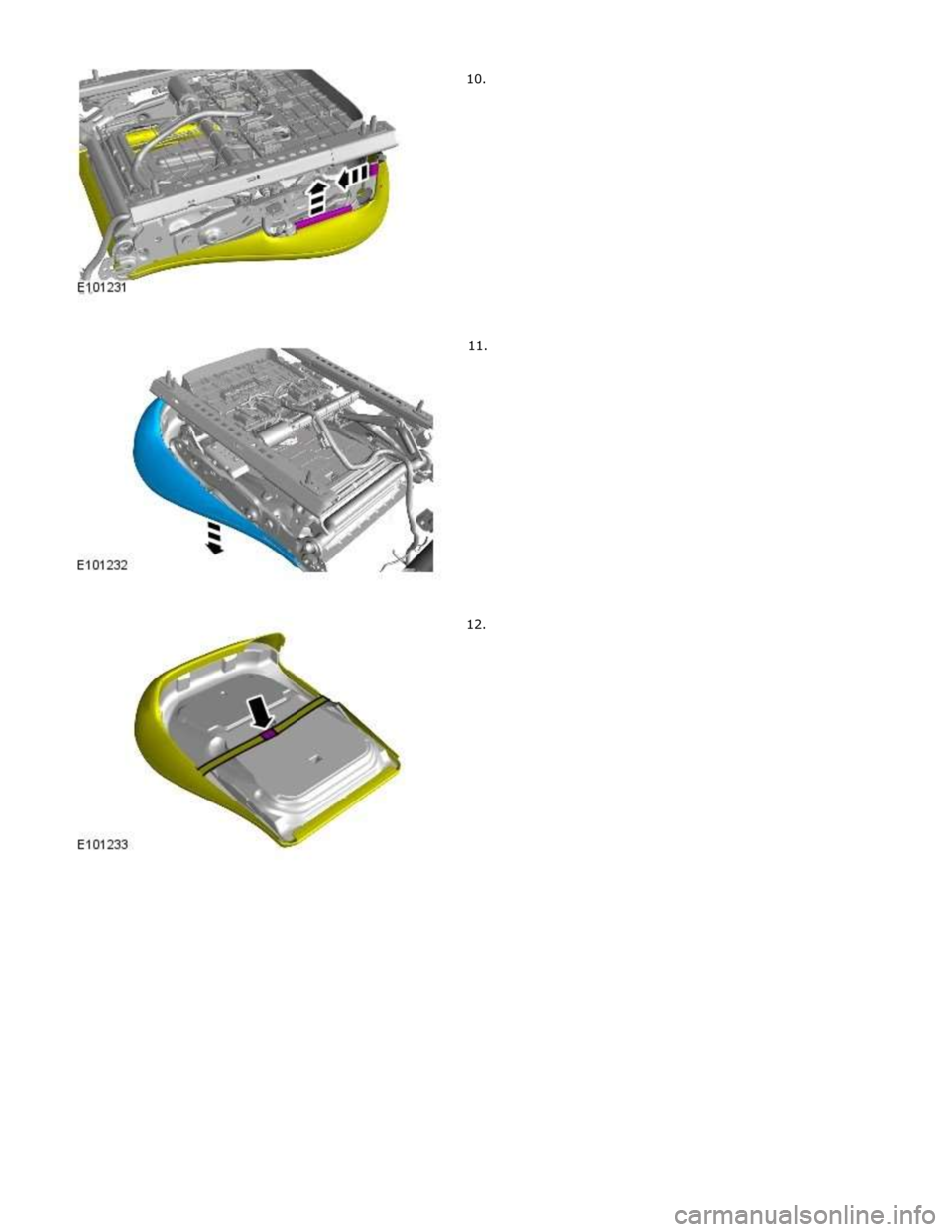

7. WARNING: This step requires the aid of another
technician.

CAUTION: Take extra care when handling the
component.
Torque: 35 Nm

Page 2370 of 3039

Page 2371 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Installation
13.
NOTE: Make sure that new hog rings are installed.

1. To install, reverse the removal procedure.

2. If a new component has been installed, configure using Jaguar approv

Page 2372 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Description and Operation).

2. Remove the front seat.

Refer to: Front Seat (501-10 Seating, Removal and Installation).

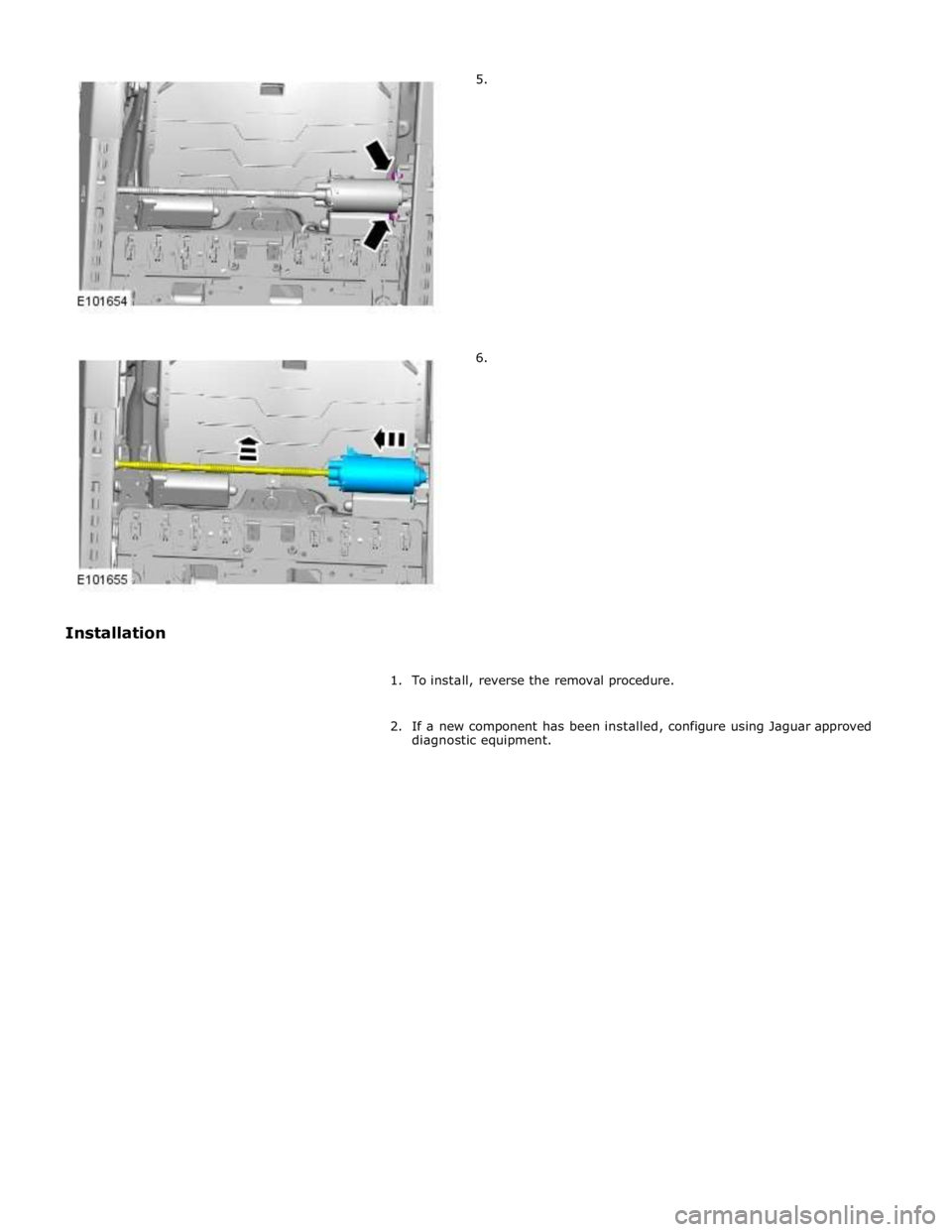

3.
4.

Page 2373 of 3039

Page 2374 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Description and Operation).

2. Refer to: Front Seat Backrest Cover (501-10 Seating, Removal and Installation).
3.
4.
Installation

1. To install, reverse the removal procedure.

Page 2375 of 3039

Page 2376 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Seating - Seat Base
Removal and Installation

Removal

WARNINGS: Published: 11-May-2011

To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wa

Seating - Seat Base
Removal and Installation

Removal

WARNINGS: Published: 11-May-2011

To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least one
minute after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental
restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in
personal injury.

Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to
follow this instruction may result in personal injury.

To minimize the possibility of premature deployment, do not use radio key code savers when working on the
supplemental restraint system. Failure to follow this instruction may result in personal injury.

To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the
bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.

To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which
have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure
to follow this instruction may result in personal injury.

Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air
bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a
new component. Failure to follow this instruction may result in personal injury.
NOTES:

Some variation in the illustrations may occur, but the essential information is always correct.

Removal steps in this procedure may contain installation details.

1. Make the air bag supplemental restraint system (SRS) safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Refer to: Front Seat (501-10 Seating, Removal and Installation).
3. Refer to: Front Safety Belt Buckle (501-20A Safety Belt System, Removal and Installation).

4. Refer to: Front Seat Cushion Cover (501-10 Seating, Removal and Installation).
