JAGUAR XFR 2010 1.G Workshop Manual
DTC Description Possible Cause Action B116311
Left Mirror Heater
Output
Left mirror heater control
circuit - short to ground Refer to the electrical circuit diagrams and test left mirror
heate

DTC Description Possible Cause Action B116311
Left Mirror Heater
Output
Left mirror heater control
circuit - short to ground Refer to the electrical circuit diagrams and test left mirror
heater control circuit for short to ground B116315
Left Mirror Heater
Output
Left mirror heater control
circuit - short to power,
open circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test left mirror heater control
circuit for short to power, open circuit B116411
Right Mirror Heater
Output
Right mirror heater
control circuit - short to
ground Refer to the electrical circuit diagrams and test right mirror
heater control circuit for short to ground B116415
Right Mirror Heater
Output
Right mirror heater
control circuit - short to
power, open circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test right mirror heater control
circuit for short to power, open circuit B11F711
Passenger Folding
Mirror Motor
Passenger folding mirror
motor control circuit -
short to ground Refer to the electrical circuit diagrams and check passenger
folding mirror motor control circuit for short to ground B11F715
Passenger Folding
Mirror Motor
Passenger folding mirror
motor control circuit -
short to power, open
circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and check passenger folding mirror
motor control circuit for short to power, open circuit B1C0911
Driver Left/Right
Mirror Motor Circuit
Driver left/right mirror
motor control circuit -
short to ground Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test driver left/right mirror motor
control circuit for short to ground B1C0915
Driver Left/Right
Mirror Motor Circuit
Driver left/right mirror
motor control circuit -
short to power, open
circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test driver left/right mirror motor
control circuit for short to power, open circuit B1C1011
Driver Up/Down
Mirror Motor Circuit
Driver up/down mirror
motor control circuit -
short to ground Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test driver up/down mirror motor
control circuit for short to ground B1C1015
Driver Up/Down
Mirror Motor Circuit
Driver up/down mirror
motor control circuit -
short to power, open
circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test driver up/down mirror motor
control circuit for short to power, open circuit B1C1111
Passenger
Left/Right Mirror
Motor Circuit
Passenger left/right
mirror motor control
circuit - short to ground Refer to the electrical circuit diagrams and test passenger
left/right mirror motor control circuit for short to ground B1C1115
Passenger
Left/Right Mirror
Motor Circuit
Passenger left/right
mirror motor control
circuit - short to power,
open circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test passenger left/right mirror
motor control circuit for short to power, open circuit B1C1211
Passenger Up/Down
Mirror Motor Circuit
Passenger up/down mirror
motor control circuit -
short to ground Refer to the electrical circuit diagrams and test passenger
up/down mirror motor control circuit for short to ground B1C1215
Passenger Up/Down
Mirror Motor Circuit
Passenger up/down mirror
motor control circuit -
short to power, open
circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test passenger up/down mirror
motor control circuit for short to power, open circuit B1C1311
Driver Up/Down
Mirror Motor
Feedback Circuit
Driver up/down mirror
motor feedback circuit -
short to ground Refer to the electrical circuit diagrams and test driver up/down
mirror motor feedback circuit for short to ground

Page 2298 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
DTC Description Possible Cause Action B1C1315
Driver Up/Down
Mirror Motor
Feedback Circuit
Driver up/down mirror
motor feedback circuit -
short to power, open
circuit Carry out any pinpoint

DTC Description Possible Cause Action B1C1315
Driver Up/Down
Mirror Motor
Feedback Circuit
Driver up/down mirror
motor feedback circuit -
short to power, open
circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test driver up/down mirror motor
feedback circuit for short to power, open circuit B1C1411
Driver Left/Right
Mirror Motor
Feedback Circuit
Driver left/right mirror
motor feedback circuit -
short to ground Refer to the electrical circuit diagrams and test driver left/right
mirror motor feedback circuit for short to ground B1C1415
Driver Left/Right
Mirror Motor
Feedback Circuit
Driver left/right mirror
motor feedback circuit -
short to power, open
circuit Carry out any pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system. Refer to the
electrical circuit diagrams and test driver left/right mirror motor
feedback circuit for short to power, open circuit B1C1511
Passenger Up/Down
Mirror Motor
Feedback Circuit
Passenger up/down mirror
motor feedback circuit -
short to ground Refer to the electrical circuit diagrams and test passenger
up/down mirror motor feedback circuit for short to ground B1C1515
Passenger Up/Down
Mirror Motor
Feedback Circuit
Passenger up/down mirror
motor feedback circuit -
short to power, open
circuit Refer to the electrical circuit diagrams and test passenger
up/down mirror motor feedback circuit for short to power, open
circuit B1C1611
Passenger
Left/Right Mirror
Motor Feedback
Circuit
Passenger left/right
mirror motor feedback
circuit - short to ground Refer to the electrical circuit diagrams and test passenger
left/right mirror motor feedback circuit for short to ground B1C1615
Passenger
Left/Right Mirror
Motor Feedback
Circuit
Passenger left/right
mirror motor feedback
circuit - short to power,
open circuit Refer to the electrical circuit diagrams and test passenger
left/right mirror motor feedback circuit for short to power, open
circuit

Page 2299 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Rear View Mirrors - Exterior Mirror
Removal and Installation

Removal Published: 11-May-2011

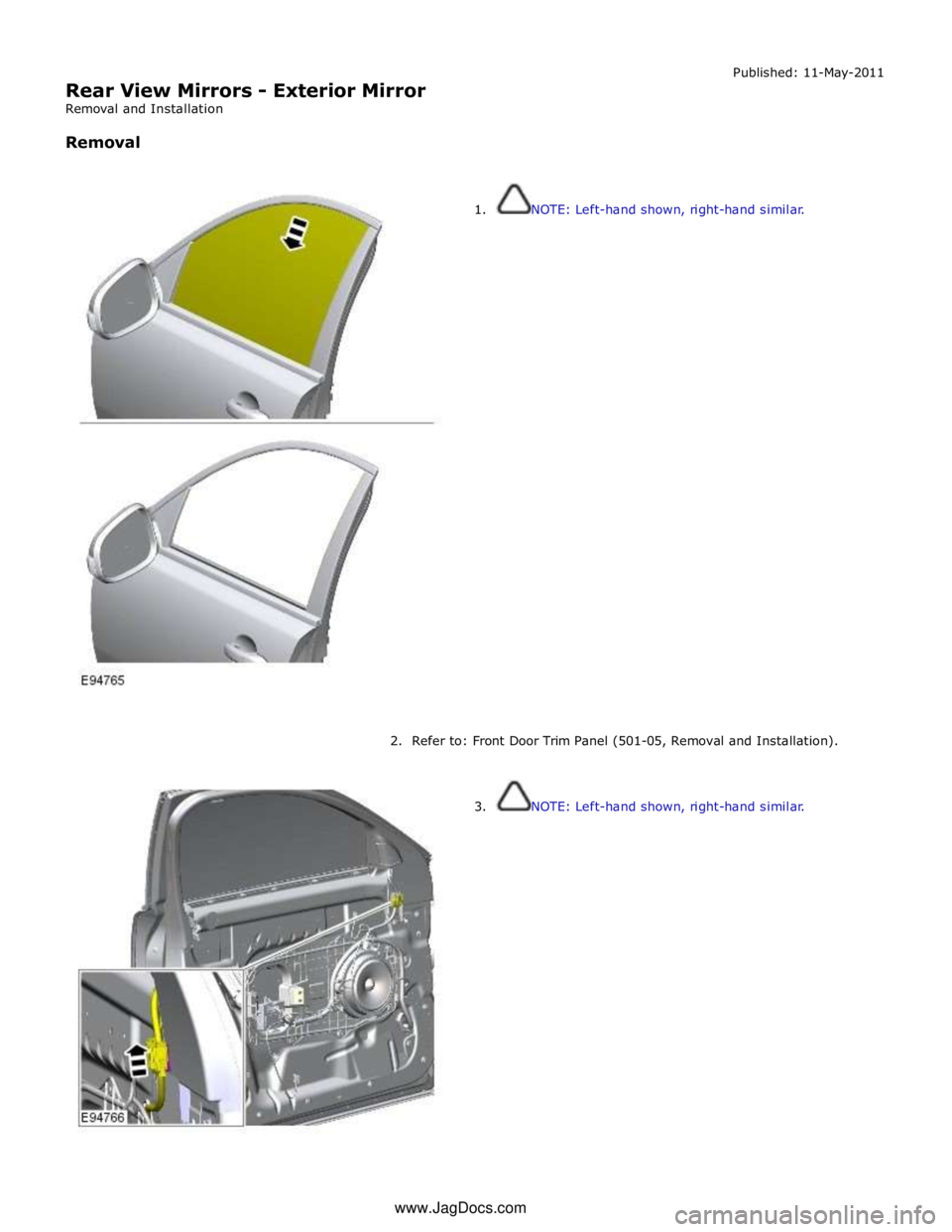

1. NOTE: Left-hand shown, right-hand similar.

Page 2300 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

5.
Installation 4. NOTE: Left-hand shown, right-hand similar.

NOTE: Left-hand shown, right-hand similar.

1. To install, reverse the removal procedure.

Page 2301 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Rear View Mirrors - Exterior Mirror Cover
Removal and Installation

Removal

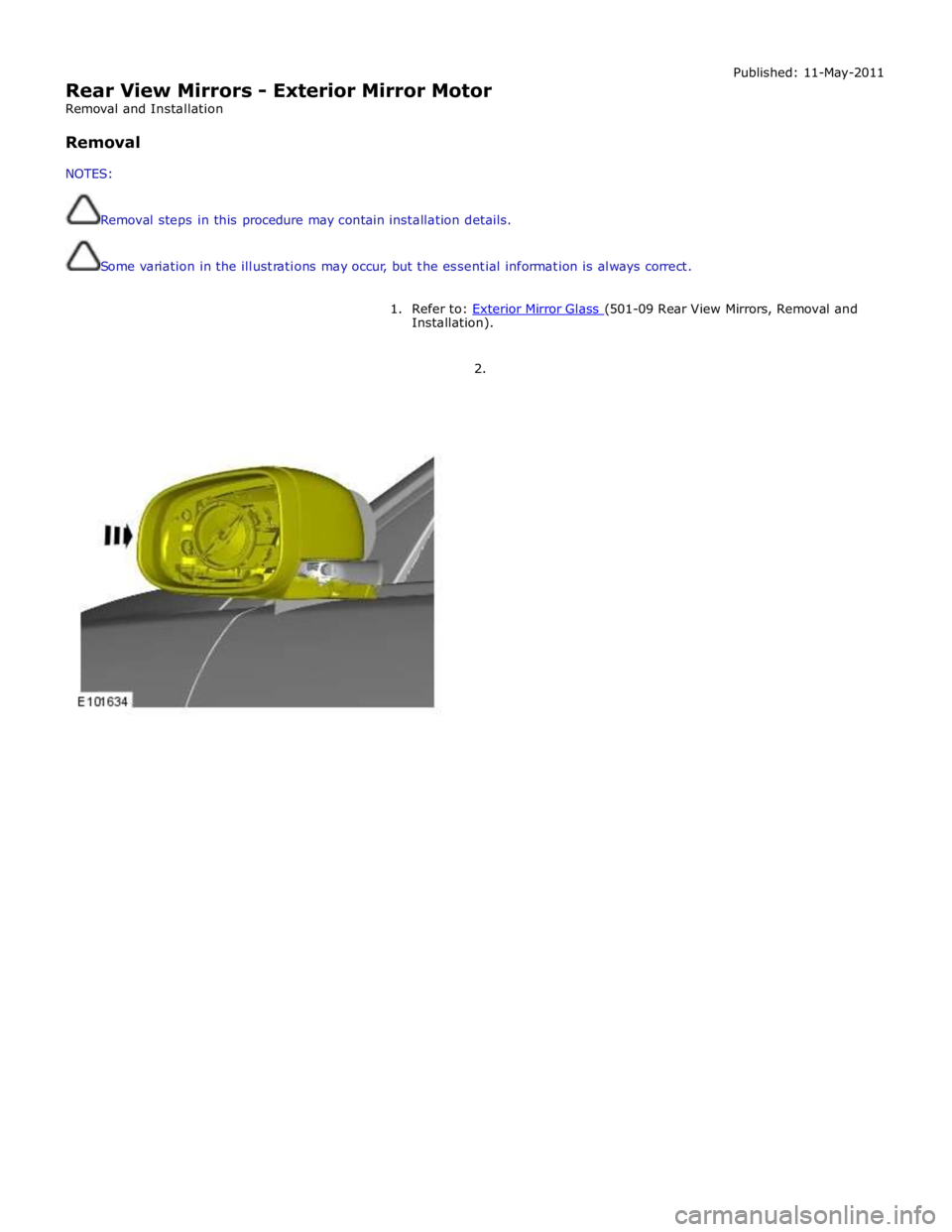

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustratio

Page 2302 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Rear View Mirrors - Exterior Mirror Glass
Removal and Installation

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustratio

Page 2303 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Rear View Mirrors - Exterior Mirror Motor
Removal and Installation

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustratio

Page 2304 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com
