Page 2257 of 3039
17.
18.
19.

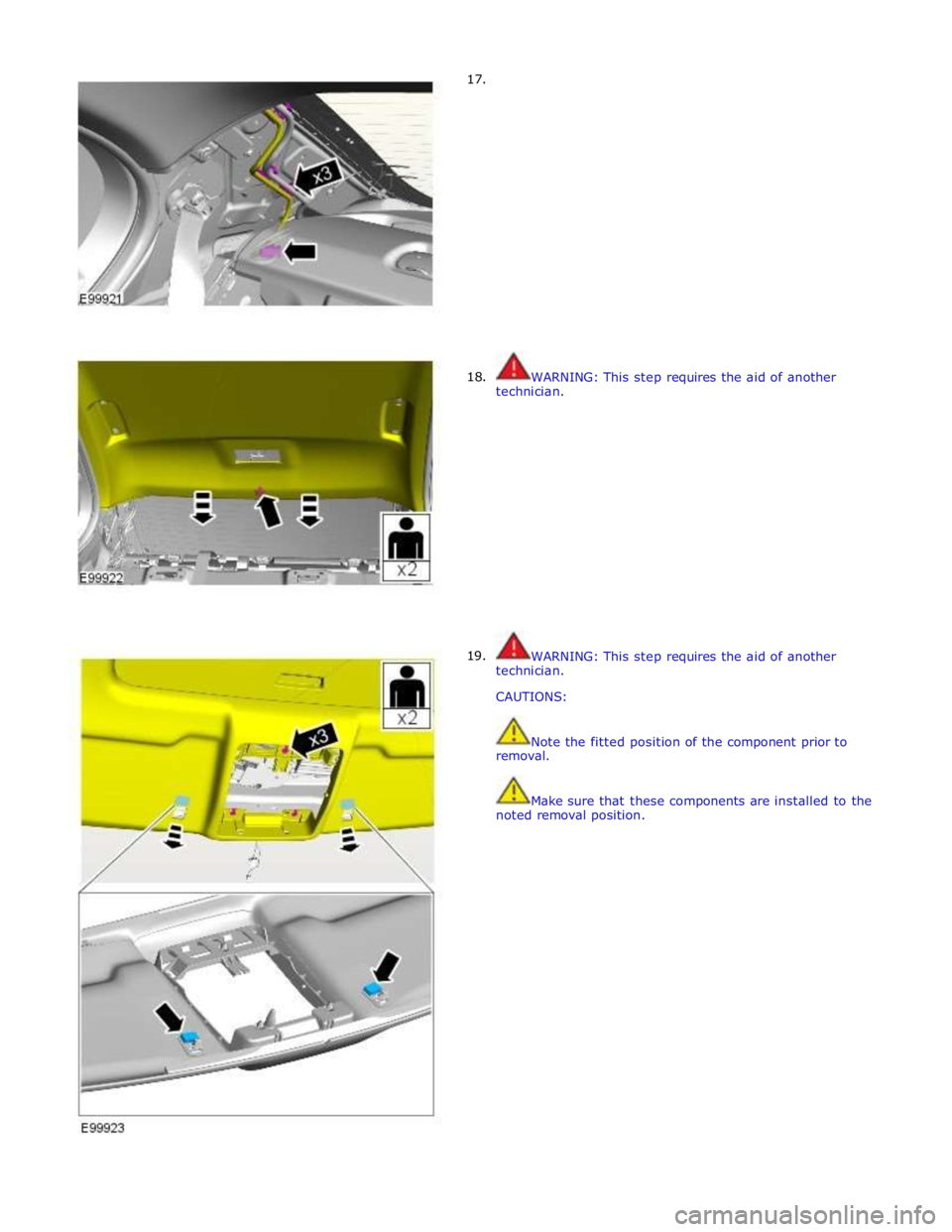

WARNING: This step requires the aid of another
technician.
WARNING: This step requires the aid of another
technician.
CAUTIONS:
Note the fitted position of the component prior to
removal.
Make sure that these components are installed to the
noted removal position.
Page 2258 of 3039
Installation

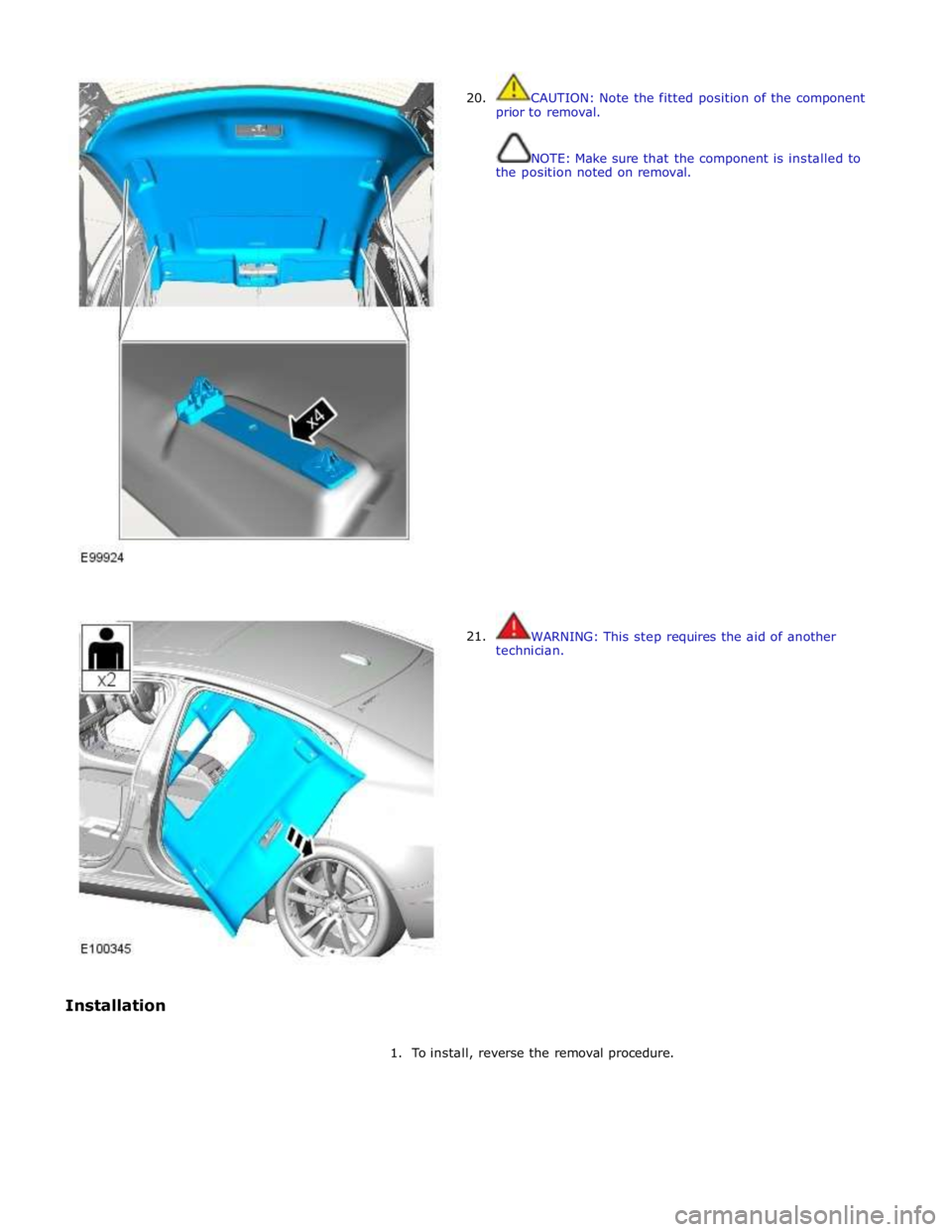

20.
21.
CAUTION: Note the fitted position of the component
prior to removal.
NOTE: Make sure that the component is installed to
the position noted on removal.
WARNING: This step requires the aid of another
technician.
1. To install, reverse the removal procedure.
Page 2259 of 3039
Published: 11-May-2011

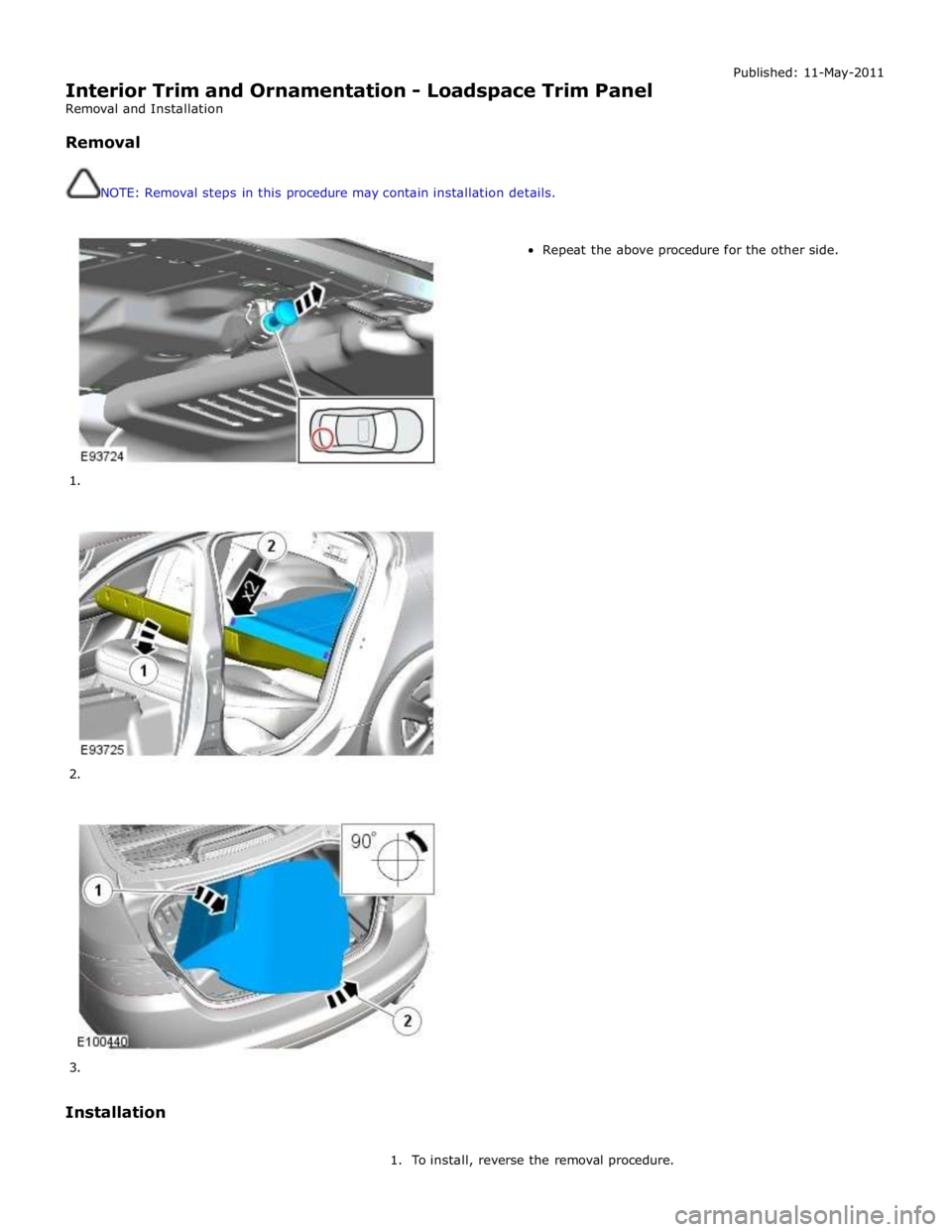

Interior Trim and Ornamentation - Loadspace Scuff Plate Trim Panel
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
1.
2.
Installation
1. To install, reverse the removal procedure. www.JagDocs.com
Page 2260 of 3039

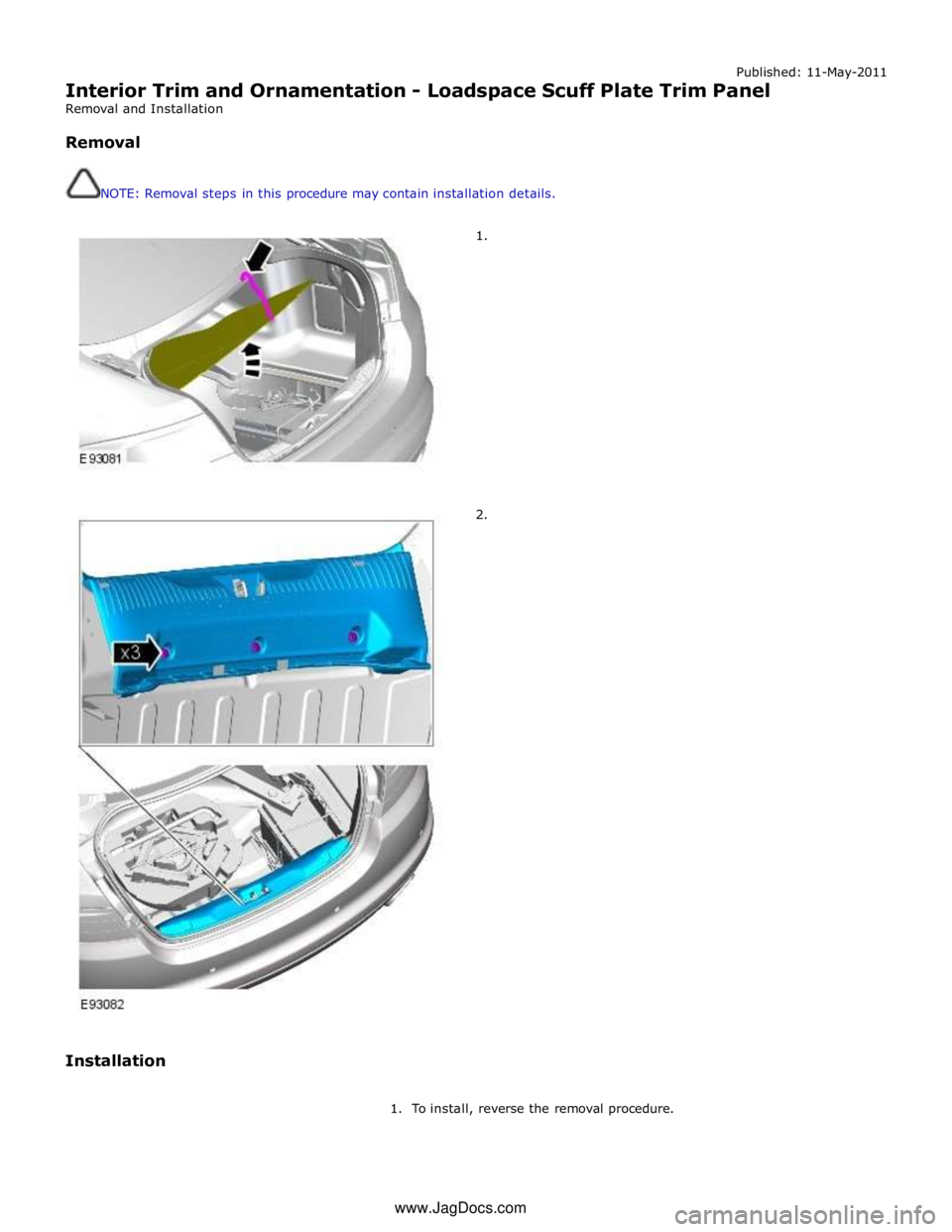

Interior Trim and Ornamentation - Loadspace Trim Panel
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1.
2.
3.
Installation
Repeat the above procedure for the other side.
1. To install, reverse the removal procedure.
Page 2261 of 3039

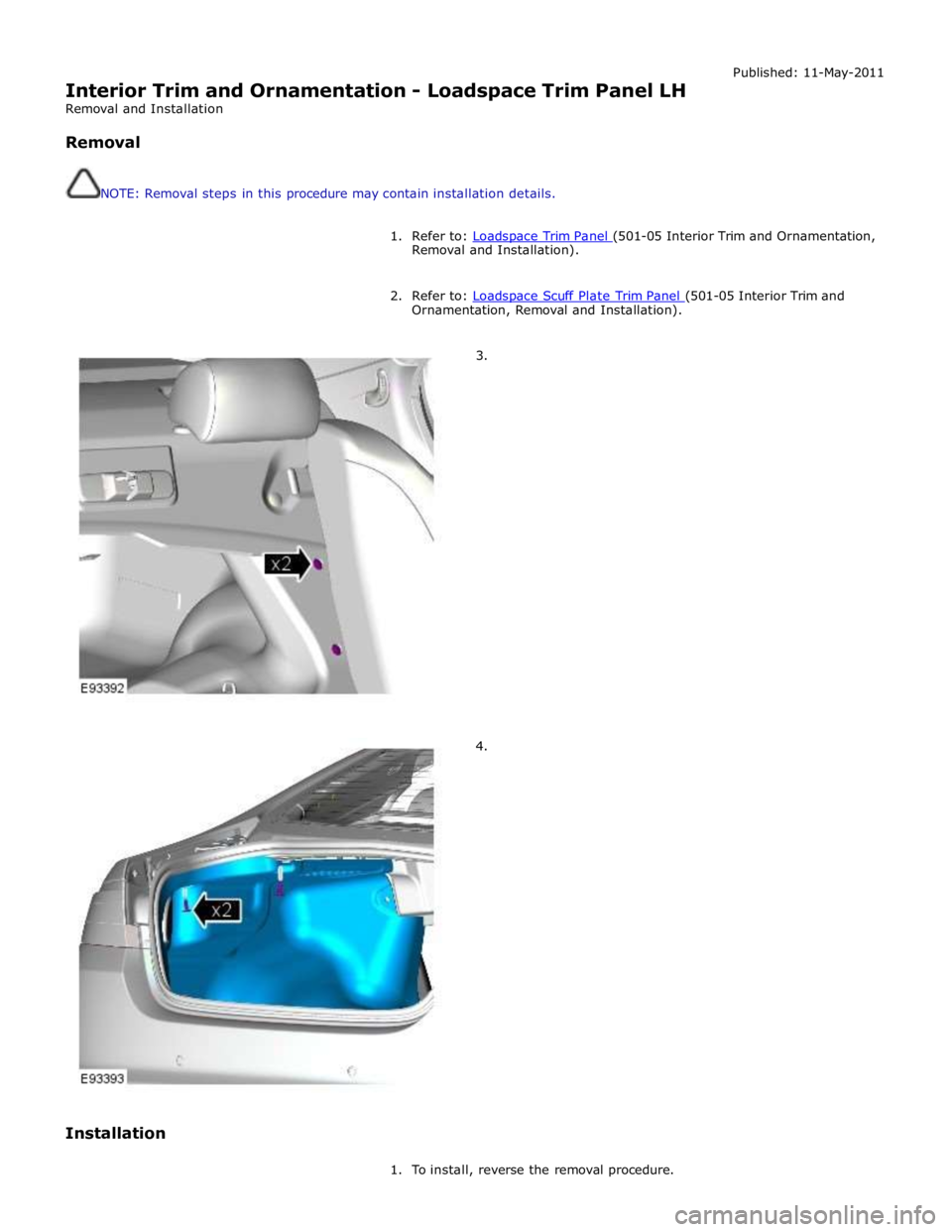

Interior Trim and Ornamentation - Loadspace Trim Panel LH
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
2. Refer to: Loadspace Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
3.
4.
Installation
1. To install, reverse the removal procedure.
Page 2262 of 3039

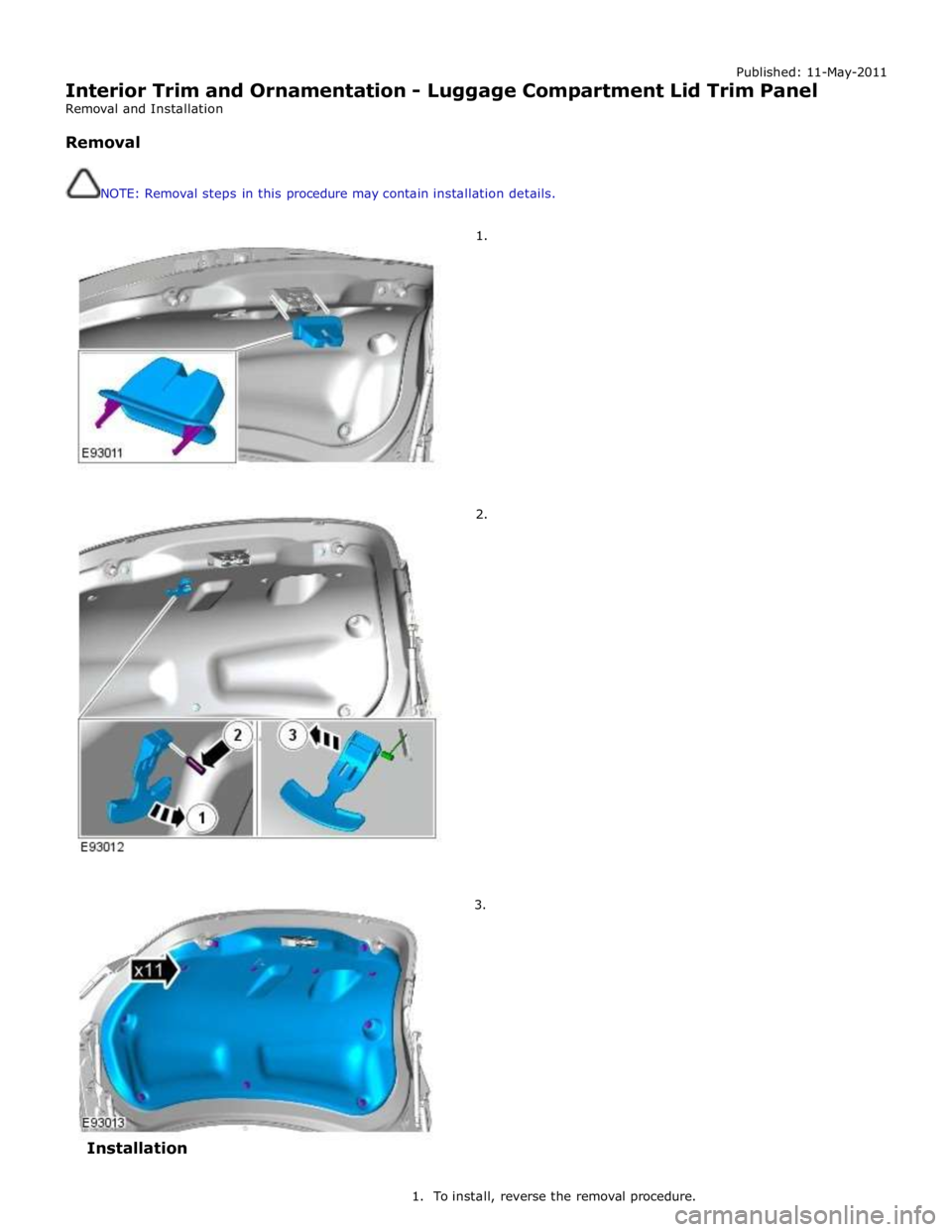

Interior Trim and Ornamentation - Loadspace Trim Panel RH
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
2. Refer to: Loadspace Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
Installation
3.
4. NOTE: LH illustration shown, RH is similar.
1. To install, reverse the removal procedure.
Page 2263 of 3039
Published: 11-May-2011

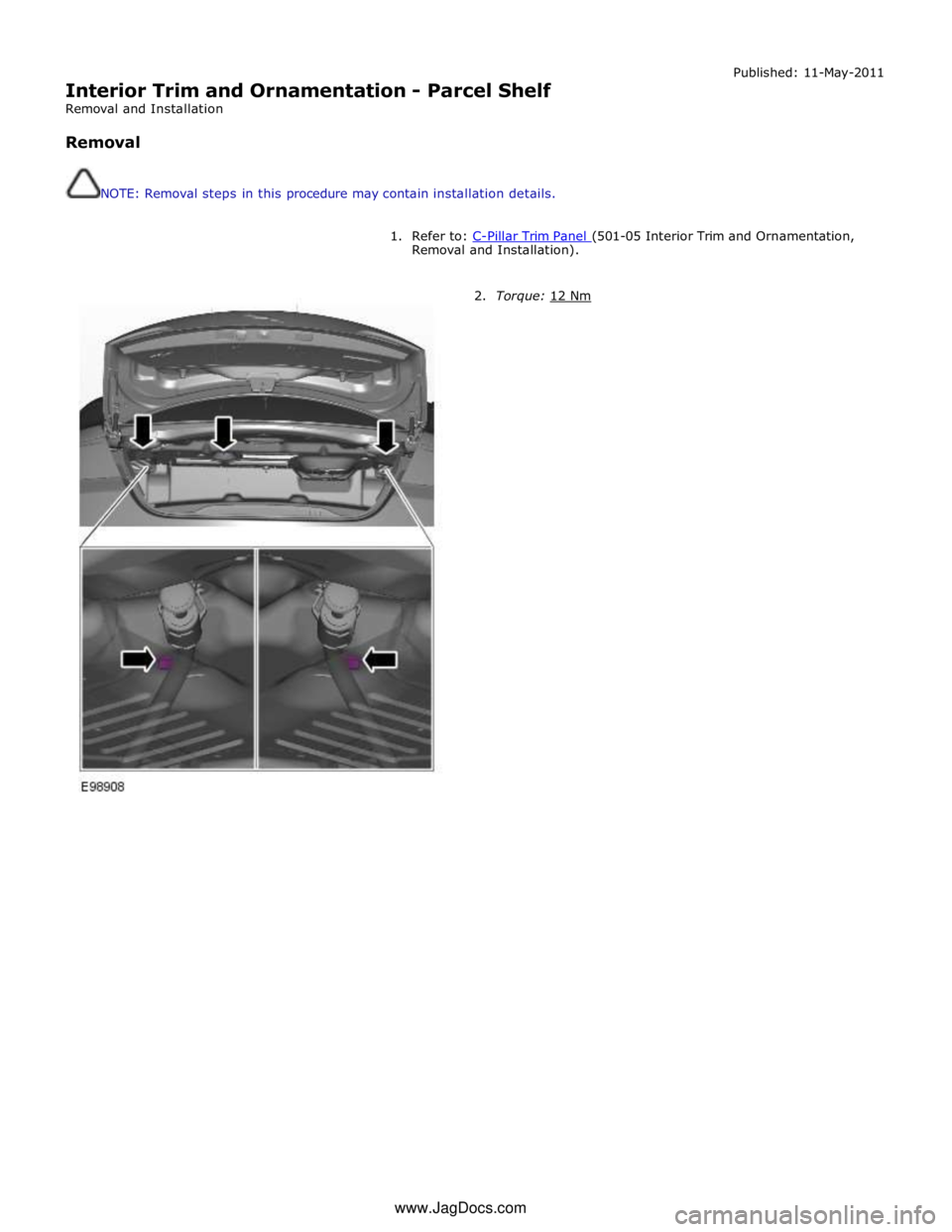

Interior Trim and Ornamentation - Luggage Compartment Lid Trim Panel
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
1.
2.
3.
1. To install, reverse the removal procedure. Installation
Page 2264 of 3039
Interior Trim and Ornamentation - Parcel Shelf
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: C-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
2. Torque: 12 Nm www.JagDocs.com
