Page 1321 of 3039
10.
11.
12. Discard the gaskets.
NOTE: Do not disassemble further if the component is
removed for access only. www.JagDocs.com
Page 1322 of 3039
Installation 13.
14.
1. CAUTION: If a new cylinder head has been installed, then new
taptite bolts must be used to install the supercharger.
NOTE: New taptite bolts when used cut their own threads on the
first application.
To install, reverse the removal procedure.
2. Torque: 25 Nm
Page 1323 of 3039
3. Torque: 25 Nm 4. Torque: 10 Nm 5.
6.
CAUTIONS:
If a new cylinder head has been installed then
the special tool 303-1449-02 without the thread
must be used to install the supercharger.
If a new cylinder head has been installed, then
new taptite bolts must be used to install the
supercharger.
NOTE: New taptite bolts when used cut their
own threads on the first application.
Page 1324 of 3039
Special Tool(s): 303-1449-01, 303-1449-02
7. CAUTION: Make sure that the mating faces are clean
and free of foreign material.
Install new gaskets.
8. CAUTION: Make sure that the mating faces are clean
and free of foreign material.
Page 1325 of 3039
9.
10.
11. NOTE: Left-hand shown, right-hand similar.
Special Tool(s): 303-1449-01, 303-1449-02 Torque: 25 Nm
NOTE: Left-hand shown, right-hand similar.
Torque: 25 Nm
Page 1326 of 3039
Engine Controls - V8 S/C 5.0L Petrol, Removal and Installation).
14. Refer to: Supercharger Belt (303-05 Accessory Drive - 5.0L, Removal and
Installation).
15. Refer to: Throttle Body (303-04E Fuel Charging and Controls - V8 S/C 5.0L Petrol, Removal and Installation).
16. Refer to: Charge Air Cooler (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).
17. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). www.JagDocs.com
Page 1327 of 3039
Published: 20-Jun-2014
Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol - Supercharger
Spring Isolator
Removal and Installation
Removal
CAUTION: Make sure that all open ports are covered to prevent any foreign material ingress.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
1. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2. Refer to: Supercharger (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).
3.

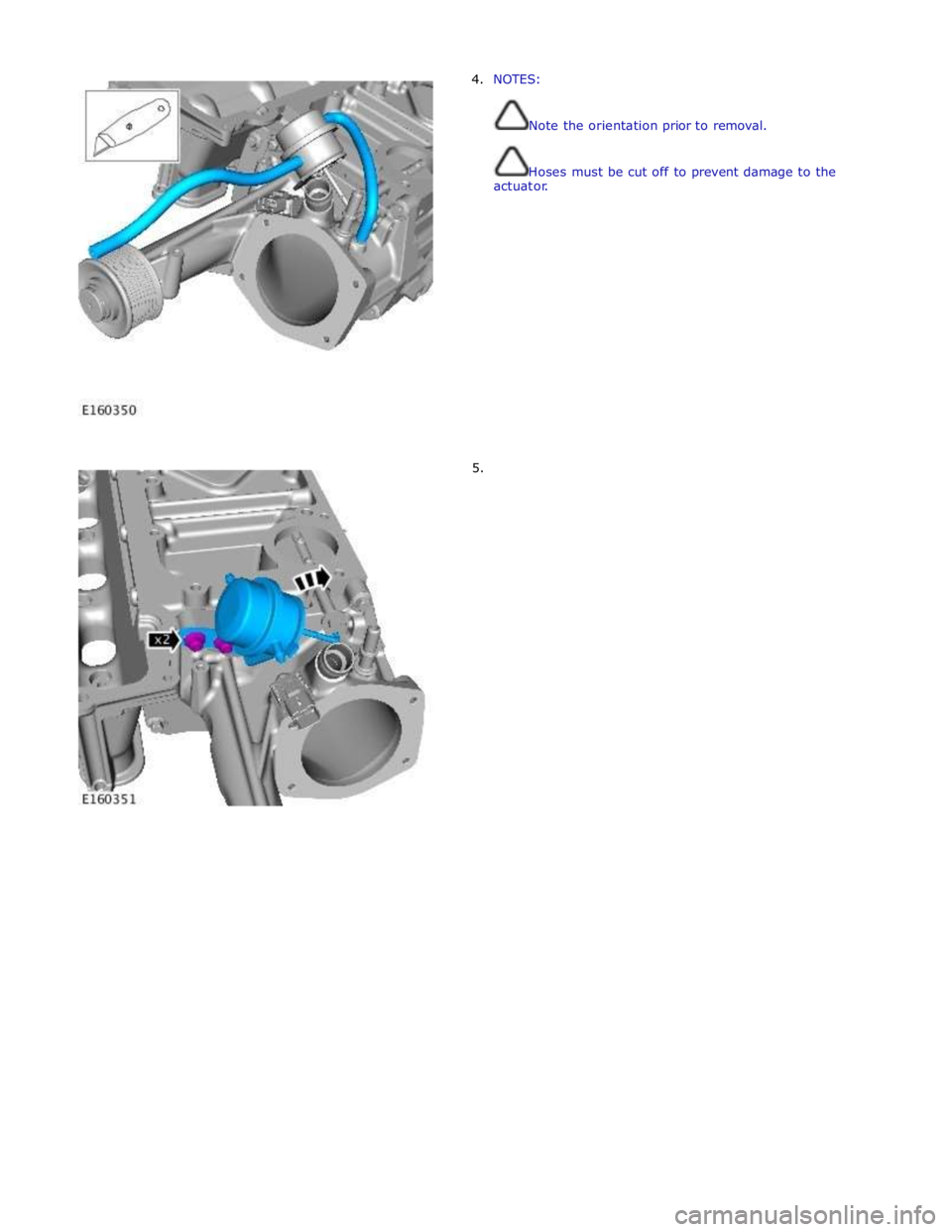

Page 1328 of 3039
4. NOTES:
Note the orientation prior to removal.
Hoses must be cut off to prevent damage to the
actuator.
5.
