Page 1737 of 3039
Climate Control - Floor Console Register
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Remove both floor console side trim panels.
Refer to: Floor Console Side Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).
2. www.JagDocs.com
Page 1738 of 3039
Page 1739 of 3039
Climate Control - Footwell Vent/Duct Blend Door Actuator
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Climate Control Assembly (412-01 Climate Control, Removal and Installation).
Installation
3. CAUTIONS:
Take extra care not to damage the clips or screw
threads. Failure to follow this instruction may result in
damage to the climate control assembly.
Make sure that the component is correctly located on
the locating dowels.
NOTE: RHD illustration shown, LHD is similar.
Torque: 1.3 Nm
1. To install, reverse the removal procedure.
Page 1740 of 3039
Climate Control - Heater Core
Removal and Installation
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
All vehicles Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Heater Core and Evaporator Core Housing (412-01 Climate Control, Removal and Installation).
Right-hand drive vehicles
3. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.
Torque: 1.3 Nm
4. Torque: 1.3 Nm
Page 1741 of 3039
5. CAUTION: Take extra care not to damage the
component.
Left-hand drive vehicles
6. CAUTION: Take extra care not to damage the
component.
Torque: 1.3 Nm
Right-hand drive vehicles
Page 1742 of 3039
Page 1743 of 3039
Climate Control - Heater Core and Evaporator Core Housing
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
3. Refer to: Climate Control Assembly (412-01 Climate Control, Removal and Installation).
Right-hand drive vehicles
4. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.
Torque: 1.3 Nm
Left-hand drive vehicles
5. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.
Torque: 1.3 Nm
Page 1744 of 3039

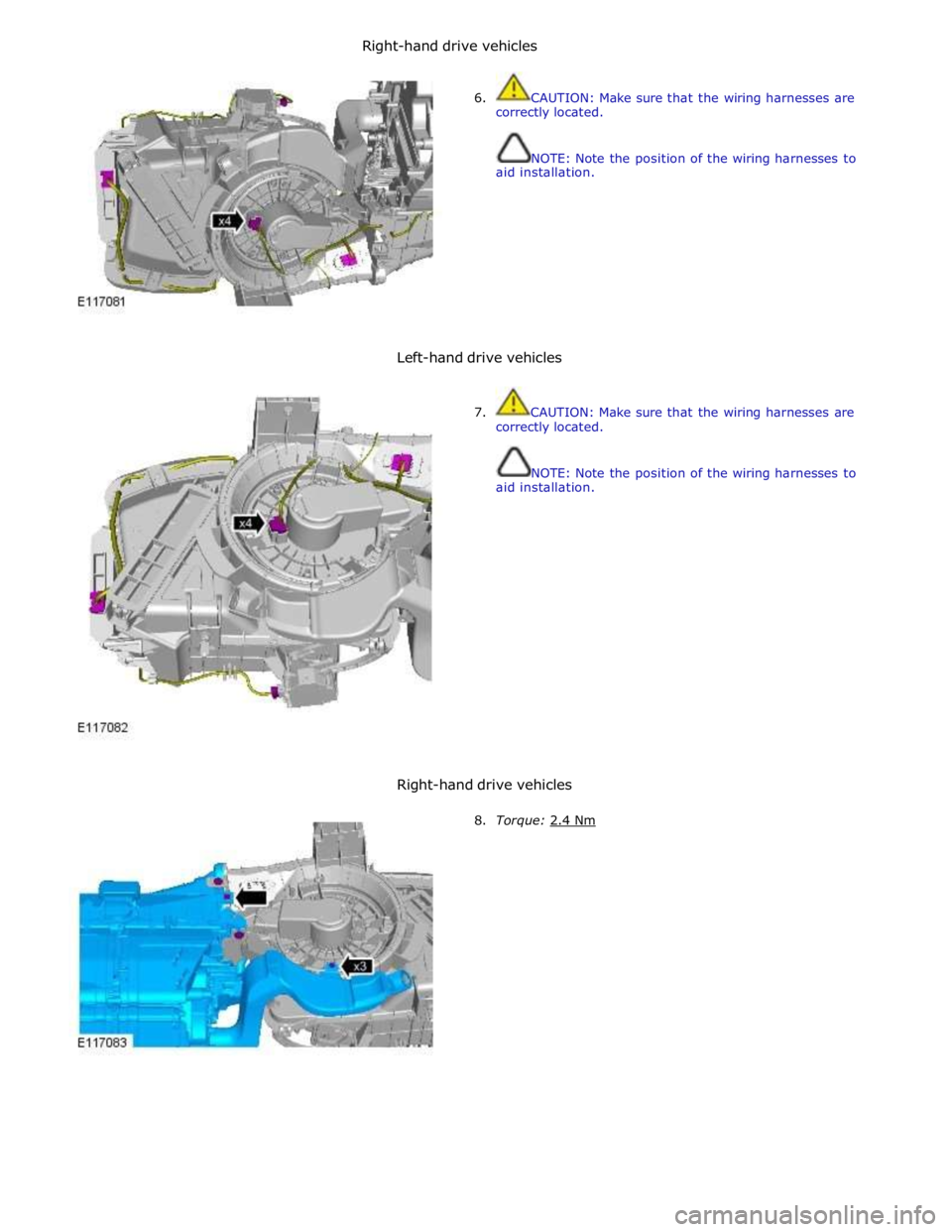

6. CAUTION: Make sure that the wiring harnesses are
correctly located.
NOTE: Note the position of the wiring harnesses to
aid installation.
Left-hand drive vehicles
7. CAUTION: Make sure that the wiring harnesses are
correctly located.
NOTE: Note the position of the wiring harnesses to
aid installation.
Right-hand drive vehicles
8. Torque: 2.4 Nm
Right-handdrivevehicles
