Page 1025 of 3039

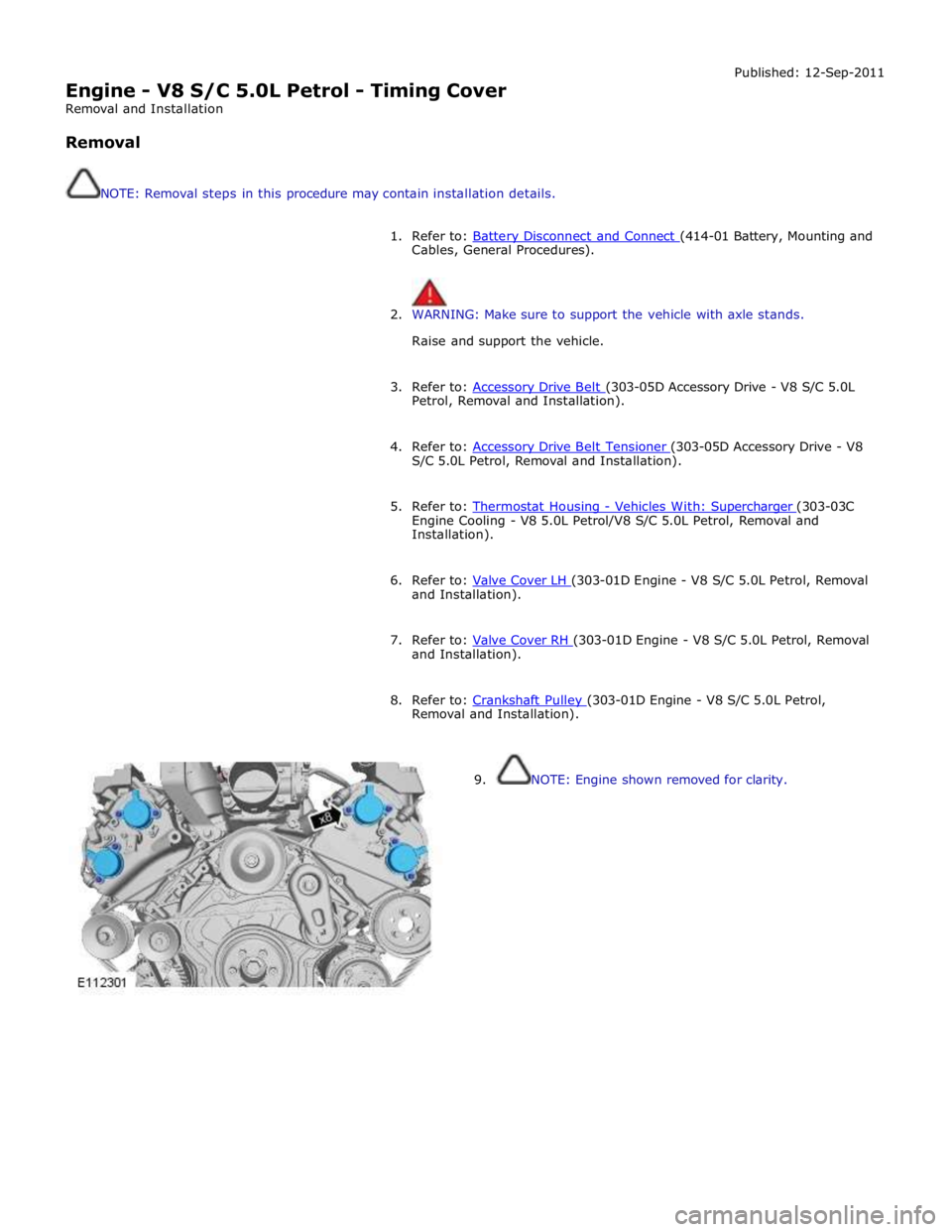

JAGUAR XFR 2010 1.G Workshop Manual Engine - V8 S/C 5.0L Petrol - Timing Cover Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation details. Published: 12-Sep-2011 1. Refer to: Ba

Page 1026 of 3039

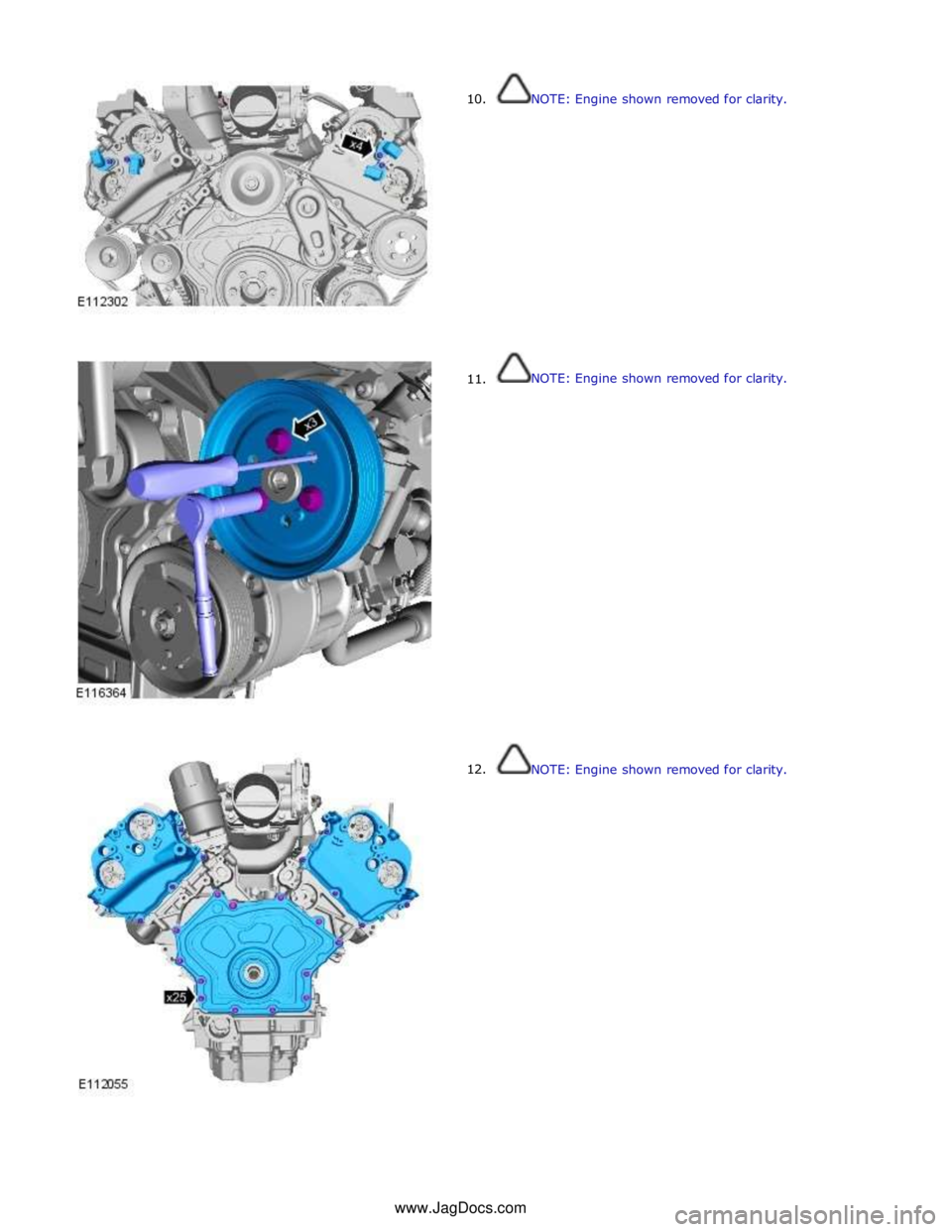

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. 12. NOTE: Engine shown removed for clarity. NOTE: Engine shown removed for clarity.

Page 1027 of 3039

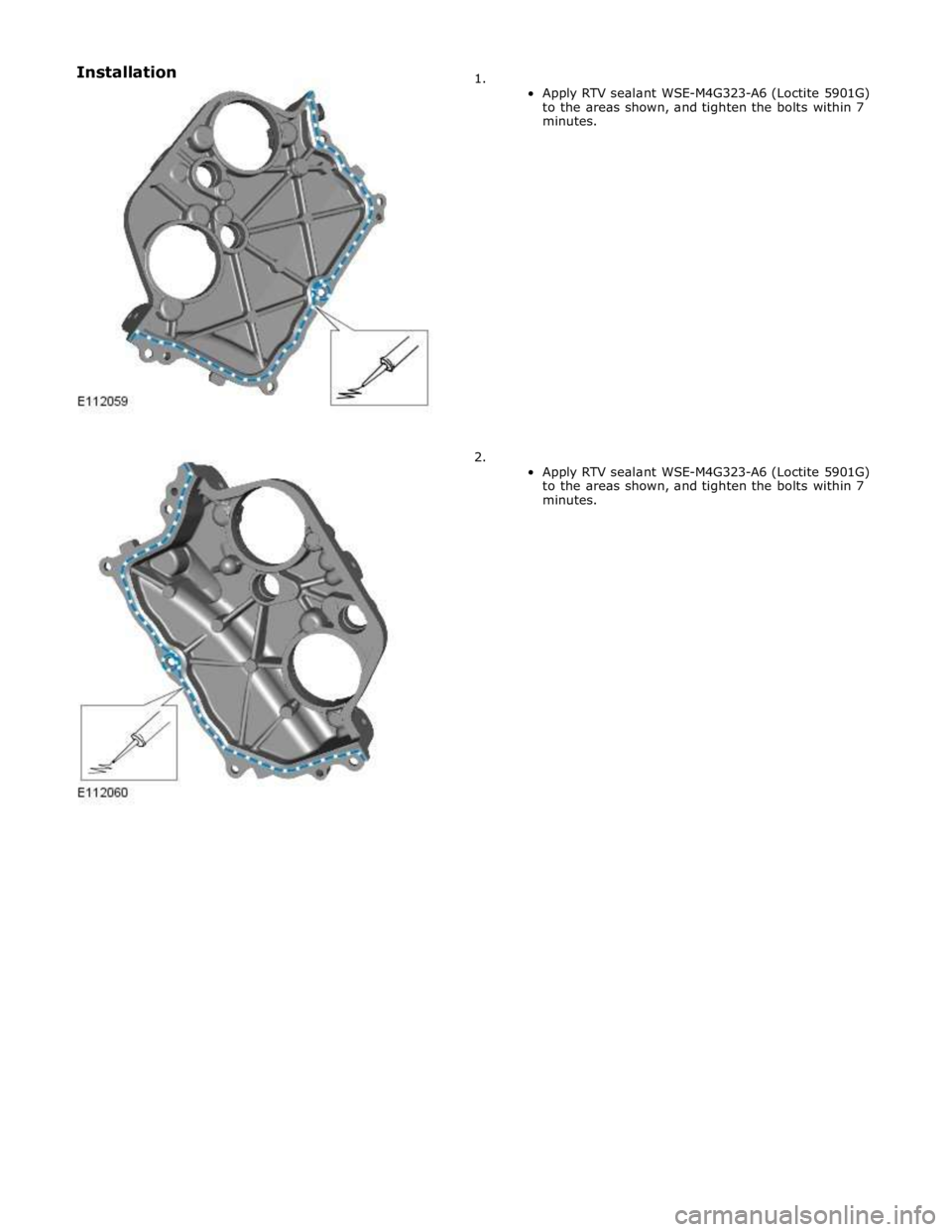

JAGUAR XFR 2010 1.G Workshop Manual Installation

Page 1028 of 3039

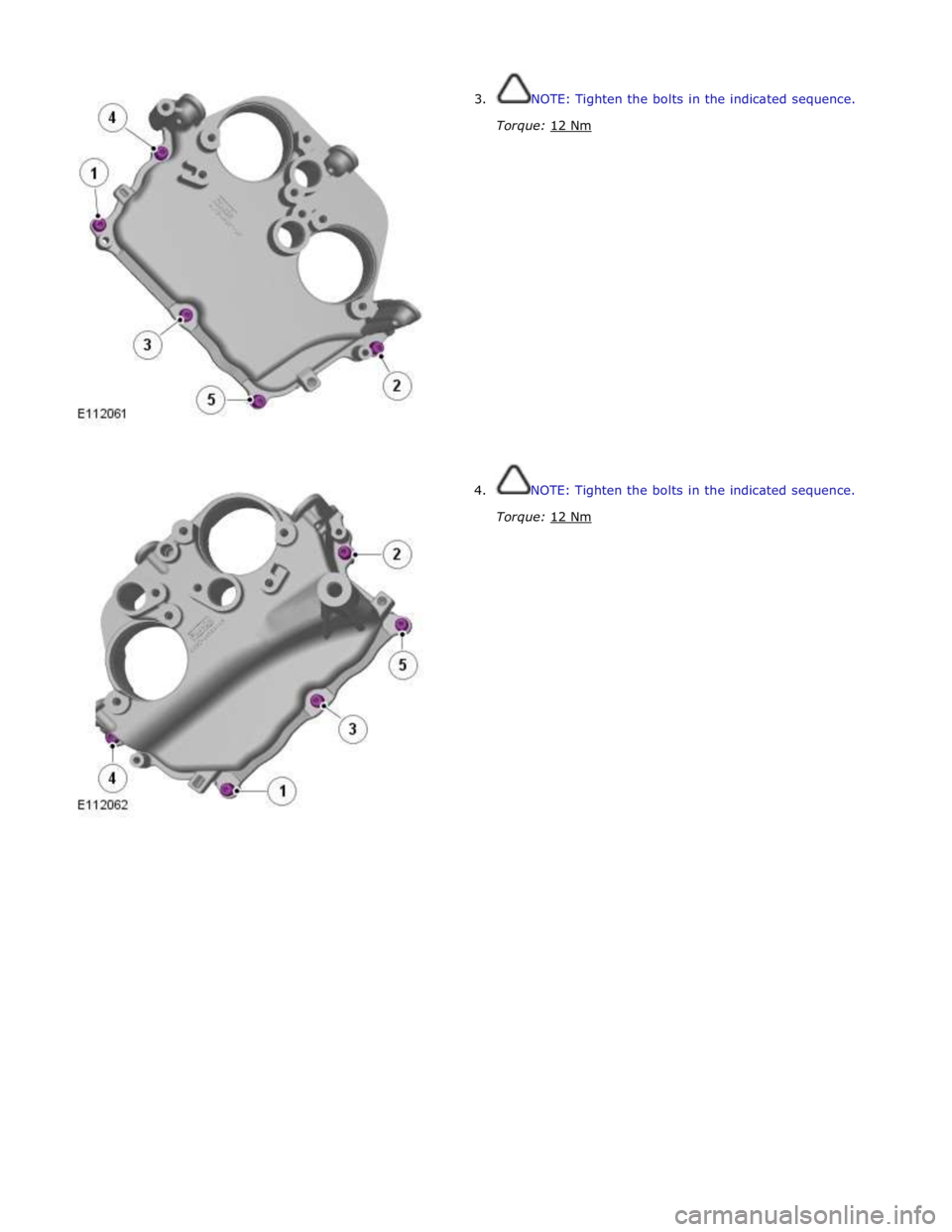

JAGUAR XFR 2010 1.G Workshop Manual 3. NOTE: Tighten the bolts in the indicated sequence. Torque: 12 Nm 4. NOTE: Tighten the bolts in the indicated sequence. Torque: 12 Nm

Page 1029 of 3039

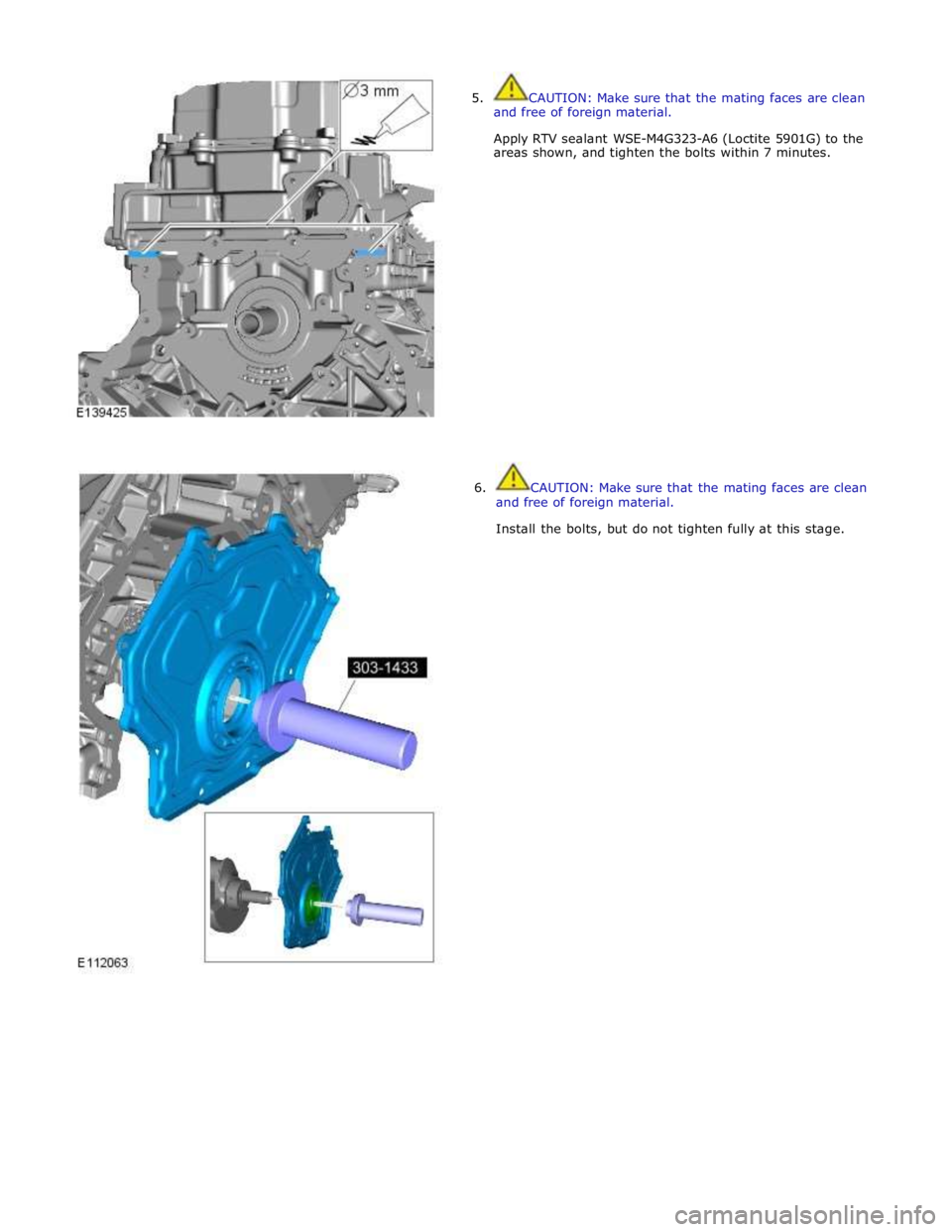

JAGUAR XFR 2010 1.G Workshop Manual 5. CAUTION: Make sure that the mating faces are clean and free of foreign material. Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

Page 1030 of 3039

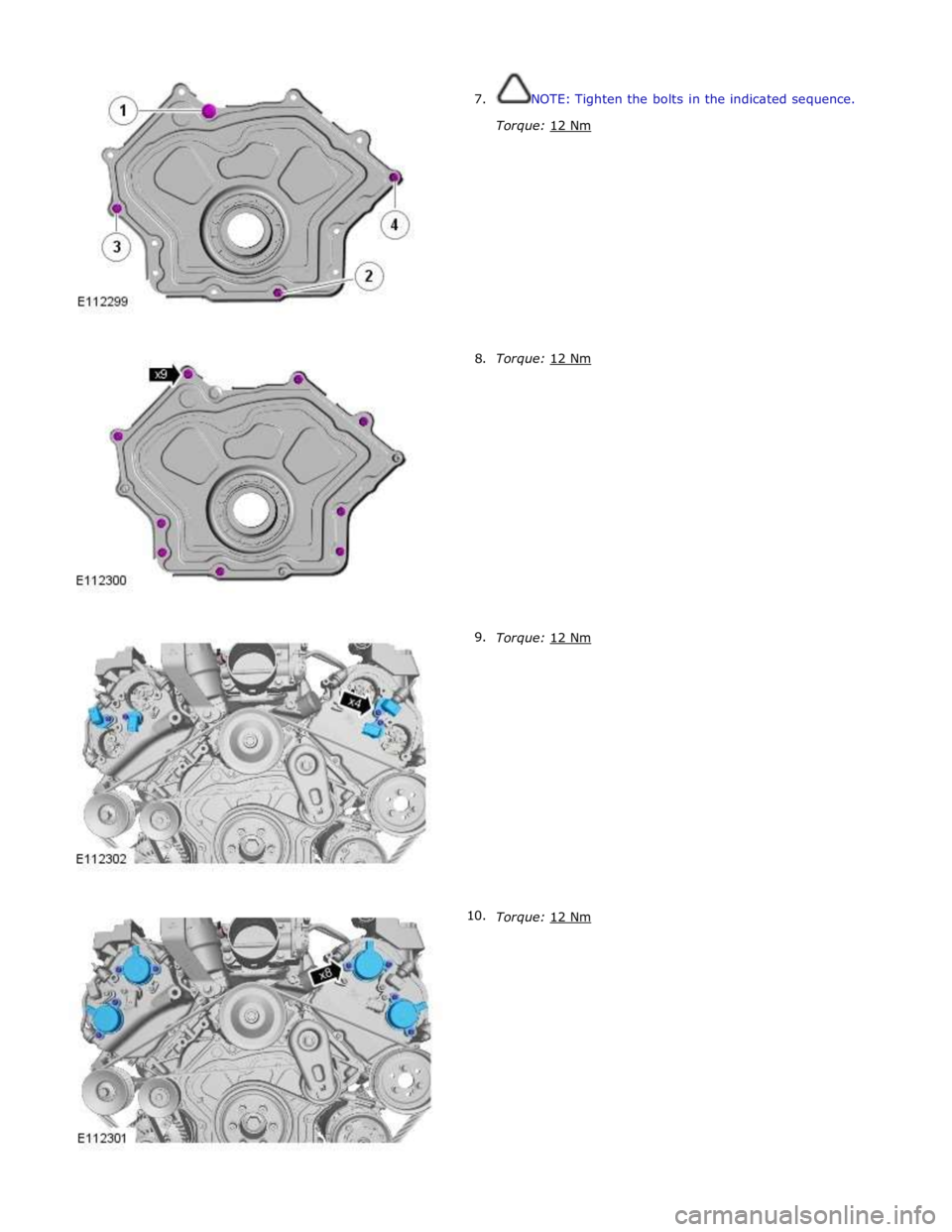

JAGUAR XFR 2010 1.G Workshop Manual 7. 8. 9. 10. NOTE: Tighten the bolts in the indicated sequence. Torque: 12 Nm Torque: 12 Nm

Page 1031 of 3039

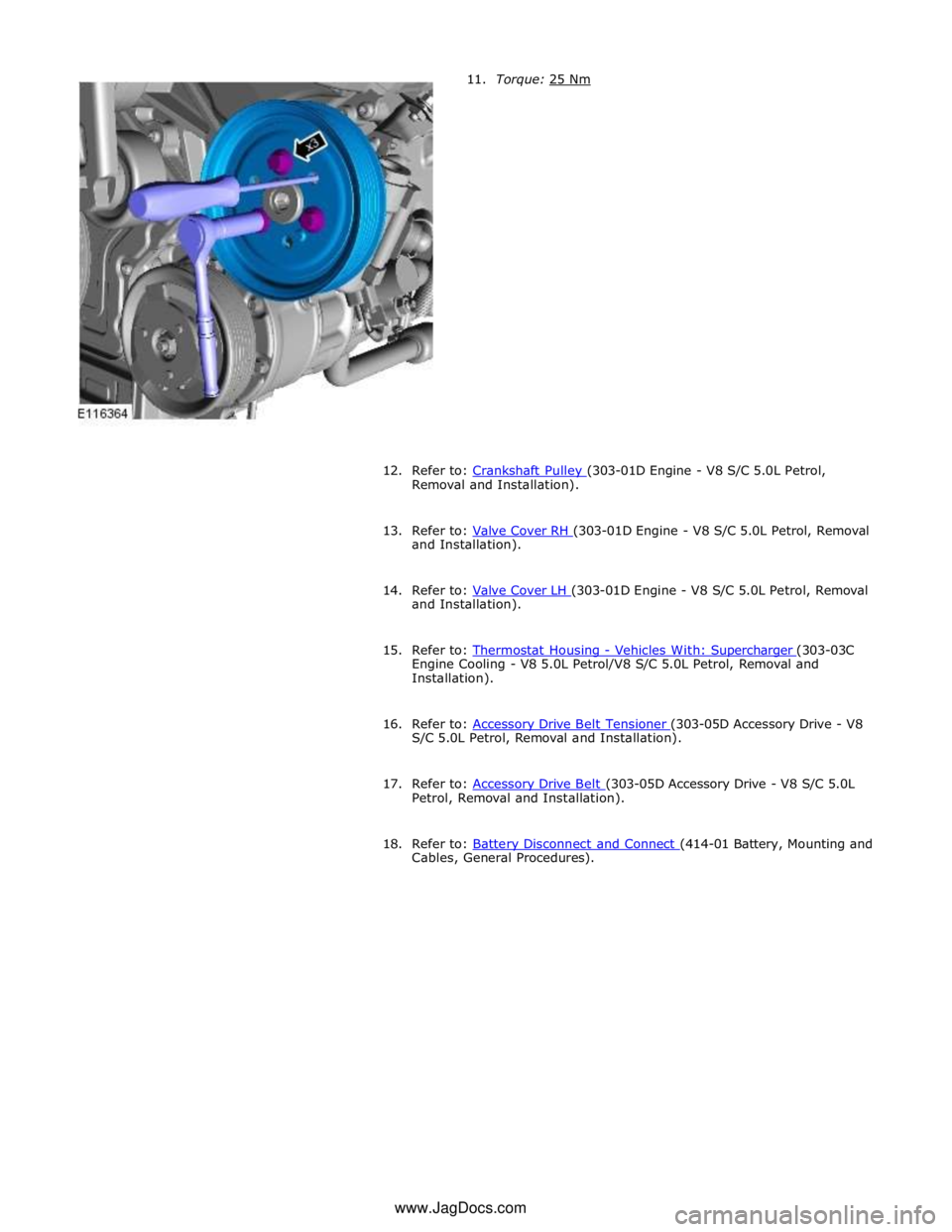

JAGUAR XFR 2010 1.G Workshop Manual 12. Refer to: Crankshaft Pulley (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation). 13. Refer to: Valve Cover RH (303-01D Engine - V8 S/C 5.0L

Page 1032 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Engine - V8 S/C 5.0L Petrol - Timing Drive Components Removal and Installation Special Tool(s) 303-1445 Timing Tool – Camshaft Alignment 303-1447 Timing Tool 303-1448 Lockin
