Page 1473 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 9. 10. 11. CAUTION: Be prepared to collect escaping fluids. NOTE: Remove and discard the O-ring seals. Install blanking caps to the expo

Page 1474 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 12. 13. 14. Make sure that the alignment mark is visible through the inspection hole on removal of the last torque converter bolt.

Page 1475 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 15. Using a suitable tie strap, secure the driveshaft. 16. WARNING: Make sure that the transmission is secured with suitable retaining straps. Using a suitable stand,

Page 1476 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 19. 20. 21. NOTE: The transmission is lowered for access.

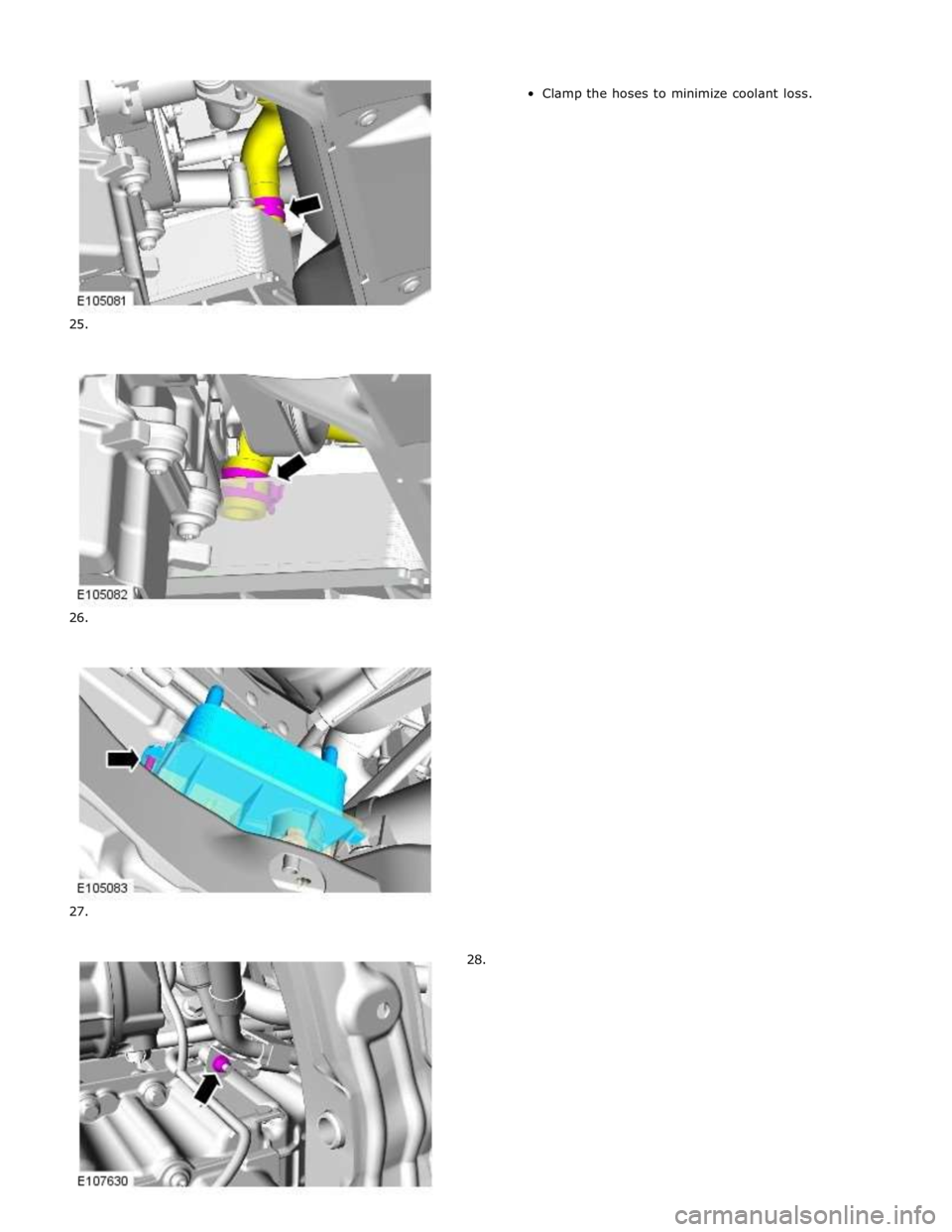

Page 1477 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 22. 23. 24. CAUTION: Make sure that the torque converter remains in the transmission. NOTE: This step requires the aid of anot

Page 1478 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1479 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 29. NOTE: Some variation in the illustrations may occur, but the essential information is always correct. 1. NOTE: Some variation in the illustrations may occur, but th

Page 1480 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 3. Torque: 5 Nm 4. 5. Clamp the hoses to minimize coolant loss. 6. CAUTIONS: Be prepared to collect escaping fluids. Make sure that all op
