JAGUAR XFR 2010 1.G Workshop Manual

Page 1330 of 3039

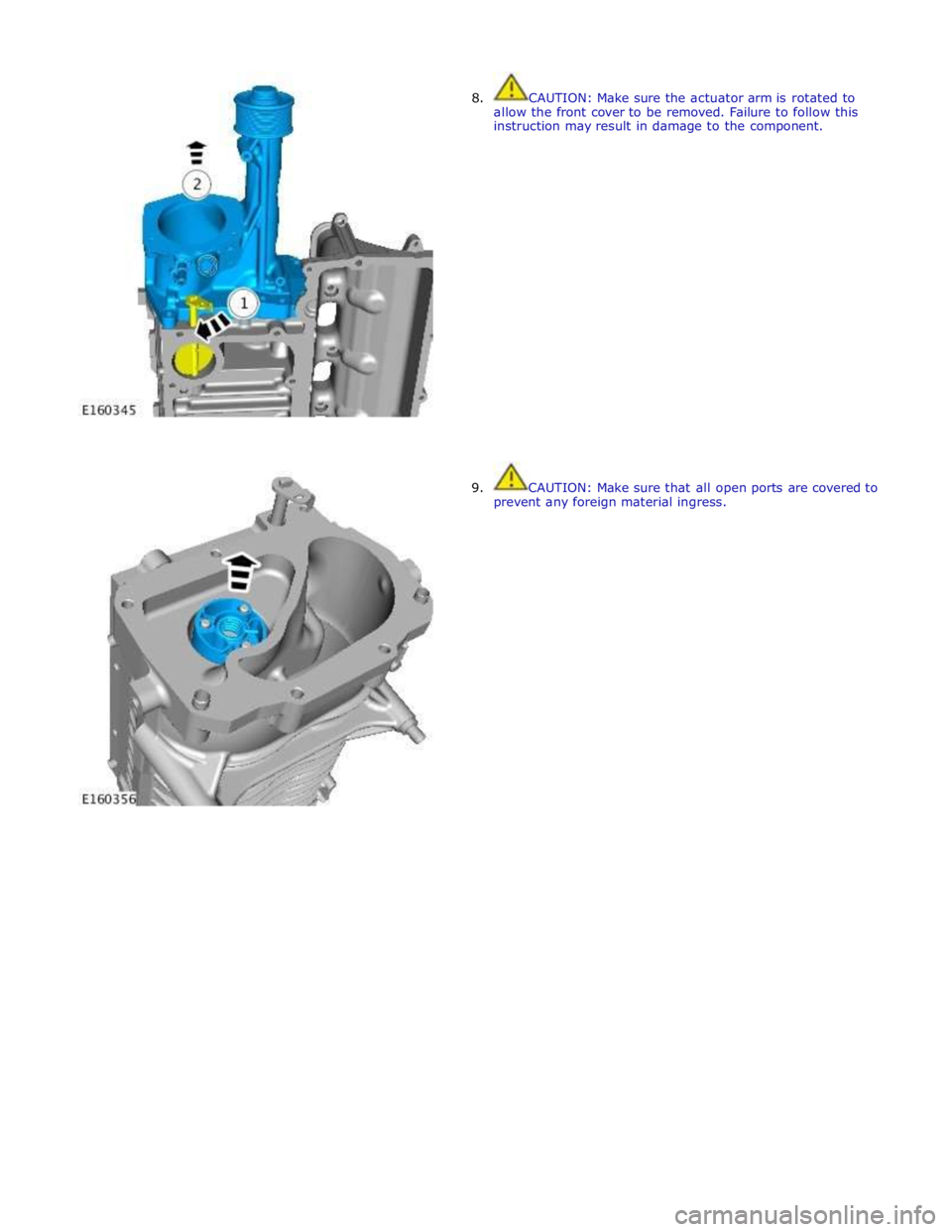

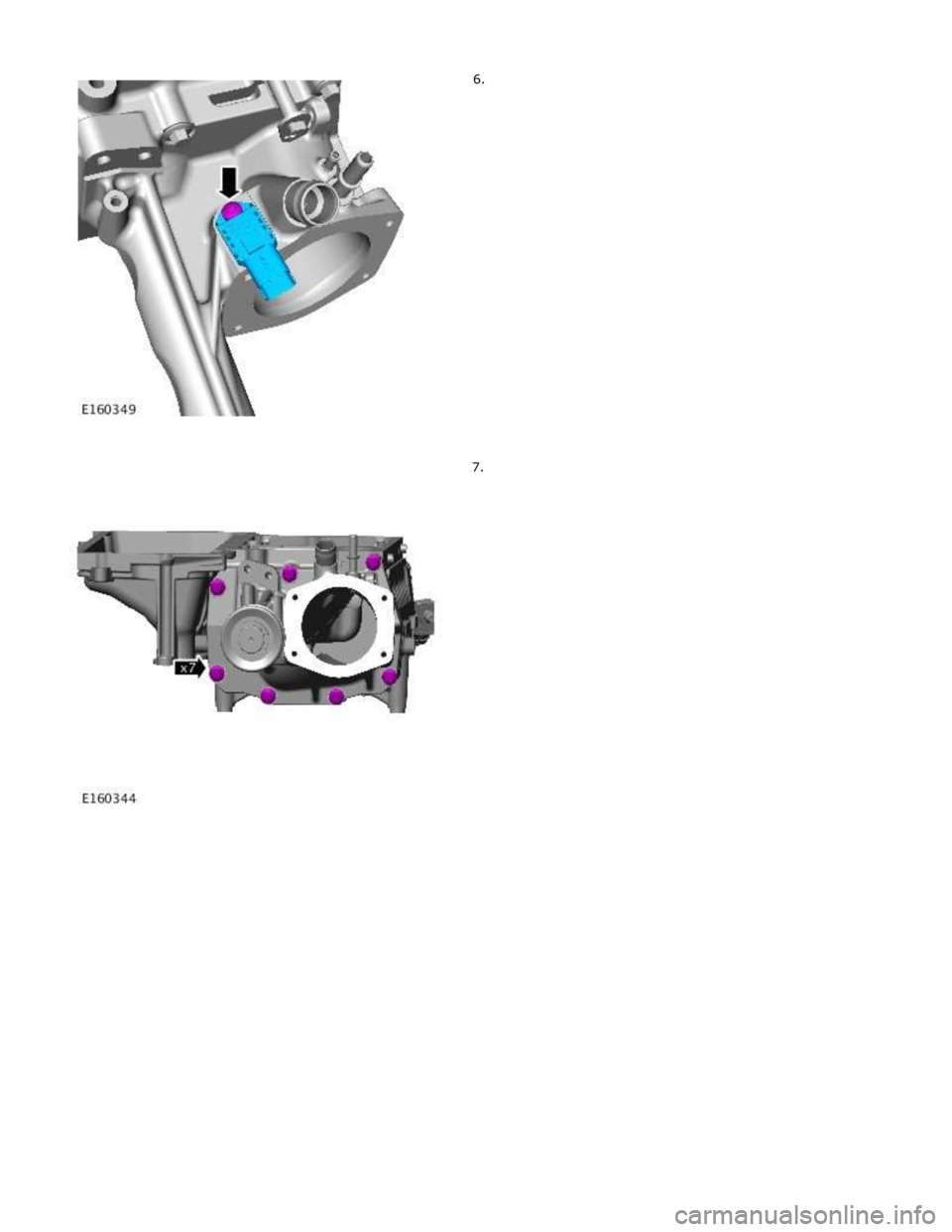

JAGUAR XFR 2010 1.G Workshop Manual 8. CAUTION: Make sure the actuator arm is rotated to allow the front cover to be removed. Failure to follow this instruction may result in damage to the component.

Page 1331 of 3039

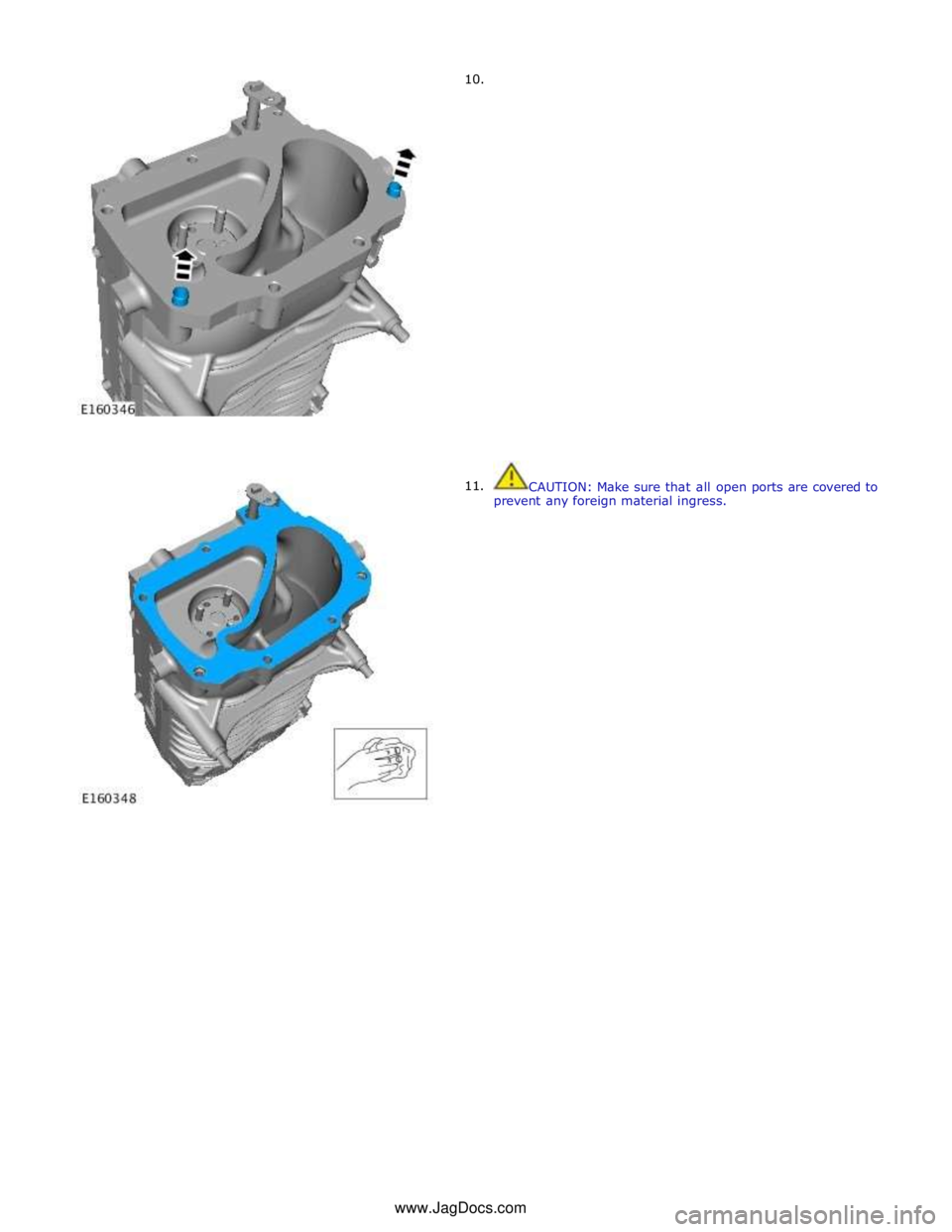

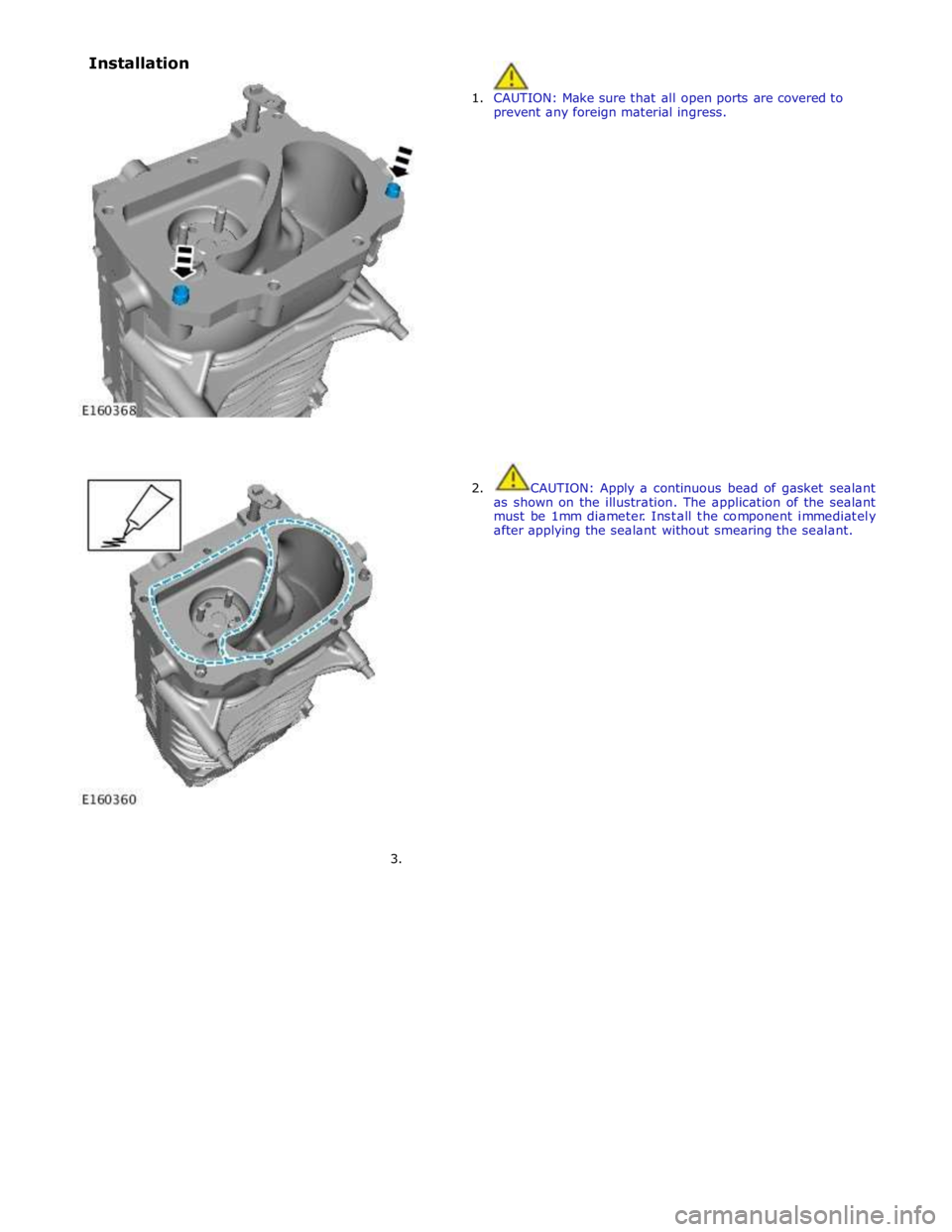

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. CAUTION: Make sure that all open ports are covered to prevent any foreign material ingress. www.JagDocs.com

Page 1332 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 1. CAUTION: Make sure that all open ports are covered to prevent any foreign material ingress. 2. CAUTION: Apply a continuous bead of gasket sealant as sho

Page 1333 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1334 of 3039

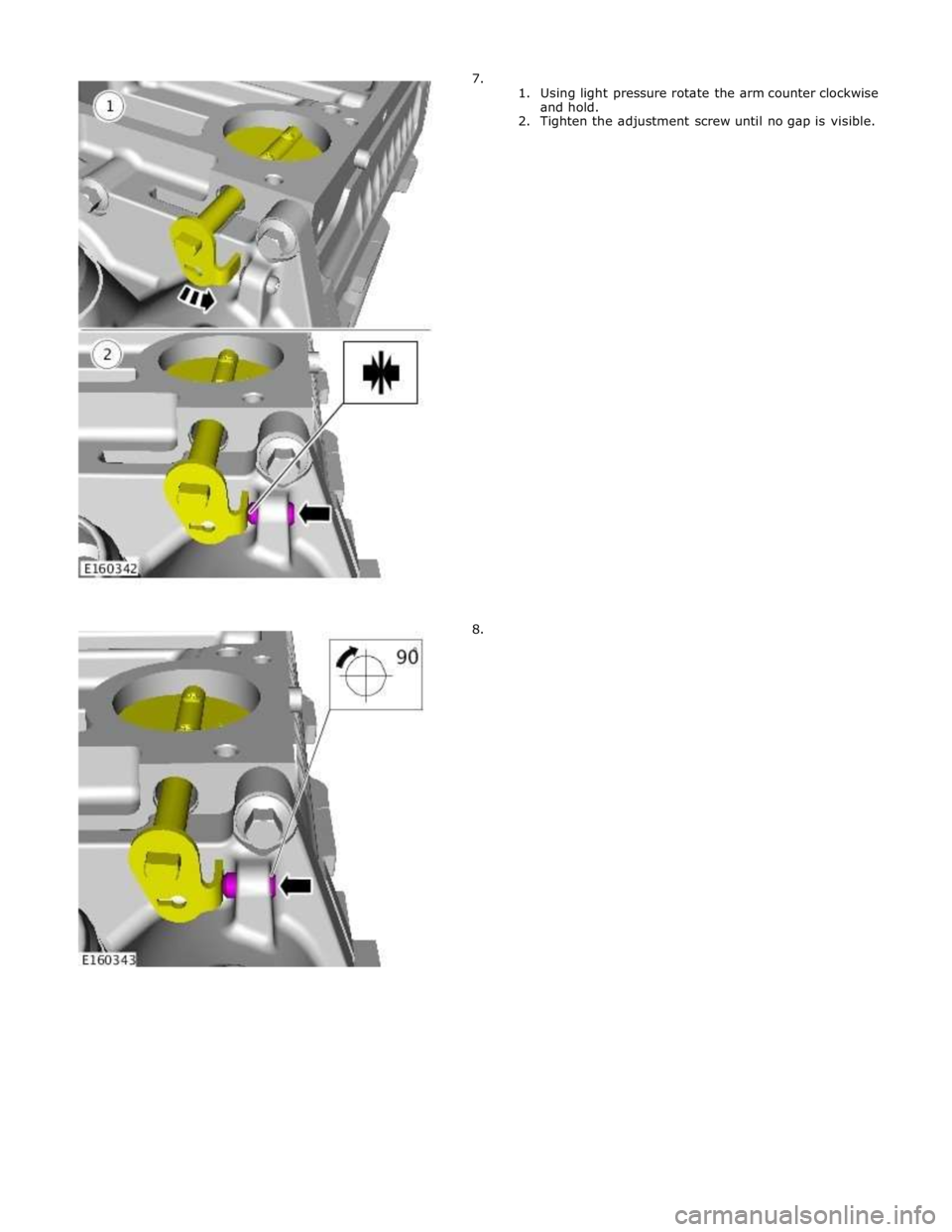

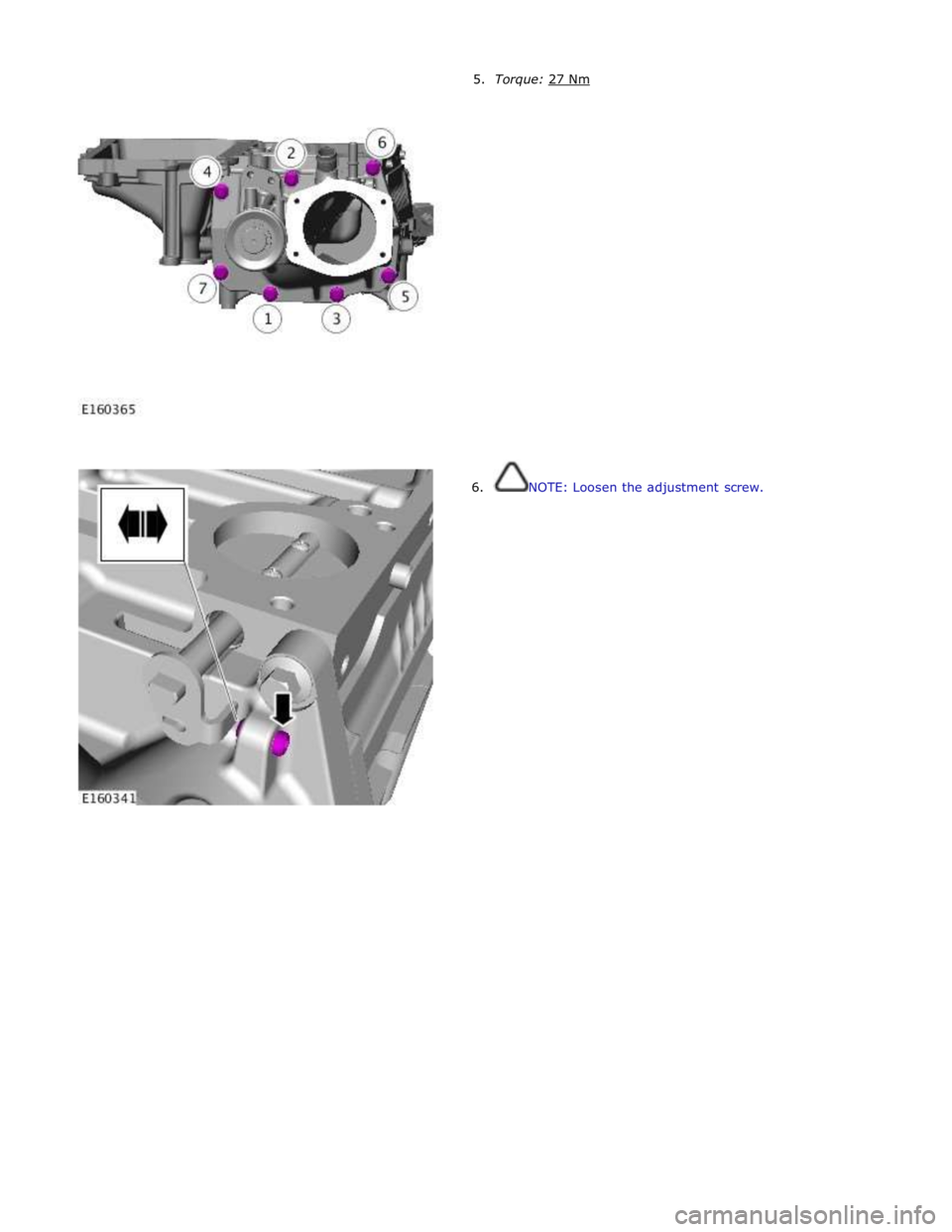

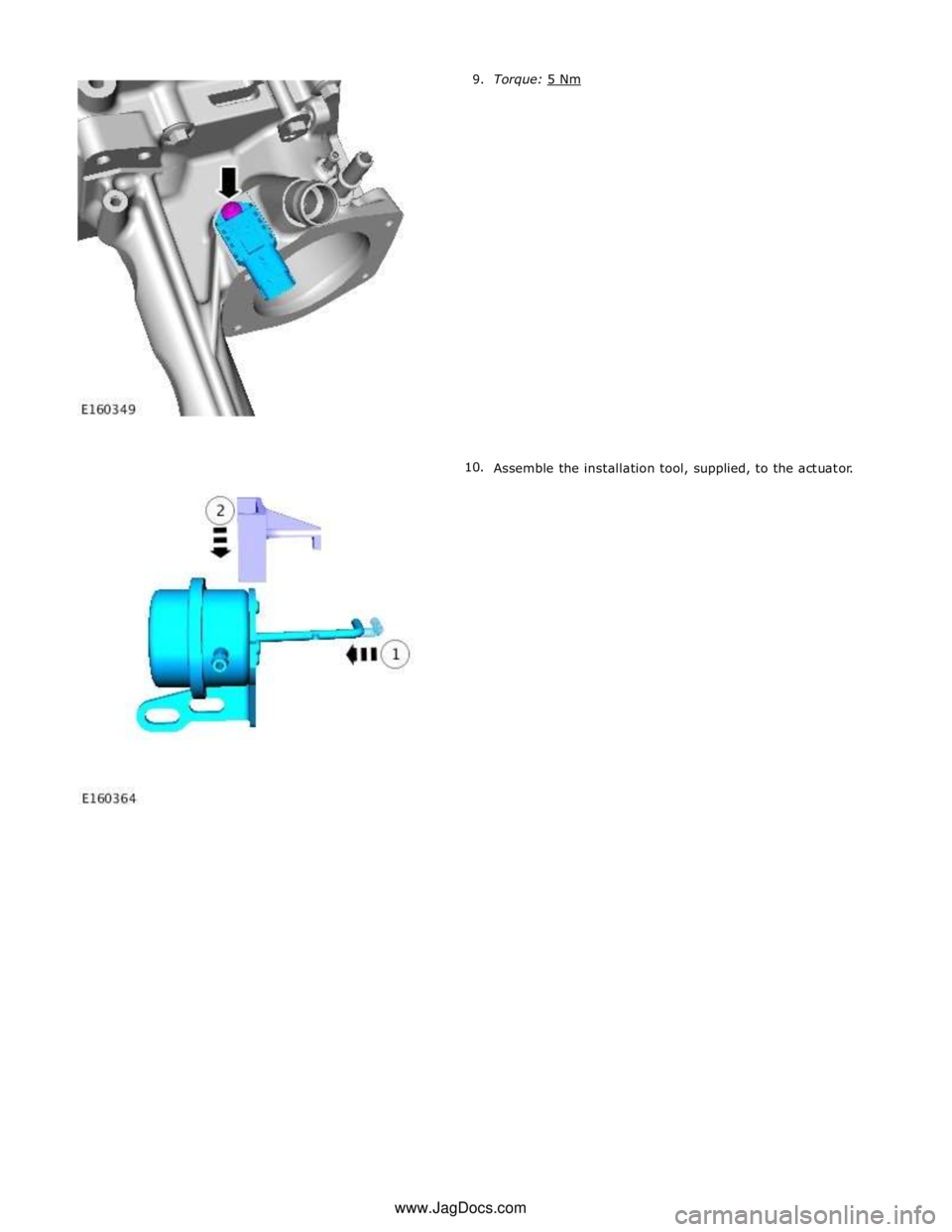

JAGUAR XFR 2010 1.G Workshop Manual 6. NOTE: Loosen the adjustment screw.

Page 1335 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1336 of 3039

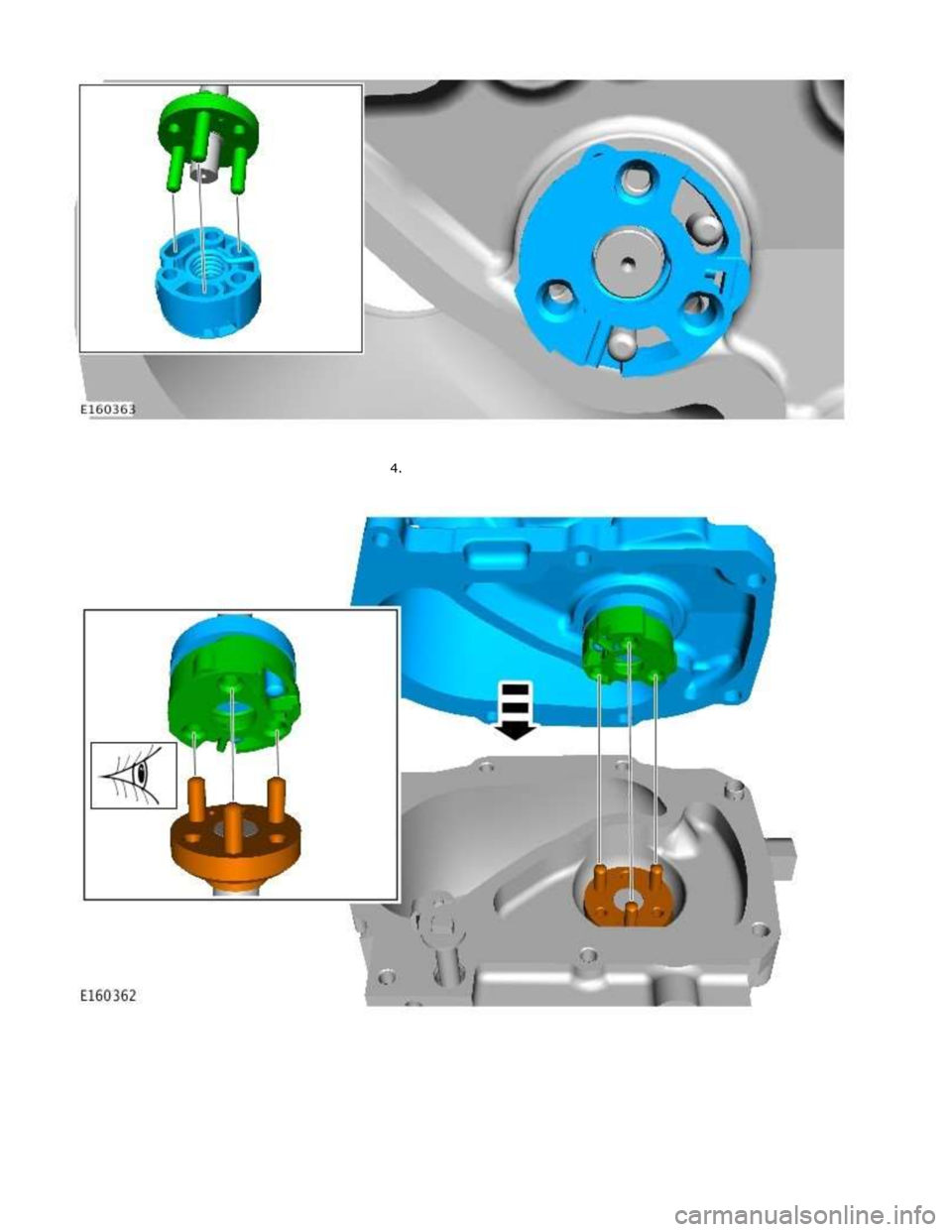

JAGUAR XFR 2010 1.G Workshop Manual Assemble the installation tool, supplied, to the actuator. www.JagDocs.com
