RSU-10
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

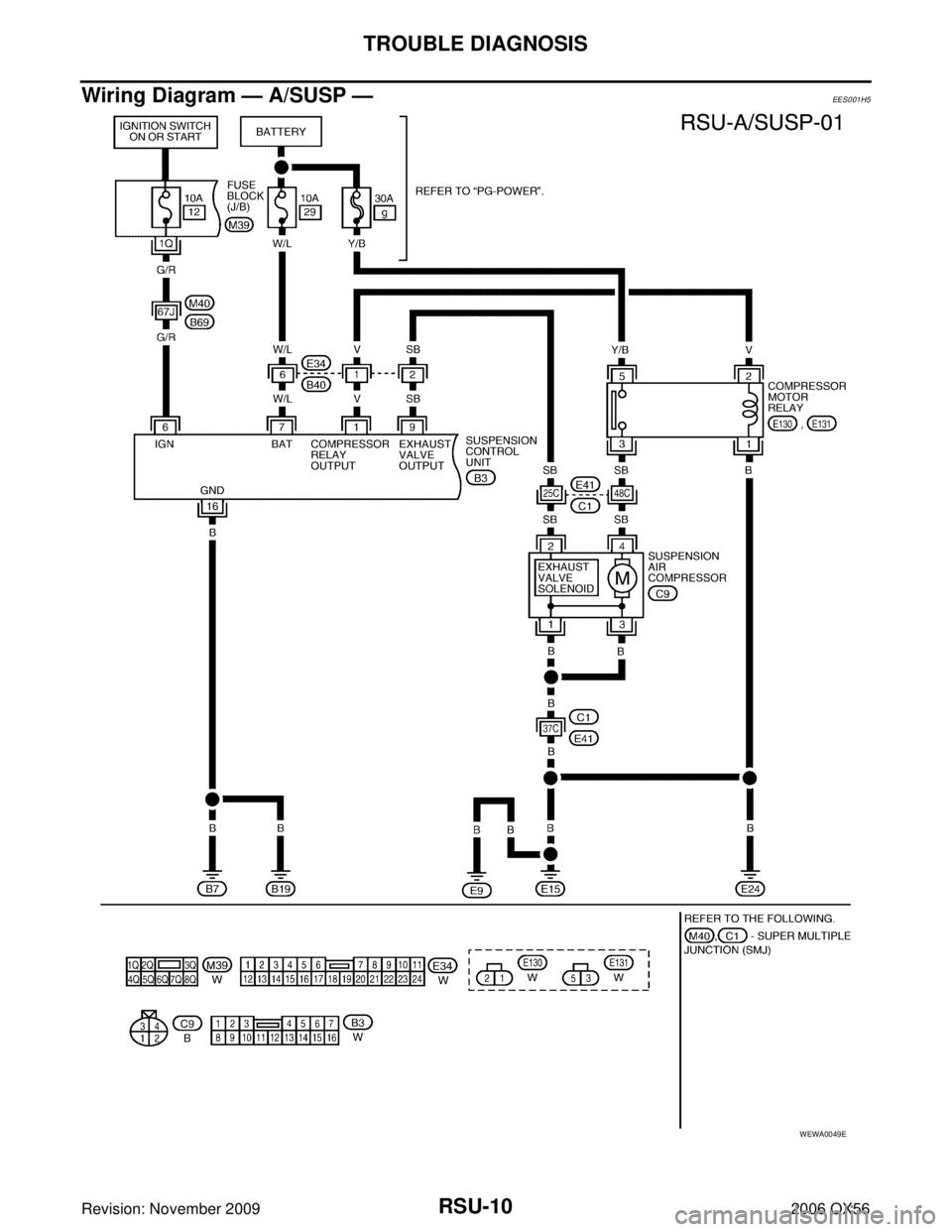

Wiring Diagram — A/SUSP —EES001H5
WEWA0049E
Page 2850 of 3383

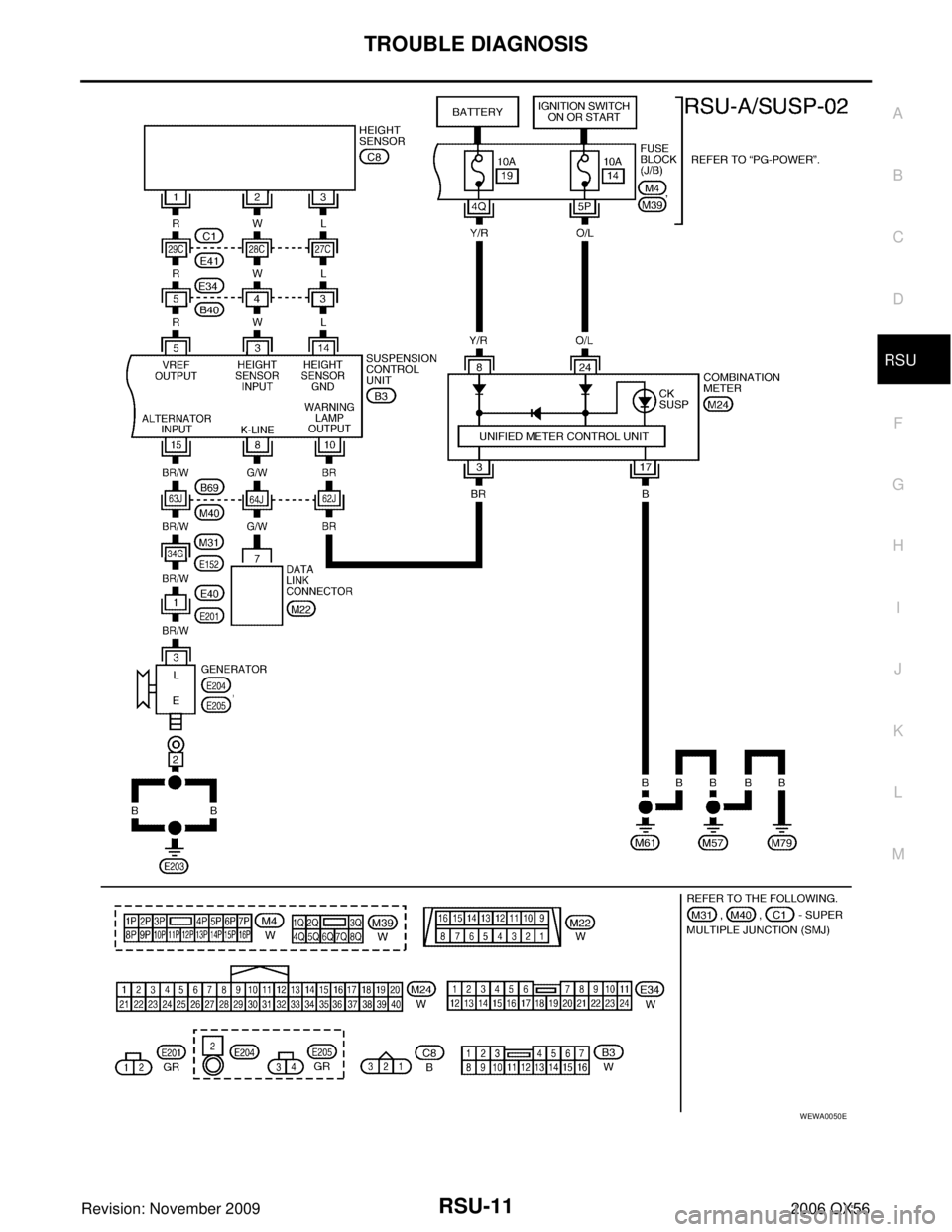

TROUBLE DIAGNOSISRSU-11
C
DF
G H
I
J
K L
M A
B
RSU
Revision: November 2009 2006 QX56
WEWA0050E
Page 2851 of 3383

RSU-12
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
Basic InspectionEES001H6
AIR HOSES
1. Check for pinched or damaged air hoses between the suspension air reservoir and each load leveling rear
air suspension shock absorber. Reposition, repair or replace hoses as necessary.
2. Check the air hose connections at the suspension air reservoir and at the shock absorbers for leaks. If connections are leaking, repair or replace hoses as necessary.
POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION
Make sure the battery positive cable, negative cable and ground connection are not loose. In addition, make
sure the battery is sufficiently charged.
CK SUSP INDICATOR LAMP INSPECTION
1. Make sure the CK SUSP indicator lamp turns on for approximately 2 seconds when the ignition switch is
turned ON. If it does not, check the combination meter. Refer to DI-5, "
COMBINATION METERS" .
2. Make sure the lamp turns off approximately 2 seconds after the ignition switch is turned ON. If the lamp does not turn off, conduct self-diagnosis of the suspension control unit.
3. After conducting the self-diagnosis, be sure to erase the error memory. Refer to RSU-13, "
CONSULT-II
Function (AIR LEVELIZER)" .
CK SUSP Indicator Lamp TimingEES001H7
X: ON
—: OFF
Control Unit Input/Output Signal StandardEES001H8
ConditionCK SUSP
indicator lamp Remarks
Ignition switch OFF ––
Ignition switch ON X Turns off after approximately 2 seconds.
Te r m i n a l
No. Wire color
Item ConditionVoltage (V)
(Approx.)
1 V Compressor relay output
Ignition switch ON or STARTBattery voltage
3 W Height sensor signal input 0.2V - 4.8V
5 R Reference voltage 5V
6 G/R Ignition power
Battery voltage
7W /LB atte ry p ow er —
8 G/W Diagnostic K-line ——
9 SB Exhaust valve output Ignition switch ON or STARTBattery voltage
10 BR Warning lamp output ——
14 L Height sensor ground ——
15 BR/W Generator L signal input Engine running—
16 B Suspension control unit ground —0V
Page 2852 of 3383

TROUBLE DIAGNOSISRSU-13
C
DF
G H
I
J
K L
M A
B
RSU
Revision: November 2009 2006 QX56
CONSULT-II Function (AIR LEVELIZER)EES001H9
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II
CONVERTER, malfunctions might be detected in self-diag-
nosis depending on control unit which carries out CAN
communication.
3. Turn ignition switch ON.

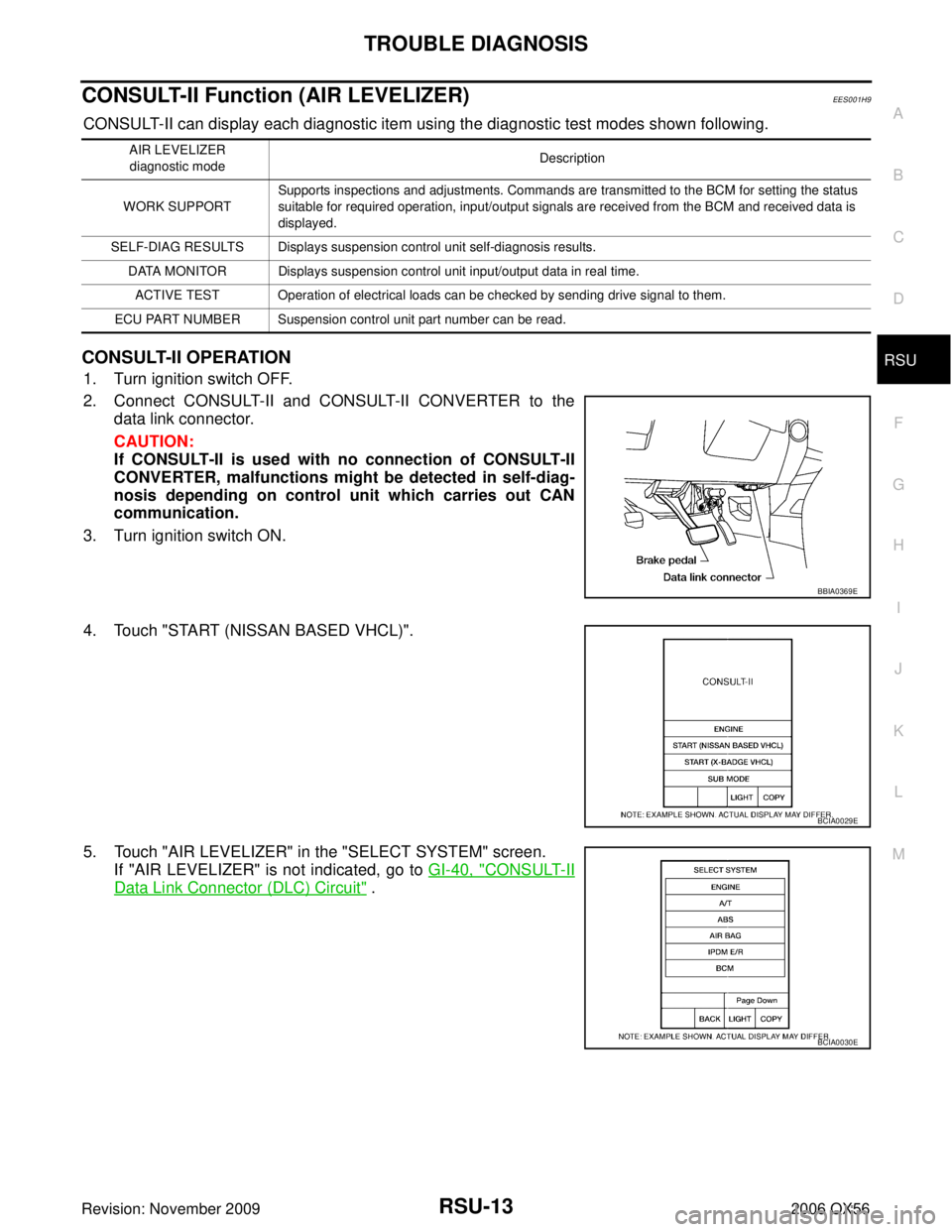

4. Touch "START (NISSAN BASED VHCL)".
5. Touch "AIR LEVELIZER" in the "SELECT SYSTEM" screen. If "AIR LEVELIZER" is not indicated, go to GI-40, "
CONSULT-II
Data Link Connector (DLC) Circuit" .
AIR LEVELIZER
diagnostic mode Description
WORK SUPPORT Supports inspections and adjustments. Commands are transmitted to the BCM for setting the status
suitable for required operation, input/output signals are received from the BCM and received data is
displayed.
SELF-DIAG RESULTS Displays suspension control unit self-diagnosis results. DATA MONITOR Displays suspension control unit input/output data in real time.ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
ECU PART NUMBER Suspension control unit part number can be read.
BBIA0369E
BCIA0029E
BCIA0030E
Page 2853 of 3383

RSU-14
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
6. Select the required operation from the "SELECT DIAG MODE"
screen.
For further information, see the CONSULT-II Operation Manual.
SELF-DIAGNOSIS
Description
If an error is detected in the system, perform self-diagnosis as follows:
Operation Procedure
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
3. Turn ignition switch ON.
4. With the engine running, touch "START (NISSAN BASED VHCL)", "AIR LEVELIZER", "SELF-DIAG RESULTS" in order on the CONSULT-II screen.
CAUTION:
When "START (NISSAN BASED VHCL)" is touched immediately after starting the engine or turning
on the ignition switch, "AIR LEVELIZER" might not be displayed in the "SELECT SYSTEM" screen.
In this case, repeat the operation from step 4.
5. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by touching "COPY".)
When "NO DTC IS DETECTED" is displayed, check the CK SUSP indicator lamp.
6. Conduct the appropriate inspection from the display item list, and repair or replace the malfunctioning component.
7. Start and run the vehicle for approximately 1 minute.
8. Turn ignition switch OFF to prepare for erasing the memory.
9. Start the engine and touch "START (NISSAN BASED VHCL)", "AIR LEVELIZER", "SELF-DIAG RESULTS", "ERASE" in order on the CONSULT-II screen to erase the error memory.
If "AIR LEVELIZER" is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC) Circuit" .
CAUTION:
If the error memory is not erased, re-conduct the operation from step 7.
10. For the final inspection, start and run the vehicle for approximately 1 minute and confirm that the CK SUSP indicator lamp is off.
Display Item List
BCIA0031E
Self-diagnostic item Malfunction detecting condition Check system
Vehicle height sensor
[C1801] Vehicle height sensor voltage is less than 0.2V or greater than
4.8V for more than 60 seconds. Refer to
RSU-18, "
Height
Sensor System Inspection" .
Compressor relay
[C1802] 1. Driving transistor for compressor relay is off and monitor volt-
age continues high level for more than 10 seconds.
2. Driving transistor for compressor relay is on and monitor volt- age continues low level for more than 5 seconds. Refer to
RSU-21, "
Compres-
sor Motor, Compressor
Motor Relay and Circuit
Inspection" .
Exhaust solenoid
[C1803] 1. Driving transistor for exhaust solenoid is off and monitor volt-
age continues high level for more than 10 seconds.
2. Driving transistor for exhaust solenoid is on and monitor volt- age continues low level for more than 5 seconds. Refer to
RSU-19, "
Exhaust
Valve Solenoid System
Inspection" .
Page 2854 of 3383

TROUBLE DIAGNOSISRSU-15
C
DF
G H
I
J
K L
M A
B
RSU
Revision: November 2009 2006 QX56
WORK SUPPORT
Operation Procedure
1. After turning OFF the ignition switch, connect CONSULT-II and the CONSULT-II CONVERTER to the data
link connector.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
2. Touch "START (NISSAN BASED VHCL)", "AIR LEVELIZER", "WORK SUPPORT" in order on the CON- SULT-II screen.
If "AIR LEVELIZER" is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC) Circuit" .
CAUTION:
When "START (NISSAN BASED VHCL)" is touched immediately after starting the engine or turning
on the ignition switch, "AIR LEVELIZER" might not be displayed in the "SELECT SYSTEM" screen.
In this case, repeat the operation from step 2.
3. Select "STANDARD HEIGHT LEVEL", "ADJUST HEIGHT INI" or "CLEAR HEIGHT INI" on the "SELECT WORK ITEM" screen.
NOTE:
Read and perform screen instructions if "STANDARD HEIGHT LEVEL" or "ADJUST HEIGHT INI" is
selected.
4. Touch "START" to begin the desired work support.
Display Item List
Vehicle height adjusting trouble
(compressor)
[C1804] Continuous compressor relay ON time is more than 120 sec-
onds. Refer to
RSU-21, "Compres-
sor Motor, Compressor
Motor Relay and Circuit
Inspection" .
Vehicle height adjusting trouble
(exhaust solenoid)
[C1805] Continuous exhaust solenoid ON time is more than 120 seconds. Refer to
RSU-19, "
Exhaust
Valve Solenoid System
Inspection" .
Vehicle height sensor locking trou-
ble
[C1806] Output sensor voltage variation ±
0.02V is more than 100 hour
when vehicle height range is normal. Refer to
RSU-18, "
Height
Sensor System Inspection" .
Sensor 5V trouble
[C1807] Sensor reference voltage is less than 0.8V or more than 6V for
20 seconds. Refer to
RSU-18, "
Height
Sensor System Inspection" .
Integral time trouble by supplying
air
[C1808] Integral discontinuous time on the compressor is more than 180
seconds. Refer to
RSU-21, "
Compres-
sor Motor, Compressor
Motor Relay and Circuit
Inspection" .
Self-diagnostic item
Malfunction detecting condition Check system
ItemDescription Condition
STANDARD HEIGHT LEVEL Resets the vehicle height to the initialization flag
setting stored in the suspension control unit. Vehicle unladen
RSU-49, "
Wheelarch Height
(Unladen*1 )" , set in a horizontal position and
not moving.
NOTE:
Do not take your eyes off the vehicle while
CONSULT-II is processing.
ADJUST HEIGHT INI Sets the height initialization flag in the suspension
control unit when the control unit has been replaced
or when the initialization flag has been cleared
using the "CLEAR HEIGHT INI" procedure. Vehicle unladen
RSU-49, "
Wheelarch Height
(Unladen*1 )" . Move vehicle forward and
backward approx. 5 m (16.4 ft) and rock vehi-
cle from side to side.
NOTE:
Do not move vehicle while CONSULT-II is pro-
cessing.
CLEAR HEIGHT INI Clears the initialization flag in the suspension con-
trol unit. Vehicle unladen
RSU-49, "
Wheelarch Height
(Unladen*1 )" .
Page 2855 of 3383

RSU-16
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
DATA MONITOR
Operation Procedure
1. After turning OFF the ignition switch, connect CONSULT-II and the CONSULT-II CONVERTER to the data
link connector.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
2. Touch "START (NISSAN BASED VHCL)", "AIR LEVELIZER", "DATA MONITOR" in order on the CON- SULT-II screen.
If "AIR LEVELIZER" is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC) Circuit" .
CAUTION:
When "START (NISSAN BASED VHCL)" is touched immediately after starting the engine or turning
on the ignition switch, "AIR LEVELIZER" might not be displayed in the "SELECT SYSTEM" screen.
In this case, repeat the operation from step 2.
3. Return to the "SELECT MONITOR ITEM" screen, and touch "ALL SIGNALS" or "SELECTION FROM MENU". Refer to the following information.
4. When "START" is touched, the data monitor screen is displayed.
Display Item List
X: Applicable
– : Not applicable
ACTIVE TEST
CAUTION:
Do not perform active test while driving.
Operation Procedure
1. Connect the CONSULT-II and CONSULT-II CONVERTER to the data link connector and start the engine.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
2. Touch "START (NISSAN BASED VHCL)" on the display screen.
3. Touch "AIR LEVELIZER". If "AIR LEVELIZER" is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. Touch "ACTIVE TEST".
5. The "SELECT TEST ITEM" screen is displayed.
6. Touch necessary test item.
7. With the "MAIN SIGNALS" display highlighted, touch "START".
8. The active test screen will be displayed.
Display Item List
Test Item Data monitor item selection
ALL
SIGNALS SELECTION
FROM MENU
HEIGT SEN XX
HEIGT CALC XX
SEN FIX TIME XX
HEIGT INI VAL XX
COMPRESSOR XX
EXH SOLENOID XX
ACG L XX
Test ItemDescription
COMPRESSOR OFF/ON
Page 2856 of 3383
TROUBLE DIAGNOSISRSU-17
C
DF
G H
I
J
K L
M A
B
RSU
Revision: November 2009 2006 QX56
CAUTION:
The "COMPRESSOR" active test will remain ON until it is turned off using CONSULT-II. Allowing the
compressor to run for an extended period of time may cause damage to air suspension system com-
ponents due to excessive pressure in the air suspension system.
NOTE:
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts for all active test items
except "COMPRESSOR".
After "TEST IS STOPPED" is displayed, to perform test again, repeat Step 6.
EXHAUST SOLENOIDOFF/ON
WARNING LAMP OFF/ON
Test Item
Description
