Page 1865 of 3383

INFINITI QX56 2006 Factory Service Manual EI-16 REAR BUMPER Revision: November 20092006 QX56 REMOVAL 1. Disconnect the negative battery cable. 2. Remove quarter panel trim covers LH and RH. 3. Disconnect sonar sensor harness connector under r

Page 1866 of 3383

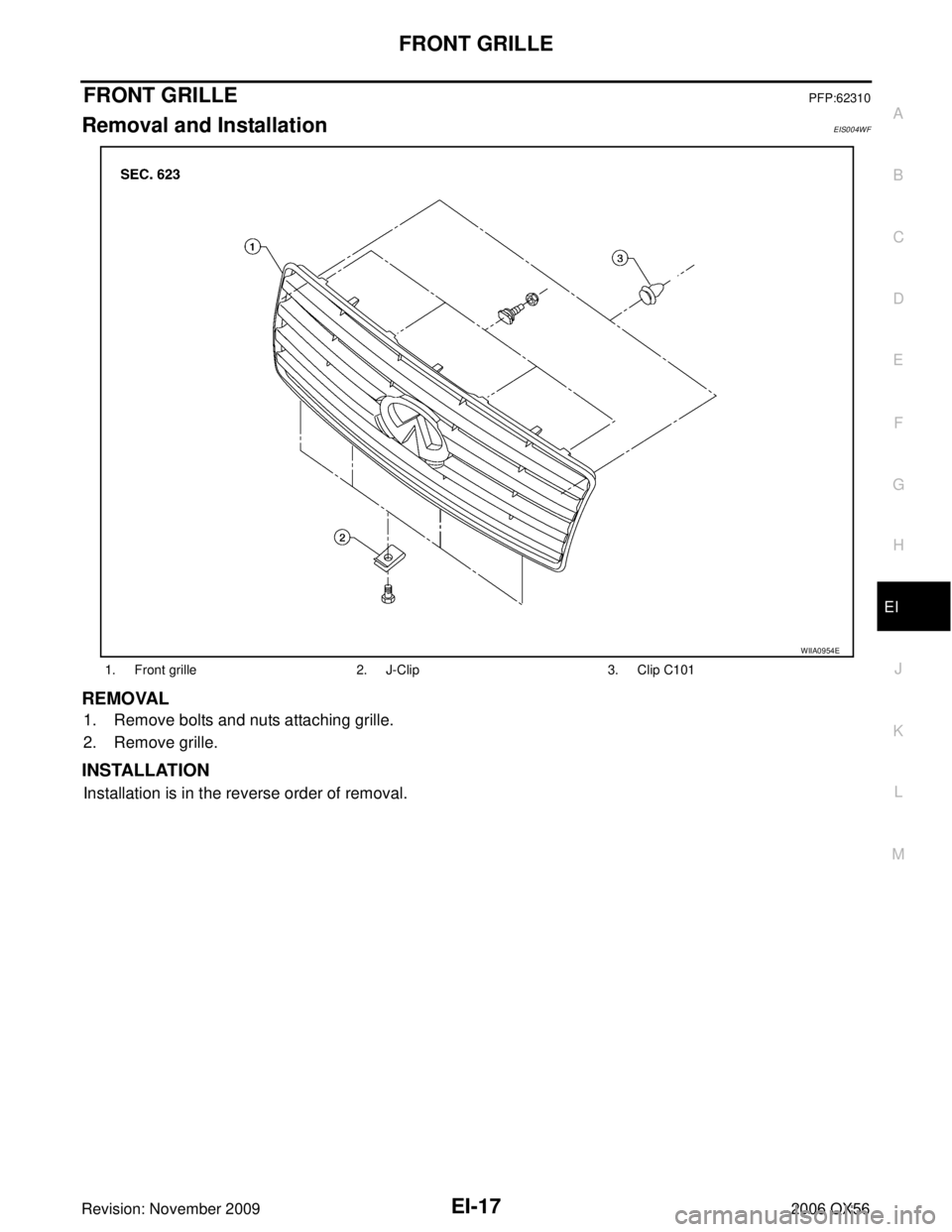

INFINITI QX56 2006 Factory Service Manual FRONT GRILLEEI-17 C DE F G H J K L M A B EI Revision: November 2009 2006 QX56 FRONT GRILLEPFP:62310 Removal and InstallationEIS004WF REMOVAL 1. Remove bolts and nuts attaching grille. 2. Remove grille

Page 1867 of 3383

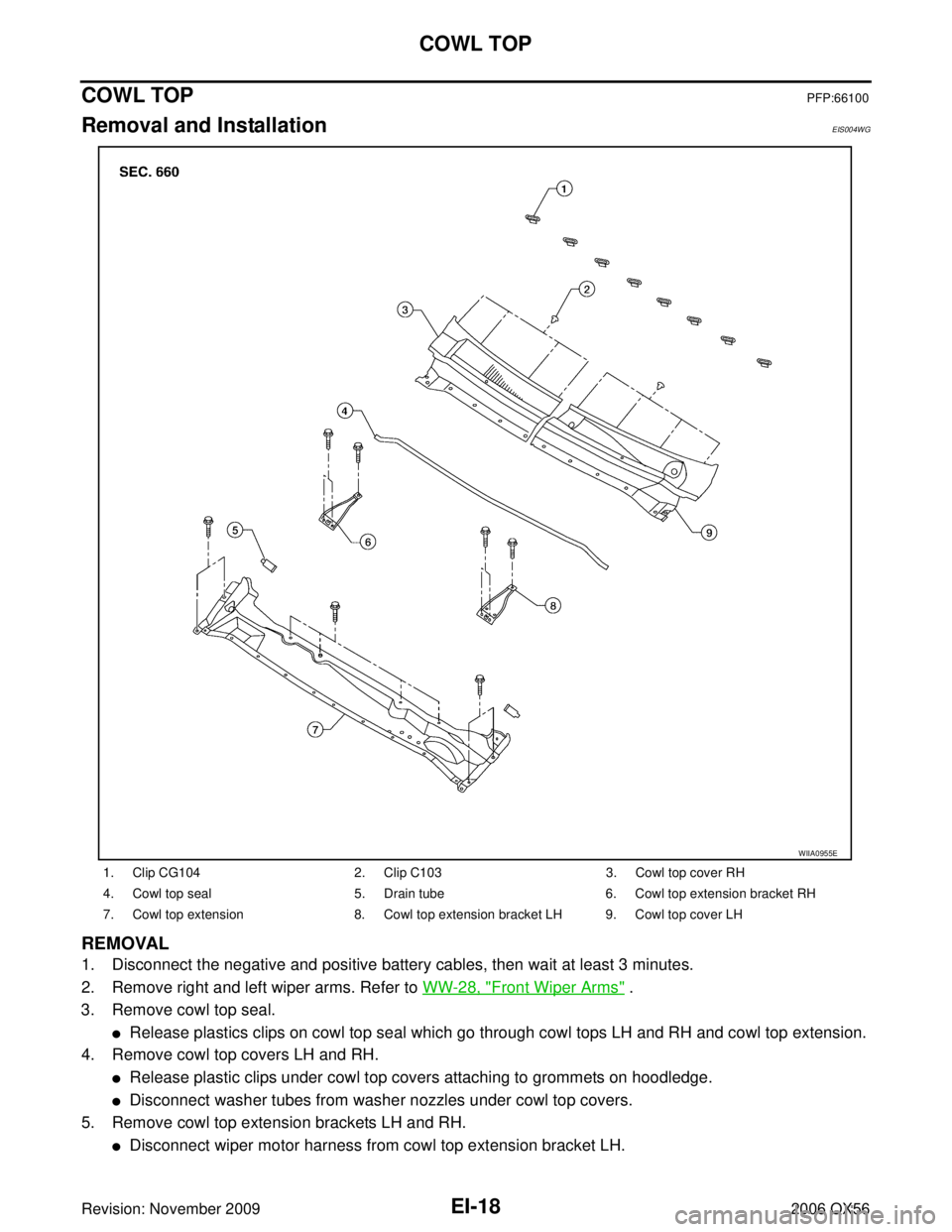

INFINITI QX56 2006 Factory Service Manual EI-18 COWL TOP Revision: November 20092006 QX56 COWL TOPPFP:66100 Removal and InstallationEIS004WG REMOVAL 1. Disconnect the negative and positive battery cables, then wait at least 3 minutes. 2. Remo

Page 1868 of 3383

INFINITI QX56 2006 Factory Service Manual COWL TOPEI-19 C DE F G H J K L M A B EI Revision: November 2009 2006 QX56 Cowl top extension bracket LH must be removed prior to removal of wiper motor and connecting rod assembly. 6. Remove wiper mo

Page 1869 of 3383

INFINITI QX56 2006 Factory Service Manual EI-20 FRONT FENDER Revision: November 20092006 QX56 FRONT FENDERPFP:63100 Removal and InstallationEIS004WH REMOVAL 1. Remove headlamp assembly. Refer to LT- 3 1 , "Removal and Installation" . 2. Remo

Page 1870 of 3383

INFINITI QX56 2006 Factory Service Manual OVER FENDEREI-21 C DE F G H J K L M A B EI Revision: November 2009 2006 QX56 OVER FENDERPFP:63810 Removal and InstallationEIS004WI REMOVAL 1. Remove screws from front and/or rear over fender. CAUTION:

Page 1871 of 3383

INFINITI QX56 2006 Factory Service Manual EI-22 OVER FENDER Revision: November 20092006 QX56 6. Install front and/or rear over fender screws.

Page 1872 of 3383

INFINITI QX56 2006 Factory Service Manual FENDER PROTECTOREI-23 C DE F G H J K L M A B EI Revision: November 2009 2006 QX56 FENDER PROTECTORPFP:63840 Removal and InstallationEIS004WJ REMOVAL 1. Remove screws. 2. Remove plastic clips. 3. Remov
