2006 INFINITI QX56 Factory Service Manual

spare tire location charging snow chains power steering fluid catalytic converter trunk

Page 2249 of 3383

INFINITI QX56 2006 Factory Service Manual IDX-8
ALPHABETICAL INDEX
Tow truck towing ................................................. GI-43
Towing point ....................................................... GI-44
TPS1 - Wiring diagram

IDX-8
ALPHABETICAL INDEX
Tow truck towing ................................................. GI-43
Towing point ....................................................... GI-44
TPS1 - Wiring diagram .................................... EC-322
TPS2 - Wiring diagram .................................... EC-200
TPS3 - Wiring diagram .................................... EC-562
Traction control system - Wiring diagram ....... BRC-16
Transfer control device ............. TF-76, TF-80, TF-138
Transfer control unit inspection table ................. TF-35
Transfer dropping resistor .................................. TF-90
Transfer fluid temperature sensor TF-104, TF-154, TF-
167
Transfer motor .................................... TF-102, TF-142
Transfer motor relay ........................................ TF-102
Transfer oil replacement ................................... MA-24
Transfer serial number ........................................ GI-49
Transmission serial number ................................ GI-49
Tread-FR&RR (Dimensions) ............................... GI-50
Trim ..................................................................... EI-35
TRNSCV - Wiring diagram .................. BL-140, BL-156
Trouble diagnoses .............................................. GI-10
Turbine revolution sensor ................................ AT-109
TURN - Wiring diagram ...................................... LT-84
Turn signal lamp ................................................. LT-80
Two trip detection logic ...................................... EC-48
Two-pole lift ........................................................ GI-42
V
Vacuum hose (brake system) ............................ BR-20
Vacuum hose drawing (Engine control) ........... EC-102
Valve clearance ................................................ EM-55
Valve guide ....................................................... EM-69
Vanity mirror lamp ............................................. LT-134
VDC (vehicle dynamics control) ........................ BRC-7
VDC -Wiring diagram ...................................... BRC-16
Vehicle identification number .............................. GI-48
Vehicle recovery (freeing a stuck vehicle) .......... GI-44
Vehicle security (theft warning) system ............. BL-75
Vehicle speed sensor (VSS) ............................ EC-442
VEHSEC - Wiring diagram ................................. BL-79
VENT/V - Wiring diagram .................. EC-390, EC-397
VIN registration .................................................. EC-77
Viscosity number (SAE) .................................... MA-12
VSS A/T - Wiring diagram .................. AT-111, AT-113
W
W/ANT - Wiring diagram .................................... AV-61
Wait detection switch ......................................... TF-69
WARN - Wiring diagram ..................................... DI-32
Warning chime .................................................... DI-43
Warning lamps .................................................... DI-31
Washer, front ..................................................... WW-4
Washer, rear .................................................... WW-32
Water pump ...................................................... CO-19
Water temperature gauge ..................................... DI-5
Wheel alignment (front) ..................................... FSU-6
Wheel alignment (rear) ................................... RSU-28
Wheel bearing (front) ......................................... FAX-5
Wheel bearing (rear) ......................................... RAX-5
Wheel hub (rear) ............................................... RAX-5
Wheel size .......................................................... GI-50
Wheelbase (Dimensions) .................................... GI-50
Width (Dimensions) ............................................. GI-50
WINDOW - Wiring diagram .............................. GW-22
Window, door ...................................... GW-65, GW-68
Windshield ....................................................... GW-11
WIP/R - Wiring diagram ................................... WW-36
WIPER - Wiring diagram .................................... WW-8
Wiper, front ........................................................ WW-4
Wiper, rear ....................................................... WW-32
Wiring Diagram (Cell code) list ......................... PG-62
Wiring diagrams .................................................. GI-16
WT-T/WARN - Wiring diagram .......................... WT-11

Page 2250 of 3383

INFINITI QX56 2006 Factory Service Manual IP-1
INSTRUMENT PANEL
I BODY
CONTENTS
C
DE
F
G H
J
K L
M
SECTION
A
B
IP
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Su

IP-1
INSTRUMENT PANEL
I BODY
CONTENTS
C
DE
F
G H
J
K L
M
SECTION
A
B
IP
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
SQUEAK AND RATTLE TROUBLE DIAGNOSIS . ..... 4
Work Flow ................................................................ 4 CUSTOMER INTERVIEW ................................ ..... 4
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 5
CHECK RELATED SERVICE BULLETINS ...... ..... 5
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 5
REPAIR THE CAUSE ...................................... ..... 5
CONFIRM THE REPAIR .................................. ..... 6
Generic Squeak and Rattle Troubleshooting ...... ..... 6
INSTRUMENT PANEL ..................................... ..... 6
CENTER CONSOLE ........................................ ..... 6
DOORS ............................................................ ..... 6
TRUNK ............................................................. ..... 7
SUNROOF/HEADLINING ................................ ..... 7
OVERHEAD CONSOLE (FRONT AND REAR) ..... 7
SEATS .............................................................. ..... 7UNDERHOOD ..................................................
..... 7
Diagnostic Worksheet .......................................... ..... 8
INSTRUMENT PANEL ASSEMBLY ...................... ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 11
INSTALLATION ................................................ ... 11
CLUSTER LID C .............................................. ... 12
CLUSTER LID D .............................................. ... 12
INSTRUMENT LOWER COVER LH ................ ... 13
COMBINATION METER ................................... ... 13
A/T FINISHER .................................................. ... 13
Lower Instrument Panel RH and Glove Box ........ ... 14
REMOVAL AND INSTALLATION ..................... ... 14
Glove Box ............................................................ ... 15
DISASSEMBLY AND ASSEMBLY .................... ... 15
Center Console ....................................................... 16 REMOVAL AND INSTALLATION ..................... ... 16
Center Console ....................................................... 17 DISASSEMBLY AND ASSEMBLY .................... ... 17
ASSEMBLY ...................................................... ... 17
Rear Console .......................................................... 18 REMOVAL AND INSTALLATION ..................... ... 18
Rear Console .......................................................... 19 DISASSEMBLY AND ASSEMBLY .................... ... 19

Page 2251 of 3383

INFINITI QX56 2006 Factory Service Manual IP-2
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS004WW
The Supplemental Re

Page 2252 of 3383

INFINITI QX56 2006 Factory Service Manual PREPARATIONIP-3
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
PREPARATIONPFP:00002
Special Service ToolsEIS004WX
The actual shapes of Kent-Moore tools may differ from those of special se

Page 2253 of 3383

INFINITI QX56 2006 Factory Service Manual IP-4
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
SQUEAK AND RATTLE TROUBLE DIAGNOSISPFP:00000

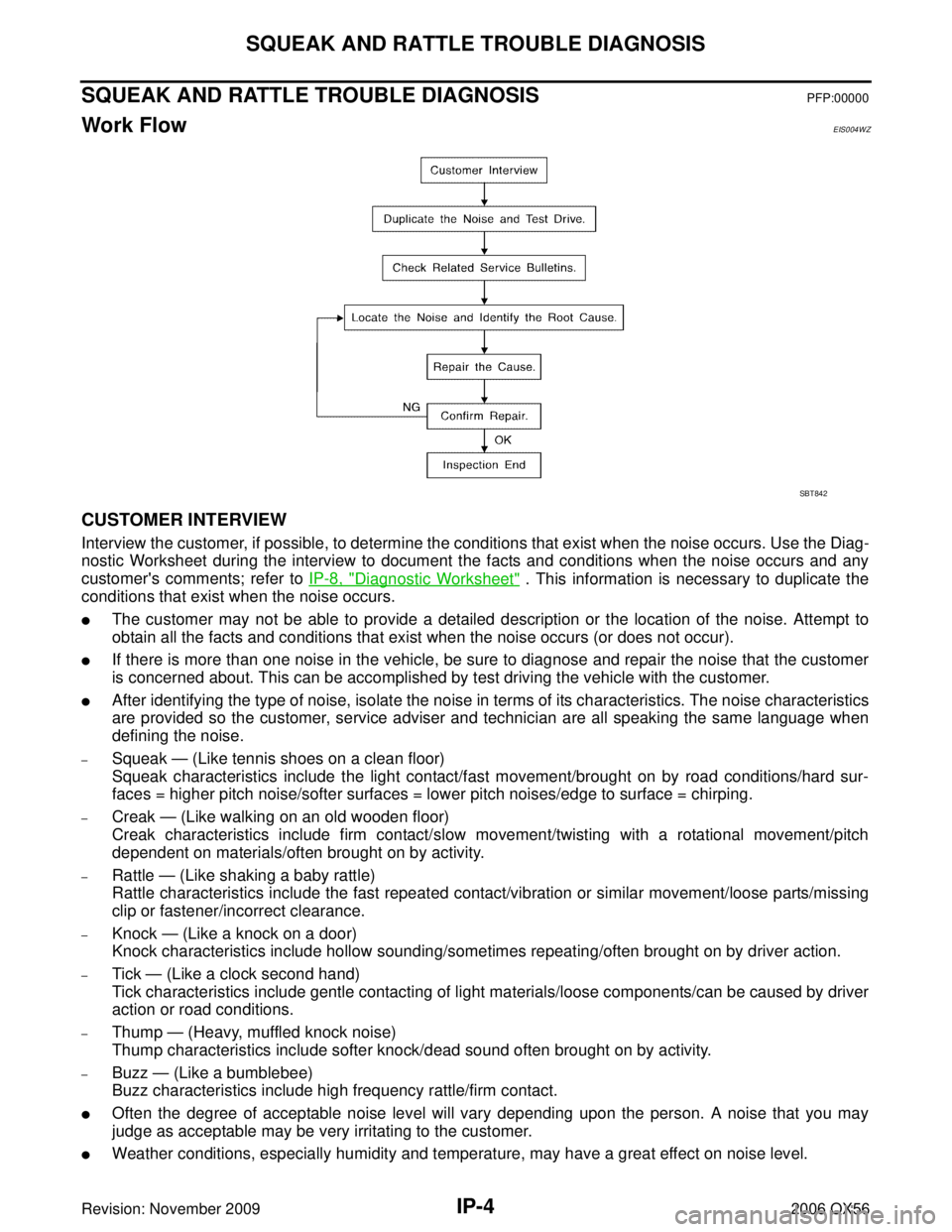

Work FlowEIS004WZ
CUSTOMER INTERVIEW
Interview the customer, if possible, to dete

IP-4
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
SQUEAK AND RATTLE TROUBLE DIAGNOSISPFP:00000
Work FlowEIS004WZ
CUSTOMER INTERVIEW
Interview the customer, if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to IP-8, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.
The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).
If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.
After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.
–Squeak — (Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces = higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.
–Creak — (Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.
–Rattle — (Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
–Knock — (Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.
–Tick — (Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.
–Thump — (Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.
–Buzz — (Like a bumblebee)
Buzz characteristics include high frequency rattle/firm contact.
Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.
Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

Page 2254 of 3383

INFINITI QX56 2006 Factory Service Manual SQUEAK AND RATTLE TROUBLE DIAGNOSISIP-5
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise

SQUEAK AND RATTLE TROUBLE DIAGNOSISIP-5
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1. Close a door.
2. Tap or push/pull around the area where the noise appears to be coming from.
3. Rev the engine.
4. Use a floor jack to recreate vehicle “twist”.
5. At idle, apply engine load (electrical load, drive position on A/T model).
6. Raise the vehicle on a hoist and hit a tire with a rubber hammer.
Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool (Chassis Ear: J-39570, Engine Ear: J-39565 and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
Removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fasteners
can be broken or lost during the repair, resulting in the creation of new noise.
Tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be elimi-
nated only temporarily.
Feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing
the noise.
Placing a piece of paper between components that you suspect are causing the noise.
Looking for loose components and contact marks.
Refer to IP-6, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE
If the cause is a loose component, tighten the component securely.
If the cause is insufficient clearance between components:
–Separate components by repositioning or loosening and retightening the component, if possible.
–Insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J-43980) is available through your authorized NISSAN
Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 x 135 mm (3.94 x 5.31 in)/76884-71L01: 60 x 85 mm (2.36 x 3.35 in)/76884-71L02: 15 x 25
mm (0.59 x 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.

Page 2255 of 3383

INFINITI QX56 2006 Factory Service Manual IP-6
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
73982-9E000: 45 mm (1.77 in) thick, 50 x 50 mm (1.97 x 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick, 50 x 50
mm (1.97 x 1.97 in

IP-6
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
73982-9E000: 45 mm (1.77 in) thick, 50 x 50 mm (1.97 x 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick, 50 x 50
mm (1.97 x 1.97 in)
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 x 50 mm (1.18 x 1.97 in)
FELT CLOTH TAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 x 25 mm (0.59 x 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingEIS0062R
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicone spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops

Page 2256 of 3383

INFINITI QX56 2006 Factory Service Manual SQUEAK AND RATTLE TROUBLE DIAGNOSISIP-7
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
Tapping or moving the components or pressing on them while driving to duplicate the conditions can i

SQUEAK AND RATTLE TROUBLE DIAGNOSISIP-7
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J-43980) to repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid bumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun visor shaft shaking in the holder
3. Front or rear windshield touching headliner and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
OVERHEAD CONSOLE (FRONT AND REAR)
Overhead console noises are often caused by the console panel clips not being engaged correctly. Most of
these incidents are repaired by pushing up on the console at the clip locations until the clips engage.
In addition look for:
1. Loose harness or harness connectors.
2. Front console map/reading lamp lens loose.
3. Loose screws at console attachment points.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rearseat back lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

Load next 8 pages

Page: < prev 1-10 ... 2217-2224 2225-2232 2233-2240 2241-2248 2249-2256 2257-2264 2265-2272 2273-2280 2281-2288 ... 3384 next >

flat tire lug pattern low oil pressure heating mirror power steering fluid
