INFINITI QX56 2006 Factory Service Manual WW-18 FRONT WIPER AND WASHER SYSTEM Revision: November 20092006 QX56 All Items, Main Items, Select Item Menu NOTE: Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition sw

Page 3346 of 3383

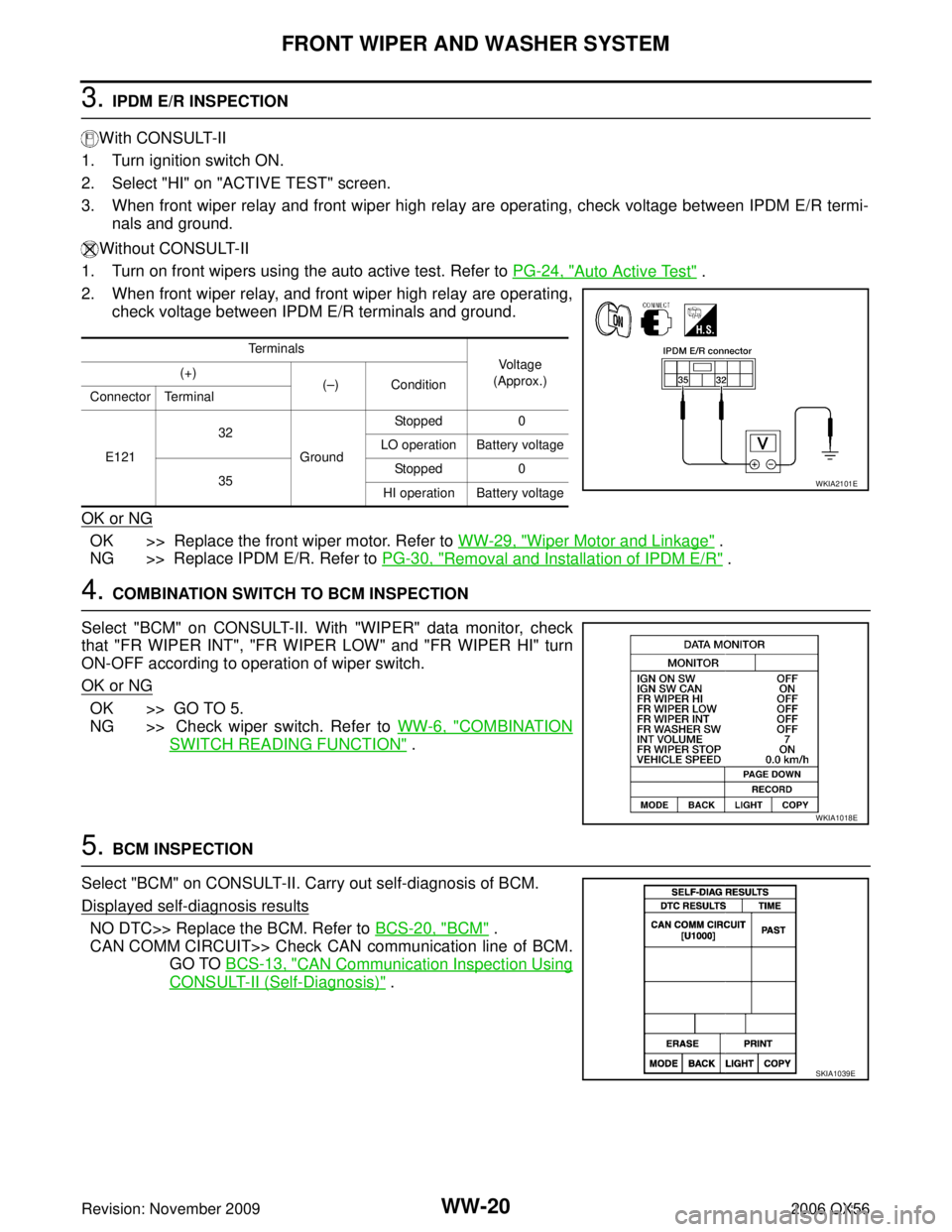

INFINITI QX56 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEMWW-19 C DE F G H I J L M A B WW Revision: November 2009 2006 QX56 2. IPDM E/R TO FRONT WIPERS CIRCUIT INSPECTION 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connec

Page 3347 of 3383

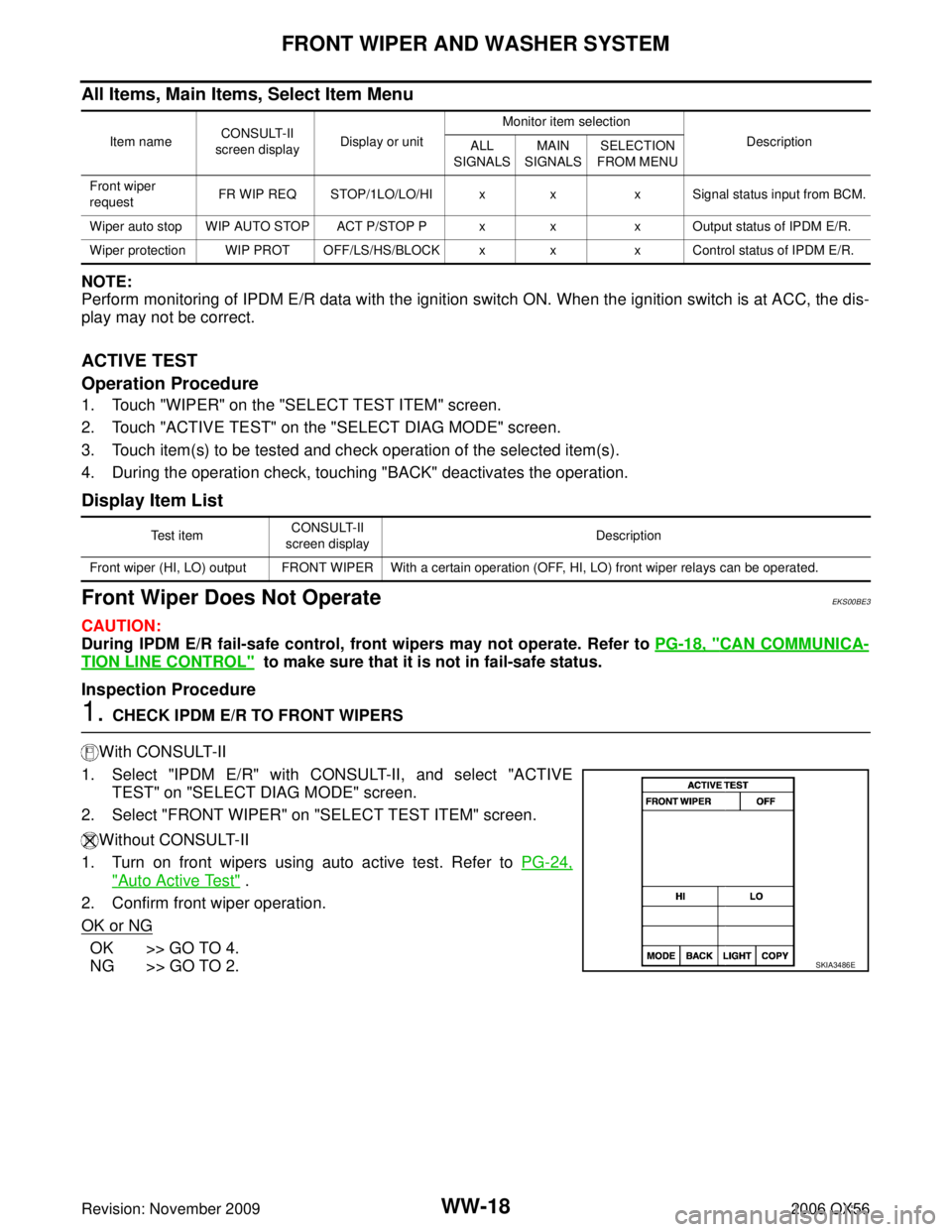

INFINITI QX56 2006 Factory Service Manual WW-20 FRONT WIPER AND WASHER SYSTEM Revision: November 20092006 QX56 3. IPDM E/R INSPECTION With CONSULT-II 1. Turn ignition switch ON. 2. Select "HI" on "ACTIVE TEST" screen. 3. When front wiper rela

Page 3348 of 3383

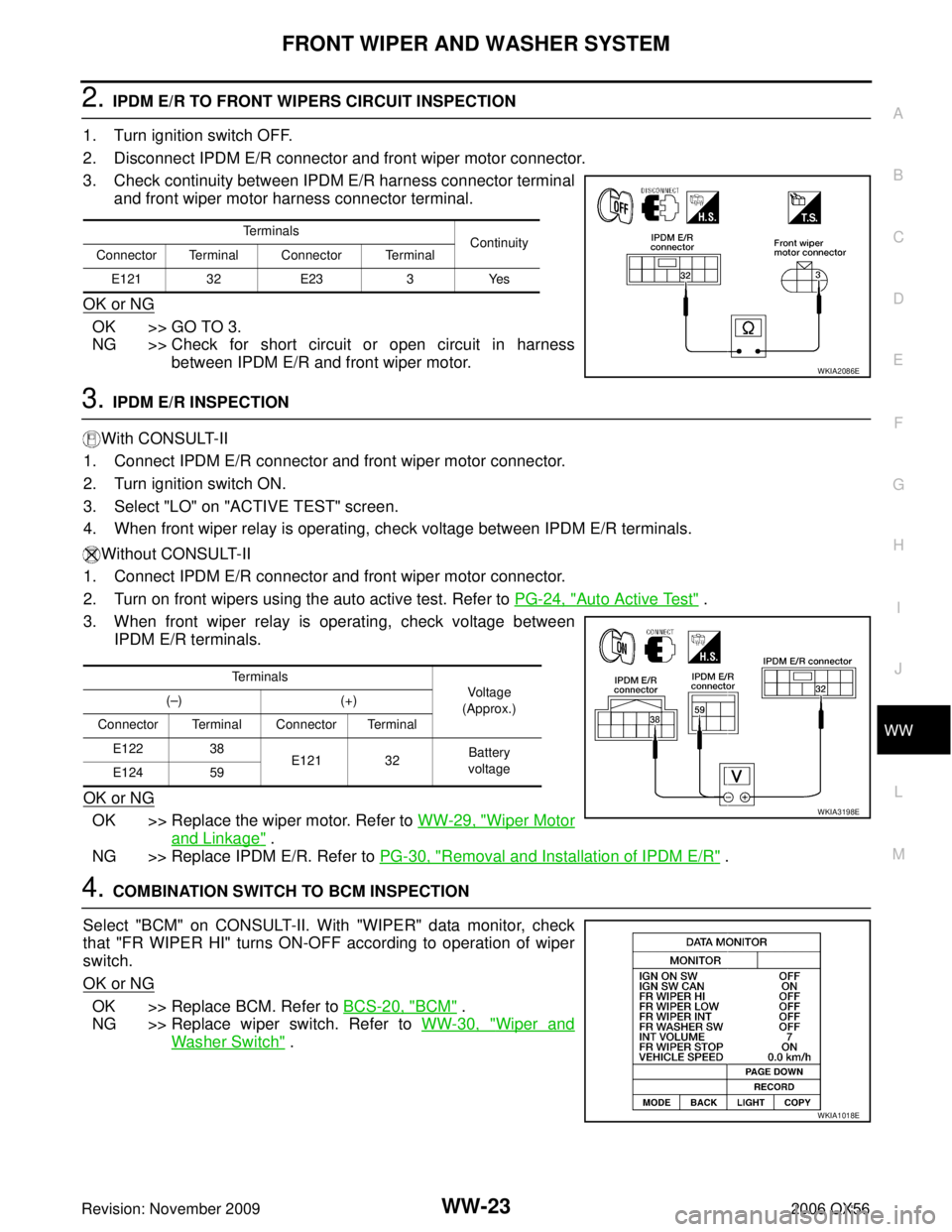

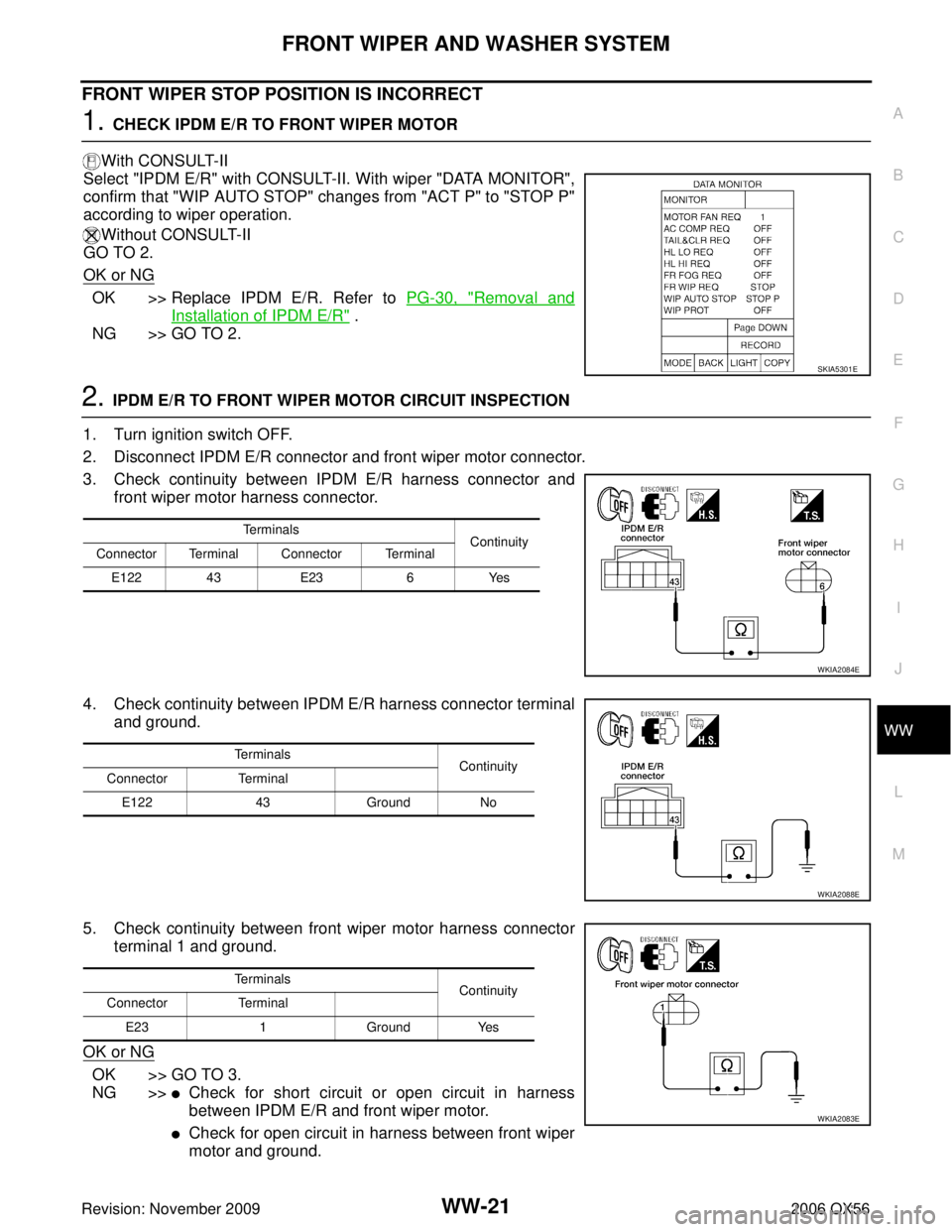

INFINITI QX56 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEMWW-21 C DE F G H I J L M A B WW Revision: November 2009 2006 QX56 FRONT WIPER STOP POSITION IS INCORRECT 1. CHECK IPDM E/R TO FRONT WIPER MOTOR With CONSULT-II Select "IPD

Page 3349 of 3383

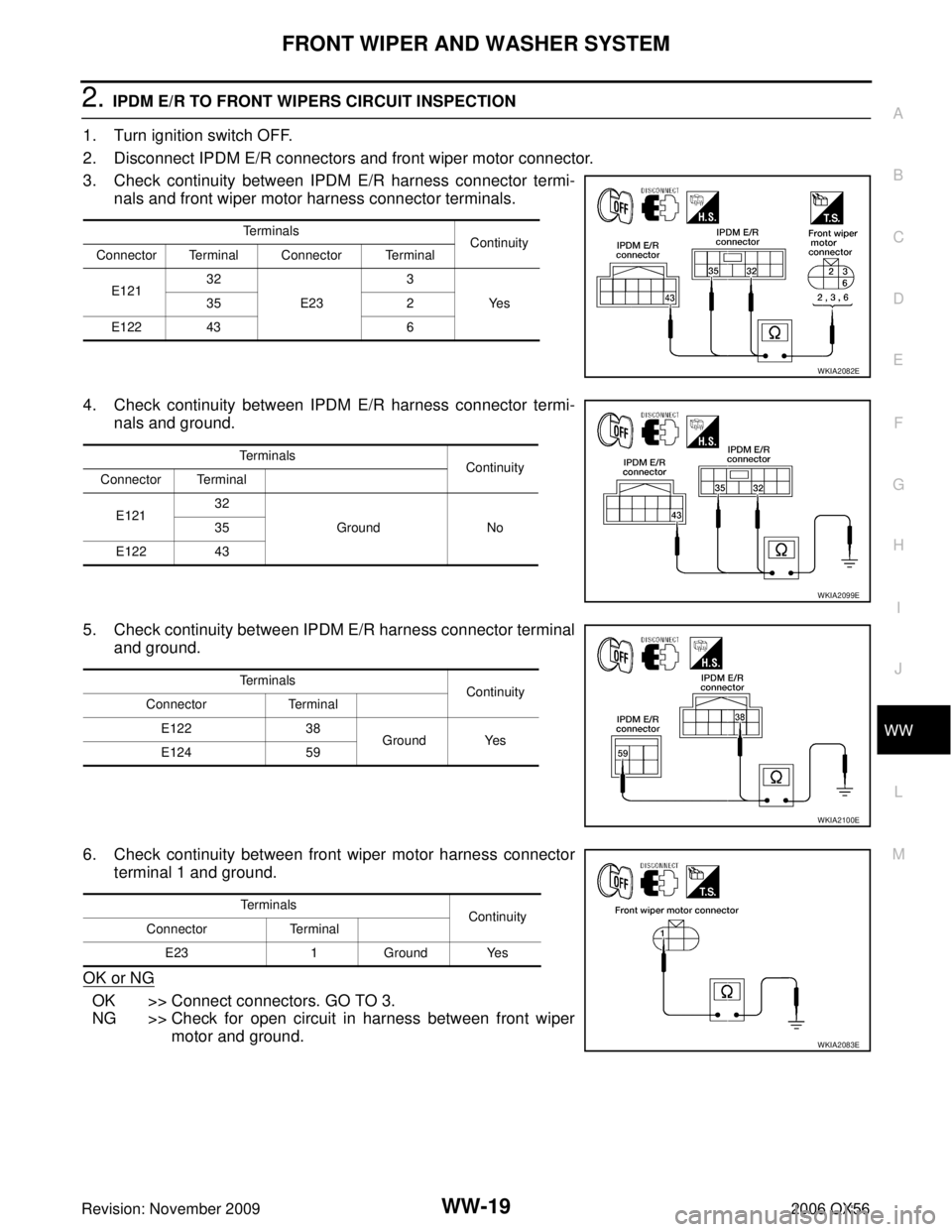

INFINITI QX56 2006 Factory Service Manual WW-22 FRONT WIPER AND WASHER SYSTEM Revision: November 20092006 QX56 3. IPDM E/R INSPECTION With CONSULT-II 1. Connect IPDM E/R connector and front wiper motor connector. 2. Turn ignition switch ON. 3

Page 3350 of 3383

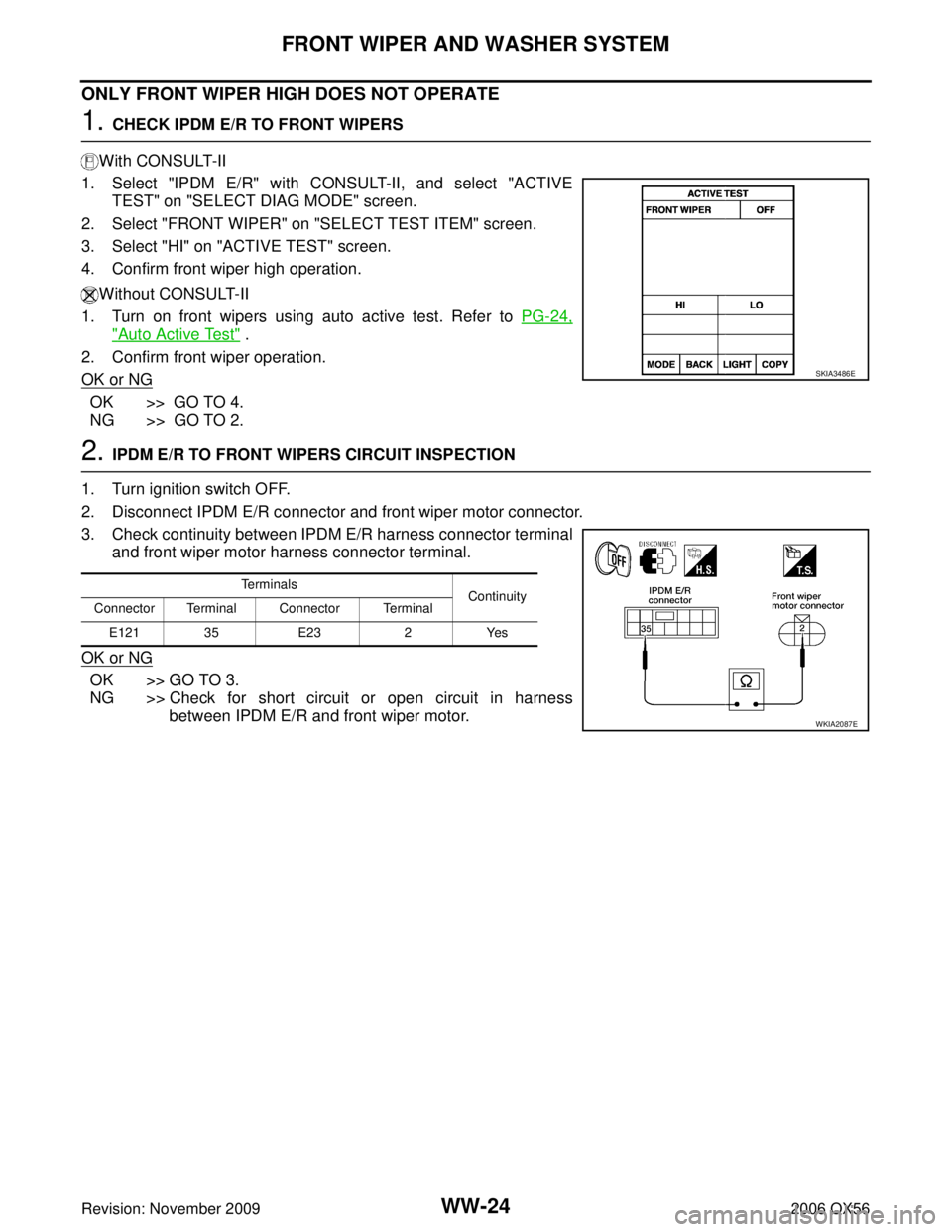

INFINITI QX56 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEMWW-23 C DE F G H I J L M A B WW Revision: November 2009 2006 QX56 2. IPDM E/R TO FRONT WIPERS CIRCUIT INSPECTION 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connec

Page 3351 of 3383

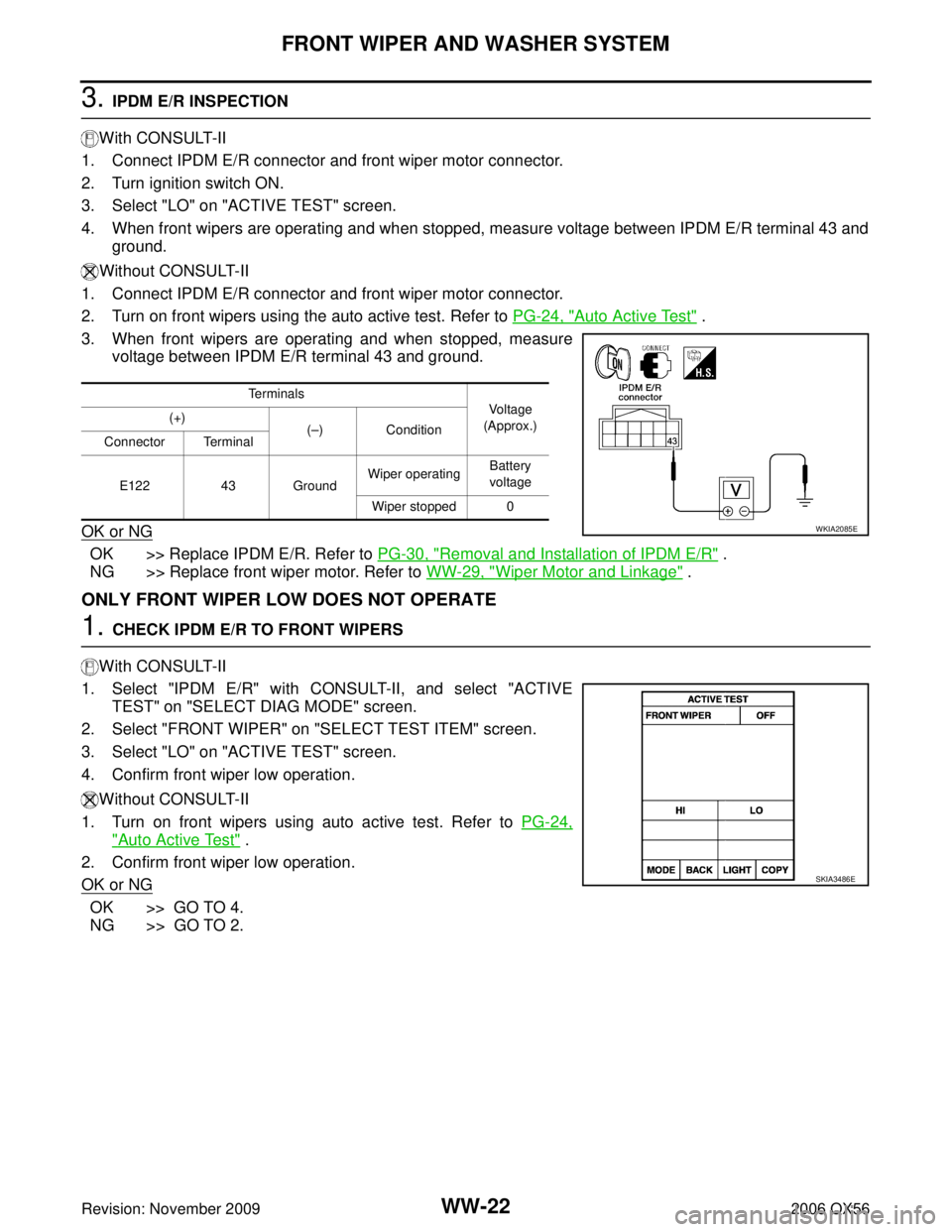

INFINITI QX56 2006 Factory Service Manual WW-24 FRONT WIPER AND WASHER SYSTEM Revision: November 20092006 QX56 ONLY FRONT WIPER HIGH DOES NOT OPERATE 1. CHECK IPDM E/R TO FRONT WIPERS With CONSULT-II 1. Select "IPDM E/R" with CONSULT-II, and

Page 3352 of 3383

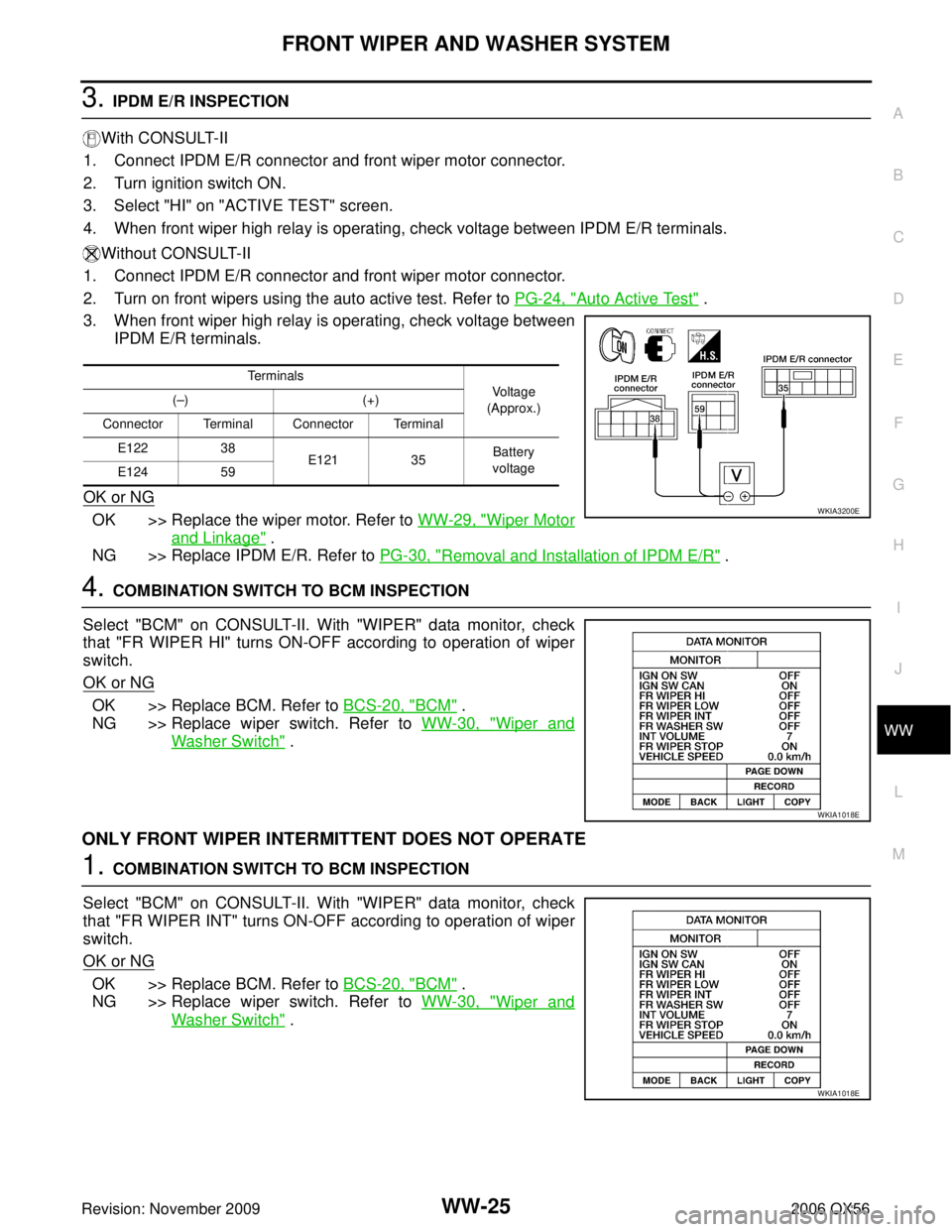

INFINITI QX56 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEMWW-25 C DE F G H I J L M A B WW Revision: November 2009 2006 QX56 3. IPDM E/R INSPECTION With CONSULT-II 1. Connect IPDM E/R connector and front wiper motor connector. 2.
