Page 2105 of 3383

INFINITI QX56 2006 Factory Service Manual GI-14
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56

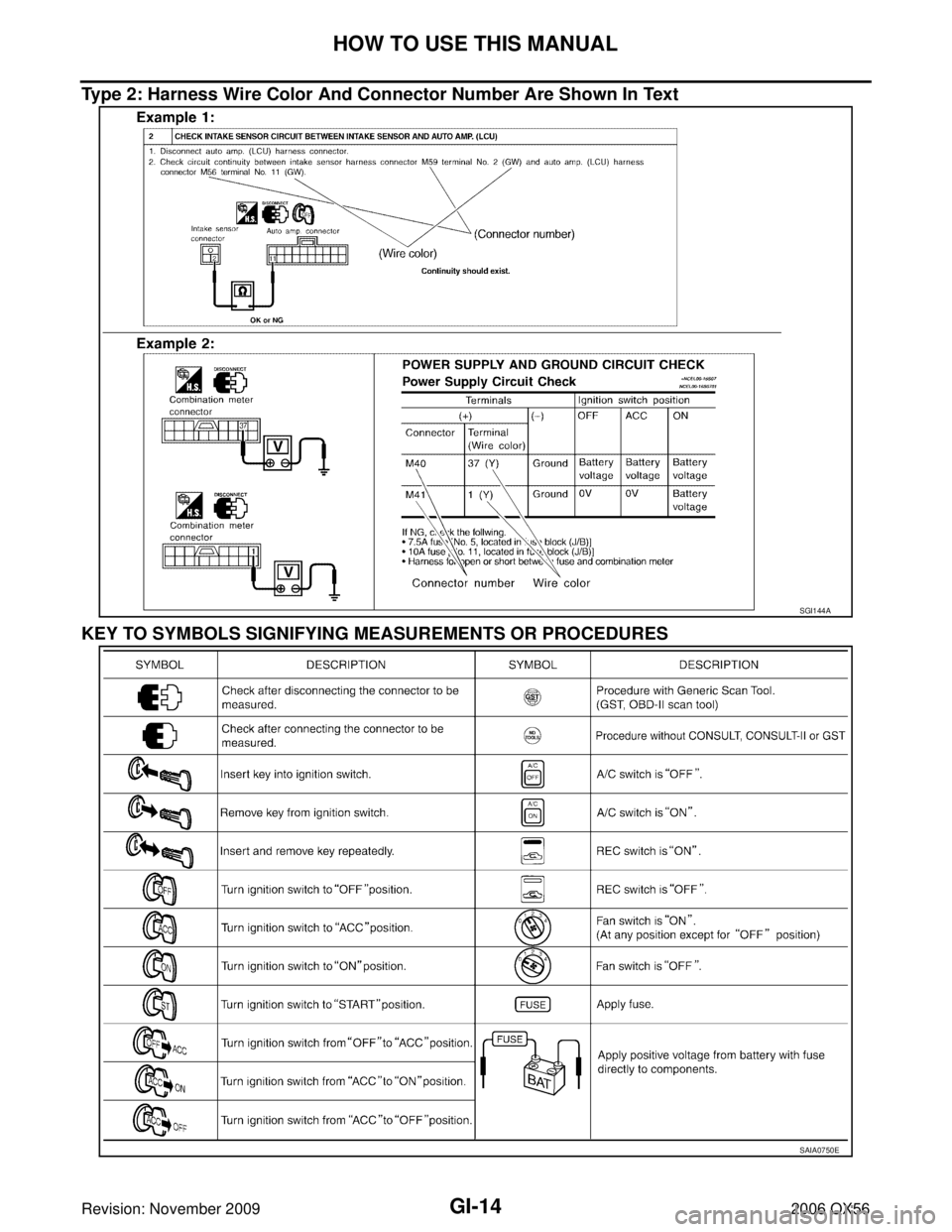

Type 2: Harness Wire Color And Connector Number Are Shown In Text

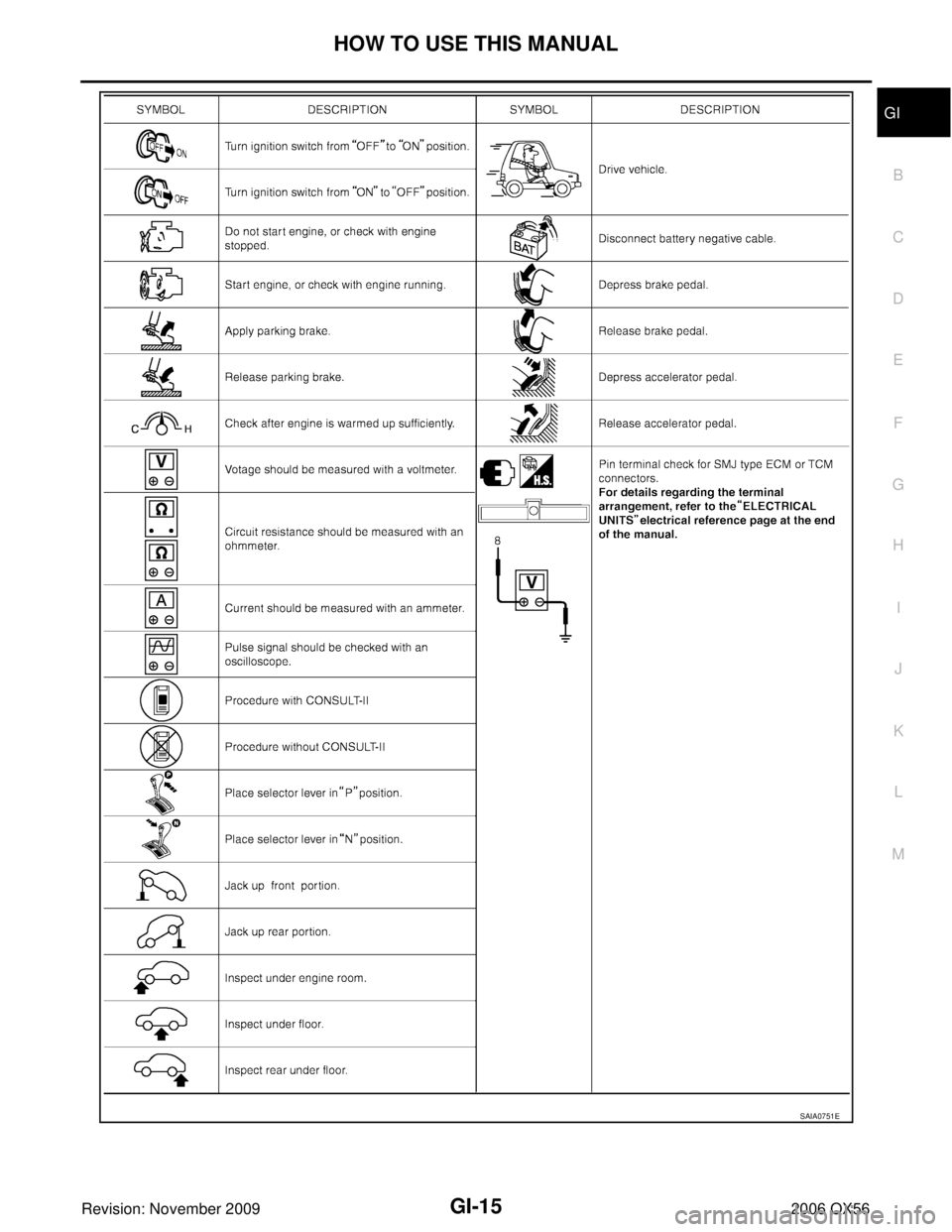

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES
SGI144A
SAIA0750E

Page 2106 of 3383

INFINITI QX56 2006 Factory Service Manual HOW TO USE THIS MANUALGI-15
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
SAIA0751E

Page 2107 of 3383

INFINITI QX56 2006 Factory Service Manual GI-16
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
How to Read Wiring DiagramsEAS001FK
CONNECTOR SYMBOLS
Most of connector symbols in wiring diagrams are shown from the
terminal side.
Conn

Page 2108 of 3383

INFINITI QX56 2006 Factory Service Manual HOW TO USE THIS MANUALGI-17
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56

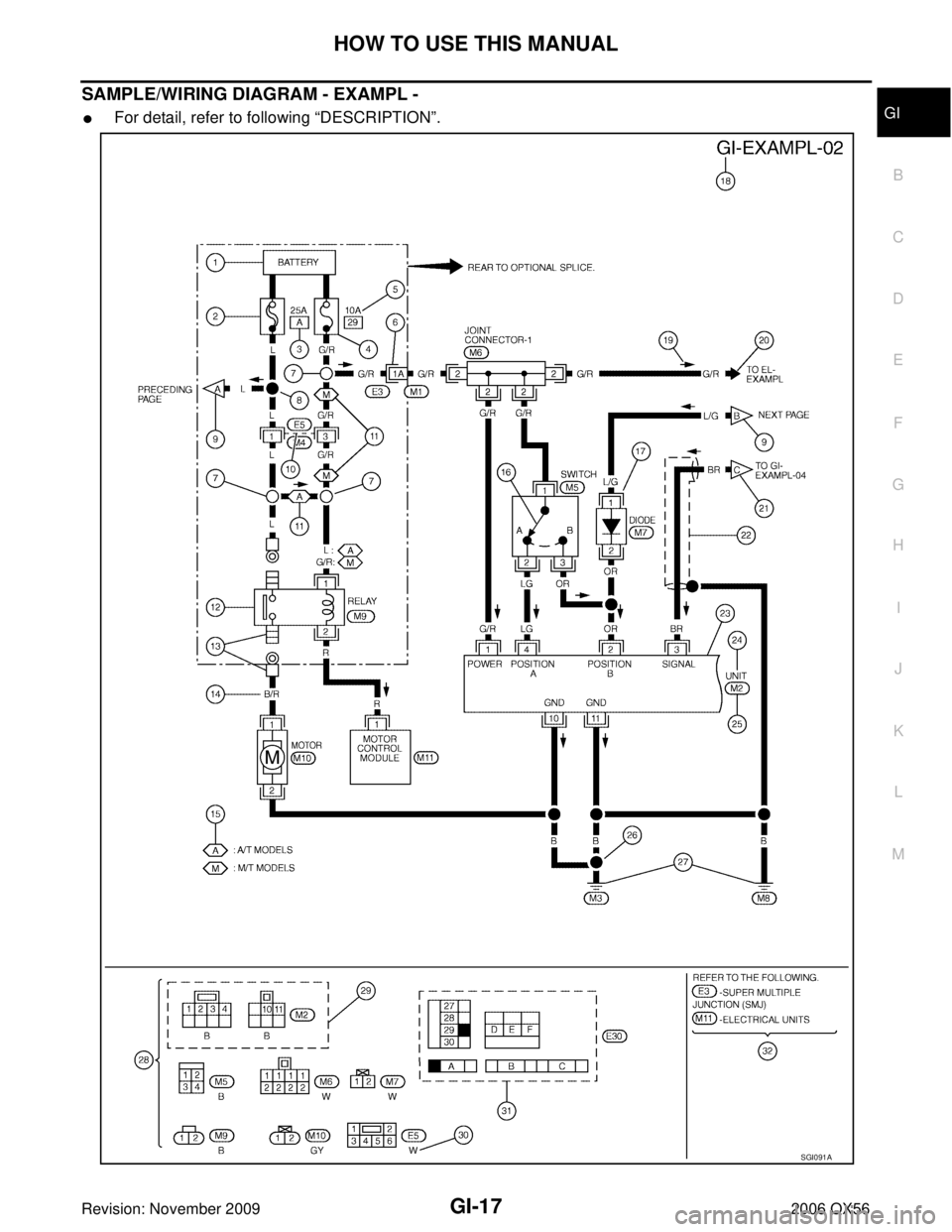

SAMPLE/WIRING DIAGRAM - EXAMPL -
For detail, refer to following “DESCRIPTION”.
SGI091A

Page 2109 of 3383

INFINITI QX56 2006 Factory Service Manual GI-18
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
Optional Splice
DESCRIPTION
SGI942
Num-
ber Item
Description
1 Power condition
This shows the condition when the system receives battery

Page 2110 of 3383

INFINITI QX56 2006 Factory Service Manual HOW TO USE THIS MANUALGI-19
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
14 Wire color
This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Y

HOW TO USE THIS MANUALGI-19
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
14 Wire color
This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description
This shows a description of the option abbreviation used on the page.
16 Switch
This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts
Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code
This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow
Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.
A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch
This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing
This arrow shows that the circuit continues to another page identified by cell code.
The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line
The line enclosed by broken line circle shows shield wire.
23 Component box in
wave line
This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name
This shows the name of a component.
25 Connector number
This shows the connector number.
The letter shows which harness the connector is located in.
Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout ”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)
The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)
This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views
This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component
Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color
This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31 Fusible link and fuse
box
This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area
This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details.
Num-
ber Item
Description

Page 2111 of 3383

INFINITI QX56 2006 Factory Service Manual GI-20
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56
Harness Indication
Letter designations next to test meter probe indicate harness
(connector) wire color.
Connector numbers in a single

Page 2112 of 3383

INFINITI QX56 2006 Factory Service Manual HOW TO USE THIS MANUALGI-21
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
A line with regular weight (wider line) represents a “detectable
line for DTC (Diagnostic Trouble Code) ”.
