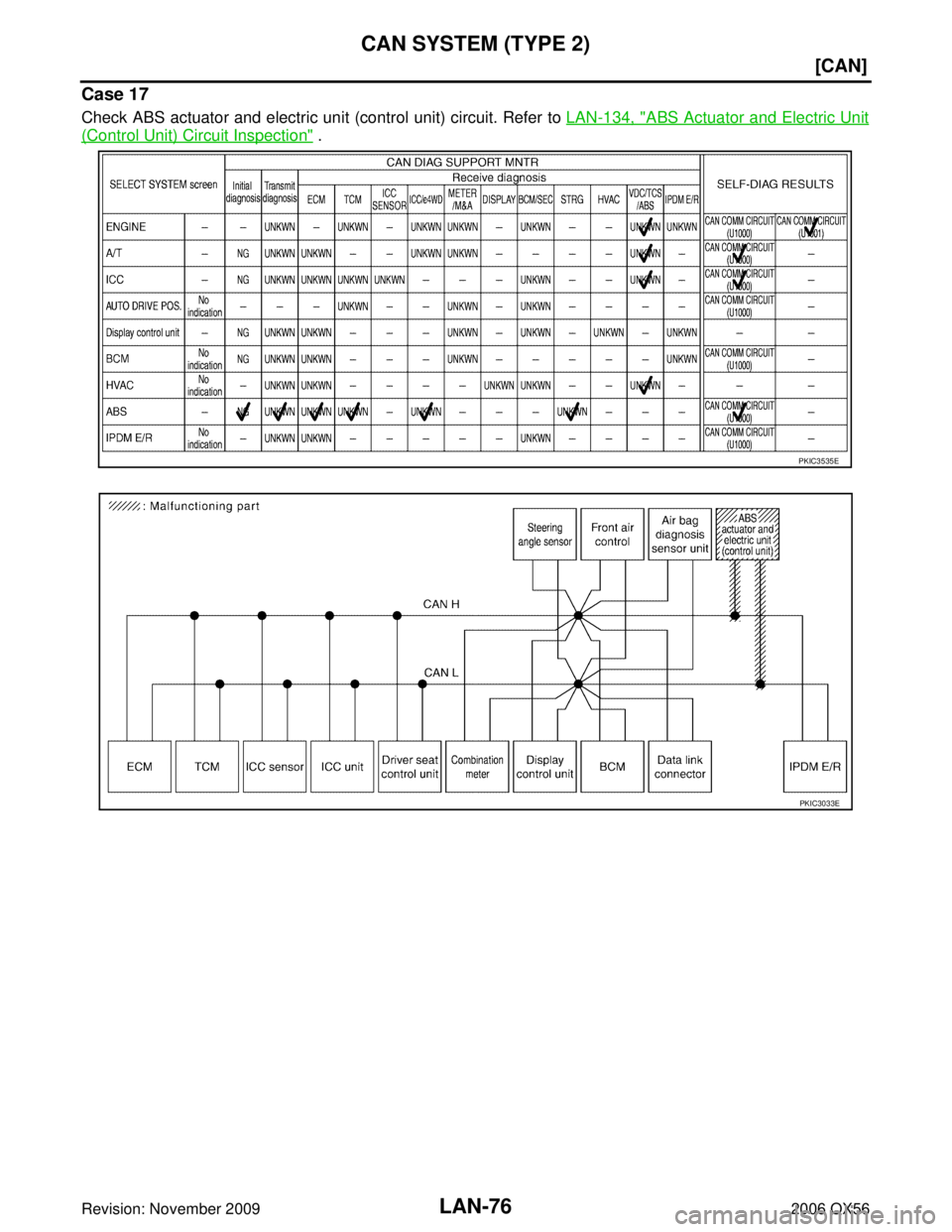

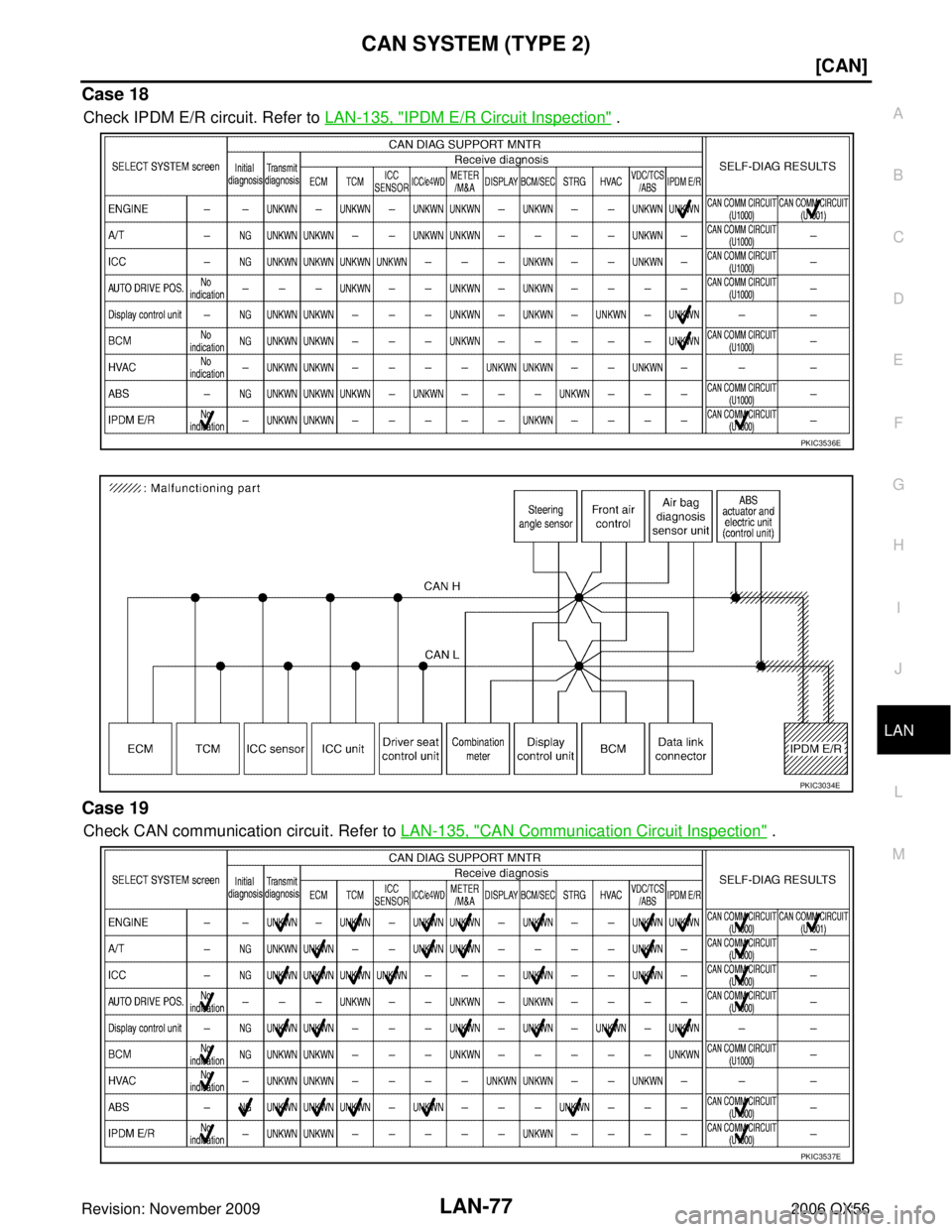

INFINITI QX56 2006 Factory Service Manual LAN-76 [CAN] CAN SYSTEM (TYPE 2) Revision: November 20092006 QX56 Case 17 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-134, "ABS Actuator and Electric Unit (Control Unit)

Page 2346 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 2)LAN-77 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 18 Check IPDM E/R circuit. Refer to LAN-135, "IPDM E/R Circuit Inspection" . Case 19 Check CAN communi

Page 2347 of 3383

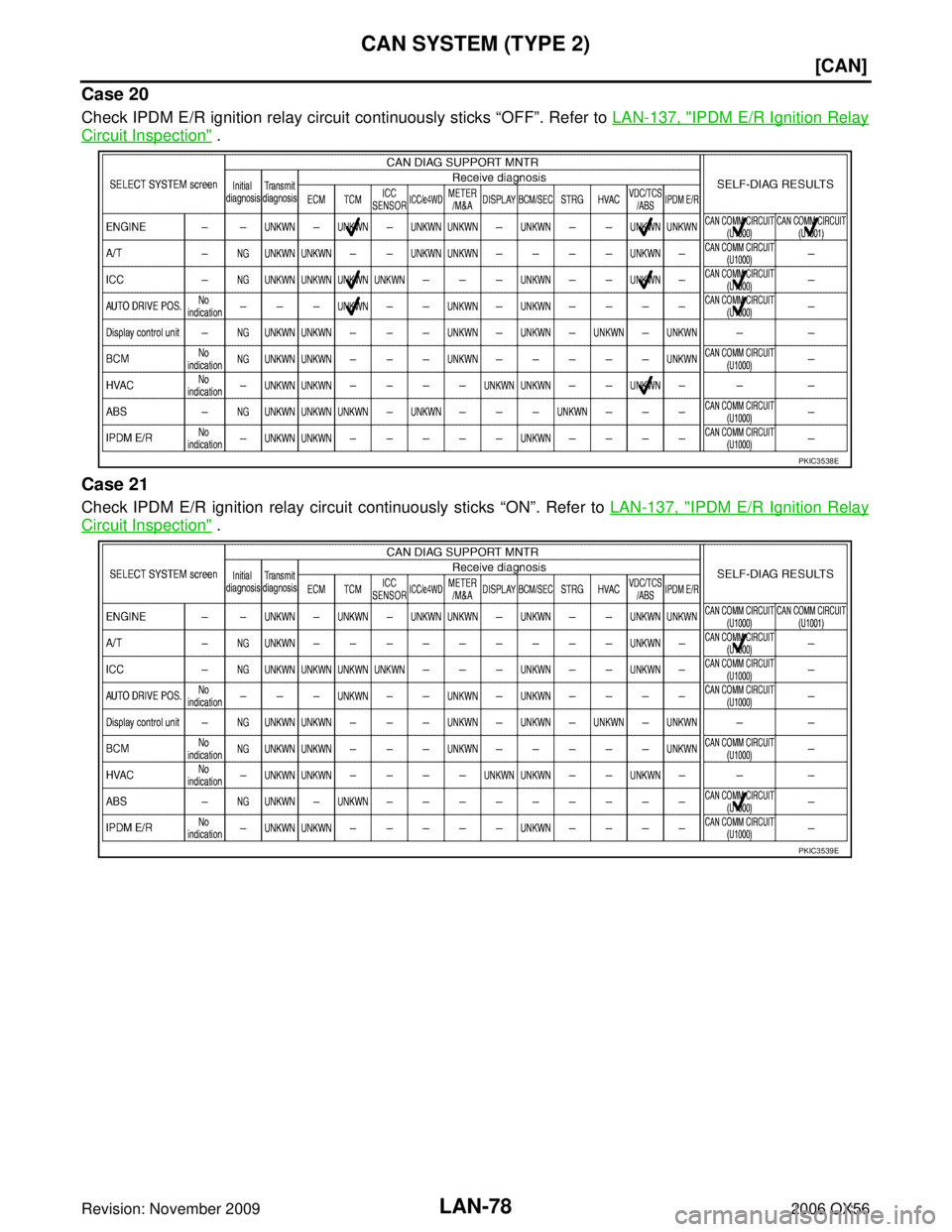

INFINITI QX56 2006 Factory Service Manual LAN-78 [CAN] CAN SYSTEM (TYPE 2) Revision: November 20092006 QX56 Case 20 Check IPDM E/R ignition relay circuit continuously sticks “OFF ”. Refer to LAN-137, "IPDM E/R Ignition Relay Circuit Insp

Page 2348 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-79 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 CAN SYSTEM (TYPE 3)PFP:23710 Component Parts and Harness Connector LocationUKS004T3 Refer to LAN-26, "Compo

Page 2349 of 3383

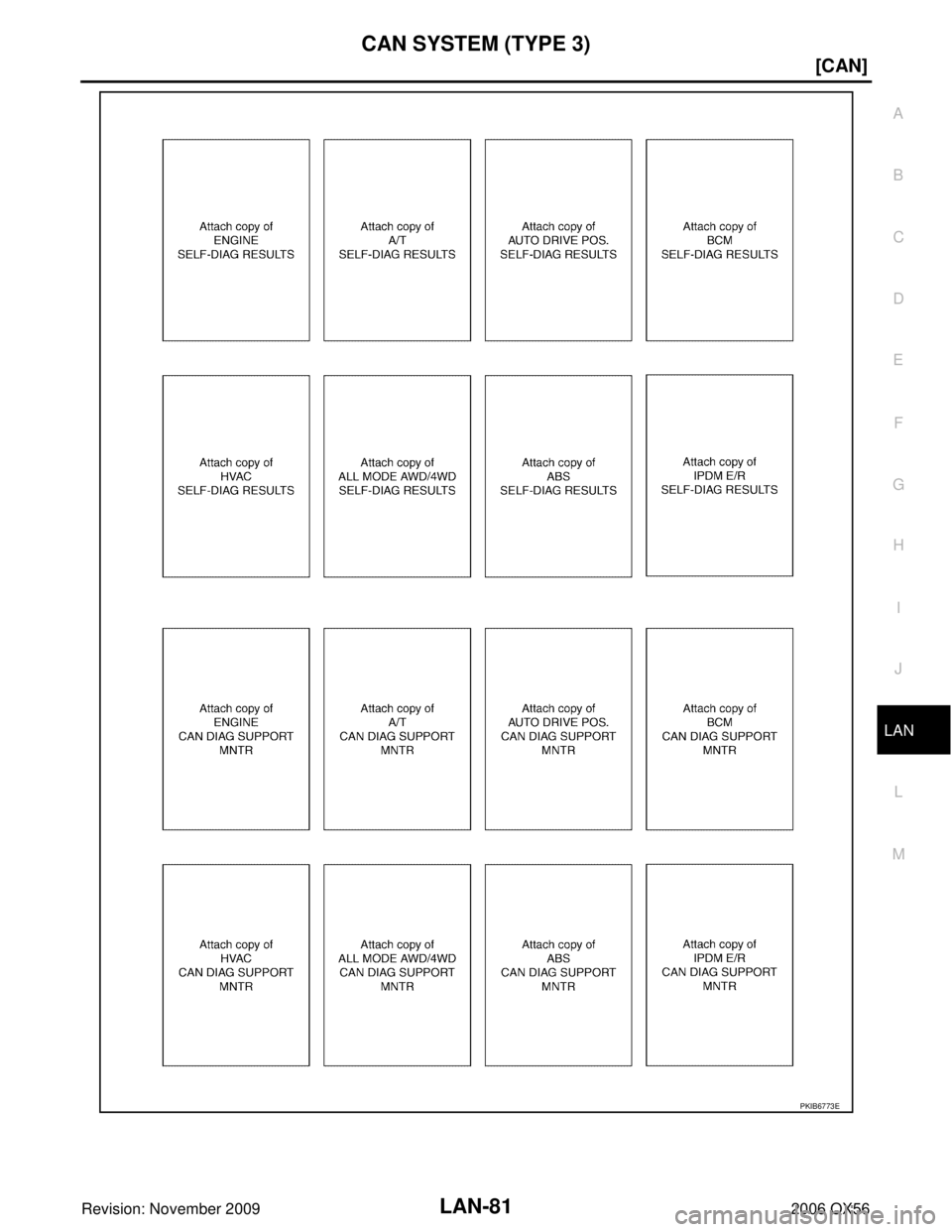

INFINITI QX56 2006 Factory Service Manual LAN-80 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Check SheetUKS004T6 NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis) ”, replace the control unit. PK

Page 2350 of 3383

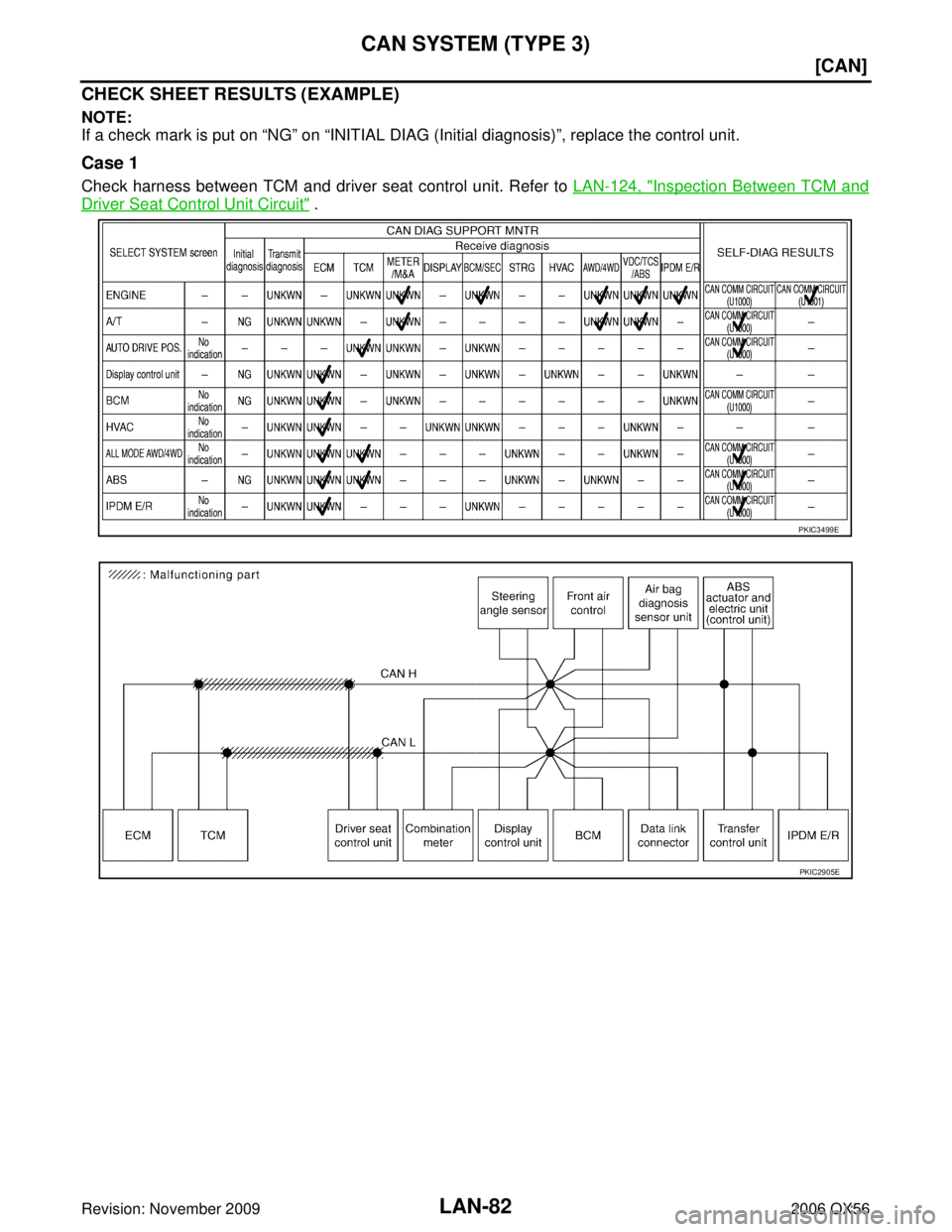

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-81 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 PKIB6773E

Page 2351 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-82 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis) ”, replace the contro

Page 2352 of 3383

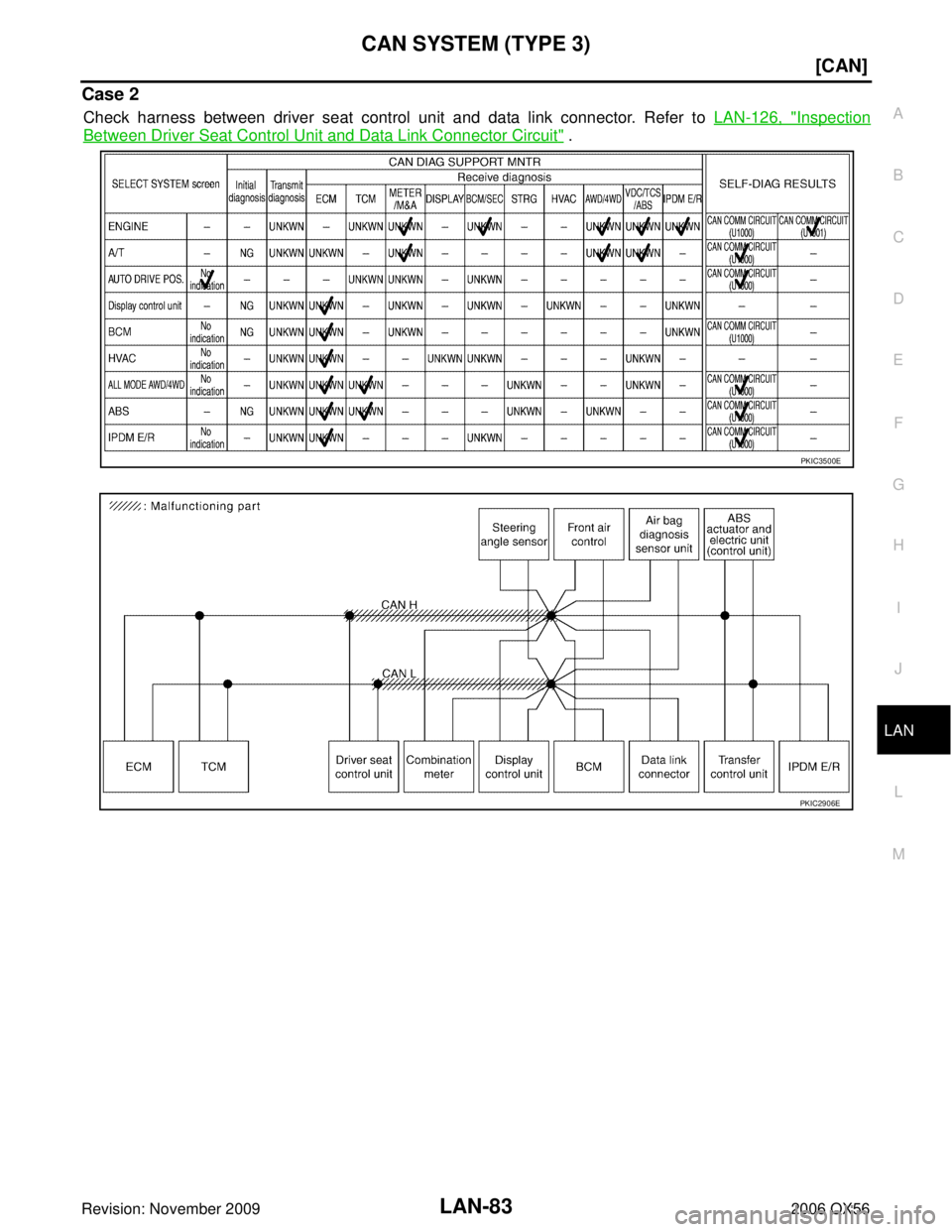

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-83 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 2 Check harness between driver seat control unit and data link connector. Refer to LAN-126, "Inspectio
