INFINITI QX56 2006 Factory Service Manual IP-16
INSTRUMENT PANEL ASSEMBLY
Revision: November 20092006 QX56
Center ConsoleEIS007XB
REMOVAL AND INSTALLATION
WIIA0923E

Page 2266 of 3383

INFINITI QX56 2006 Factory Service Manual INSTRUMENT PANEL ASSEMBLYIP-17
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
Removal
1. Move front seats forward.
2. Disconnect battery negative terminal.
3. Remove control device. Refer

INSTRUMENT PANEL ASSEMBLYIP-17
C
DE
F
G H
J
K L
M A
B
IP
Revision: November 2009 2006 QX56
Removal
1. Move front seats forward.
2. Disconnect battery negative terminal.
3. Remove control device. Refer to AT- 2 2 6 , "
Control Device Removal and Installation" .
4. Remove glove box assembly. Refer to IP-14, "
Lower Instrument Panel RH and Glove Box" .
5. Remove center console lower cover RH.
6. Remove console cover RH screws.
7. Remove center console lower cover LH.
8. Remove console cover LH screws.
9. Disconnect center console electrical connectors.
10. Remove center console assembly in a rearward direction.
Installation
Installation is in the reverse order of removal.
Center ConsoleEIS007X7
DISASSEMBLY AND ASSEMBLY
Disassembly
1. Remove mats from storage compartment and console bin.
2. Remove latch from console lid and remove key cylinder from latch.
3. Remove console lid.
4. Remove console bin.
5. Disconnect electrical harness from DVD player (if equipped).
6. Remove hinge.
7. Remove rear upper finisher.
8. Remove rear cup holder assembly.
9. Remove rear finisher assembly.
10. Disconnect rear finisher assembly electrical connectors.
11. Remove console power socket.
12. Remove upper side finishers LH/RH.
13. Remove heat duct and console rear duct.
14. Disconnect clips and remove console covers LH/RH.
15. Remove mask and storage compartment.
16. Remove console front bracket.
17. Remove console rear bracket.
ASSEMBLY
Assembly is in the reverse order of disassembly.

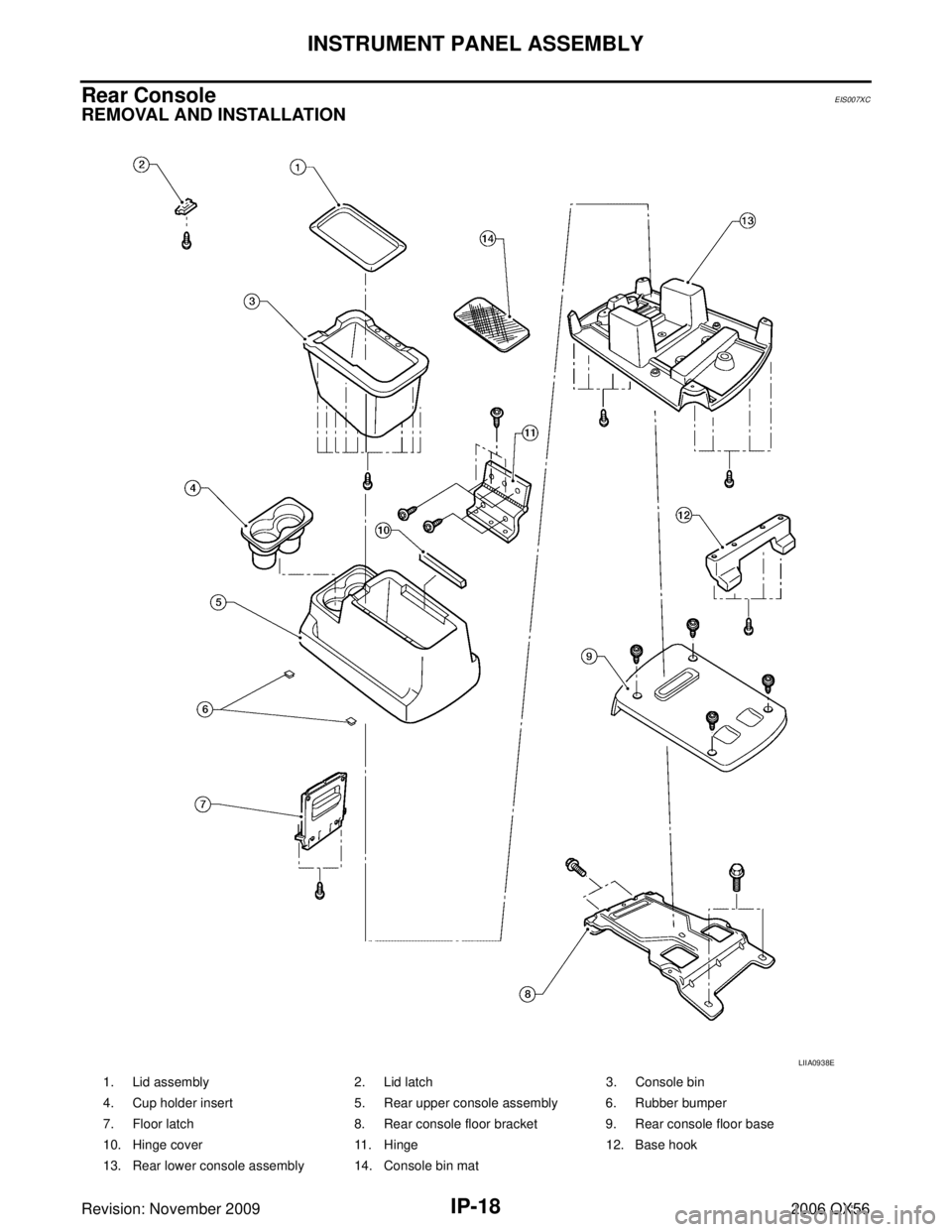

1. Console lid assembly 2. A/T finisher 3. Tray
4. Storage compartment 5. Storage compartment mask 6. Console reinforcement assembly
7. Center console lower cover LH 8. Console front bracket 9. Lower side finisher LH
10. Console cover LH 11. Rear console duct 12. Power socket assembly
13. Rear cup holder assembly 14. Rear finisher assembly 15. Console rear bracket
16. Heat duct 17. Rear upper finisher 18. Console bin mat
19. Console bin 20. Console cover RH 21. Center console lower cover RH
22. Lower side finisher RH 23. A/T transmission control 24. Mask
25. Cup holder insert
