Page 1993 of 3383

EM-102Revision: November 2009
CYLINDER BLOCK
2006 QX56
Method of Using Plastigage
Remove oil and dust on the crankshaft journal and surfaces of
each bearing completely.
Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
Install the main bearings to the cylinder block and main bearing
cap, and tighten the main bearing bolts to the specified torque.
CAUTION:
Do not rotate crankshaft with plastigage installed.
Remove bearing cap and bearings. Measure plastigage width
using the scale on the plastigage bag.
NOTE:
The procedure when the measured value exceeds the repair limit is the same as that described in
“Method of Measurement”.
CRUSH HEIGHT OF MAIN BEARING
When the bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of the
bearing must protrude. Refer to EM-82, "
ASSEMBLY" for the
tightening procedure.
If standard is not met, replace main bearings.
CRUSH HEIGHT OF CONNECTING ROD BEARING
When connecting rod bearing cap is removed after being tight-
ened to the specified torque with the connecting rod bearings
installed, the tip end of the bearing must protrude. Refer to EM-
82, "ASSEMBLY" for tightening procedure.
If standard is not met, replace connecting rod bearings.
MAIN BEARING CAP BOLT DIAMETER
Check for bolts (M9 and M12) installed from lower side using the
following procedure.
NOTE:
Side bolt (M10) is outside the target.
Figure shows M12 bolt.
Measure bolt diameter ″d1″ from tip of the bolt to dimension "a".
Measure bolt diameter ″d2 ″ from the dimension between tip of
the bolt and dimension ″b ″ as base station to dimension ″c ″.
NOTE:
If a narrower part in the threads is determined by visual check,
measure ″d2 ″ at that point.
Calculate the difference between ″d1 ″ and ″d2 ″.
KBIA2551E
Standard : There must be crush height
SEM502G
Standard : There must be crush height.
PBIC1646E
KBIA2497E
Page 1994 of 3383
CYLINDER BLOCKEM-103
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56

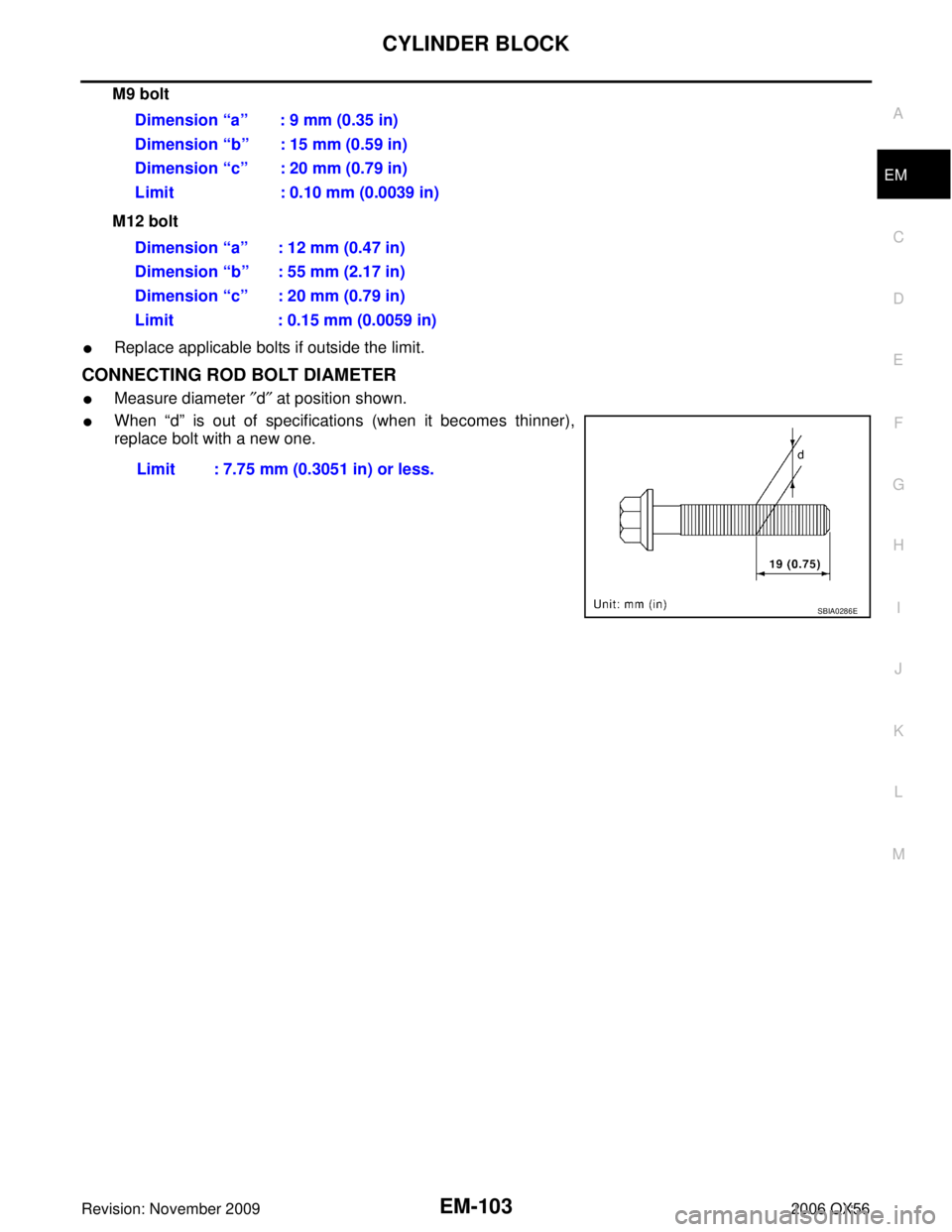

M9 bolt
M12 bolt
Replace applicable bolts if outside the limit.
CONNECTING ROD BOLT DIAMETER
Measure diameter ″d ″ at position shown.
When “d” is out of specifications (when it becomes thinner),
replace bolt with a new one. Dimension “a” : 9 mm (0.35 in)
Dimension “b” : 15 mm (0.59 in)
Dimension “c” : 20 mm (0.79 in)
Limit
: 0.10 mm (0.0039 in)
Dimension “a” : 12 mm (0.47 in)
Dimension “b” : 55 mm (2.17 in)
Dimension “c” : 20 mm (0.79 in)
Limit : 0.15 mm (0.0059 in)
Limit : 7.75 mm (0.3051 in) or less.
SBIA0286E
Page 1995 of 3383
EM-104Revision: November 2009
SERVICE DATA AND SPECIFICATIONS (SDS)
2006 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00RFL
GENERAL SPECIFICATIONS
DRIVE BELTS
EXHAUST MANIFOLD
Unit: mm (in)
Cylinder arrangement
V- 8
Displacement cm
3 (cu in) 5,552 (338.80)
Bore and stroke mm (in) 98 x 92 (3.86 x 3.62)
Valve arrangement DOHC
Firing order 1-8-7-3-6-5-4-2
Number of piston rings Compression
2
Oil 1
Number of main bearings 5
Compression ratio 9.8:1
Compression pressure
kPa (kg/cm
2 , psi)/rpm Standard 1,520 (15.5, 220)/200
Minimum 1,324 (13.5, 192)/200
Differential limit between cylinders 98 (1.0, 14)/200
Cylinder number
Va l v e t i m i n g Unit: degree
abcde f
232 ° 230° 2° 48° 3° 49°
SEM957C
PBIC0187E
Tension of drive belts Auto adjustment by auto tensioner
Items Limit
Surface distortion Exhaust manifold 0.3 (0.012)
Page 1996 of 3383

SERVICE DATA AND SPECIFICATIONS (SDS)EM-105
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56

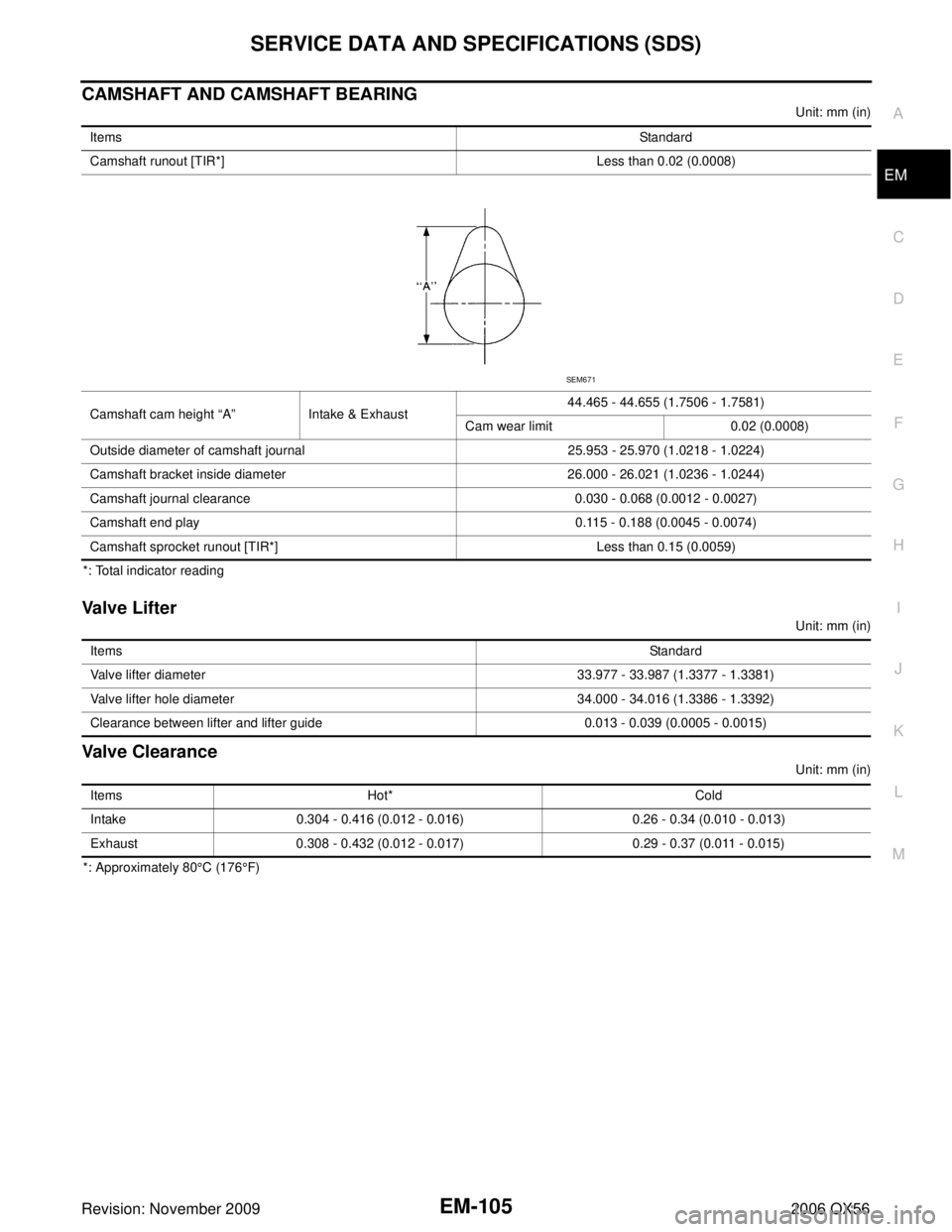

CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
*: Total indicator reading
Valve Lifter
Unit: mm (in)
Valve Clearance
Unit: mm (in)
*: Approximately 80 °C (176°F)
Items
Standard
Camshaft runout [TIR*] Less than 0.02 (0.0008)
Camshaft cam height “A ” Intake & Exhaust 44.465 - 44.655 (1.7506 - 1.7581)
Cam wear limit 0.02 (0.0008)
Outside diameter of camshaft journal 25.953 - 25.970 (1.0218 - 1.0224)
Camshaft bracket inside diameter 26.000 - 26.021 (1.0236 - 1.0244)
Camshaft journal clearance 0.030 - 0.068 (0.0012 - 0.0027)
Camshaft end play 0.115 - 0.188 (0.0045 - 0.0074)
Camshaft sprocket runout [TIR*] Less than 0.15 (0.0059)
SEM671
Items Standard
Valve lifter diameter 33.977 - 33.987 (1.3377 - 1.3381)
Valve lifter hole diameter 34.000 - 34.016 (1.3386 - 1.3392)
Clearance between lifter and lifter guide 0.013 - 0.039 (0.0005 - 0.0015)
Items Hot* Cold
Intake 0.304 - 0.416 (0.012 - 0.016) 0.26 - 0.34 (0.010 - 0.013)
Exhaust 0.308 - 0.432 (0.012 - 0.017) 0.29 - 0.37 (0.011 - 0.015)
Page 1997 of 3383
EM-106Revision: November 2009
SERVICE DATA AND SPECIFICATIONS (SDS)
2006 QX56

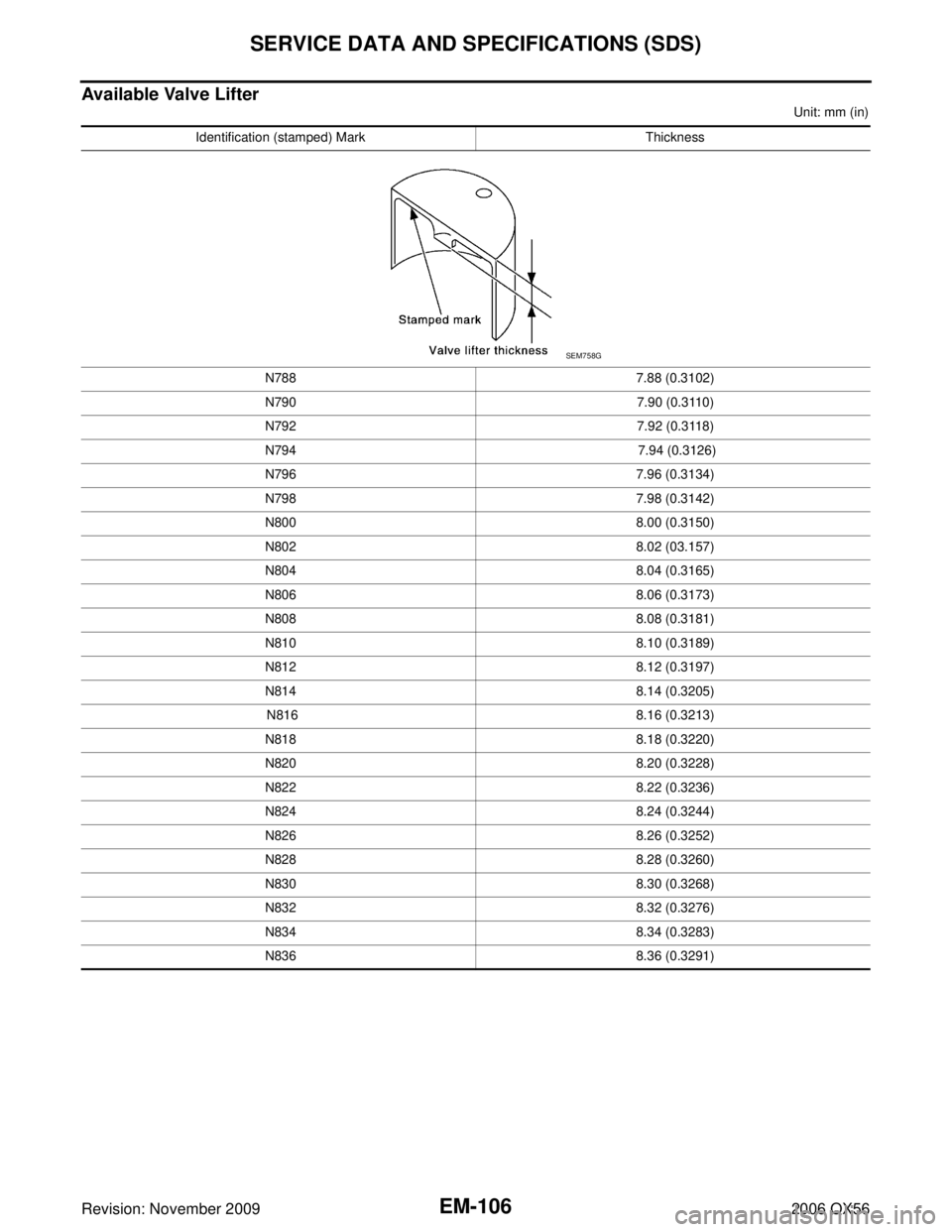

Available Valve Lifter
Unit: mm (in)
Identification (stamped) Mark Thickness
N788 7.88 (0.3102)
N790 7.90 (0.3110)
N792 7.92 (0.3118)
N794 7.94 (0.3126)
N796 7.96 (0.3134)
N798 7.98 (0.3142)
N800 8.00 (0.3150)
N802 8.02 (03.157)
N804 8.04 (0.3165)
N806 8.06 (0.3173)
N808 8.08 (0.3181)
N810 8.10 (0.3189)
N812 8.12 (0.3197)
N814 8.14 (0.3205)
N816 8.16 (0.3213)
N818 8.18 (0.3220)
N820 8.20 (0.3228)
N822 8.22 (0.3236)
N824 8.24 (0.3244)
N826 8.26 (0.3252)
N828 8.28 (0.3260)
N830 8.30 (0.3268)
N832 8.32 (0.3276)
N834 8.34 (0.3283)
N836 8.36 (0.3291)
SEM758G
Page 1998 of 3383
SERVICE DATA AND SPECIFICATIONS (SDS)EM-107
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56

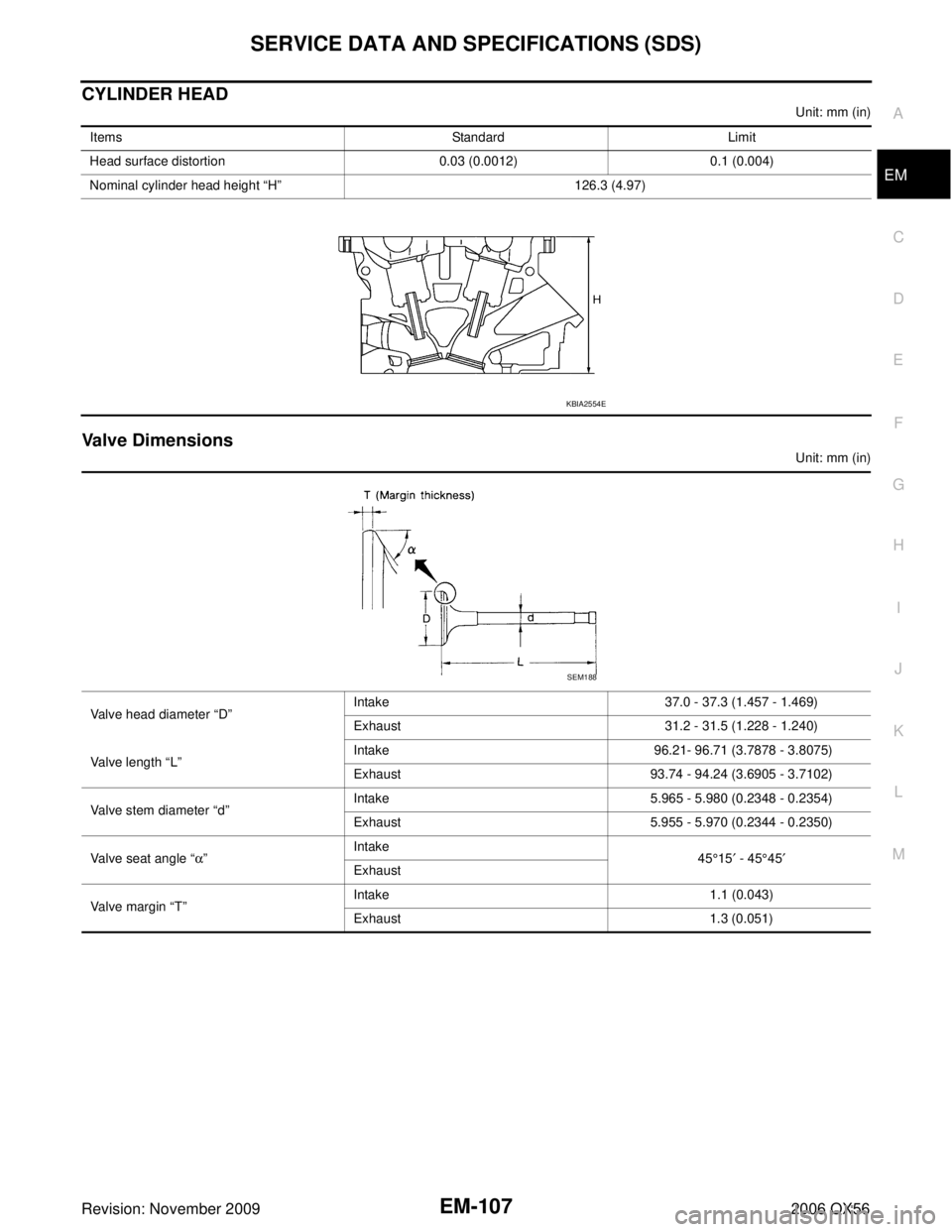

CYLINDER HEAD
Unit: mm (in)
Valve Dimensions
Unit: mm (in)
Items
StandardLimit
Head surface distortion 0.03 (0.0012)0.1 (0.004)
Nominal cylinder head height “H ” 126.3 (4.97)
KBIA2554E
Valve head diameter “D” Intake
37.0 - 37.3 (1.457 - 1.469)
Exhaust 31.2 - 31.5 (1.228 - 1.240)
Valve length “ L” Intake
96.21- 96.71 (3.7878 - 3.8075)
Exhaust 93.74 - 94.24 (3.6905 - 3.7102)
Valve stem diameter “ d” Intake
5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.955 - 5.970 (0.2344 - 0.2350)
Valve seat angle “α ” Intake
45°15 ′ - 45 °45 ′
Exhaust
Valve margin “T ” Intake
1.1 (0.043)
Exhaust 1.3 (0.051)
SEM188
Page 1999 of 3383
![INFINITI QX56 2006 Factory Service Manual EM-108Revision: November 2009
SERVICE DATA AND SPECIFICATIONS (SDS)
2006 QX56

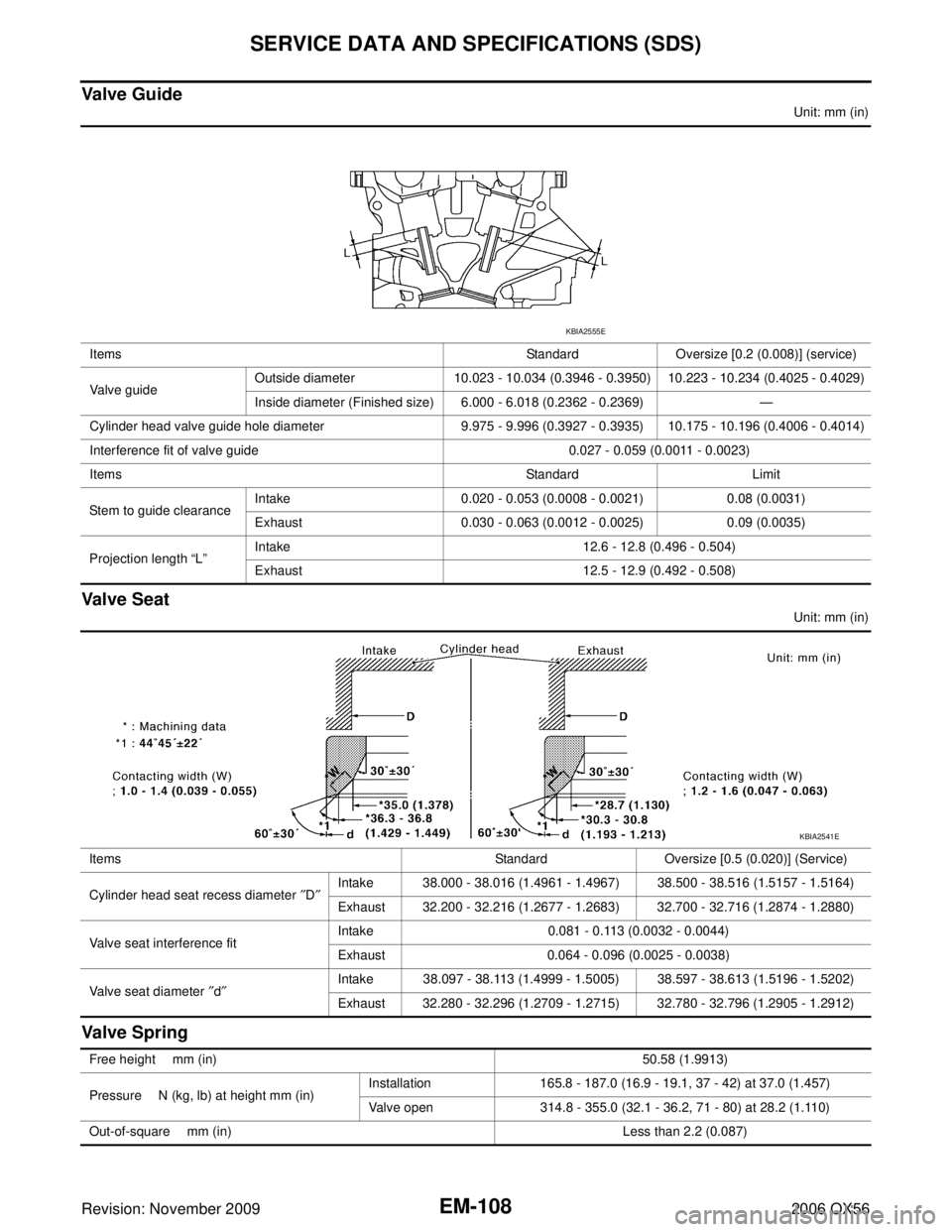

Valve Guide
Unit: mm (in)
Valve Seat
Unit: mm (in)
Valve Spring
ItemsStandardOversize [0.2 (0.008)] (service)
Valve guide INFINITI QX56 2006 Factory Service Manual EM-108Revision: November 2009
SERVICE DATA AND SPECIFICATIONS (SDS)
2006 QX56
Valve Guide
Unit: mm (in)
Valve Seat
Unit: mm (in)
Valve Spring
ItemsStandardOversize [0.2 (0.008)] (service)
Valve guide](/manual-img/42/57028/w960_57028-1998.png)
EM-108Revision: November 2009
SERVICE DATA AND SPECIFICATIONS (SDS)
2006 QX56
Valve Guide
Unit: mm (in)
Valve Seat
Unit: mm (in)
Valve Spring
ItemsStandardOversize [0.2 (0.008)] (service)
Valve guide Outside diameter
10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)
Inside diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369) —
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 - 0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023)
Items StandardLimit
Stem to guide clearance Intake
0.020 - 0.053 (0.0008 - 0.0021) 0.08 (0.0031)
Exhaust 0.030 - 0.063 (0.0012 - 0.0025) 0.09 (0.0035)
Projection length “L ” Intake
12.6 - 12.8 (0.496 - 0.504)
Exhaust 12.5 - 12.9 (0.492 - 0.508)
KBIA2555E
Items StandardOversize [0.5 (0.020)] (Service)
Cylinder head seat recess diameter ″D ″ Intake 38.000 - 38.016 (1.4961 - 1.4967) 38.500 - 38.516 (1.5157 - 1.5164)
Exhaust 32.200 - 32.216 (1.2677 - 1.2683) 32.700 - 32.716 (1.2874 - 1.2880)
Valve seat interference fit Intake
0.081 - 0.113 (0.0032 - 0.0044)
Exhaust 0.064 - 0.096 (0.0025 - 0.0038)
Valve seat diameter ″d ″ Intake 38.097 - 38.113 (1.4999 - 1.5005) 38.597 - 38.613 (1.5196 - 1.5202)
Exhaust 32.280 - 32.296 (1.2709 - 1.2715) 32.780 - 32.796 (1.2905 - 1.2912)
KBIA2541E
Free height mm (in)
50.58 (1.9913)
Pressure N (kg, lb) at height mm (in) Installation
165.8 - 187.0 (16.9 - 19.1, 37 - 42) at 37.0 (1.457)
Valve open 314.8 - 355.0 (32.1 - 36.2, 71 - 80) at 28.2 (1.110)
Out-of-square mm (in) Less than 2.2 (0.087)
Page 2000 of 3383

SERVICE DATA AND SPECIFICATIONS (SDS)EM-109
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56

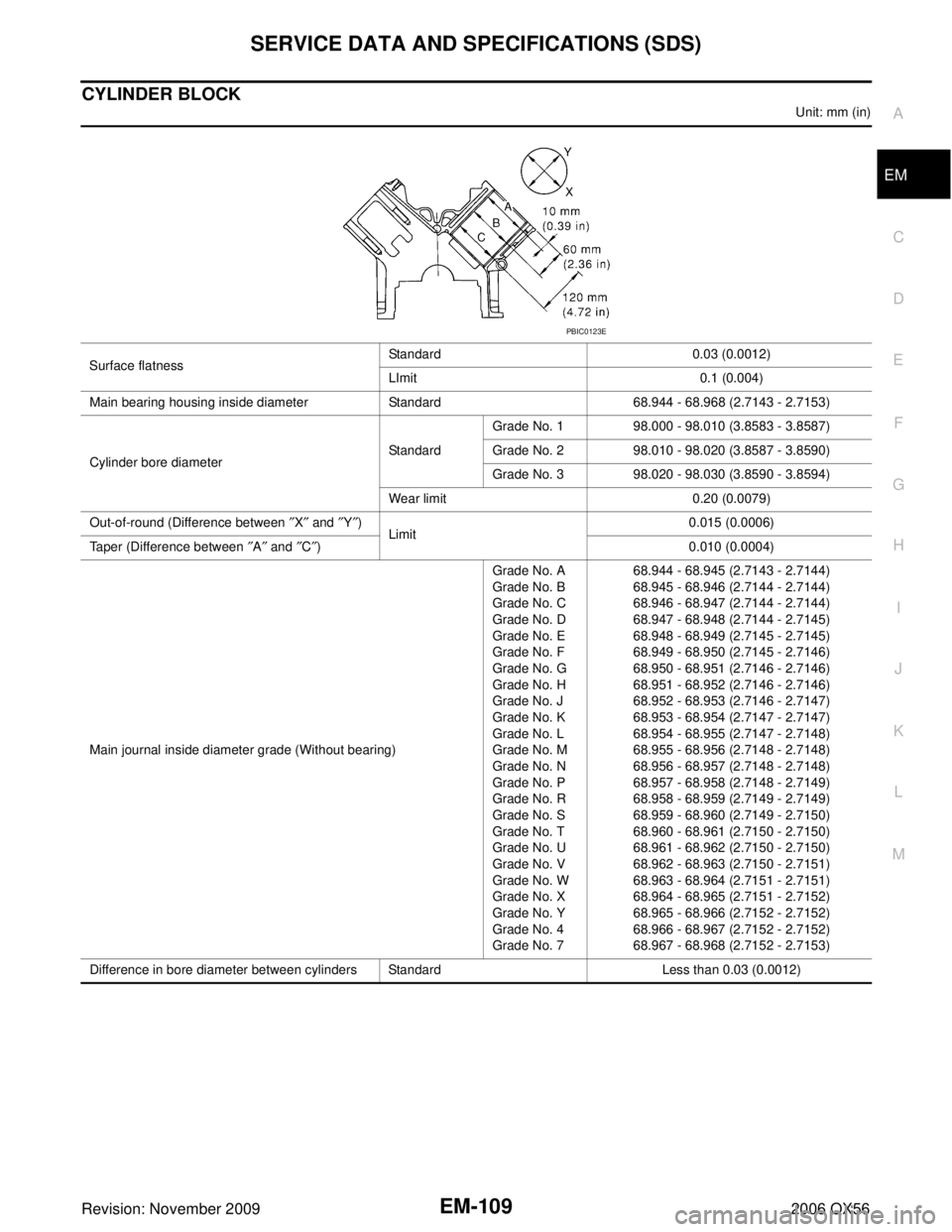

CYLINDER BLOCK
Unit: mm (in)
Surface flatness Standard
0.03 (0.0012)
LImit 0.1 (0.004)
Main bearing housing inside diameter Standard68.944 - 68.968 (2.7143 - 2.7153)
Cylinder bore diameter StandardGrade No. 1
98.000 - 98.010 (3.8583 - 3.8587)
Grade No. 2 98.010 - 98.020 (3.8587 - 3.8590)
Grade No. 3 98.020 - 98.030 (3.8590 - 3.8594)
Wear limit 0.20 (0.0079)
Out-of-round (Difference between ″X ″ and ″Y ″)
Limit 0.015 (0.0006)
Taper (Difference between ″A ″ and ″C ″) 0.010 (0.0004)
Main journal inside diameter grade (Without bearing) Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 768.944 - 68.945 (2.7143 - 2.7144)
68.945 - 68.946 (2.7144 - 2.7144)
68.946 - 68.947 (2.7144 - 2.7144)
68.947 - 68.948 (2.7144 - 2.7145)
68.948 - 68.949 (2.7145 - 2.7145)
68.949 - 68.950 (2.7145 - 2.7146)
68.950 - 68.951 (2.7146 - 2.7146)
68.951 - 68.952 (2.7146 - 2.7146)
68.952 - 68.953 (2.7146 - 2.7147)
68.953 - 68.954 (2.7147 - 2.7147)
68.954 - 68.955 (2.7147 - 2.7148)
68.955 - 68.956 (2.7148 - 2.7148)
68.956 - 68.957 (2.7148 - 2.7148)
68.957 - 68.958 (2.7148 - 2.7149)
68.958 - 68.959 (2.7149 - 2.7149)
68.959 - 68.960 (2.7149 - 2.7150)
68.960 - 68.961 (2.7150 - 2.7150)
68.961 - 68.962 (2.7150 - 2.7150)
68.962 - 68.963 (2.7150 - 2.7151)
68.963 - 68.964 (2.7151 - 2.7151)
68.964 - 68.965 (2.7151 - 2.7152)
68.965 - 68.966 (2.7152 - 2.7152)
68.966 - 68.967 (2.7152 - 2.7152)
68.967 - 68.968 (2.7152 - 2.7153)
Difference in bore diameter between cylinders Standard Less than 0.03 (0.0012)
PBIC0123E
