AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56

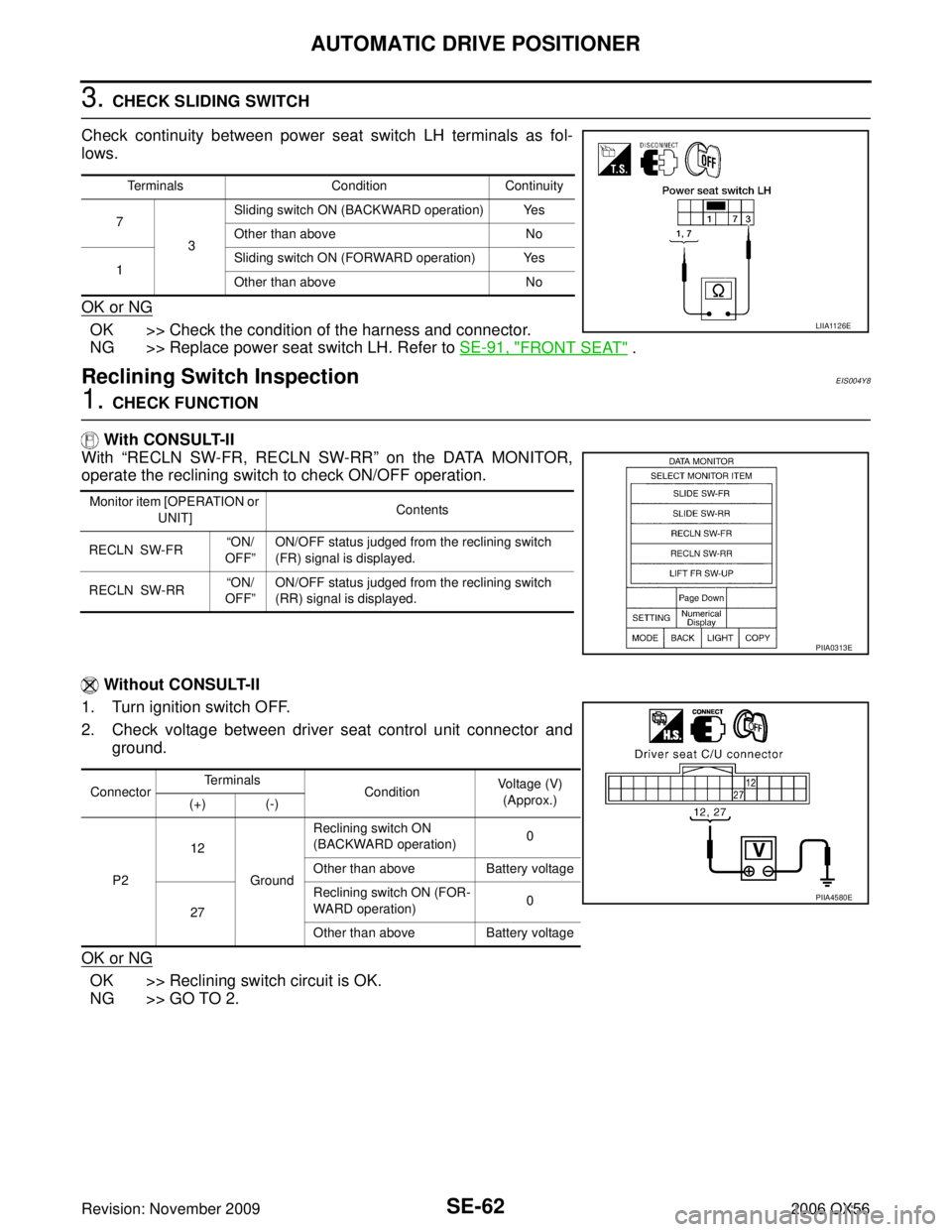

3. CHECK SLIDING SWITCH
Check continuity between power seat switch LH terminals as fol-
lows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH. Refer to SE-91, "
FRONT SEAT" .
Reclining Switch InspectionEIS004Y8
1. CHECK FUNCTION
With CONSULT-II
With “RECLN SW-FR, RECLN SW-RR” on the DATA MONITOR,
operate the reclining switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Reclining switch circuit is OK.
NG >> GO TO 2.
Terminals ConditionContinuity
7 3Sliding switch ON (BACKWARD operation) Yes
Other than above
No
1 Sliding switch ON (FORWARD operation) Yes
Other than above
No
LIIA1126E
Monitor item [OPERATION or
UNIT] Contents
RECLN SW-FR “
ON/
OFF ”ON/OFF status judged from the reclining switch
(FR) signal is displayed.
RECLN SW-RR “
ON/
OFF ”ON/OFF status judged from the reclining switch
(RR) signal is displayed.
PIIA0313E
Connector
Terminals
ConditionVoltage (V)
(Approx.)
(+) (-)
P2 12
Ground Reclining switch ON
(BACKWARD operation)
0
Other than above Battery voltage
27 Reclining switch ON (FOR-
WARD operation)
0
Other than above Battery voltage
PIIA4580E
Page 2994 of 3383

AUTOMATIC DRIVE POSITIONERSE-63
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
2. CHECK RECLINING SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2 terminals 12, 27 and power seat switch LH connector P8 termi-
nals 9, 10.
3. Check continuity between driver seat control unit connector P2 terminals 12, 27 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. RECLINING SWITCH INSPECTION
Check continuity between power seat switch LH terminals as fol-
lows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH. Refer to SE-91, "
FRONT SEAT" .
12 - 9 : Continuity should exist.
27 - 10 : Continuity should exist.
12 - Ground : Continuity should not exist.
27 - Ground : Continuity should not exist.
LIIA1127E
Terminal
ConditionContinuity
9 3Reclining switch ON (BACKWARD operation) Yes
Other than above
No
10 Reclining switch ON (FORWARD operation) Yes
Other than above
No
LIIA1128E
Page 2995 of 3383

SE-64
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
Lifting Switch (Front) Circuit InspectionEIS004Y9
1. CHECK FUNCTION
With CONSULT-II
With “LIFT FR SW-UP, LIFT FR SW-DN ” on the DATA MONITOR,
operate the lifting switch (front) to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Lifting switch (front) circuit is OK.
NG >> GO TO 2.
2. CHECK LIFTING SWITCH (FRONT) CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2 terminals 13, 28 and power seat switch LH connector P2 termi-
nals 5, 6.
3. Check continuity between driver seat control unit connector P2 terminals 13, 28 and ground
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item [OPERATION or UNIT] Contents
LIFT FR SW-DN "ON/
OFF" ON / OFF status judged from the FR lifter switch
(DOWN) signal is displayed.
LIFT FR SW-UP "ON/
OFF" ON / OFF status judged from the FR lifter switch
(UP) signal is displayed.
PIIA0323E
Connector
Terminals
ConditionVoltage (V)
(Approx.)
(+) (-)
P2 13
Ground Lifting switch (front) ON
(DOWN operation)
0
Other than above Battery voltage
28 Lifting switch (front) ON
(UP operation)
0
Other than above Battery voltage
PIIA4583E
13 - 5 : Continuity should exist.
28 - 6 : Continuity should exist.
13 - Ground : Continuity should not exist.
28 - Ground : Continuity should not exist.
LIIA1129E
Page 2996 of 3383

AUTOMATIC DRIVE POSITIONERSE-65
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
3. CHECK LIFTING SWITCH (FRONT)
Check continuity between power seat switch LH terminals as fol-
lows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH. Refer to SE-91, "
FRONT SEAT" .
Lifting Switch (Rear) Circuit InspectionEIS004YA
1. CHECK FUNCTION
With CONSULT-II
With “LIFT RR SW-UP, LIFT RR SW-DN ” on the DATA MONITOR,
operate the rear lifting switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Rear lifting switch circuit is OK.
NG >> GO TO 2.
Terminals Condition Continuity
5 3Lifting switch (front) ON (DOWN operation) Yes
Other than above
No
6 Lifting switch (front) ON (UP operation) Yes
Other than above
No
LIIA1130E
Monitor item [OPERATION or
UNIT] Contents
LIFT RR SW-UP “ON/OFF ”Operation (ON)/open (OFF) status judged from
the RR lifter switch (UP) signal is displayed.
LIFT RR SW-
DN “
ON/OFF ”Operation (ON)/open (OFF) status judged from
the RR lifter switch (DOWN) signal is displayed.
PIIA0323E
Terminals
ConditionVoltage (V)
(Approx.)
(+) (-)
14 Ground Rear lifting switch ON (DOWN operation) 0
Other than above
Battery voltage
29 Rear lifting switch ON (UP operation)
0
Other than above Battery voltage
PIIA4586E
Page 2997 of 3383

SE-66
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
2. CHECK LIFTING SWITCH (REAR) CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2 terminals 14, 29 and power seat switch connector P8 terminals
2, 8.
3. Check continuity between driver seat control unit connector P2 terminals 14, 29 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK LIFTING SWITCH (REAR)
Check continuity between power seat switch LH terminals as fol-
lows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH. Refer to SE-91, "
FRONT SEAT" .

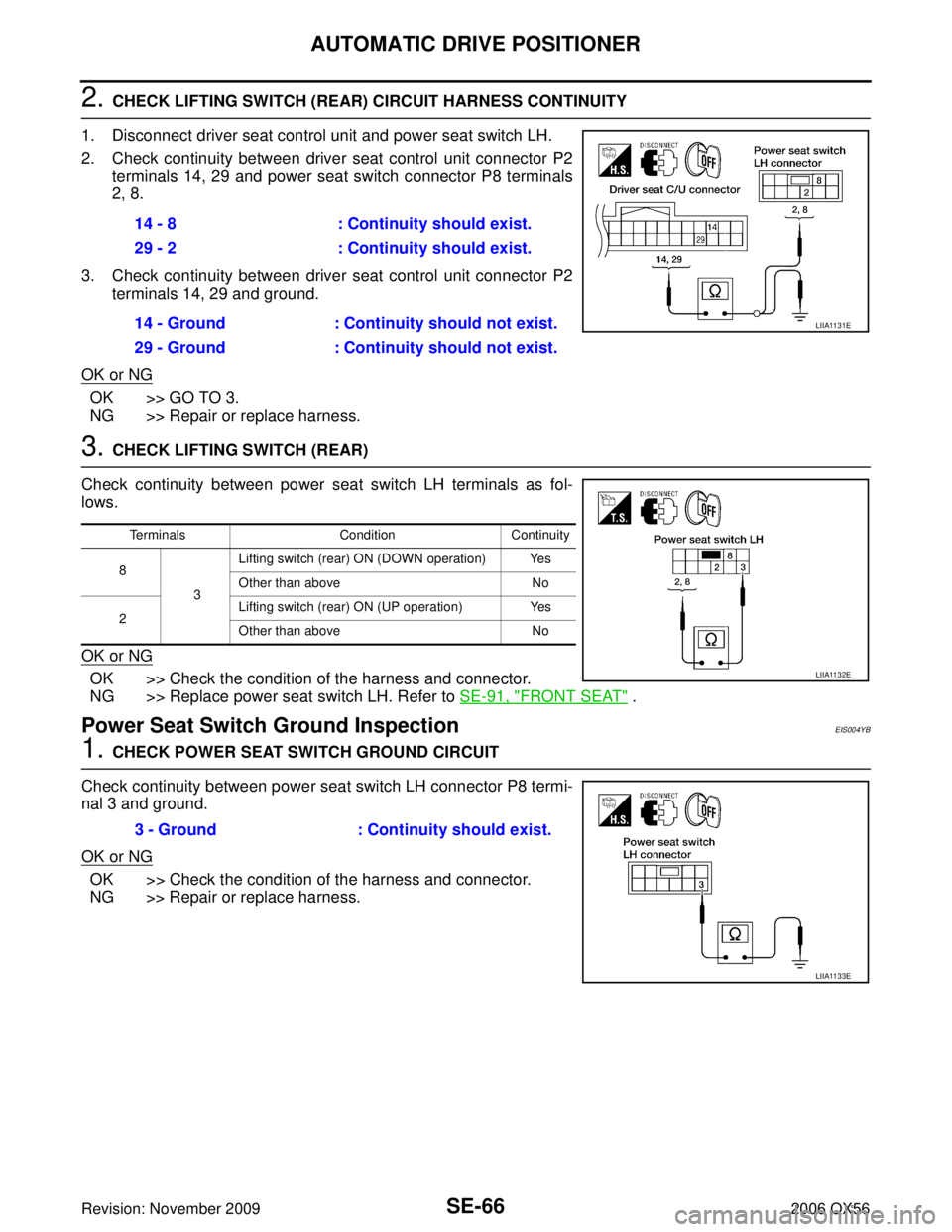

Power Seat Switch Ground InspectionEIS004YB
1. CHECK POWER SEAT SWITCH GROUND CIRCUIT
Check continuity between power seat switch LH connector P8 termi-
nal 3 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness. 14 - 8
: Continuity should exist.
29 - 2 : Continuity should exist.
14 - Ground : Continuity should not exist.
29 - Ground : Continuity should not exist.
LIIA1131E
Terminals ConditionContinuity
8 3Lifting switch (rear) ON (DOWN operation) Yes
Other than above
No
2 Lifting switch (rear) ON (UP operation)
Yes
Other than above No
LIIA1132E
3 - Ground: Continuity should exist.
LIIA1133E
Page 2998 of 3383

AUTOMATIC DRIVE POSITIONERSE-67
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Pedal Adjusting Switch Circuit InspectionEIS004YC
1. CHECK FUNCTION
With CONSULT-II
With “PEDAL SW-FR, PEDAL SW-RR ” on the DATA MONITOR,
operate the pedal adjusting switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Pedal adjusting switch circuit is OK.
NG >> GO TO 2.
2. CHECK PEDAL ADJUSTING SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and pedal adjusting switch.
2. Check continuity between driver seat control unit connector P2 terminals 15, 30 and pedal adjusting switch connector M96 ter-
minals 2, 3.
3. Check continuity between driver seat control unit connector P2 terminals 15, 30 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item [OPERATION or UNIT] Contents
PEDAL SW-FR “ON/OFF ”Operation (ON)/open (OFF) status judged from the
pedal adjusting switch (FR) signal is displayed.
PEDAL SW-RR “ON/OFF ”Operation (ON)/open (OFF) status judged from the
pedal adjusting switch (RR) signal is displayed.
PIIA4590E
Connector Te r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
P2 15
Ground Pedal adjusting switch ON
(BACKWARD operation)
0
Other than above Battery voltage
30 Pedal adjusting switch ON
(FORWARD operation)
0
Other than above Battery voltage
PIIA4591E
15 - 2: Continuity should exist.
30 - 3 : Continuity should exist.
15 - Ground : Continuity should not exist.
30 - Ground : Continuity should not exist.
LIIA0726E
Page 2999 of 3383
SE-68
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
3. CHECK PEDAL ADJUSTING SWITCH
Check continuity between pedal adjusting switch terminals as fol-
lows.
OK or NG
OK >> GO TO 4.
NG >> Replace pedal adjusting switch.
4. CHECK PEDAL ADJUSTING SWITCH GROUND CIRCUIT
Check continuity between pedal adjusting switch connector M96 ter-
minal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness.

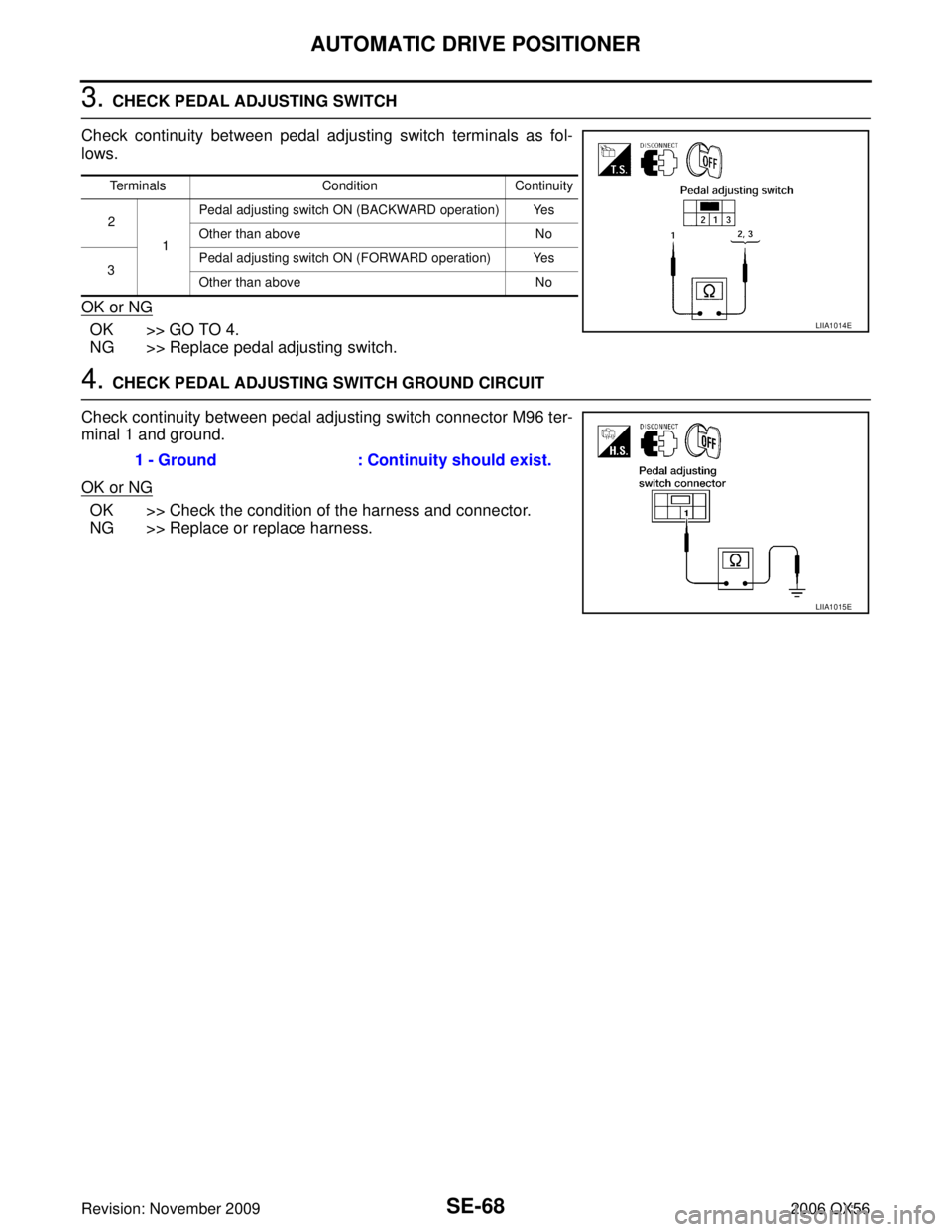

Terminals ConditionContinuity
2 1Pedal adjusting switch ON (BACKWARD operation) Yes
Other than above
No
3 Pedal adjusting switch ON (FORWARD operation) Yes
Other than above
No
LIIA1014E
1 - Ground: Continuity should exist.
LIIA1015E
Page 3000 of 3383

AUTOMATIC DRIVE POSITIONERSE-69
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

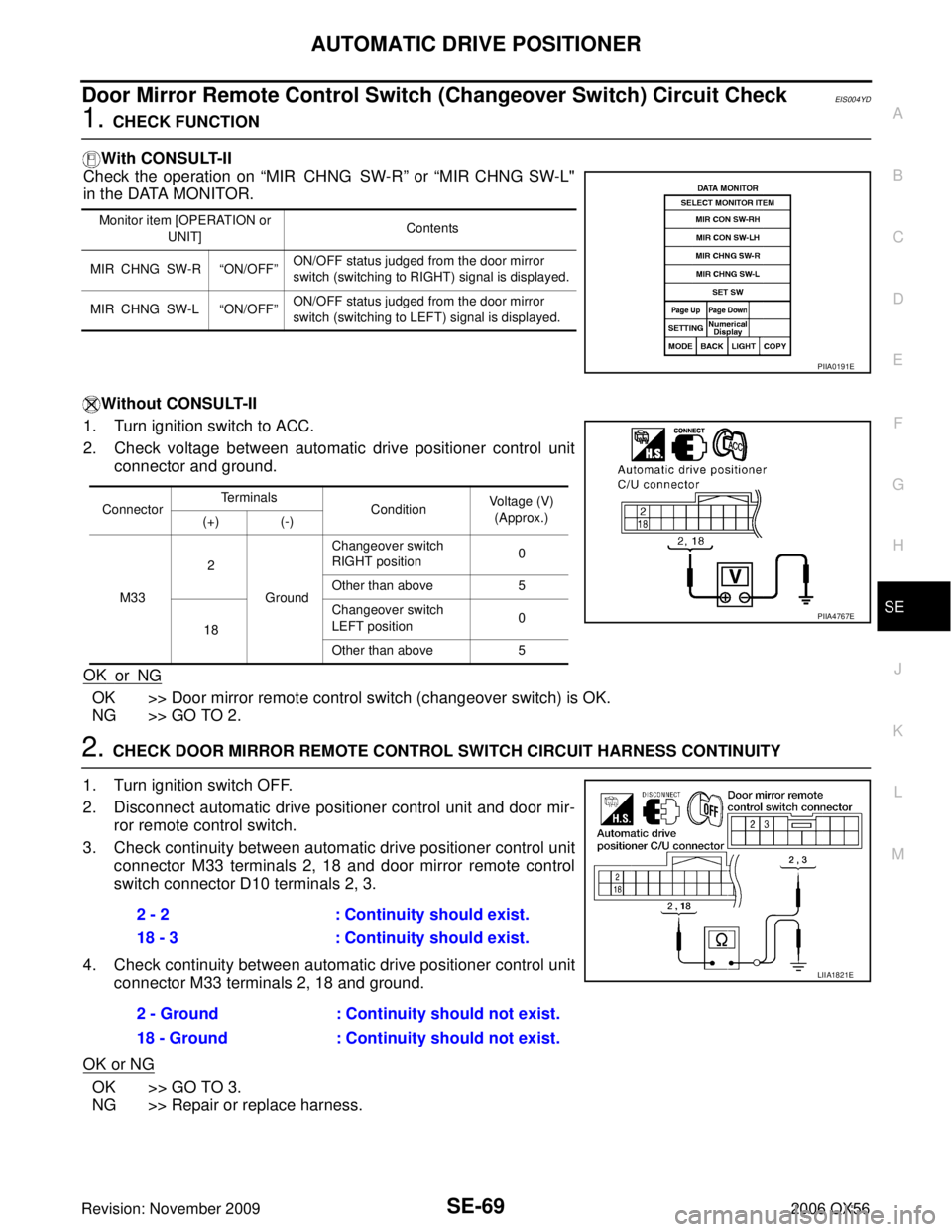

Door Mirror Remote Control Switch (Changeover Switch) Circuit CheckEIS004YD
