Page 2377 of 3383

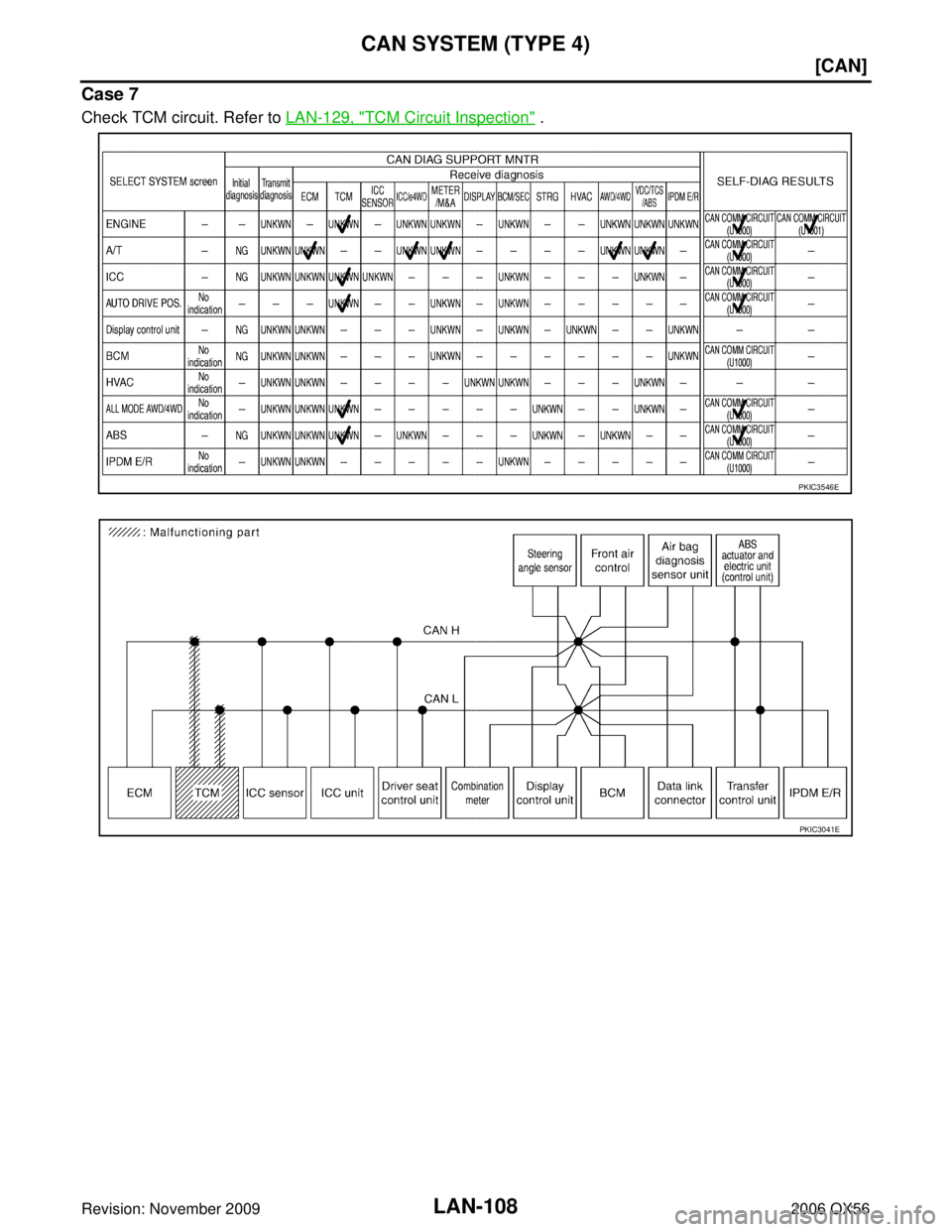

INFINITI QX56 2006 Factory Service Manual LAN-108 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 7 Check TCM circuit. Refer to LAN-129, "TCM Circuit Inspection" . PKIC3546E PKIC3041E

Page 2378 of 3383

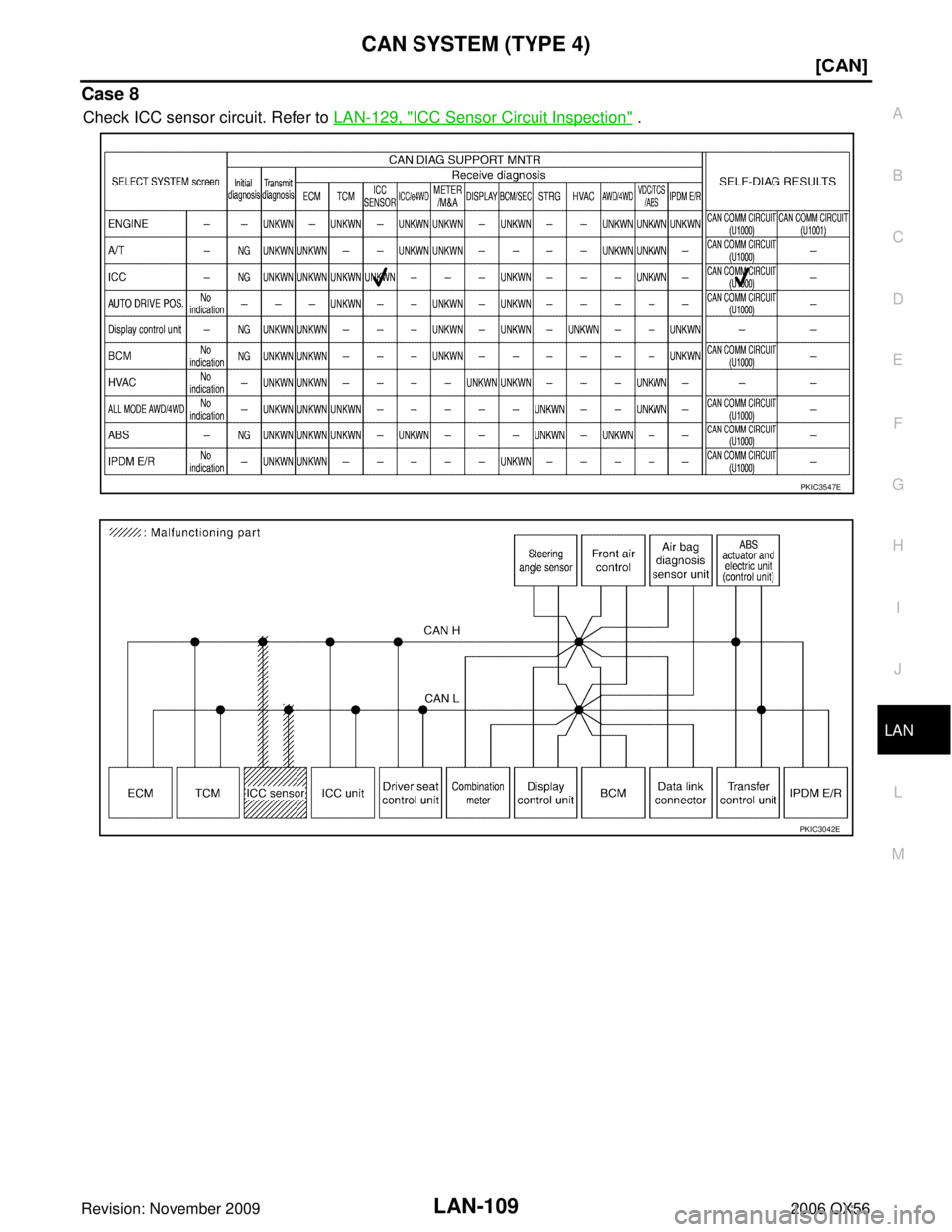

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-109 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 8 Check ICC sensor circuit. Refer to LAN-129, "ICC Sensor Circuit Inspection" . PKIC3547E PKIC3042E

Page 2379 of 3383

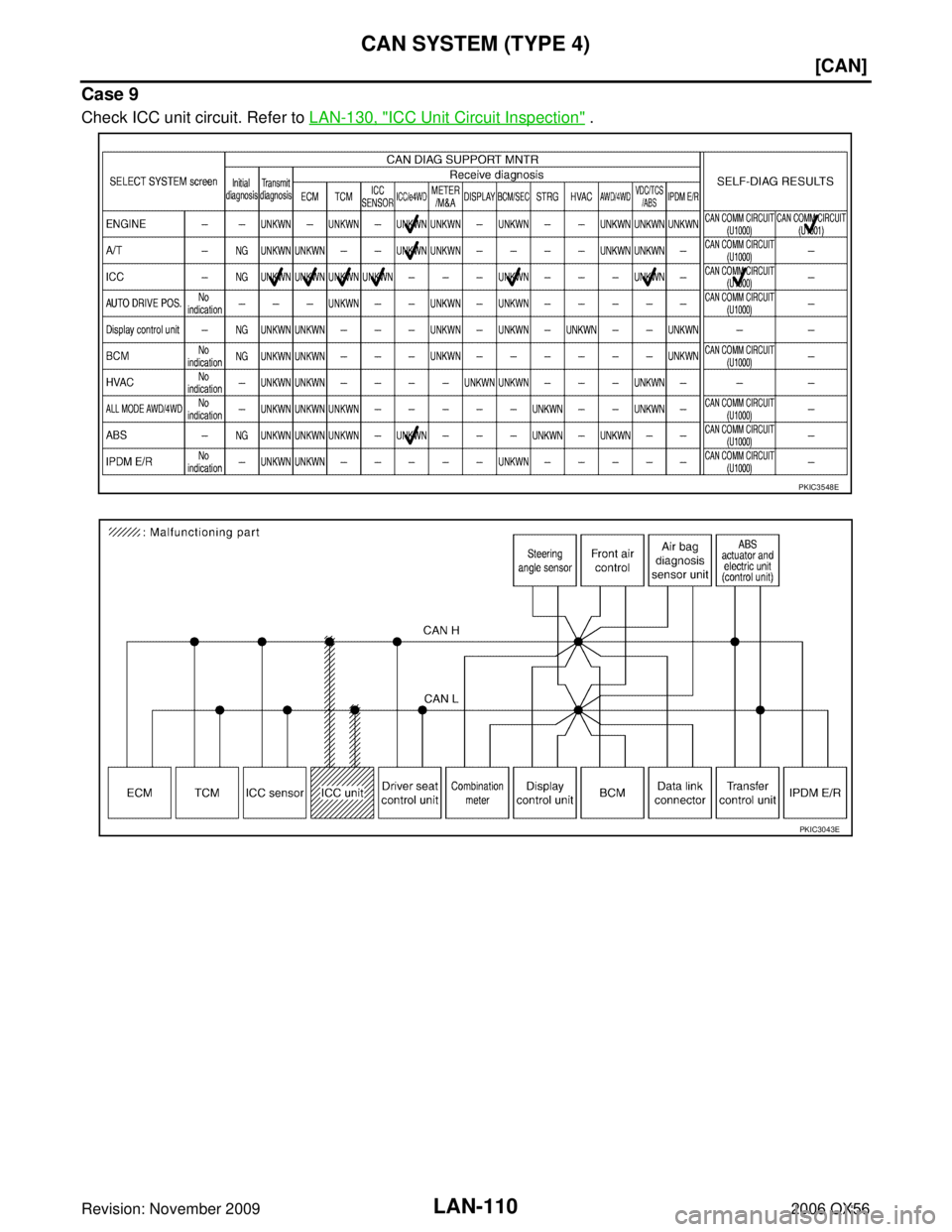

INFINITI QX56 2006 Factory Service Manual LAN-110 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 9 Check ICC unit circuit. Refer to LAN-130, "ICC Unit Circuit Inspection" . PKIC3548E PKIC3043E

Page 2380 of 3383

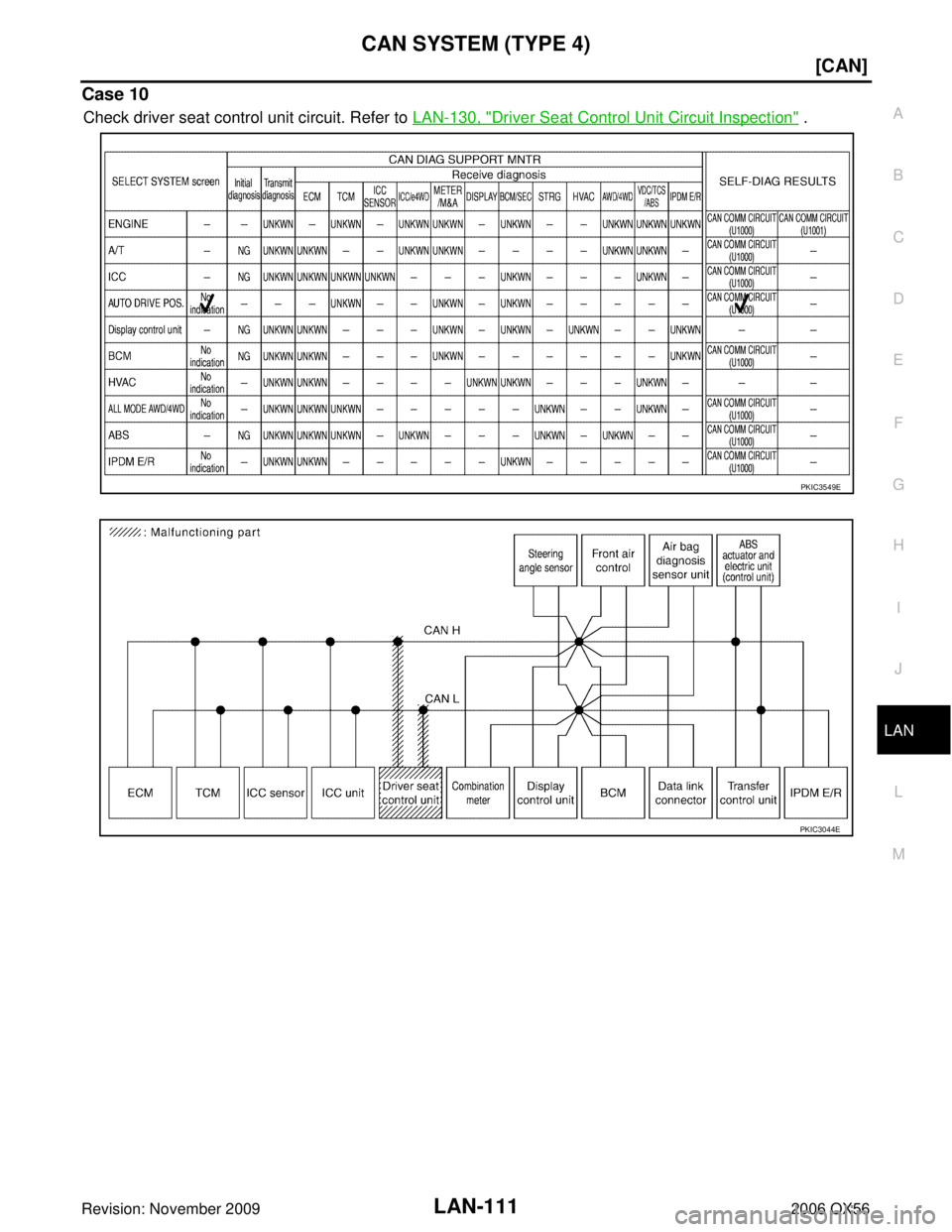

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-111 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 10 Check driver seat control unit circuit. Refer to LAN-130, "Driver Seat Control Unit Circuit Inspec

Page 2381 of 3383

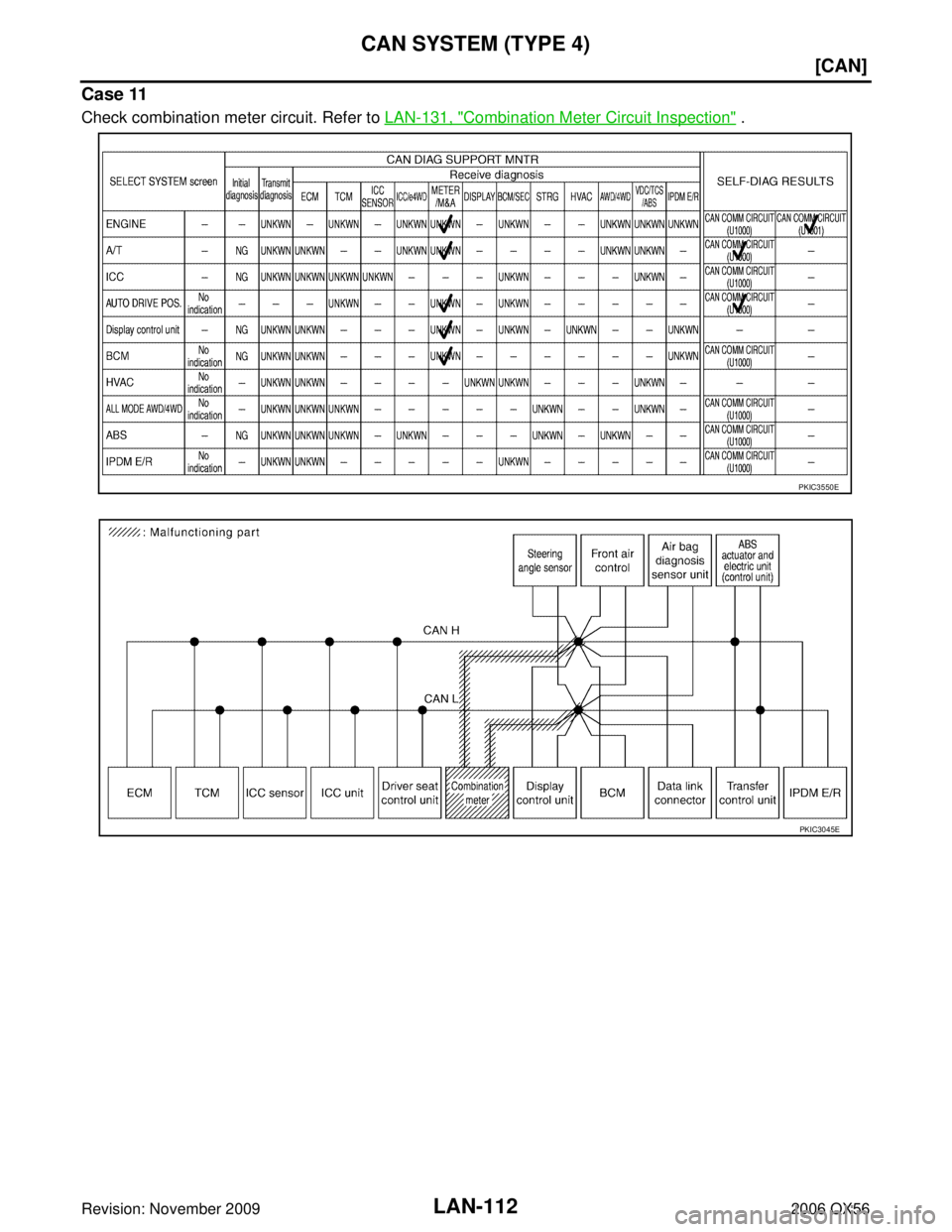

INFINITI QX56 2006 Factory Service Manual LAN-112 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 11 Check combination meter circuit. Refer to LAN-131, "Combination Meter Circuit Inspection" . PKIC3550E PKIC3045E

Page 2382 of 3383

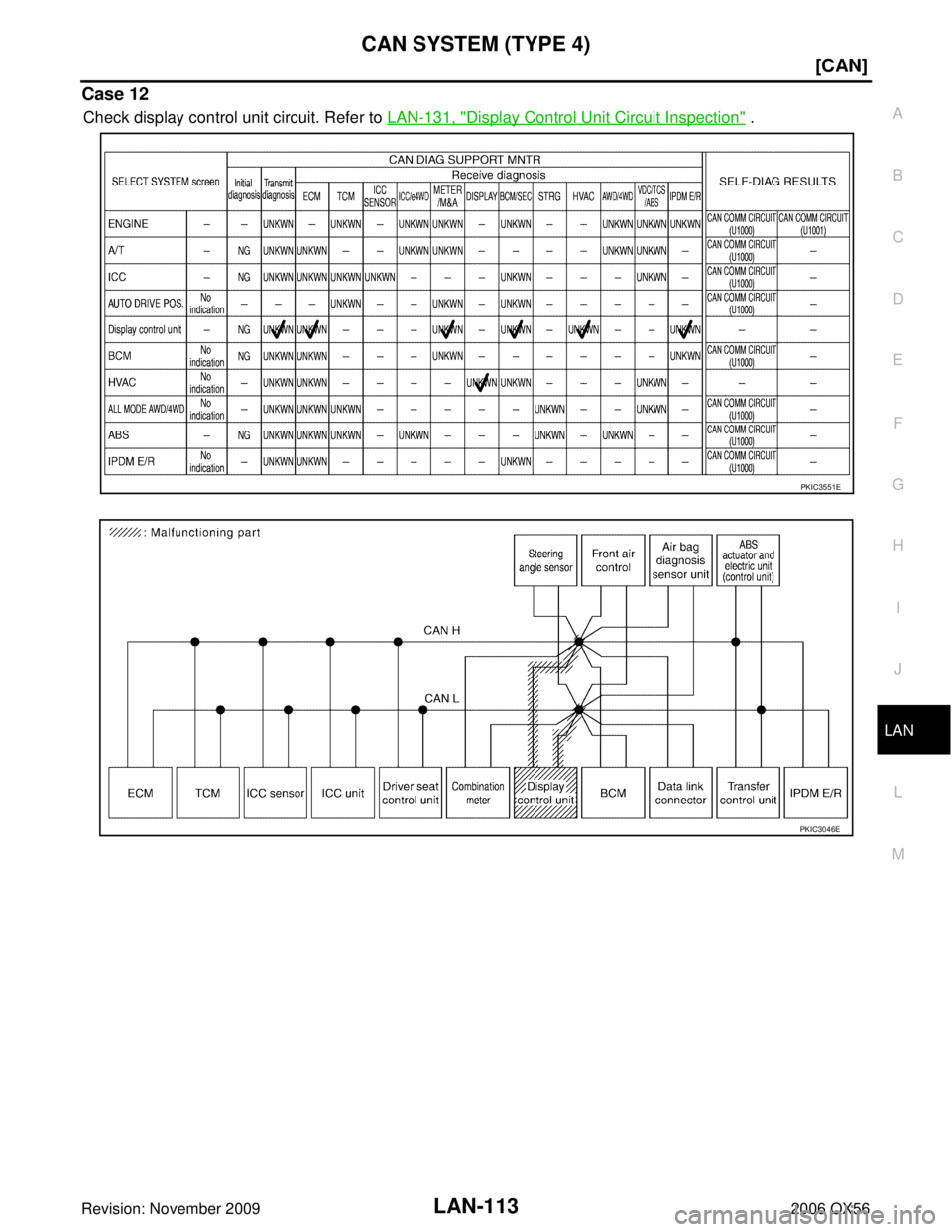

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-113 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 12 Check display control unit circuit. Refer to LAN-131, "Display Control Unit Circuit Inspection" .

Page 2383 of 3383

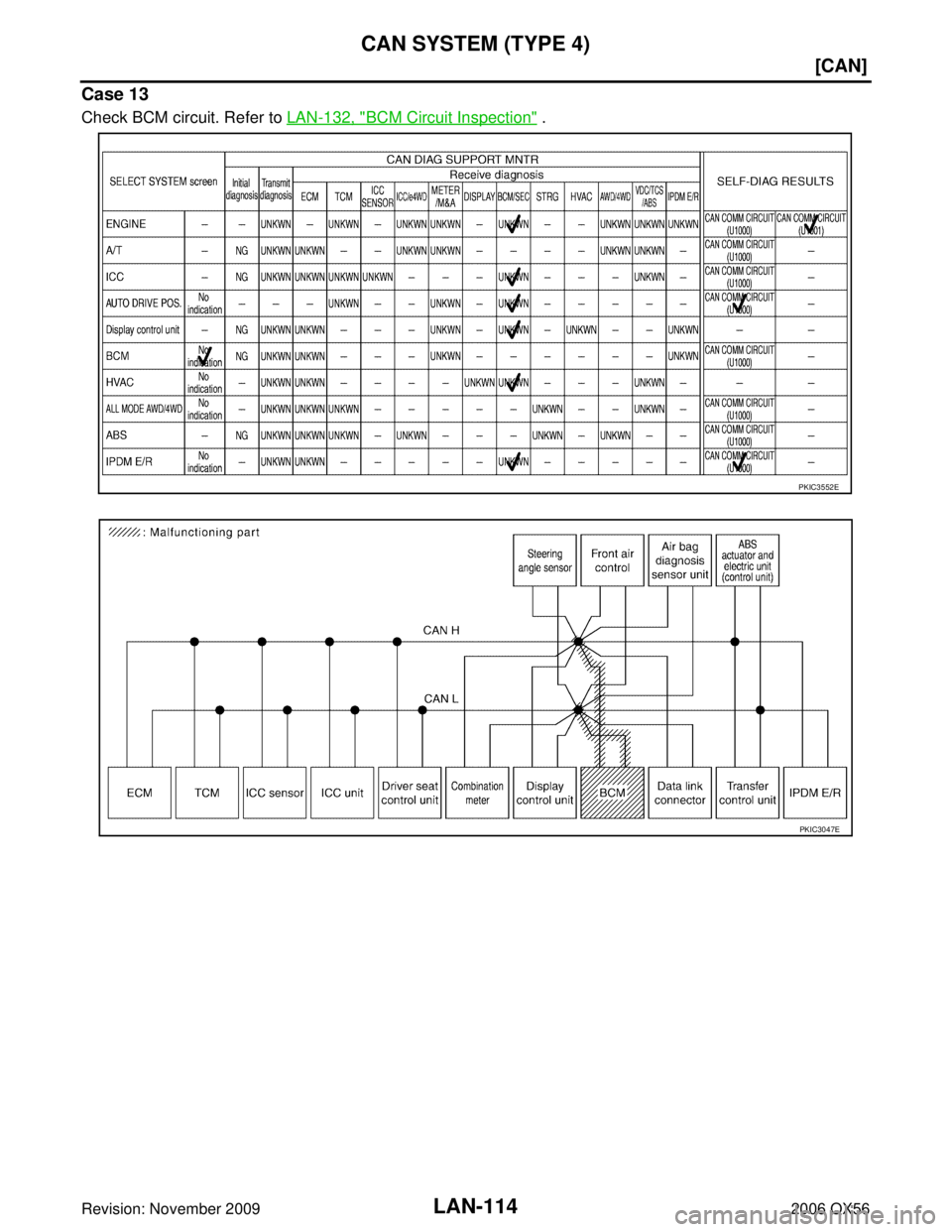

INFINITI QX56 2006 Factory Service Manual LAN-114 [CAN] CAN SYSTEM (TYPE 4) Revision: November 20092006 QX56 Case 13 Check BCM circuit. Refer to LAN-132, "BCM Circuit Inspection" . PKIC3552E PKIC3047E

Page 2384 of 3383

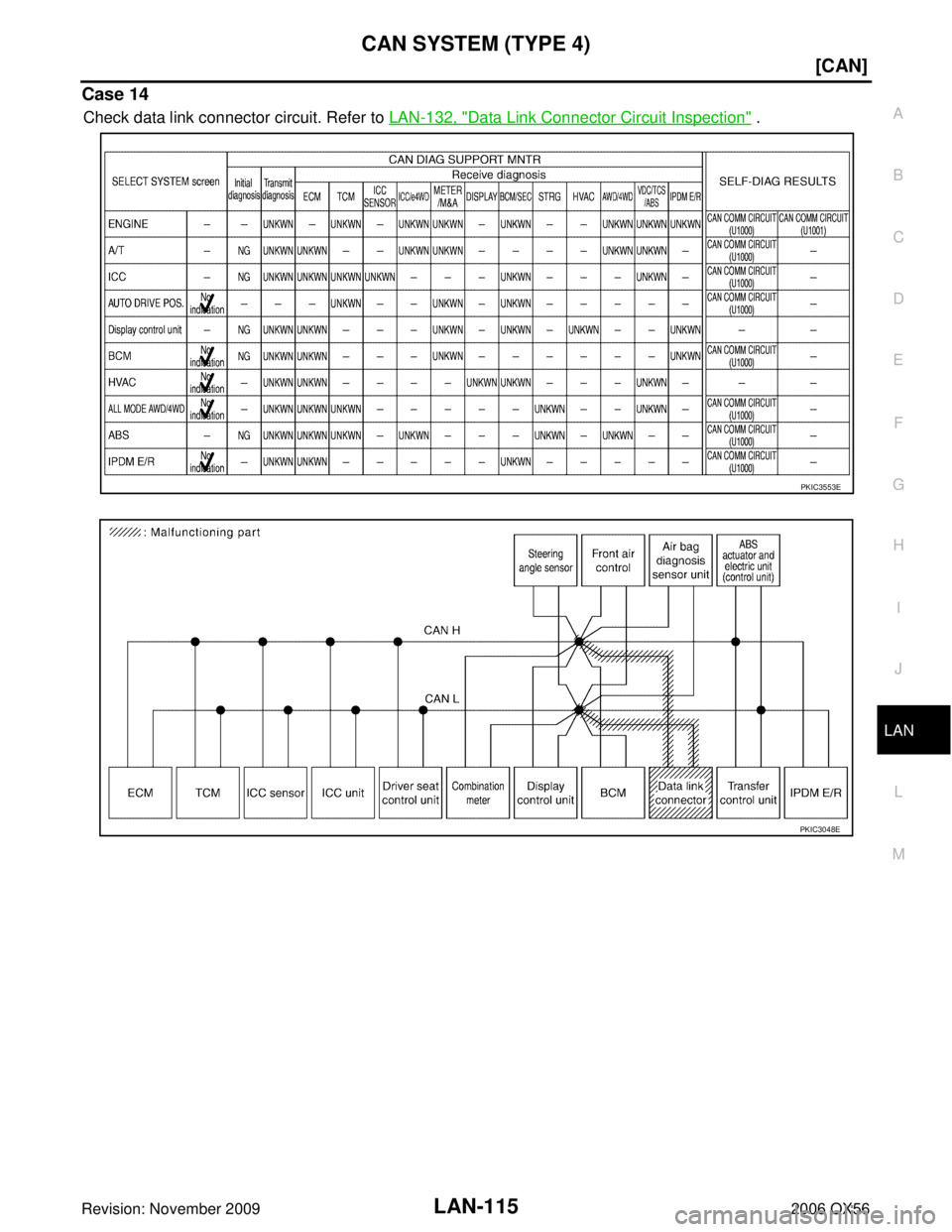

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 4)LAN-115 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 14 Check data link connector circuit. Refer to LAN-132, "Data Link Connector Circuit Inspection" . PK
