Page 1569 of 3383

INFINITI QX56 2006 Factory Service Manual EC-358Revision: November 2009
DTC P0420, P0430 THREE WAY CATALYST FUNCTION
2006 QX56
7. CHECK FUNCTION OF IGNITION COIL-II
1. Turn ignition switch OFF.
2. Disconnect spark plug and connect a known-goo

Page 1570 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0420, P0430 THREE WAY CATALYST FUNCTIONEC-359
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT

Page 1571 of 3383

INFINITI QX56 2006 Factory Service Manual EC-360Revision: November 2009
DTC P0441 EVAP CONTROL SYSTEM
2006 QX56
DTC P0441 EVAP CONTROL SYSTEMPFP:14950
System DescriptionUBS00H4J
NOTE:
If DTC P0441 is displayed with other DTC such as P2122, P2

Page 1572 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0441 EVAP CONTROL SYSTEMEC-361
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch

DTC P0441 EVAP CONTROL SYSTEMEC-361
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 70 seconds.
4. Select “PURG FLOW P0441 ” of “EVAPORATIVE SYSTEM ” in “DTC CONFIRMATION ” mode with CON-
SULT-II.
5. Touch “START”.
If “COMPLETED” is displayed, go to step 7.
6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-II screen. Maintain
the conditions continuously until “TESTING” changes to “COMPLETED ”. (It will take at least 35 seconds.)
If “TESTING” is not changed for a long time, retry from step 2.
7. Make sure that “OK ” is displayed after touching “SELF-DIAG RESULTS ”. If “NG” is displayed, refer to EC-
362, "Diagnostic Procedure" .
Overall Function CheckUBS00H4M
Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring.
During this check, a 1st trip DTC might not be confirmed.
WITH GST
1. Lift up drive wheels.
2. Start engine (VDC switch OFF) and warm it up to normal operating temperature.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Start engine and wait at least 70 seconds.
5. Set voltmeter probes to ECM terminals 32 (EVAP control system
pressure sensor signal) and ground.
6. Check EVAP control system pressure sensor value at idle speed and note it.
7. Establish and maintain the following conditions for at least 1 minute.
8. Verify that EVAP control system pressure sensor value stays 0.1V less than the value at idle speed (mea- sured at step 6) for at least 1 second.
Selector lever Suitable position
VHCL SPEED SE 32 - 120 km/h (20 - 75 MPH)
ENG SPEED 500 - 3,000 rpm
B/FUEL SCHDL 1.0 - 12.0 msec
COOLAN TEMP/S 70 - 100°C (158 - 212° F)
PBIB0826E
Air conditioner switch ON
Headlamp switch ON
Rear window defogger switch ON
Engine speed Approx. 3,000 rpm
Gear position Any position other than P, N or R
PBIB1109E

Page 1573 of 3383

INFINITI QX56 2006 Factory Service Manual EC-362Revision: November 2009
DTC P0441 EVAP CONTROL SYSTEM
2006 QX56

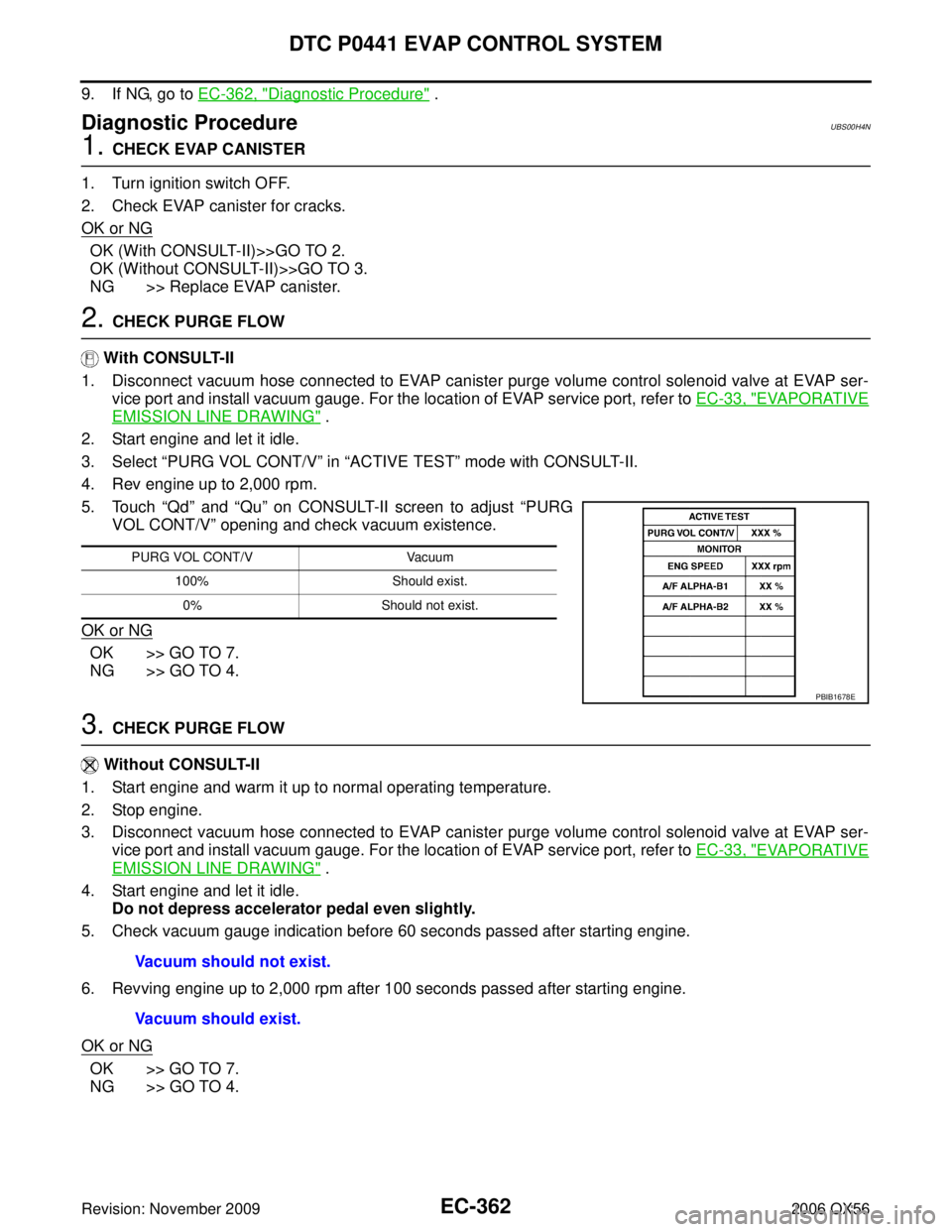

9. If NG, go to EC-362, "Diagnostic Procedure" .
Diagnostic ProcedureUBS00H4N
1. CHECK EVAP CANISTER
1. Turn ignition switch OFF.

Page 1574 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0441 EVAP CONTROL SYSTEMEC-363
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

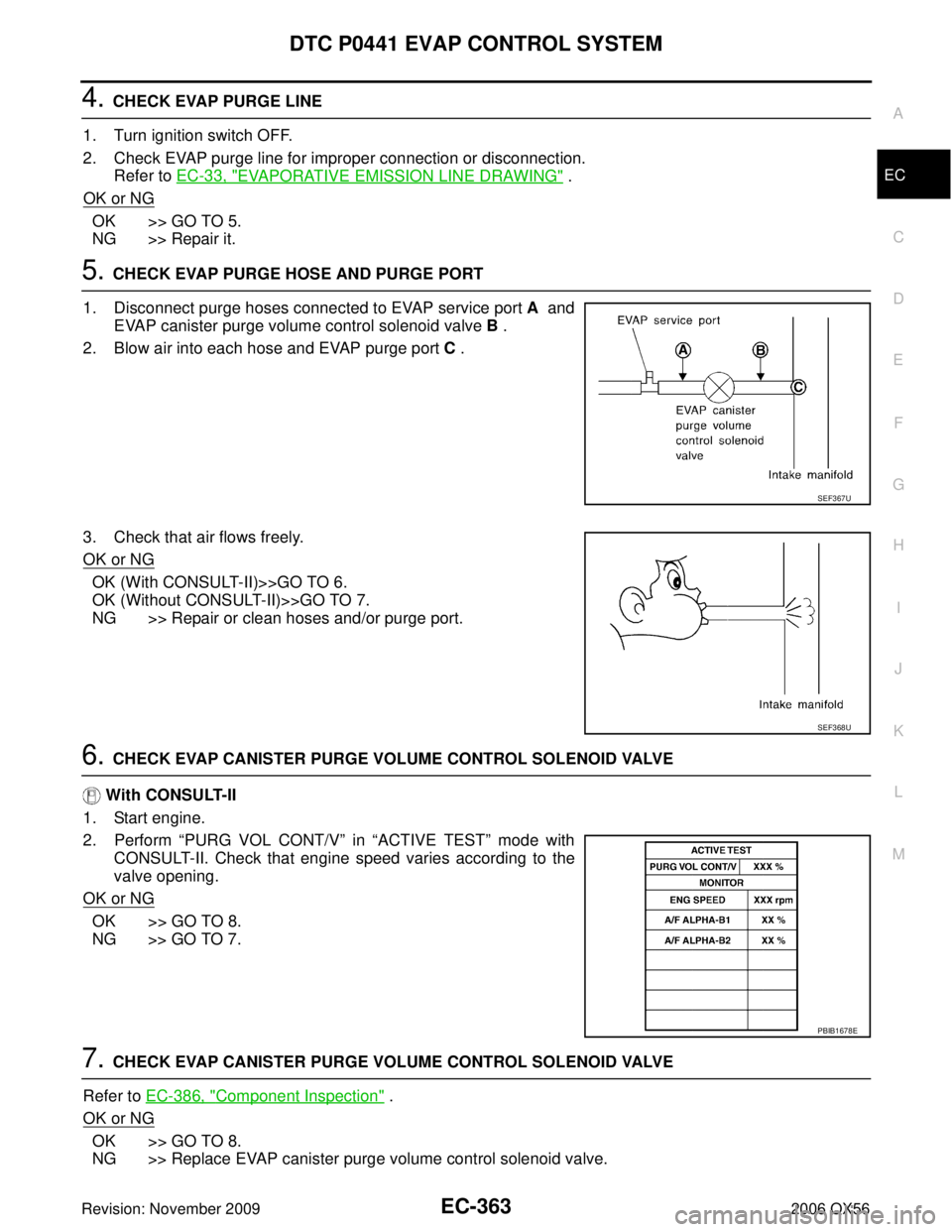

4. CHECK EVAP PURGE LINE
1. Turn ignition switch OFF.
2. Check EVAP purge line for improper connection o

Page 1575 of 3383

INFINITI QX56 2006 Factory Service Manual EC-364Revision: November 2009
DTC P0441 EVAP CONTROL SYSTEM
2006 QX56
8. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Che

Page 1576 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0442 EVAP CONTROL SYSTEMEC-365
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

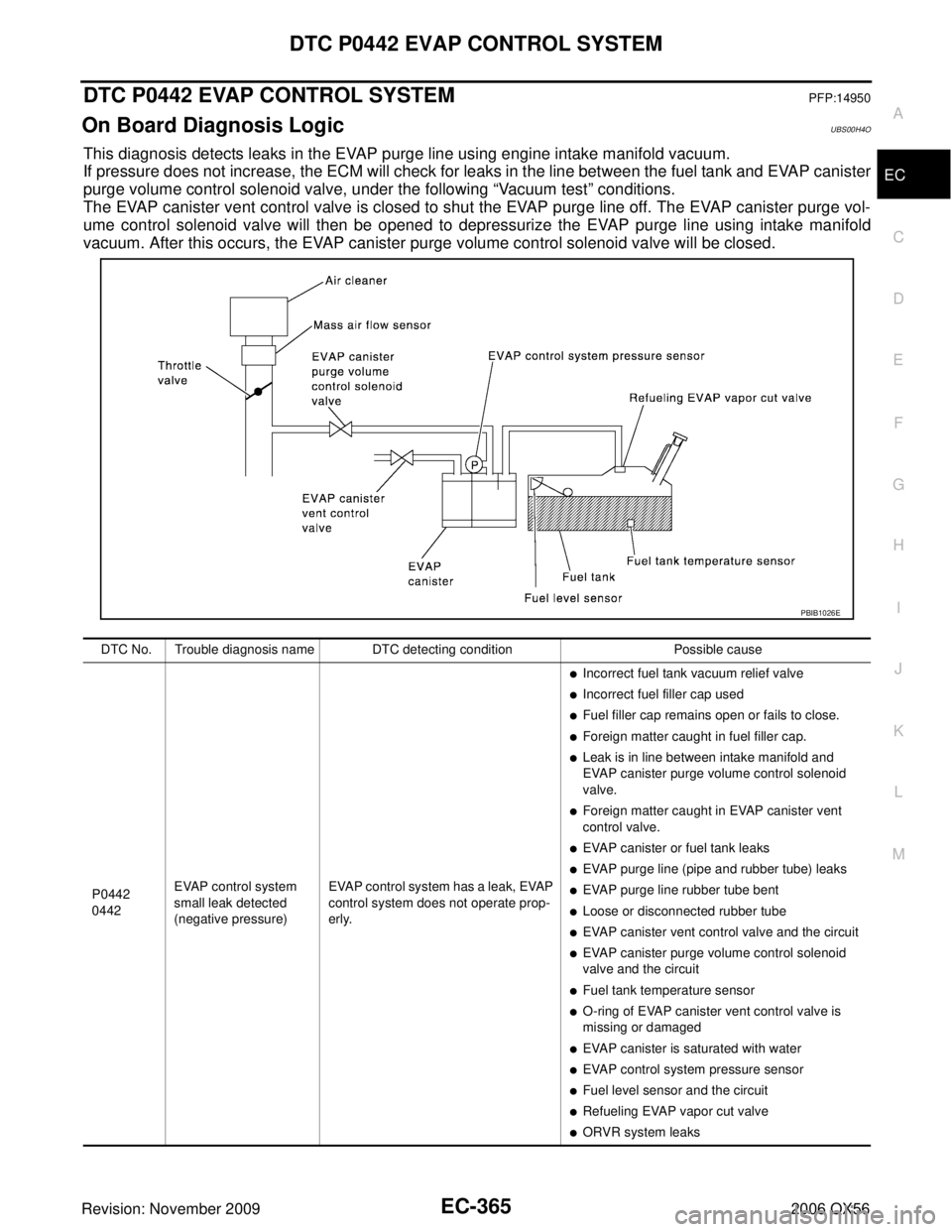

DTC P0442 EVAP CONTROL SYSTEMPFP:14950
On Board Diagnosis LogicUBS00H4O
This diagnosis detects leaks in
