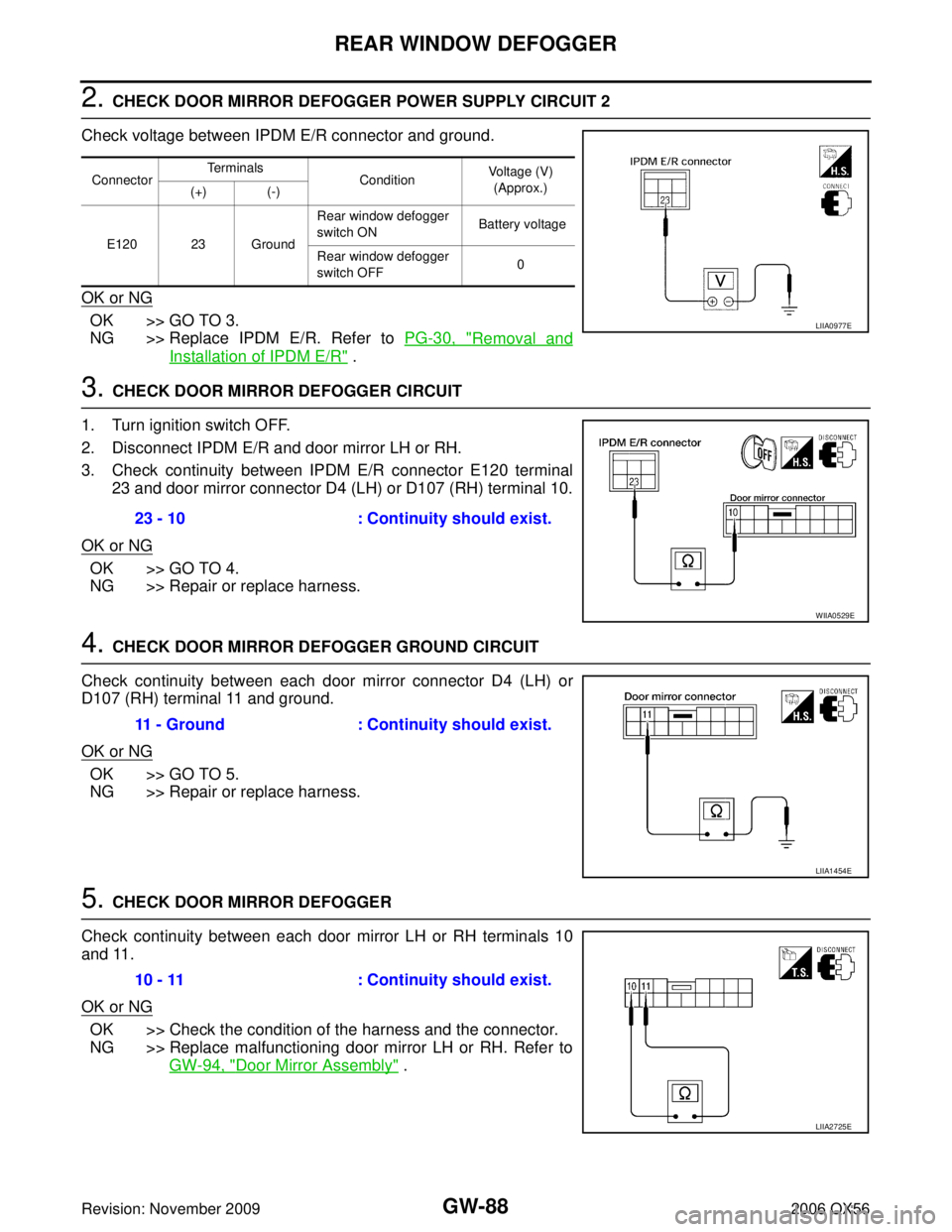

2. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT 2
Check voltage between IPDM E/R connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace IPDM E/R. Refer to PG-30, "
Removal and
Installation of IPDM E/R" .
3. CHECK DOOR MIRROR DEFOGGER CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R and door mirror LH or RH.
3. Check continuity between IPDM E/R connector E120 terminal 23 and door mirror connector D4 (LH) or D107 (RH) terminal 10.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DOOR MIRROR DEFOGGER GROUND CIRCUIT
Check continuity between each door mirror connector D4 (LH) or
D107 (RH) terminal 11 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness.
5. CHECK DOOR MIRROR DEFOGGER
Check continuity between each door mirror LH or RH terminals 10
and 11.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace malfunctioning door mirror LH or RH. Refer to GW-94, "
Door Mirror Assembly" .
Connector Terminals
ConditionVoltage (V)
(Approx.)
(+) (-)
E120 23 Ground Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF 0
LIIA0977E
23 - 10
: Continuity should exist.
WIIA0529E
11 - Ground: Continuity should exist.
LIIA1454E
10 - 11 : Continuity should exist.
LIIA2725E
Page 2234 of 3383

REAR WINDOW DEFOGGERGW-89
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
Door Mirror LH (Door Mirror Defogger) Circuit CheckEIS005Z1

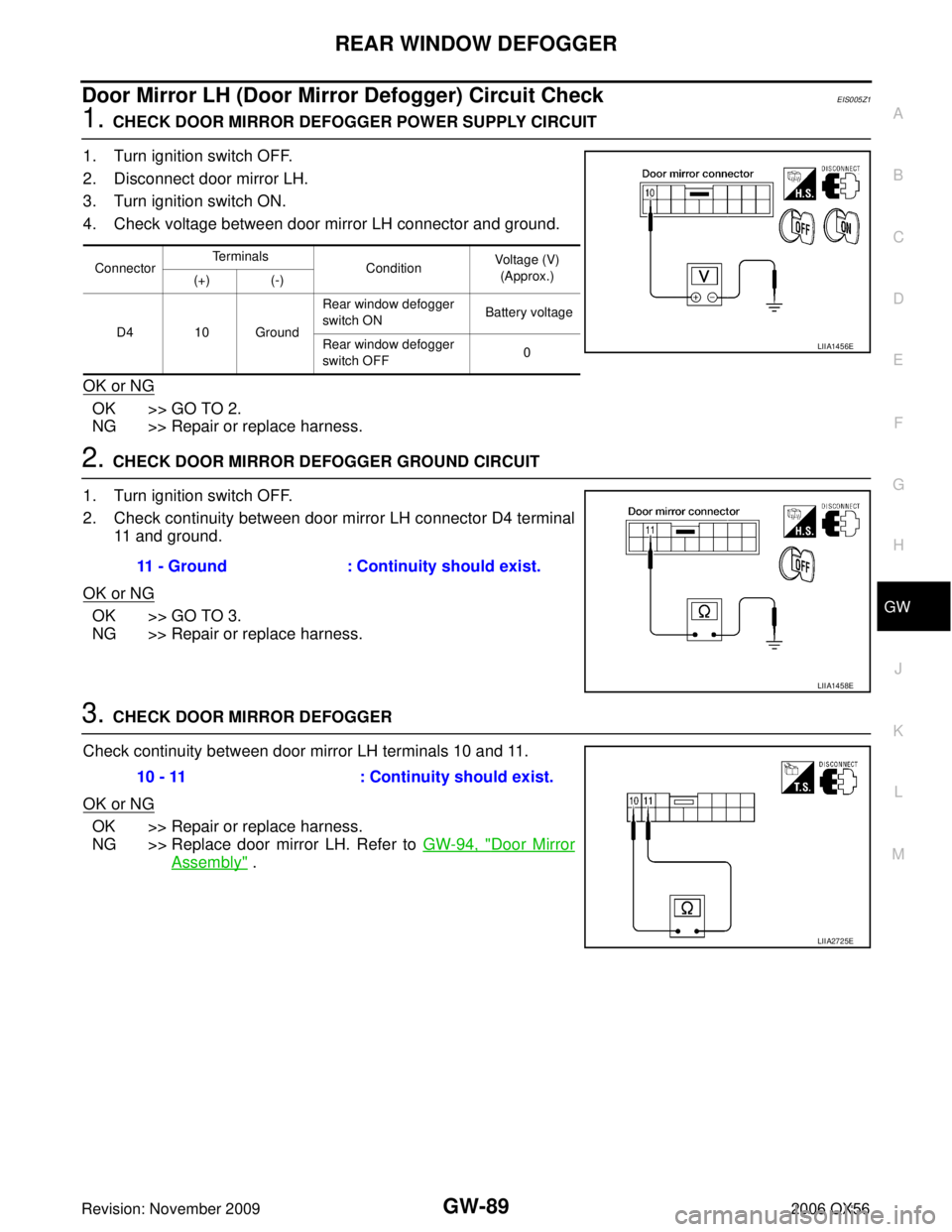

1. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror LH.
3. Turn ignition switch ON.
4. Check voltage between door mirror LH connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2. CHECK DOOR MIRROR DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror LH connector D4 terminal 11 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR MIRROR DEFOGGER
Check continuity between door mirror LH terminals 10 and 11.
OK or NG
OK >> Repair or replace harness.
NG >> Replace door mirror LH. Refer to GW-94, "
Door Mirror
Assembly" .
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
D4 10 Ground Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF 0
LIIA1456E
11 - Ground
: Continuity should exist.
LIIA1458E
10 - 11 : Continuity should exist.
LIIA2725E
Page 2235 of 3383

GW-90
REAR WINDOW DEFOGGER
Revision: November 20092006 QX56
Door Mirror RH (Door Mirror Defogger) Circuit CheckEIS005Z2
1. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror RH.
3. Turn ignition switch ON.
4. Check voltage between door mirror RH connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2. CHECK DOOR MIRROR DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror RH connector D107 termi- nal 11 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR MIRROR DEFOGGER
Check continuity between each door mirror RH terminals 10 and 11.
OK or NG
OK >> Repair or replace harness.
NG >> Replace door mirror RH. Refer to GW-94, "
Door Mirror
Assembly" .
Rear Window Defogger Signal CheckEIS005Z3
1. CHECK AV COMMUNICATION LINE
AV communication line check is executed. Refer to AV- 4 4 , "
Audio Communication Line Check" .
OK or NG
OK >> GO TO 2.
NG >> Replace display control unit. Refer to AV- 1 6 7 , "
DISPLAY CONTROL UNIT" .
ConnectorTerminals
ConditionVoltage (V)
(Approx.)
(+) (-)
D107 10 Ground Rear window defogger
switch ON
Battery voltage
Rear window defogger
switch OFF 0
LIIA1456E
11 - Ground
: Continuity should exist.
LIIA1458E
10 - 11 : Continuity should exist.
LIIA2725E
Is rear window defogger displayed on the display?
Page 2236 of 3383
REAR WINDOW DEFOGGERGW-91
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
2. CHECK CAN COMMUNICATION LINE
CAN communication line check is executed. Refer to LAN-26, "
CAN COMMUNICATION" .
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> In addition, it is necessary to check CAN communication line. Refer to LAN-26, "
CAN COMMUNI-
CATION" .
Filament CheckEIS005Z4

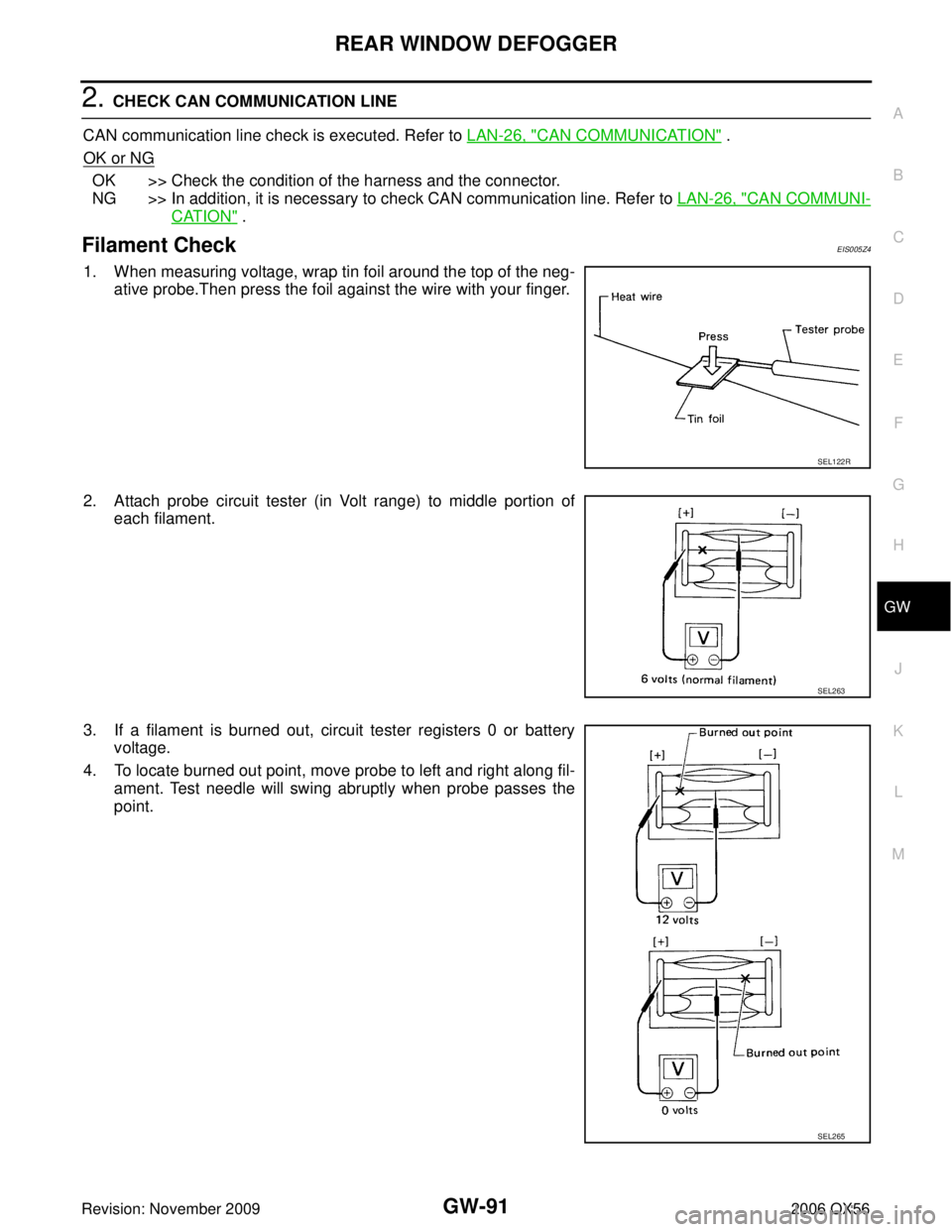

1. When measuring voltage, wrap tin foil around the top of the neg-
ative probe.Then press the foil against the wire with your finger.
2. Attach probe circuit tester (in Volt range) to middle portion of each filament.
3. If a filament is burned out, circuit tester registers 0 or battery voltage.
4. To locate burned out point, move probe to left and right along fil- ament. Test needle will swing abruptly when probe passes the
point.
SEL122R
SEL263
SEL265
Page 2237 of 3383

GW-92
REAR WINDOW DEFOGGER
Revision: November 20092006 QX56
Filament RepairEIS005Z5
REPAIR EQUIPMENT
Conductive silver composition (DuPont No. 4817 or equivalent)
Ruler 30 cm (11.8 in) long
Drawing pen
Heat gun
Alcohol
Cloth
REPAIRING PROCEDURE

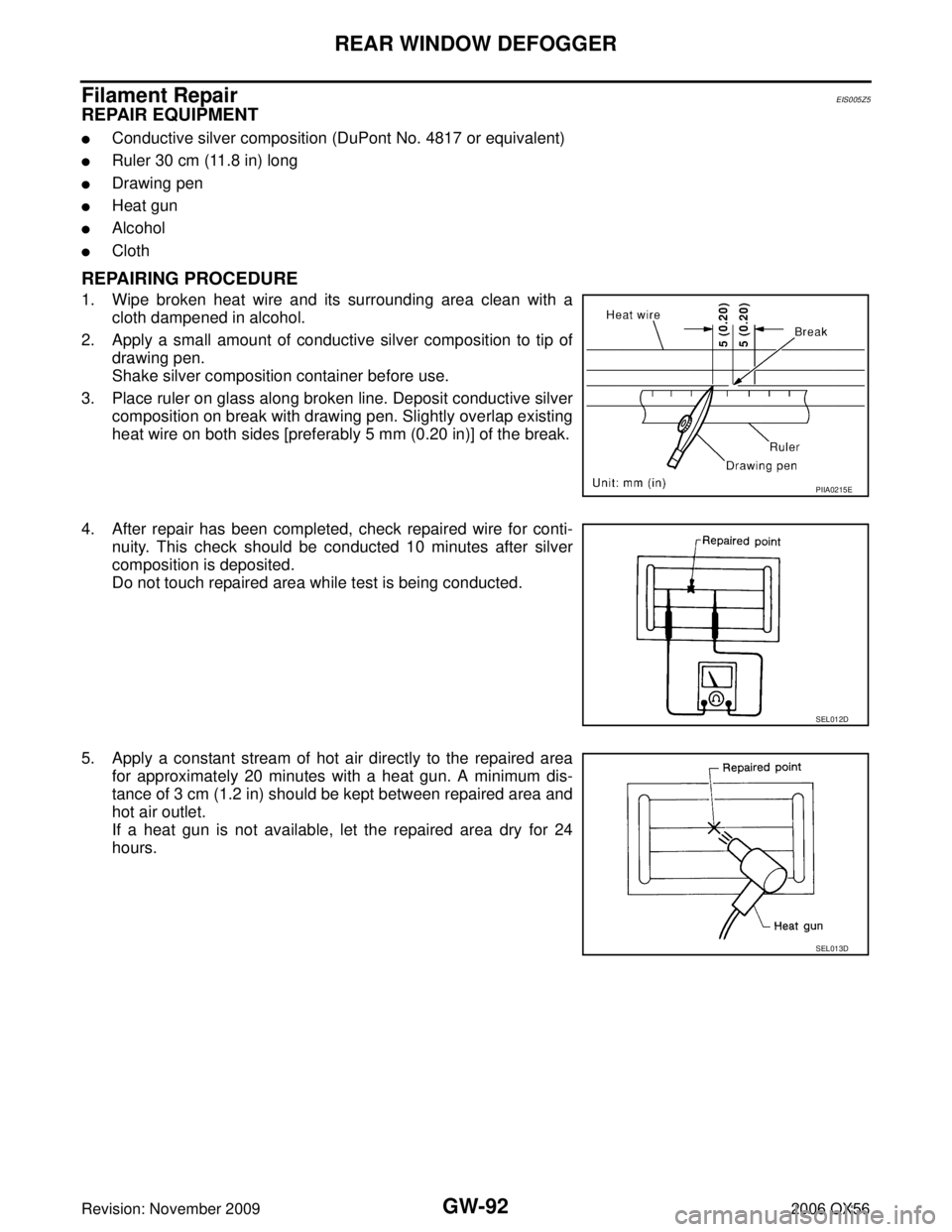

1. Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.
2. Apply a small amount of conductive silver composition to tip of drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line. Deposit conductive silver composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.
4. After repair has been completed, check repaired wire for conti- nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.
5. Apply a constant stream of hot air directly to the repaired area for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.
PIIA0215E
SEL012D
SEL013D
Page 2238 of 3383
DOOR MIRRORGW-93
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
DOOR MIRRORPFP:96301

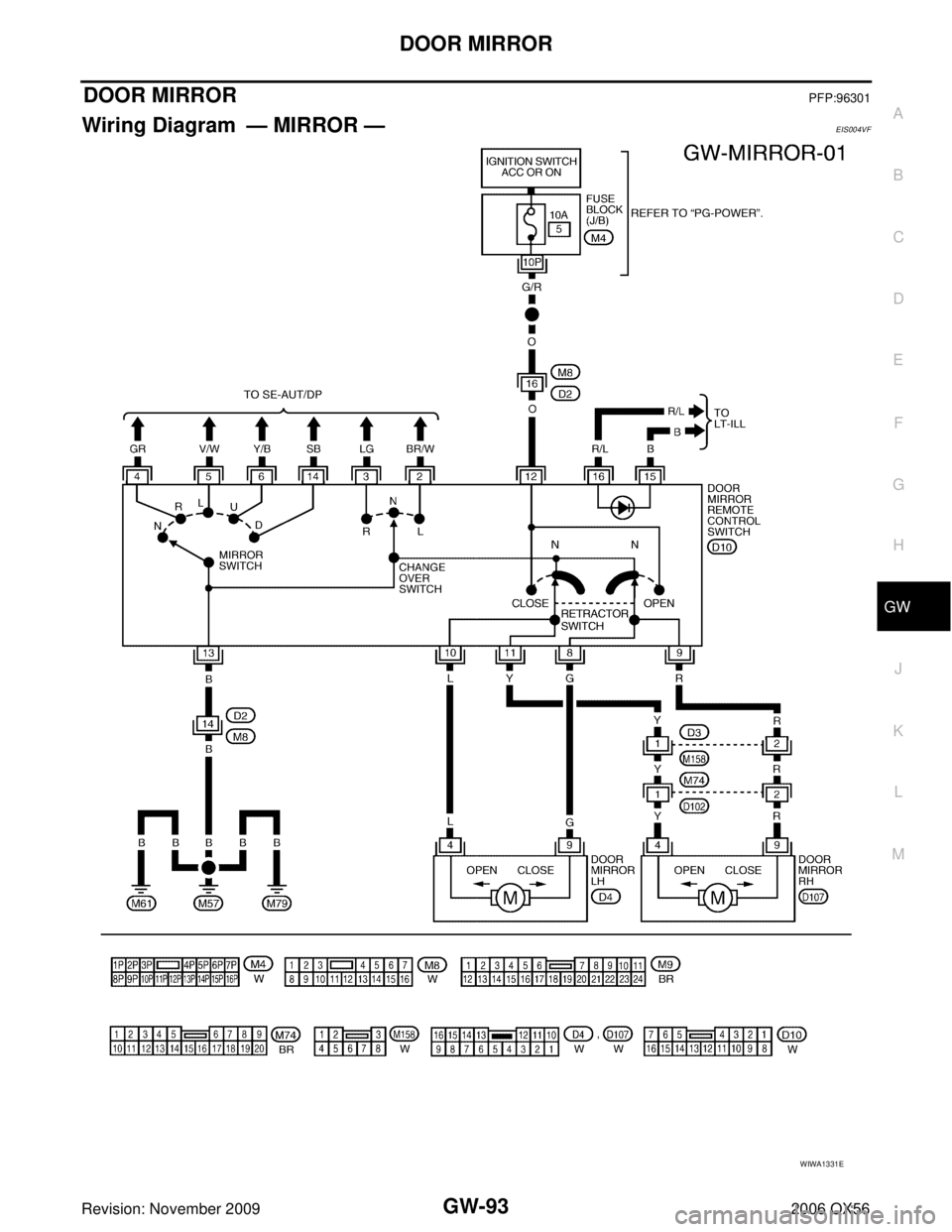

Wiring Diagram — MIRROR —EIS004VF
WIWA1331E
Page 2239 of 3383
GW-94
DOOR MIRROR
Revision: November 20092006 QX56
Door Mirror AssemblyEIS004VG
REMOVAL
NOTE:
Be careful not to damage the mirror bodies.
1. Remove the front door sash cover. Refer to AV- 5 6 , "
FRONT TWEETER" .
2. Disconnect the door mirror harness connector.
3. Remove the door mirror mounting nuts, and remove the door mirror assembly.
INSTALLATION
Installation is in the reverse order of removal.
Door Mirror GlassEIS004VH
REMOVAL

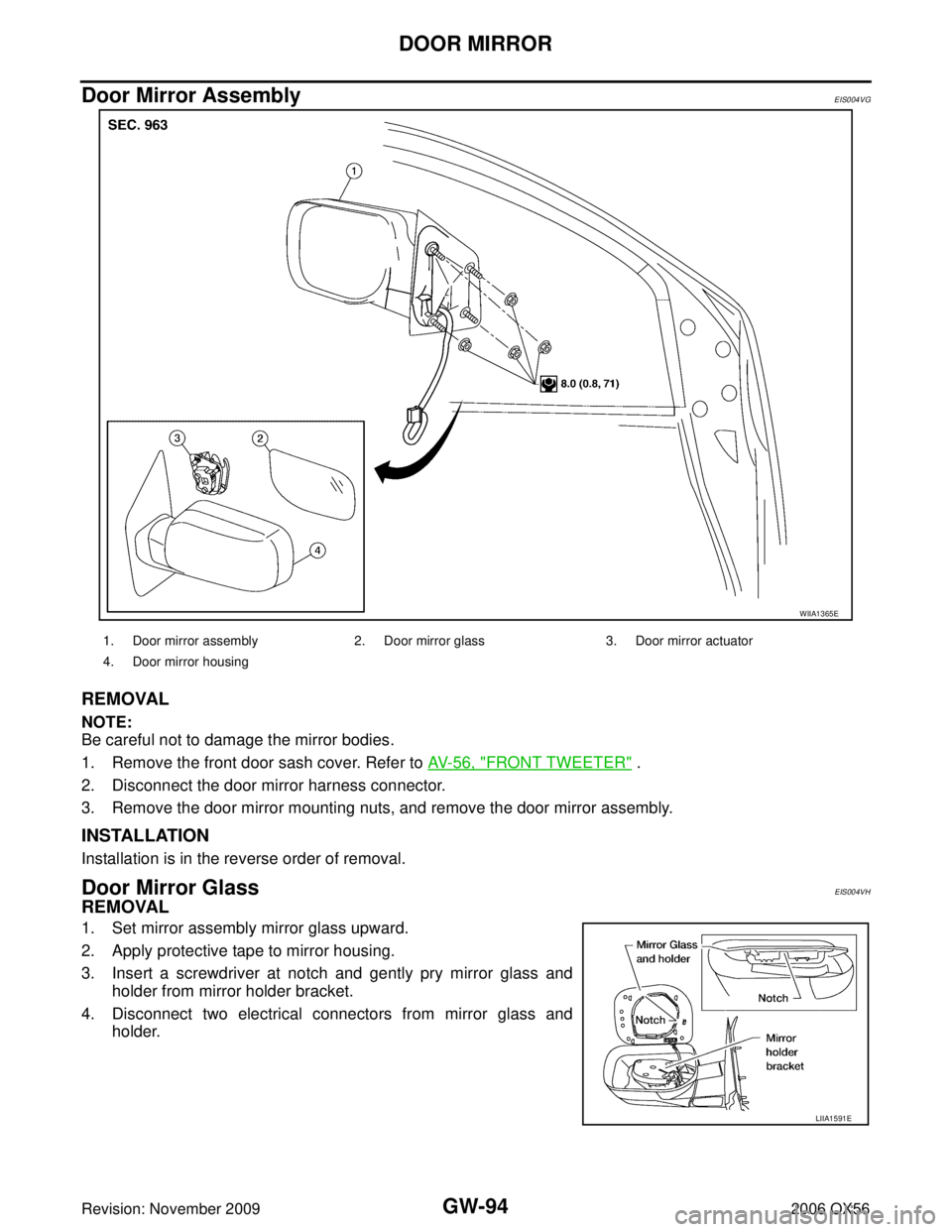

1. Set mirror assembly mirror glass upward.
2. Apply protective tape to mirror housing.
3. Insert a screwdriver at notch and gently pry mirror glass and holder from mirror holder bracket.
4. Disconnect two electrical connectors from mirror glass and holder.
WIIA1365E
1. Door mirror assembly 2. Door mirror glass 3. Door mirror actuator
4. Door mirror housing
LIIA1591E
Page 2240 of 3383
DOOR MIRRORGW-95
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
INSTALLATION
1. Set mirror holder bracket and mirror glass and holder in the hor-
izontal position.
2. Connect two electrical connectors to the back of the mirror holder.
3. Align mirror glass and holder with mirror holder bracket and push mirror glass and holder onto mirror holder bracket.
4. Rotate mirror to ensure proper installation.
LIIA1592E
