Page 1353 of 3383

INFINITI QX56 2006 Factory Service Manual EC-142Revision: November 2009 TROUBLE DIAGNOSIS - SPECIFICATION VALUE 2006 QX56 25. CHECK INTAKE SYSTEM Check for the cause of uneven air flow through mass air flow sensor. Refer to the following. Cr

Page 1354 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-143 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 30. CHECK “B/FUEL SCHDL” Select “B/FUEL SCHDL ” in “DATA MONITOR (SPEC) ” mode, a

Page 1355 of 3383

INFINITI QX56 2006 Factory Service Manual EC-144Revision: November 2009 TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT 2006 QX56 TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006 DescriptionUBS00L0J Intermittent incidents may occur. In many c

Page 1356 of 3383

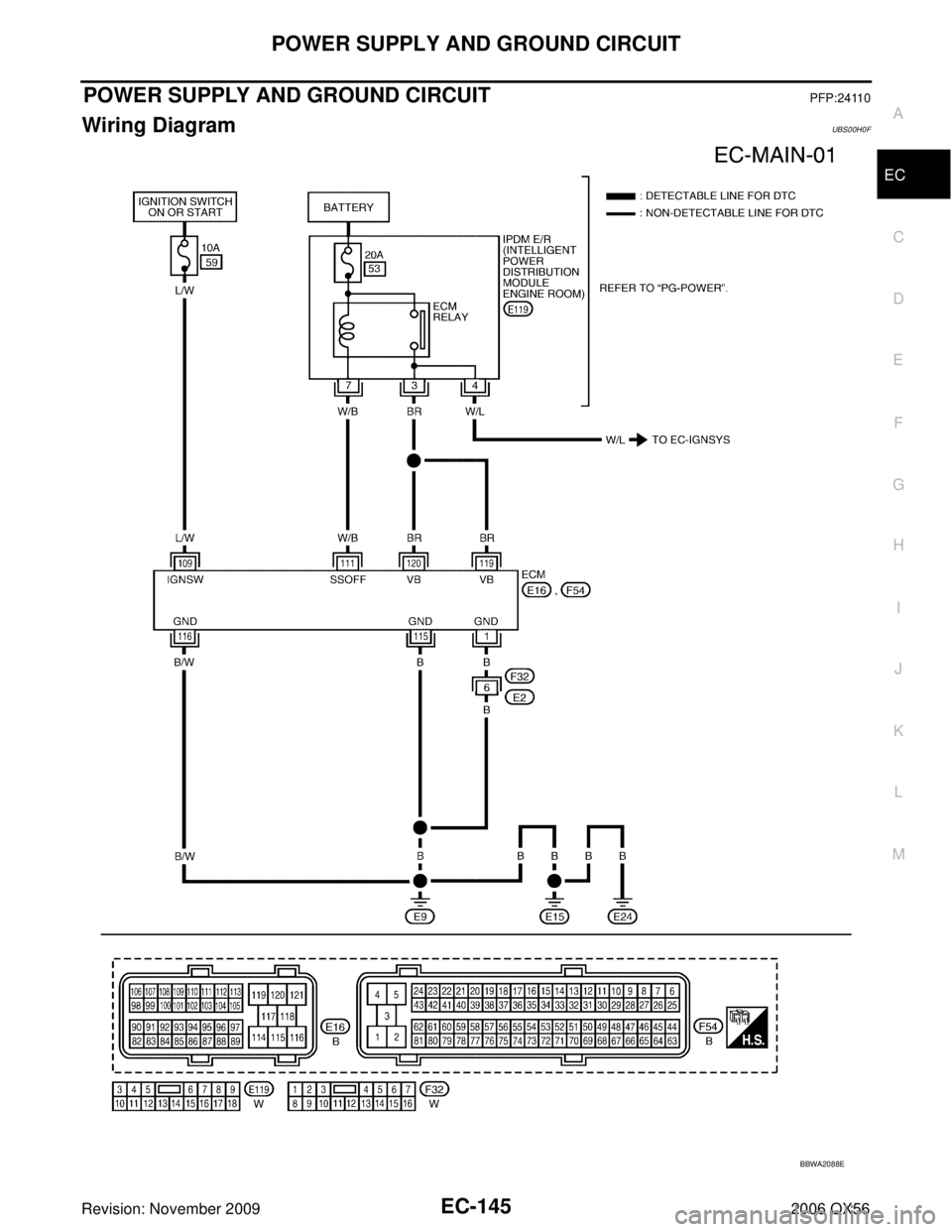

INFINITI QX56 2006 Factory Service Manual POWER SUPPLY AND GROUND CIRCUITEC-145 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 POWER SUPPLY AND GROUND CIRCUITPFP:24110 Wiring DiagramUBS00H0F BBWA2088E

Page 1357 of 3383

INFINITI QX56 2006 Factory Service Manual EC-146Revision: November 2009 POWER SUPPLY AND GROUND CIRCUIT 2006 QX56 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground termin

Page 1358 of 3383

INFINITI QX56 2006 Factory Service Manual POWER SUPPLY AND GROUND CIRCUITEC-147 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 4. CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten three ground screws o

Page 1359 of 3383

INFINITI QX56 2006 Factory Service Manual EC-148Revision: November 2009 POWER SUPPLY AND GROUND CIRCUIT 2006 QX56 8. CHECK ECM POWER SUPPLY CIRCUIT-III 1. Turn ignition switch OFF and wait at least 10 seconds. 2. Turn ignition switch ON and t

Page 1360 of 3383

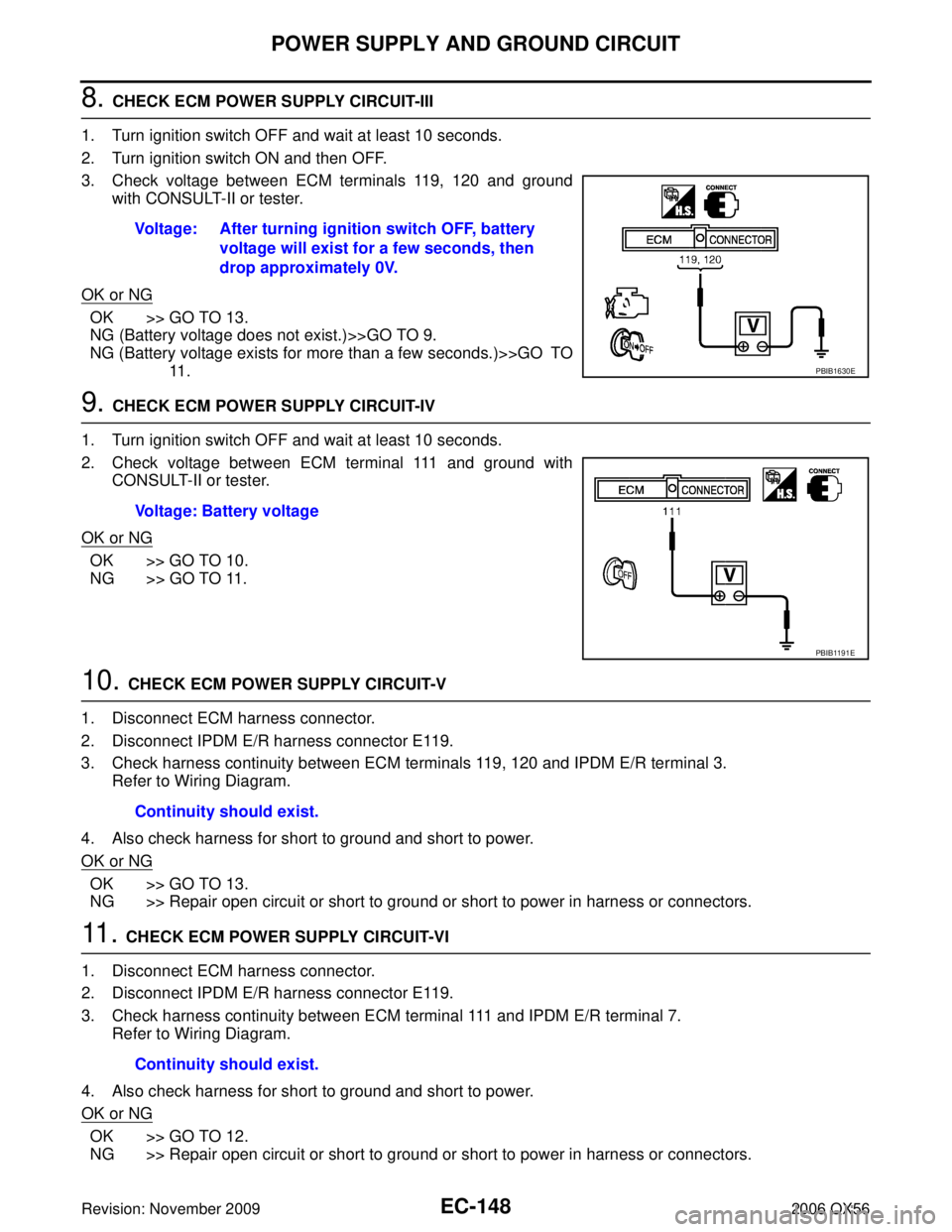

INFINITI QX56 2006 Factory Service Manual POWER SUPPLY AND GROUND CIRCUITEC-149 C DE F G H I J K L M A EC Revision: November 2009 2006 QX56 12. CHECK 20A FUSE 1. Disconnect 20A fuse from IPDM E/R. 2. Check 20A fuse. OK or NG OK >> GO TO 16. N
