Page 3353 of 3383

WW-26
FRONT WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56

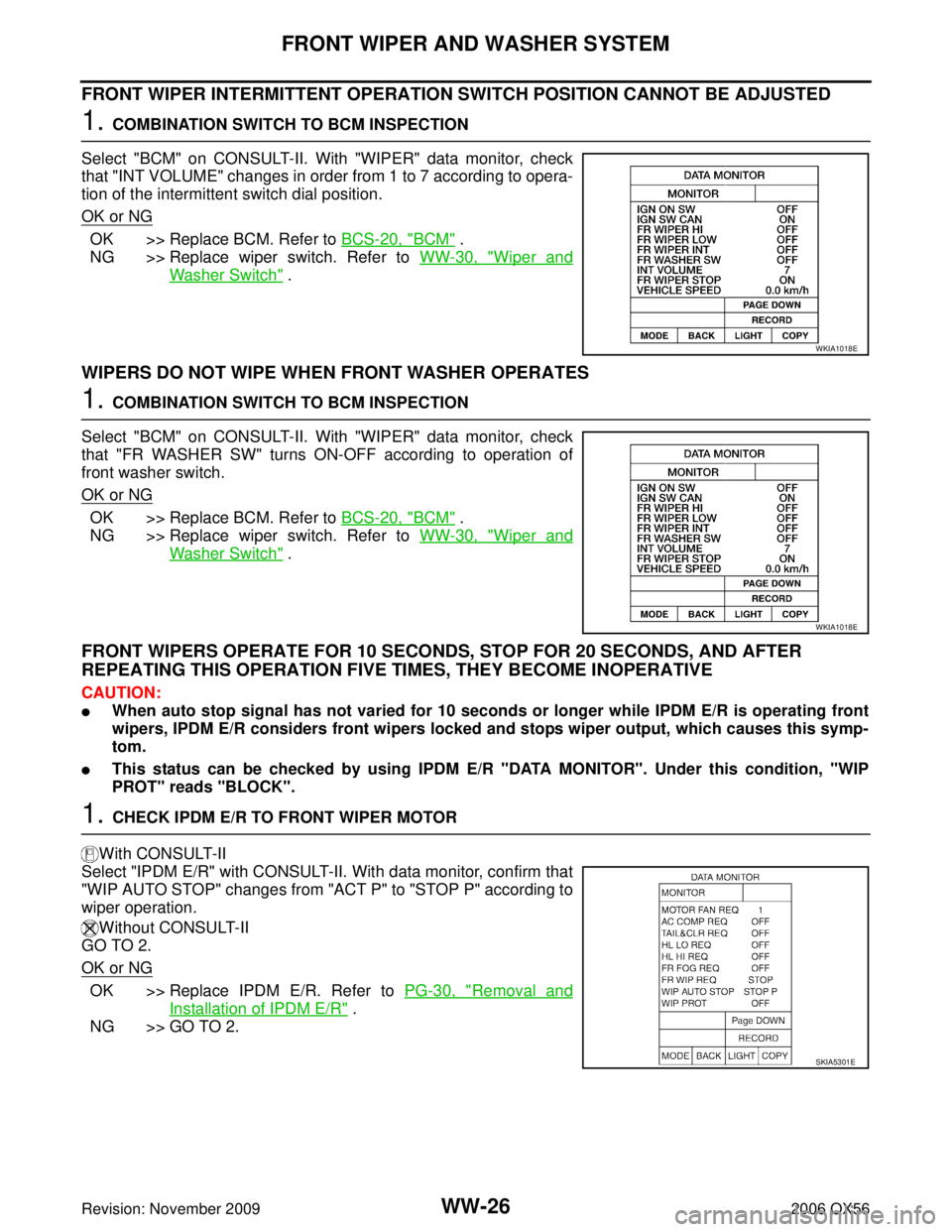

FRONT WIPER INTERMITTENT OPERATION SWITCH POSITION CANNOT BE ADJUSTED
1. COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With "WIPER" data monitor, check
that "INT VOLUME" changes in order from 1 to 7 according to opera-
tion of the intermittent switch dial position.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "BCM" .
NG >> Replace wiper switch. Refer to WW-30, "
Wiper and
Washer Switch" .
WIPERS DO NOT WIPE WHEN FRONT WASHER OPERATES
1. COMBINATION SWITCH TO BCM INSPECTION
Select "BCM" on CONSULT-II. With "WIPER" data monitor, check
that "FR WASHER SW" turns ON-OFF according to operation of
front washer switch.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "BCM" .
NG >> Replace wiper switch. Refer to WW-30, "
Wiper and
Washer Switch" .
FRONT WIPERS OPERATE FOR 10 SECONDS, STOP FOR 20 SECONDS, AND AFTER
REPEATING THIS OPERATION FIVE TIMES, THEY BECOME INOPERATIVE
CAUTION:
When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers front wipers locked and stops wiper output, which causes this symp-
tom.
This status can be checked by using IPDM E/R "DATA MONITOR". Under this condition, "WIP
PROT" reads "BLOCK".
1. CHECK IPDM E/R TO FRONT WIPER MOTOR
With CONSULT-II
Select "IPDM E/R" with CONSULT-II. With data monitor, confirm that
"WIP AUTO STOP" changes from "ACT P" to "STOP P" according to
wiper operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 2.
WKIA1018E
WKIA1018E
SKIA5301E
Page 3354 of 3383

FRONT WIPER AND WASHER SYSTEMWW-27
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56

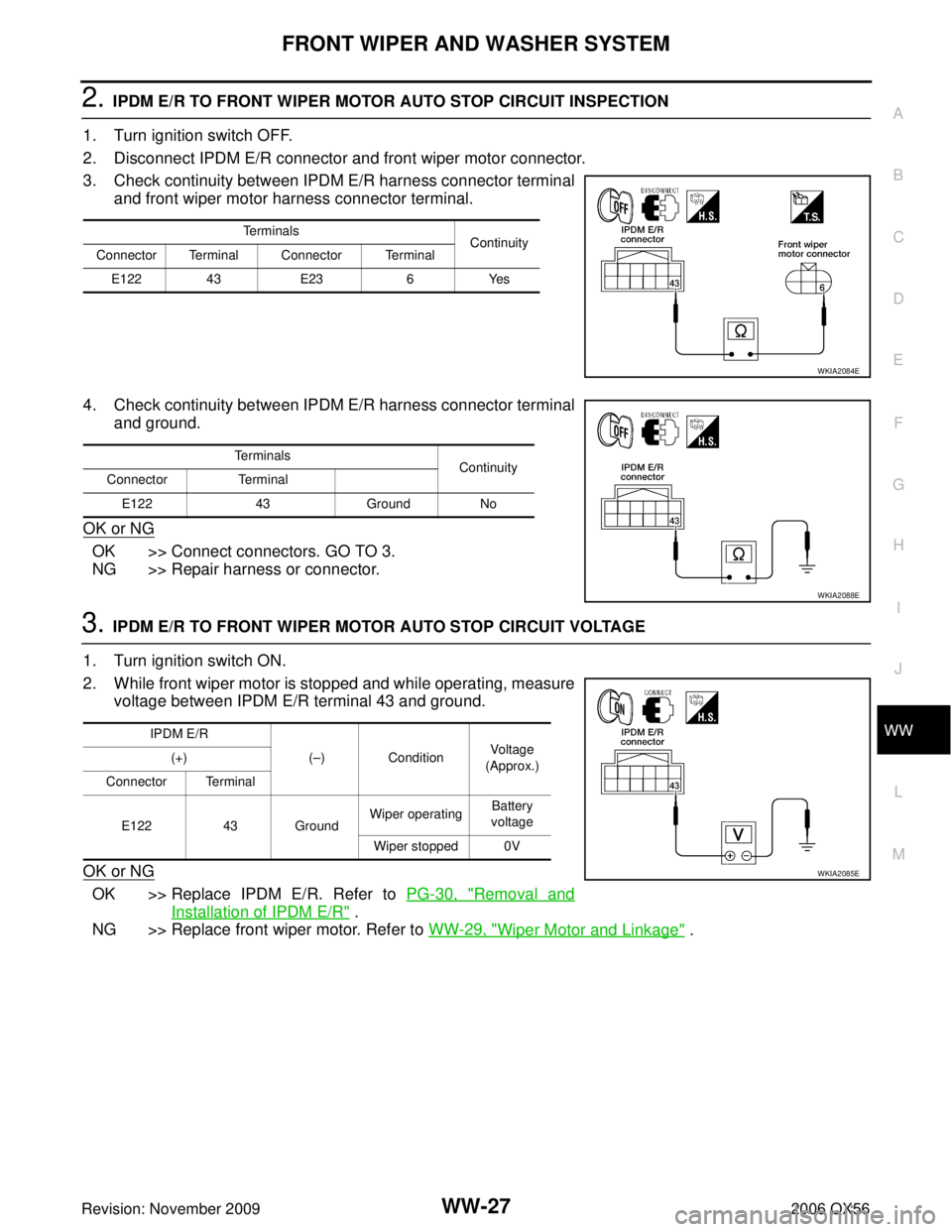

2. IPDM E/R TO FRONT WIPER MOTOR AUTO STOP CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector terminal and front wiper motor harness connector terminal.
4. Check continuity between IPDM E/R harness connector terminal and ground.
OK or NG
OK >> Connect connectors. GO TO 3.
NG >> Repair harness or connector.
3. IPDM E/R TO FRONT WIPER MOTOR AUTO STOP CIRCUIT VOLTAGE
1. Turn ignition switch ON.
2. While front wiper motor is stopped and while operating, measure voltage between IPDM E/R terminal 43 and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> Replace front wiper motor. Refer to WW-29, "
Wiper Motor and Linkage" .
Terminals
Continuity
Connector Terminal Connector Terminal
E122 43 E236Yes
WKIA2084E
Terminals
Continuity
Connector Terminal
E122 43Ground No
WKIA2088E
IPDM E/R
(– ) Condition Voltage
(Approx.)
(+)
Connector Terminal
E122 43 Ground Wiper operating
Battery
voltage
Wiper stopped 0V
WKIA2085E
Page 3355 of 3383

WW-28
FRONT WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56

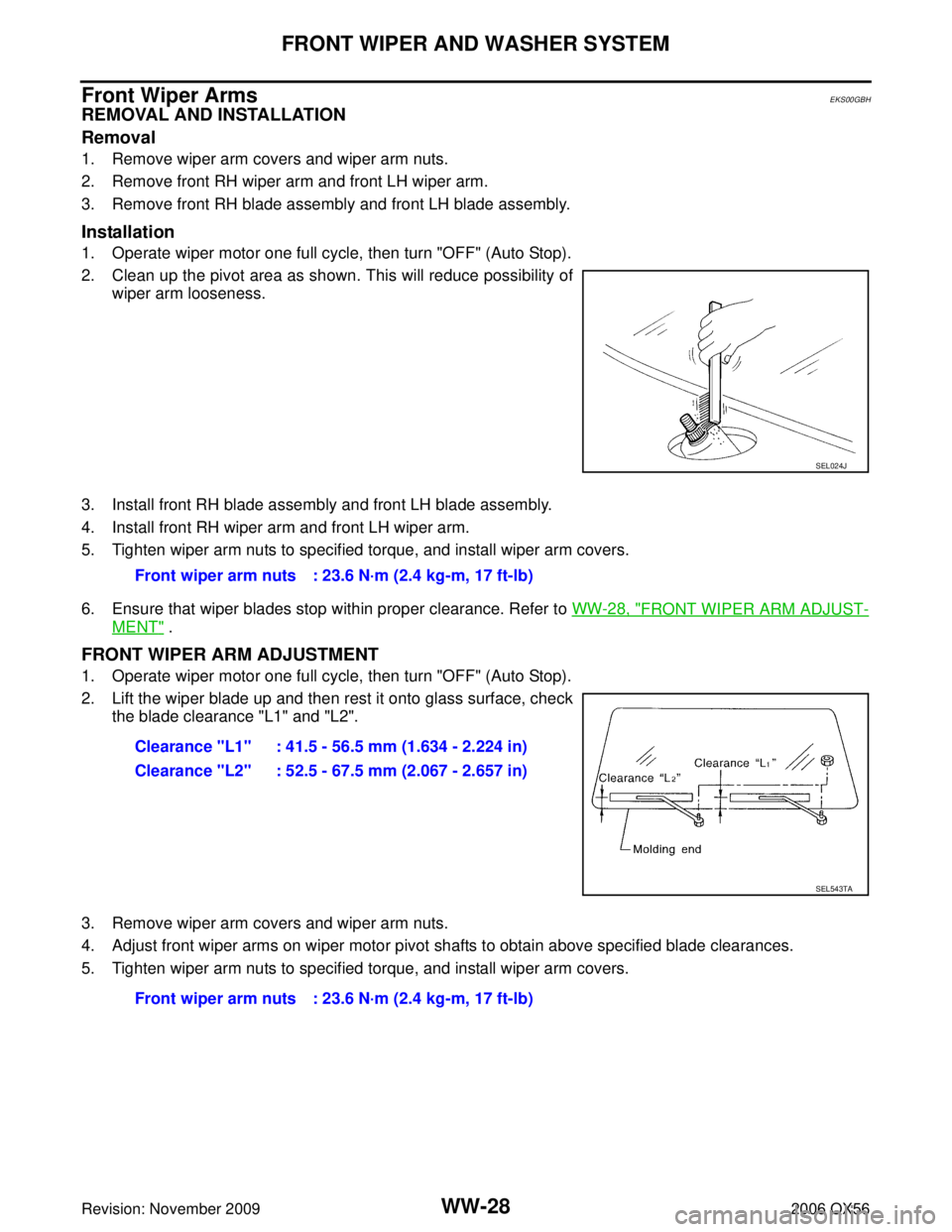

Front Wiper Arms EKS00GBH
REMOVAL AND INSTALLATION
Removal
1. Remove wiper arm covers and wiper arm nuts.
2. Remove front RH wiper arm and front LH wiper arm.
3. Remove front RH blade assembly and front LH blade assembly.
Installation
1. Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Clean up the pivot area as shown. This will reduce possibility of
wiper arm looseness.
3. Install front RH blade assembly and front LH blade assembly.
4. Install front RH wiper arm and front LH wiper arm.
5. Tighten wiper arm nuts to specified torque, and install wiper arm covers.
6. Ensure that wiper blades stop within proper clearance. Refer to WW-28, "
FRONT WIPER ARM ADJUST-
MENT" .
FRONT WIPER ARM ADJUSTMENT
1. Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Lift the wiper blade up and then rest it onto glass surface, check
the blade clearance "L1" and "L2".
3. Remove wiper arm covers and wiper arm nuts.
4. Adjust front wiper arms on wiper motor pivot shafts to obtain above specified blade clearances.
5. Tighten wiper arm nuts to specified torque, and install wiper arm covers.
SEL024J
Front wiper arm nuts : 23.6 N·m (2.4 kg-m, 17 ft-lb)
Clearance "L1" : 41.5 - 56.5 mm (1.634 - 2.224 in)
Clearance "L2" : 52.5 - 67.5 mm (2.067 - 2.657 in)
SEL543TA
Front wiper arm nuts : 23.6 N·m (2.4 kg-m, 17 ft-lb)
Page 3356 of 3383

FRONT WIPER AND WASHER SYSTEMWW-29
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56

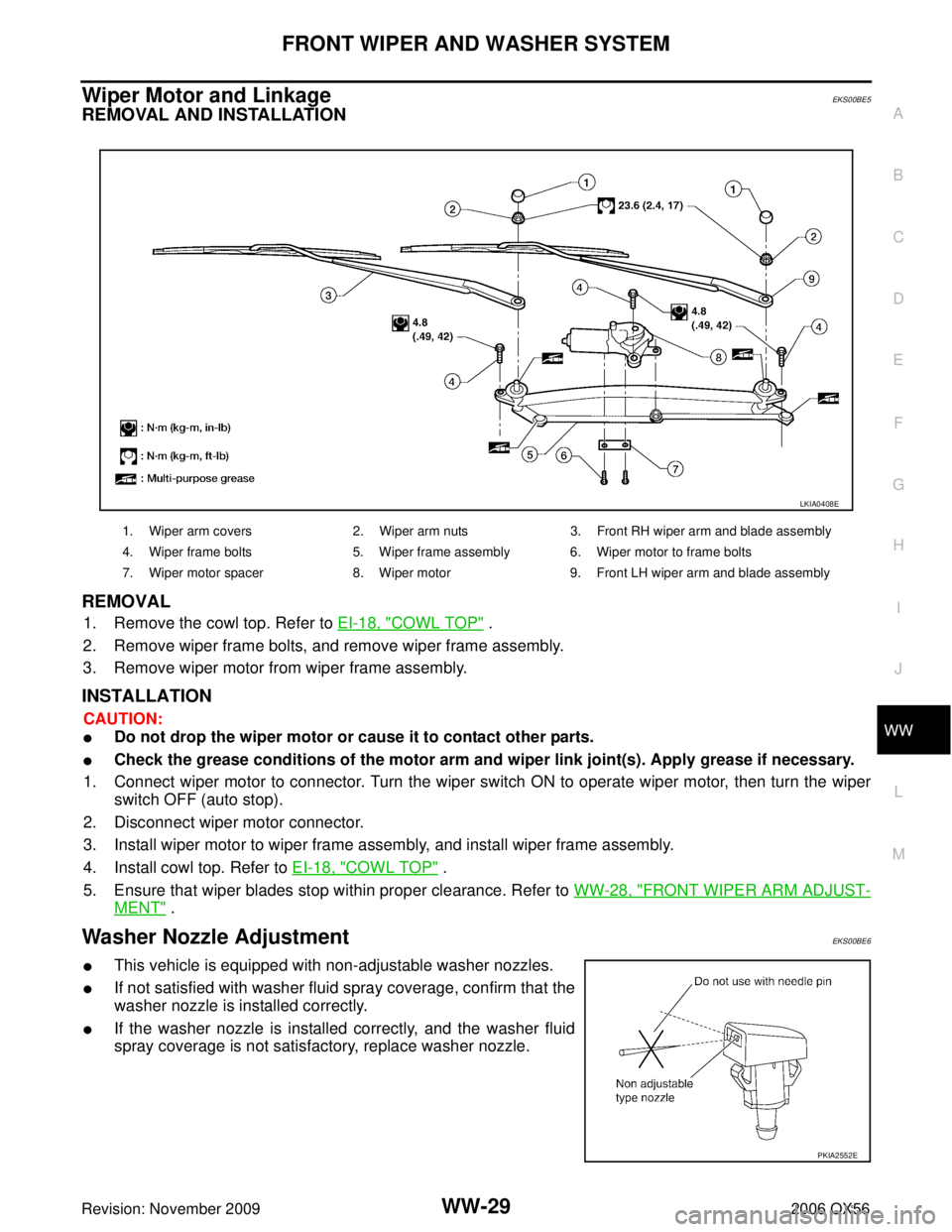

Wiper Motor and Linkage EKS00BE5
REMOVAL AND INSTALLATION
REMOVAL
1. Remove the cowl top. Refer to EI-18, "COWL TOP" .
2. Remove wiper frame bolts, and remove wiper frame assembly.
3. Remove wiper motor from wiper frame assembly.
INSTALLATION
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.
1. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper switch OFF (auto stop).
2. Disconnect wiper motor connector.
3. Install wiper motor to wiper frame assembly, and install wiper frame assembly.
4. Install cowl top. Refer to EI-18, "
COWL TOP" .
5. Ensure that wiper blades stop within proper clearance. Refer to WW-28, "
FRONT WIPER ARM ADJUST-
MENT" .
Washer Nozzle Adjustment EKS00BE6
This vehicle is equipped with non-adjustable washer nozzles.
If not satisfied with washer fluid spray coverage, confirm that the
washer nozzle is installed correctly.
If the washer nozzle is installed correctly, and the washer fluid
spray coverage is not satisfactory, replace washer nozzle.
LKIA0408E
1. Wiper arm covers2. Wiper arm nuts3. Front RH wiper arm and blade assembly
4. Wiper frame bolts 5. Wiper frame assembly 6. Wiper motor to frame bolts
7. Wiper motor spacer 8. Wiper motor9. Front LH wiper arm and blade assembly
PKIA2552E
Page 3357 of 3383
WW-30
FRONT WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56

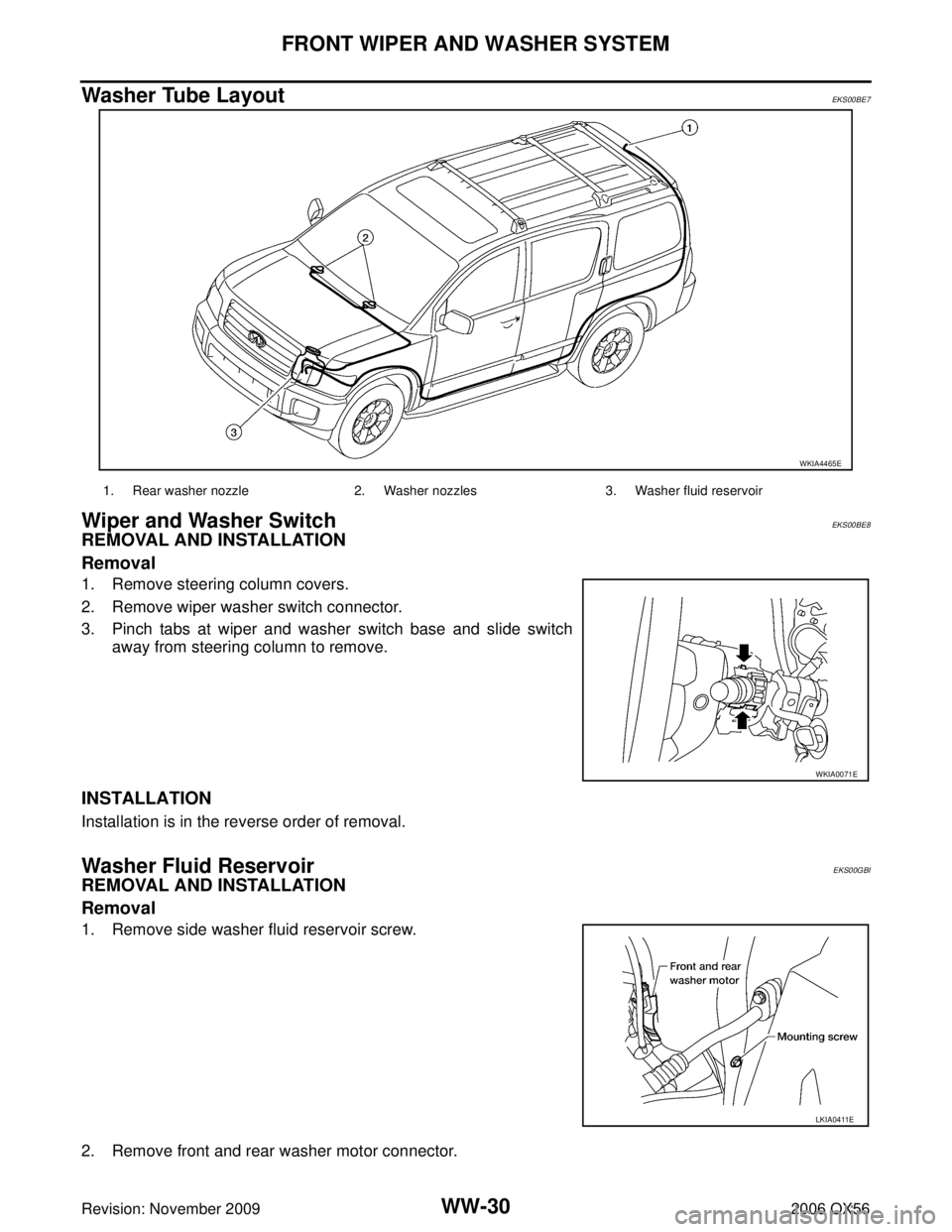

Washer Tube Layout EKS00BE7
Wiper and Washer Switch EKS00BE8
REMOVAL AND INSTALLATION
Removal
1. Remove steering column covers.
2. Remove wiper washer switch connector.
3. Pinch tabs at wiper and washer switch base and slide switch
away from steering column to remove.
INSTALLATION
Installation is in the reverse order of removal.
Washer Fluid Reservoir EKS00GBI
REMOVAL AND INSTALLATION
Removal
1. Remove side washer fluid reservoir screw.
2. Remove front and rear washer motor connector.
WKIA4465E
1. Rear washer nozzle 2. Washer nozzles 3. Washer fluid reservoir
WKIA0071E
LKIA0411E
Page 3358 of 3383
FRONT WIPER AND WASHER SYSTEMWW-31
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
3. Remove washer fluid level sensor connector.
4. Disconnect front and rear washer hoses.
5. Remove front washer fluid reservoir screw (2).
6. Remove washer fluid reservoir from the vehicle (1).
Installation
CAUTION:
After installation, add water up to the upper level of the washer fluid reservoir inlet and check for water
leaks.
Installation is in the reverse order of removal.
Washer Motor EKS00BEA
REMOVAL AND INSTALLATION
Removal
1. Remove washer fluid reservoir. Refer to WW-30, "Washer Fluid Reservoir" .
2. Remove washer motor (1) in the direction of the arrow as shown, and remove from washer fluid reservoir (2).
INSTALLATION
CAUTION:
When installing front and rear washer motor, there should be no packing twists, etc.
Installation is in the reverse order of removal.
LKIA0412E
WKIA4563E
WKIA4564E
Page 3359 of 3383
WW-32
REAR WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56
REAR WIPER AND WASHER SYSTEMPFP:28710
Components Parts and Harness Connector LocationEKS00BEB
System DescriptionEKS00BEC
The wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input ter-
minals. Terminal combination status is read by the BCM (body control module) when switch is turned ON.
The BCM controls rear wiper ON and INT (intermittent) operation.
Power is supplied at all times
through 50A fusible link (letter f , located in fusible link box)
to BCM terminal 70.
With the ignition switch in ON or START position, power is supplied
through 10A fuse [No. 9, located in fuse block (J/B)]
to combination switch terminal 14, and
through 10A fuse (No. 59, located in the fuse and relay box)
to BCM terminal 38.
Ground is supplied
to BCM terminal 67 and
to combination switch terminal 12
through grounds M57, M61 and M79.
WKIA3462E
Page 3360 of 3383

REAR WIPER AND WASHER SYSTEMWW-33
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
REAR WIPER OPERATION
When the ignition switch is in the ON or START position, and the rear wiper switch is in the ON position, the
BCM detects a rear wiper ON request through the combination switch (wiper switch) reading function.
The BCM will first check the status of the glass hatch ajar switch before supplying power to the rear wiper
motor. If the glass hatch ajar switch is closed (ground) the BCM will not turn on the rear wiper motor. If the
glass hatch ajar switch is open (not grounded) the BCM will control the rear wiper motor as follows.
The BCM controls rear wiper motor operation by switching direction of current flow between the two rear wiper
motor output circuits.
Power is supplied to output circuit 1 for forward operation (counterclockwise sweep),
through BCM terminal 55
to rear wiper motor terminal 4.
Ground is supplied
to rear wiper motor terminal 6
through BCM terminal 54
through BCM terminal 67
through grounds M57, M61 and M79.
With output circuit 1 power and ground supplied, the rear wiper motor operates in a counterclockwise sweep
direction until auto stop switch 1 closes (full sweep position). Auto stop switch 1 supplies ground
to BCM terminal 44
through rear wiper motor terminal 2
through rear wiper motor terminal 5
through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 1 and turns on output circuit 2.
Power is supplied to output circuit 2 for reverse operation (clockwise sweep),
through BCM terminal 54
to rear wiper motor terminal 6.
Ground is supplied
to rear wiper motor terminal 4
through BCM terminal 55
through BCM terminal 67
through grounds M57, M61 and M79.
With output circuit 2 power and ground supplied the rear wiper motor operates in a clockwise sweep direction
until auto stop switch 2 closes (full sweep position). Auto stop switch 2 supplies ground
to BCM terminal 26
through rear wiper motor terminal 1
through rear wiper motor terminal 3
through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 2 and turns on output circuit 1. This pro-
cess repeats until the rear wiper switch or ignition switch is turned off.
If the ignition switch is turned to OFF during operation, the rear wiper motor will immediately stop. If the igni-
tion switch is turned ON after this condition, and the BCM does not receive a rear wiper switch ON or INT sig-
nal, the BCM will operate the rear wiper to the auto stop position.
If the BCM does not receive a change in status in either auto stop switch 1 or auto stop switch 2 within a 5 sec-
ond period of output circuit 1 or output circuit 2 operation, the BCM will turn off output circuit 1 and output cir-
cuit 2.
If the BCM detects the rear door glass ajar signal during rear wiper motor operation, the BCM will operate the
rear wiper motor to the auto stop position. Once the rear door glass ajar signal returns to open (not grounded)
for 5 or more seconds, the BCM will resume rear wiper motor operation.
INTERMITTENT OPERATION
The rear wiper motor operates the wiper arm at low speed approximately every 7 seconds.
When the wiper switch is in the rear wiper INT position, the BCM detects a rear wiper INT request through the
combination switch (wiper switch) reading function.
