Page 3057 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-16
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

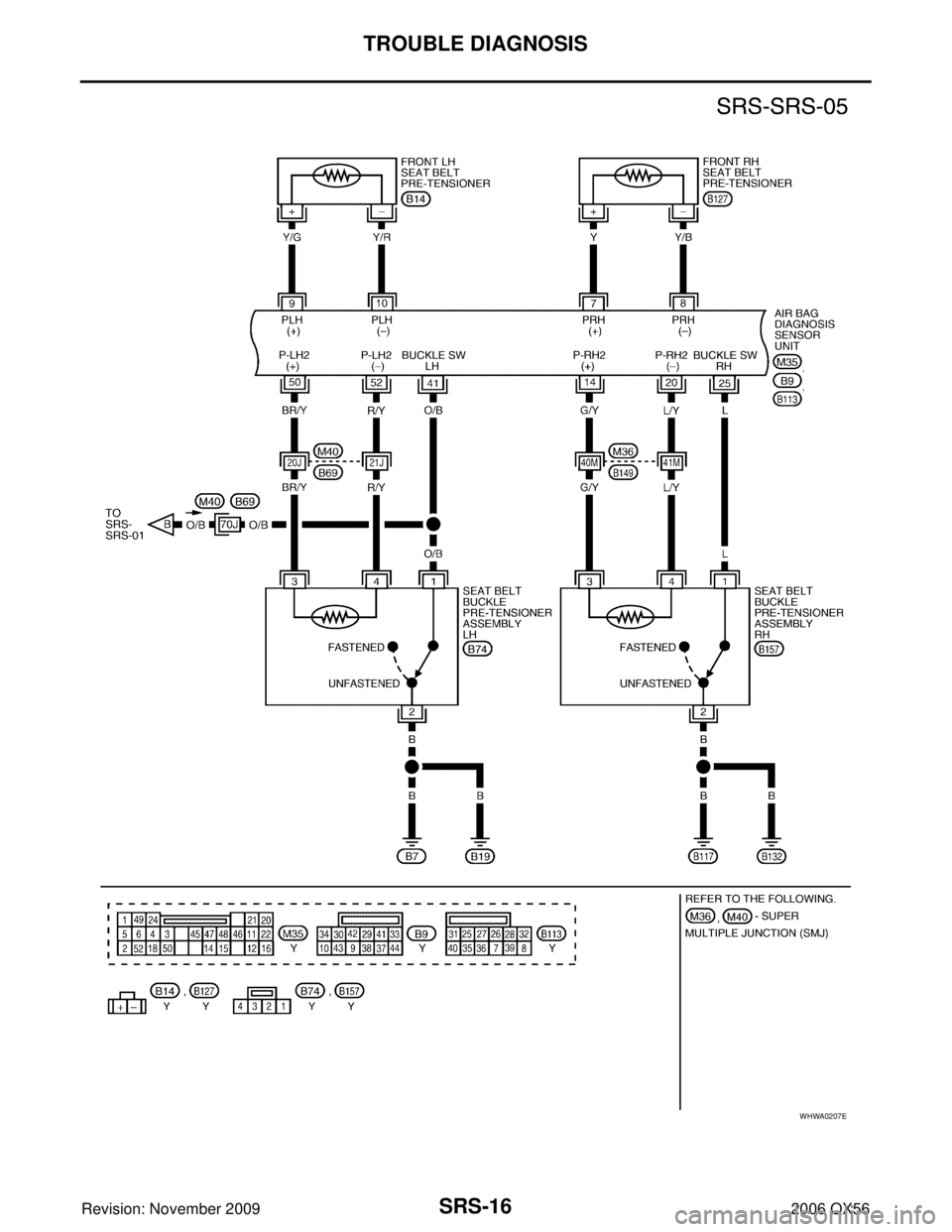

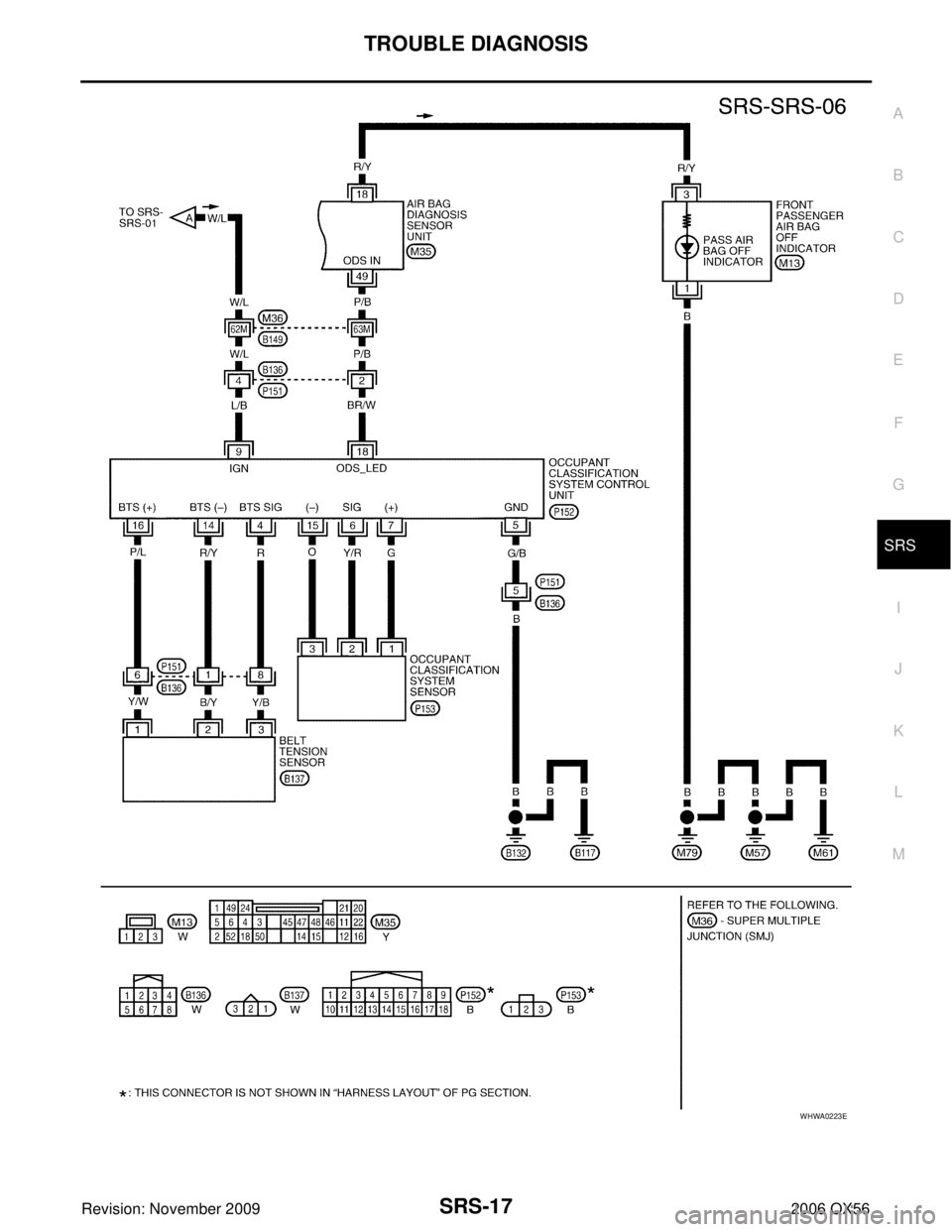

WHWA0207E

Page 3058 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-17
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
WHWA0223E

Page 3059 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-18
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
CONSULT-II Function (AIR BAG)EHS001BA
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II

SRS-18
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
CONSULT-II Function (AIR BAG)EHS001BA
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II FunctionEHS0016Q
HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II
From User Mode to Diagnosis Mode
After selecting “AIR BAG ” on the “SELECT SYSTEM ” screen, User mode automatically changes to Diagnosis
mode.
From Diagnosis Mode to User Mode
To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.
AIR BAG diagnostic mode Description
SELF-DIAG [CURRENT] A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requir-
ing repairs.
SELF-DIAG [PAST] Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The
stored results will remain until memory erasing is executed.
TROUBLE DIAG RECORD With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.
ECU DISCRIMINATED NO. The air bag diagnosis sensor unit for each vehicle
model is assigned with its own, individual classifi-
cation number. This number will be displayed on
the CONSULT-II screen, as shown. When replac-
ing the air bag diagnosis sensor unit, refer to the
part number for the compatibility. After installation,
replacement with a correct unit can be checked by
confirming this classification number on the CON-
SULT-II screen.
The air bag diagnosis sensor unit discrimi-
nated number assigned is F62F.
PASSENGER AIR BAG The STATUS (readiness) of the front passenger air
bag module is displayed. The STATUS displayed
(ON/OFF) depends on the signals supplied to the
occupant classification system control module and
air bag diagnosis sensor unit. Refer to
SRS-6,
"Occupant Classification System (OCS)" for more
information.
ARS366
WHIA0290E
SRS803

Page 3060 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-19
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56

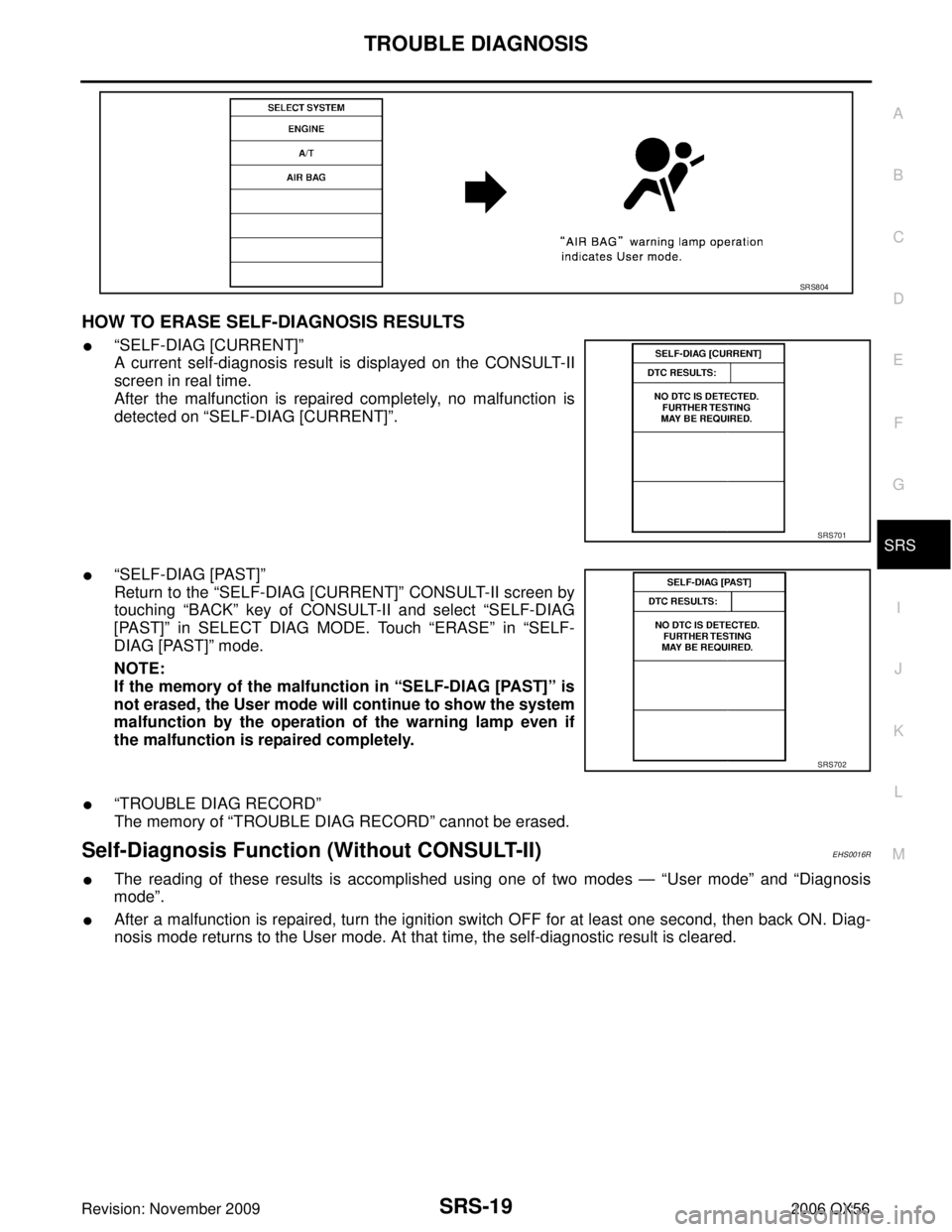

HOW TO ERASE SELF-DIAGNOSIS RESULTS
“SELF-DIAG [CURRENT]”
A current self-diagnosis result is displayed on the

Page 3061 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-20
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

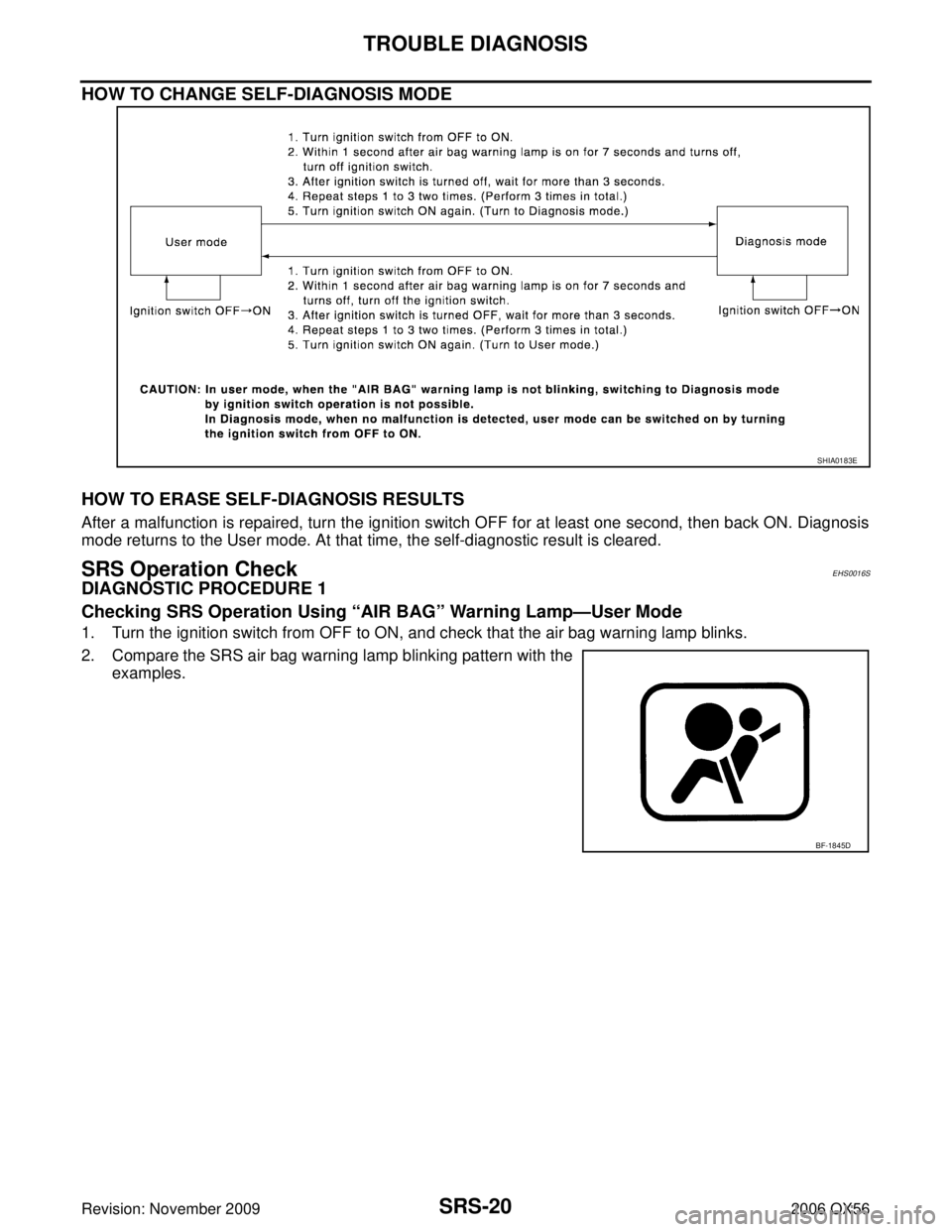

HOW TO CHANGE SELF-DIAGNOSIS MODE
HOW TO ERASE SELF-DIAGNOSIS RESULTS
After a malfunction is repaired, turn the ignition switch OFF for at le

Page 3062 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-21
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56
Warning lamp examples
“AIR BAG ” warning lamp operation-User mode- SRS condition Reference item
No malfunction

Page 3063 of 3383

INFINITI QX56 2006 Factory Service Manual SRS-22
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

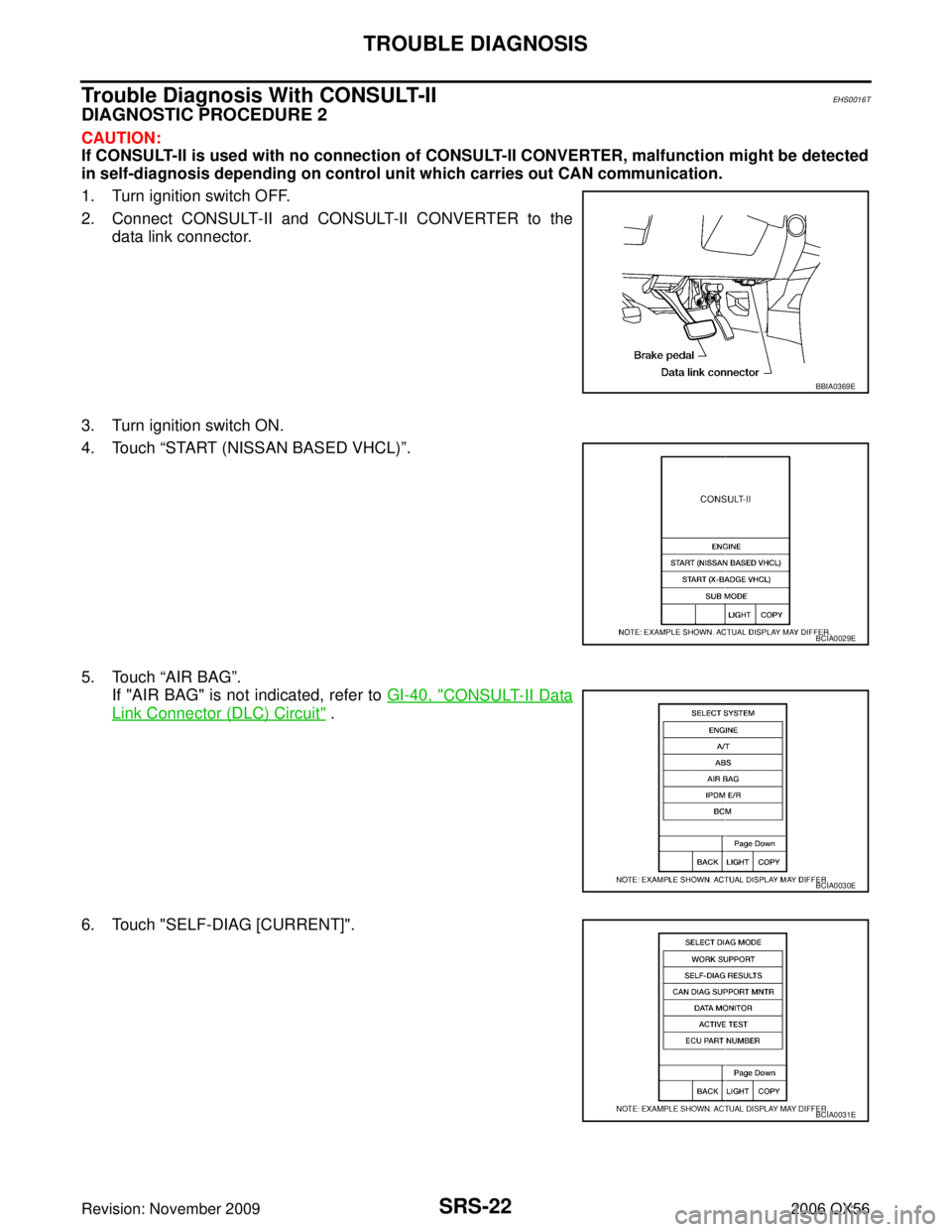

Trouble Diagnosis With CONSULT-IIEHS0016T
DIAGNOSTIC PROCEDURE 2
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, ma

Page 3064 of 3383

INFINITI QX56 2006 Factory Service Manual TROUBLE DIAGNOSISSRS-23
C
DE
F
G
I
J
K L
M A
B
SRS
Revision: November 2009 2006 QX56

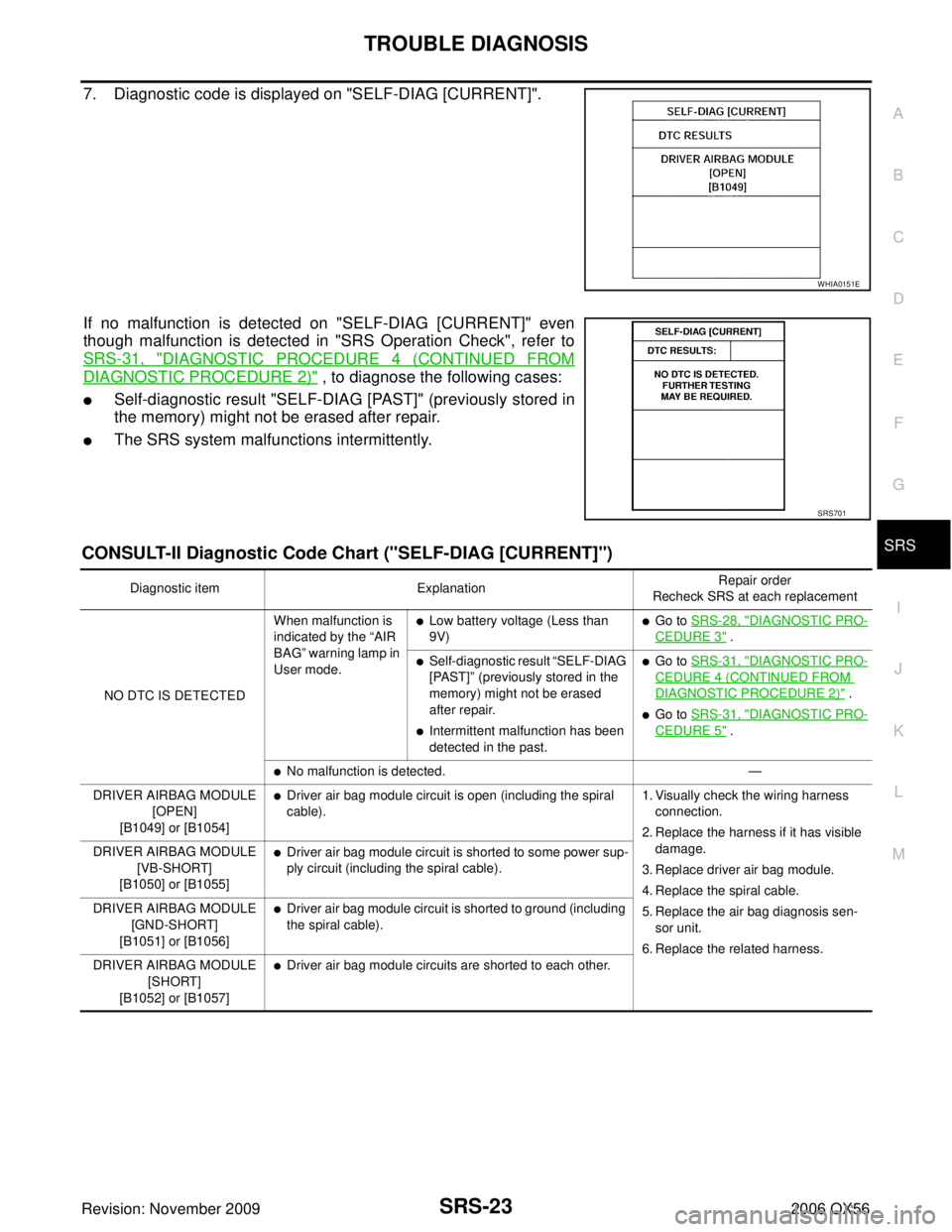

7. Diagnostic code is displayed on "SELF-DIAG [CURRENT]".
If no malfunction is detected on "SELF-DIAG [CURRENT]" ev
