Page 2553 of 3383
LT-146
INTERIOR ROOM LAMP
Revision: November 20092006 QX56

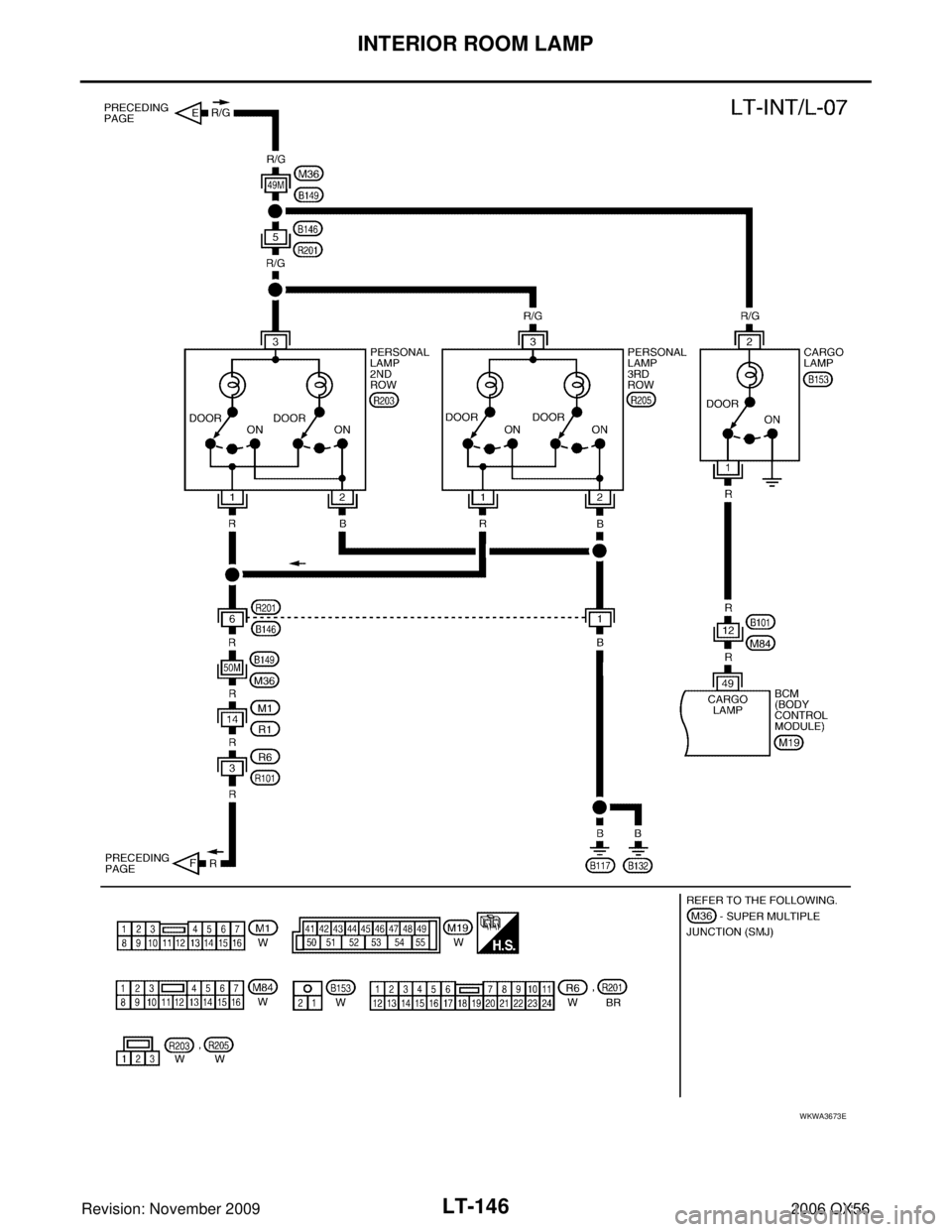

WKWA3673E
Page 2554 of 3383

INTERIOR ROOM LAMPLT-147
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Terminals and Reference Values for BCMEKS00BB9
Terminal
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
1BR/W Ignition keyhole illumi-
nation signal
OFFDoor is locked. (SW OFF)
Battery voltage
Door is unlocked. (SW ON) 0V
12 R/L Front door switch RH
signal
OFFFront door
switch RH ON (open)
0V
OFF (closed) Battery voltage
13 GR Rear door switch RH
signal
OFFRear door
switch RH ON (open)
0V
OFF (closed) Battery voltage
22 W/V Bus ——
37 B/R Key-in switch detection
signal OFFVehicle key is removed.
0V
Vehicle key is inserted. Battery voltage
38 W/L Ignition power supply ON —Battery voltage
39 L CAN-H —— —
40 P CAN-L —— —
42 GR Glass hatch ajar switch
signal OFFGlass hatch
ajar switch ON (open)
0V
OFF (closed) Battery voltage
43 R/B Back door latch (door
ajar switch) signal
OFFBack door
latch (door
ajar switch) ON (open)
0V
OFF (closed) Battery voltage
47 SB Front door switch LH
signal
OFFFront door
switch LH ON (open)
0V
OFF (closed) Battery voltage
48 R/Y Rear door switch LH
signal
OFFRear door
switch LH ON (open)
0V
OFF (closed) Battery voltage
49 R Luggage lamp output OFF Any door is open (ON)
0V
All doors are closed (OFF) Battery voltage
56 R/G Battery saver output
signal OFF
30 minutes after ignition switch is
turned to OFF 0V
ON — Battery voltage
57 Y/R Battery power supply OFF —Battery voltage
62 R/W Step lamp signal OFFAny door is open (ON)
0V
All doors are closed (OFF) Battery voltage
63 L Interior room/map lamp
signal OFFEach interior
lamp switch
in DOOR
position Any
door
switch ON
(open) 0V
OFF
(closed) Battery voltage
67 B Ground ON— 0V
70 W/B Battery power supply OFF —Battery voltage
PIIA2344J
Page 2555 of 3383

LT-148
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
How to Proceed With Trouble DiagnosisEKS00BBA
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 1 3 5 , "
System Description" .
3. Carry out the Preliminary Check. Refer to LT- 1 4 8 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the interior room lamp operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary CheckEKS00BBB
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES OR FUSIBLE LINK
Check for blown BCM fuses or fusible link.
Refer to LT- 1 4 0 , "
Wiring Diagram — INT/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse or fusible link. Refer to PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between BCM and fuse or fusible link.
3. CHECK GROUND CIRCUIT
Check continuity between BCM and ground.
OK or NG
OK >> Inspection End.
NG >> Check harness ground circuit.
Unit Power sourceFuse and fusible link No.
BCM Battery f
22
Ignition switch ON or START position 59
TerminalsIgnition switch position
(+) (– )O FF O N
Connector Terminal
M20 57
Ground Battery voltage Battery voltage
70 Battery voltage Battery voltage
M18 38 0V Battery voltage
WKIA1478E
Terminals
Continuity
Connector Terminal
M20 67Ground Yes
LIIA0915E
Page 2556 of 3383

INTERIOR ROOM LAMPLT-149
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
CONSULT-II Function (BCM)EKS00BBC
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test item Diagnostic mode
Description
Inspection by part WORK SUPPORT
Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ECU PART NUMBER BCM part number can be read.CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
Page 2557 of 3383

LT-150
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
4. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
WORK SUPPORT
Operation Procedure
1. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
3. Touch "SET I/L D-UNLCK INTCON" on "SELECT WORK ITEM" screen.
4. Touch "START".
5. Touch "CHANGE SETT".
6. The setting will be changed and "CUSTOMIZING COMPLETED" will be displayed.
7. Touch "END".
Display Item List
Reference between "MODE" and "TIME" for "TURN ON/OFF".
DATA MONITOR
Operation Procedure
1. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.
4. Touch "START".
5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the items will be monitored.
6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".
PKIA5226E
Item Description CONSULT-II
SET I/L D-UNLCK INTCON The 30 seconds operating function of the interior room lamps and the
ignition keyhole illumination can be selected when front door LH is
released (unlocked). ON/OFF
ROOM LAMP ON TIME SET The time in order to escalate illumination can be adjusted when the
interior room lamps and the ignition keyhole illumination is turned on. MODE 1 - 7
ROOM LAMP OFF TIME SET The time in order to diminish illumination can be adjusted when the
interior room lamps and the ignition keyhole illumination is turned off. MODE 1 - 7
MODE 1 2 3 4 5 6 7
Time (sec.) 0.5 1 2 3 4 5 0
All signals Monitors all the signals.
Selection from menu Selects and monitors the individual signal.
Page 2558 of 3383

INTERIOR ROOM LAMPLT-151
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Display Item List
ACTIVE TEST
Operation Procedure
1. Touch "INT LAMP" on "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching "BACK" or "OFF" deactivates the operation.
Display Item List
Room/Map Lamp Control Does Not OperateEKS00BBD
1. CHECK EACH SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 5 1 , "
Display Item List" for switches
and their functions.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning switch system.
Monitor item Contents
IGN ON SW "ON/OFF"Displays "IGN position (ON)/OFF, ACC position (OFF)" judged from the ignition switch sig-
nal.
KEY ON SW "ON/OFF" Displays "Key inserted (ON)/key removed (OFF)" status judged from the key switch signal.
DOOR SW-DR "ON/OFF"Displays status of the front door LH as judged from the front door switch LH signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW-AS "ON/OFF"Displays "Door open (ON)/Door closed (OFF)" status, determined from front door switch RH
signal.
DOOR SW-RR "ON/OFF"Displays "Door open (ON)/Door closed (OFF)" status, determined from rear door switch RH
signal.
DOOR SW-RL "ON/OFF"Displays "Door open (ON)/Door closed (OFF)" status, determined from rear door switch LH
signal.
BACK DOOR SW "ON/OFF" Displays "Door open (ON)/Door closed (OFF)" status, determined from back door latch
(door ajar switch) signal.
KEY CYL LK-SW "ON/OFF" Displays "Door locked (ON)" status, determined from front door lock assembly LH (key cylin-
der switch) in front door LH.
KEY CYL UN-SW "ON/OFF" Displays "Door unlocked (OFF)" status, determined from front door lock assembly LH (key
cylinder switch) in front door LH.
CDL LOCK SW "ON/OFF"Displays "Door locked (ON)/Door unlocked (OFF)" status, determined from locking detection
switch in front door LH.
CDL UNLOCK SW "ON/OFF" Displays "Door unlocked (OFF)" status, determined from locking detection switch in front
door RH.
KEYLESS LOCK "ON/OFF" Displays "Locked (ON)/Other (OFF)" status, determined from lock signal.
KEYLESS UNLOCK "ON/OFF" Displays "Unlocked (ON)/Other (OFF)" status, determined from unlock signal.
Test item Description
INT LAMP Interior room lamp can be operated by any ON-OFF operations.
IGN ILLUM Ignition keyhole illumination can be operated by ON-OFF operation.
SKIA5930E
Page 2559 of 3383

LT-152
INTERIOR ROOM LAMP
Revision: November 20092006 QX56
2. ACTIVE TEST
1. Select "BCM" on CONSULT-II. Select "INT LAMP" active test.
2. When switch is in DOOR position, use active test to make sure interior room lamp operates.
OK or NG
OK >> Replace BCM. Refer to BCS-20, "BCM" .
NG >> GO TO 3.
3. CHECK INTERIOR ROOM LAMP INPUT
1. Turn ignition switch OFF.
2. Check voltage between front room/map lamp assembly harness connector R102 terminal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK INTERIOR ROOM LAMP CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M20 terminal 63 and front room/map lamp assembly harness connector R102
terminal 1.
OK or NG
OK >> Replace BCM if interior lamp does not work after setting the connector again. Refer to BCS-20, "
BCM" .
NG >> Repair harness or connector.
5. CHECK INTERIOR ROOM LAMP CIRCUIT
1. Disconnect BCM connector and interior room lamp connector.
2. Check continuity between BCM harness connector M20 terminal 56 and front room/map lamp assembly harness connector R102
terminal 6.
OK or NG
OK >> Replace BCM if interior lamp does not work after setting the connector again. Refer to BCS-20, "
BCM" .
NG >> Repair harness or connector between BCM and room/
map lamp.
Room lamps should turn ON.
LKIA0092E
1 - Ground
: Battery voltage should exist.
WKIA1479E
63 - 1: Continuity should exist.
WKIA1480E
56 - 6: Continuity should exist.
WKIA1481E
Page 2560 of 3383

INTERIOR ROOM LAMPLT-153
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Personal Lamp Control Does Not Operate (Room/Map Lamps Operate)EKS00BBE
1. CHECK EACH DOOR SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 3 6 , "
SWITCH OPERATION" for
switches and their function.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning door switch.
2. CHECK PERSONAL LAMP OUTPUT
1. Turn ignition switch OFF.
2. Confirm lamp switch is in the DOOR position.
3. Disconnect personal lamp connector.
4. Open any door.
5. Check voltage between personal lamp harness connector termi- nal 3 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK PERSONAL LAMP CONTROL CIRCUIT
1. Disconnect front room/map lamp assembly connector.
2. Check continuity between front room/map lamp assembly har- ness connector R102 terminal 2 and personal lamp harness
connector terminal 1.
OK or NG
OK >> Replace personal lamp.
NG >> Repair harness or connector.
SKIA5930E
3 - Ground : Battery voltage should exist.
WKIA1482E
2 - 1 : Continuity should exist.
WKIA1908E
