WW-10
FRONT WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56

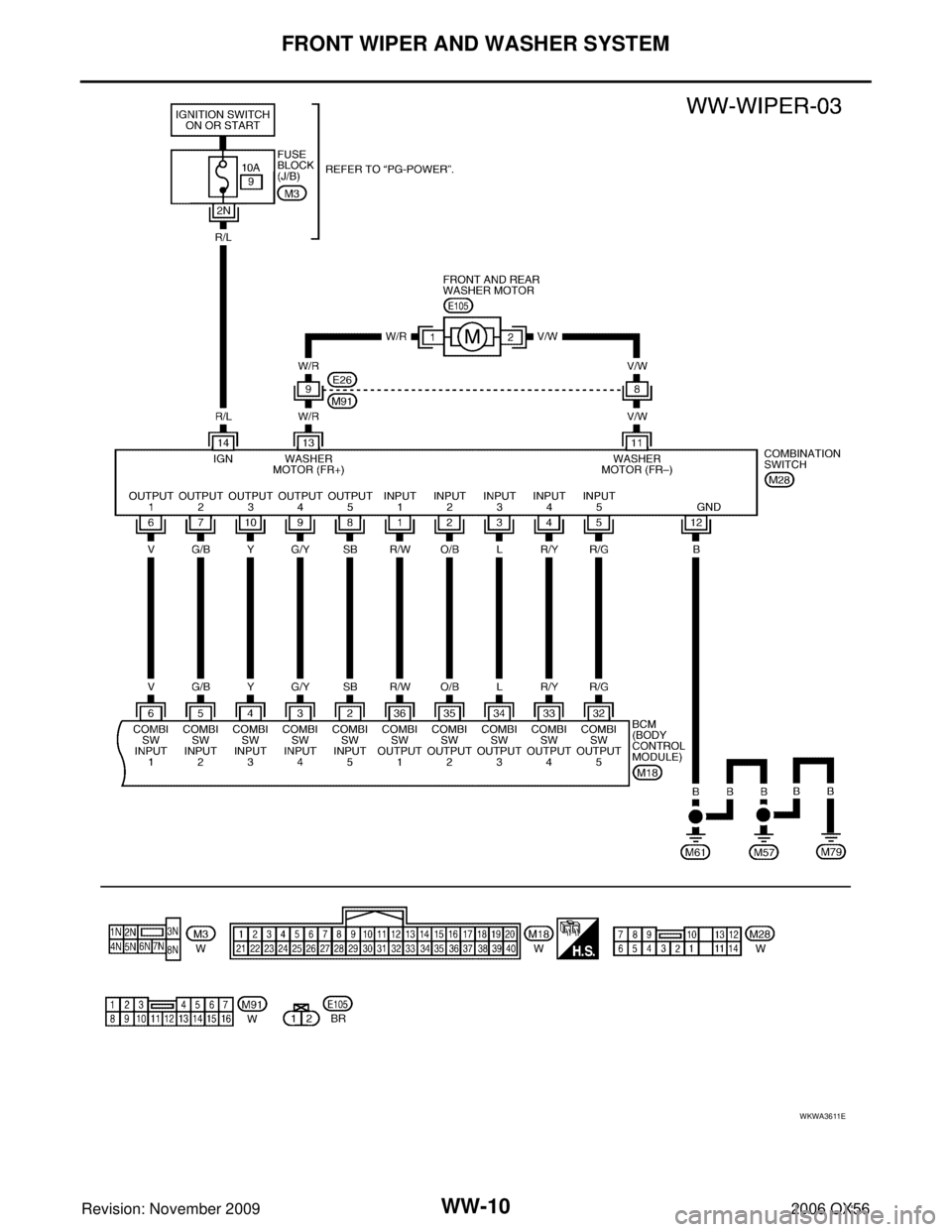

WKWA3611E
Page 3338 of 3383

FRONT WIPER AND WASHER SYSTEMWW-11
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
Terminals and Reference Values for BCMEKS00BDX
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference Value (V)
(Approx.)
Ignition
switch Operation or condition
2 SB Combination switch input 5 ON
Light switch and wiper switch OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ON
Light switch and wiper switch OFF
Wiper dial position 4
4 Y Combination switch input 3 ON
Light switch and wiper switch OFF
Wiper dial position 4
5 G/B Combination switch input 2 ON
Light switch and wiper switch OFF
Wiper dial position 4
6 V Combination switch input 1
32 R/G Combination switch output 5 ON
Light switch and wiper switch OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ON
Light switch and wiper switch OFF
Wiper dial position 4
34 L Combination switch output 3 ON
Light switch and wiper switch OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
Page 3339 of 3383

WW-12
FRONT WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56
Terminals and Reference Values for IPDM E/R EKS00BDY
Work FlowEKS00BDZ
1. Confirm the trouble symptom or customer complaint.
2. Understand the system description, refer to WW-4, "
System Description" .
3. Perform preliminary inspection, refer to WW-12, "
Preliminary Inspection" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does wiper function operate normally? If it operates normally, GO TO 6. If not, GO TO 4.
6. Inspection End.
Preliminary InspectionEKS00BE0
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
Inspection procedure
1. CHECK FUSE
Check if wiper or washer fuse is blown.
35 O/B Combination switch output 2
ON
Light switch and wiper switch OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON— Battery
39 L CAN-H ON——
40 P CAN-L ON——
67 B Ground —— 0
70 W/B Battery power OFF— Battery
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference Value (V)
(Approx.)
Ignition
switch Operation or condition
SKIA5292E
Terminal
No. Wire
color Signal name Measuring condition
Reference value (V)
(Approx.)
Ignition
switch Operation or condition
32 L Low speed signal ON Wiper switchOFF
0
LO Battery
35 L/B High speed signal ON Wiper switchOFF
0
HI Battery
38 B Ground —— 0
39 L CAN-H ON——
40 P CAN-L ON——
43 L/Y Wiper auto stop signal ON Wiper operating
Battery
Wiper stopped 0
59 B Ground —— 0
UnitPower source Fuse No.
Front and rear washer motor Ignition switch ON or START 9
Front wiper relay Battery39
BCM Ignition switch ON or START
59
Battery f
Page 3340 of 3383
FRONT WIPER AND WASHER SYSTEMWW-13
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to PG-4,
"POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between BCM and fuse.
3. GROUND CIRCUIT INSPECTION (BCM)
Check for continuity between BCM terminal and ground.
OK or NG
OK >> Inspection End.
NG >> Repair/replace BCM ground circuit.
Terminals Ignition switch position
(+) (– )O FF O N
Connector Terminal
M18 38 Ground0V
Battery voltage
M20 70 Battery voltage
WKIA2089E
Terminals
Ignition switch
condition Continuity
Connector Terminal
M20 67 Ground OFF Yes
WKIA2090E
Page 3341 of 3383

WW-14
FRONT WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56
CONSULT-II Function (BCM)EKS00BE1
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM" on the "SELECT SYSTEM" screen. If "BCM" is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test item Diagnostic mode
Description
Inspection by part WORK SUPPORT
Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ECU PART NUMBER BCM part number can be read.CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
Page 3342 of 3383

FRONT WIPER AND WASHER SYSTEMWW-15
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
4. Select the desired part to be diagnosed on the "SELECT TEST
ITEM" screen.
WORK SUPPORT
Operation Procedure
1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
2. Touch "WORK SUPPORT" on the "SELECT DIAG MODE" screen.
3. Touch "WIPER SPEED SETTING" on the "SELECT WORK ITEM" screen.
4. Touch "START".
5. Touch "CHANGE SETT".
6. The setting will be changed and "CUSTOMIZING COMPLETED" will be displayed.
7. Touch "END".
Work Support Setting Item
DATA MONITOR
Operation Procedure
1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "SELECT MONITOR ITEM" screen.
4. Touch "START".
5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" isselected, all the items will be monitored.
6. Touch "RECORD" while monitoring to record the status of the item being monitored. To stop recording, touch "STOP".
Display Item List
LKIA0183E
Item Description CONSULT-II
WIPER SPEED SETTING When wiper switch is at INTERMITTENT, front wiper intermittent
time can be selected according to vehicle speed.
ON (Operated)/OFF (Not operated) ON/OFF
ALL SIGNALS
Monitors all the items.
SELECTION FROM MENU Selects and monitors the individual item selected.
Monitor item name
"OPERATION OR UNIT" Contents
IGN ON SW "ON/OFF"Displays "IGN Position (ON)/OFF, ACC Position (OFF)" status as judged from ignition
switch signal.
IGN SW CAN "ON/OFF"Displays "IGN switch ON (ON)/Other OFF or ACC (OFF)" status as judged from CAN
communications.
FR WIPER HI "ON/OFF" Displays "Front Wiper HI (ON)/Other (OFF)" status as judged from wiper switch signal.
FR WIPER LOW "ON/OFF"Displays "Front Wiper LOW (ON)/Other (OFF)" status as judged from wiper switch sig-
nal.
FR WIPER INT "ON/OFF"Displays "Front Wiper INT (ON)/Other (OFF)" status as judged from wiper switch sig-
nal.
Page 3343 of 3383

WW-16
FRONT WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56
ACTIVE TEST
Operation Procedure
1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST" on the "SELECT DIAG MODE" screen.
3. Touch item(s) to be tested and check operation of the selected item(s).
4. During the operation check, touching "BACK" deactivates the operation.
Display Item List
CONSULT-II Function (IPDM E/R)EKS00BE2
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
FR WASHER SW "ON/OFF"Displays "Front Washer Switch (ON)/Other (OFF)" status as judged from wiper switch
signal.
INT VOLUME (1 - 7)Displays intermittent operation dial position setting (1 - 7) as judged from wiper switch
signal.
FR WIPER STOP "ON/OFF" Displays "Stopped (ON)/Operating (OFF)" status as judged from the auto-stop signal.
VEHICLE SPEED "0.0 km/h" Displays vehicle speed as received from CAN communication.
Monitor item name
"OPERATION OR UNIT" Contents
Te s t i t e mDisplay on CONSULT-II
screen Description
Front wiper HI output FR WIPER (HI) Front wiper HI can be operated by any ON-OFF operation.
Front wiper LO output FR WIPER (LO) Front wiper LO can be operated by any ON-OFF operation.
Front wiper INT output FR WIPER (INT) Front wiper INT can be operated by any ON-OFF operation.
IPDM E/R diagnostic Mode Description
SELF-DIAG RESULTS Displays IPDM E/R self-diagnosis results. DATA MONITOR Displays IPDM E/R input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BBIA0369E
Page 3344 of 3383

FRONT WIPER AND WASHER SYSTEMWW-17
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "IPDM E/R" on "SELECT SYSTEM" screen.
If "IPDM E/R" is not displayed, go to GI-40, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
4. Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.
DATA MONITOR
Operation Procedure
1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
3. Touch "ALL SIGNALS", "MAIN SIGNALS" or "SELECTION FROM MENU" on the "SELECT MONITORITEM" screen.
4. Touch "START".
5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored. When "MAIN SIGNALS" is selected, predetermined items are
monitored.
6. Touch "RECORD" while monitoring to record the status of the item being monitored. To stop recording, touch "STOP".
BCIA0029E
BCIA0030E
BCIA0031E
ALL SIGNALS Monitors all the items.
MAIN SIGNALS Monitors predetermined items.
SELECTION FROM MENU Selects and monitors the individual item selected.
