Page 1129 of 3383

INFINITI QX56 2006 Factory Service Manual DI-8
COMBINATION METERS
Revision: November 20092006 QX56

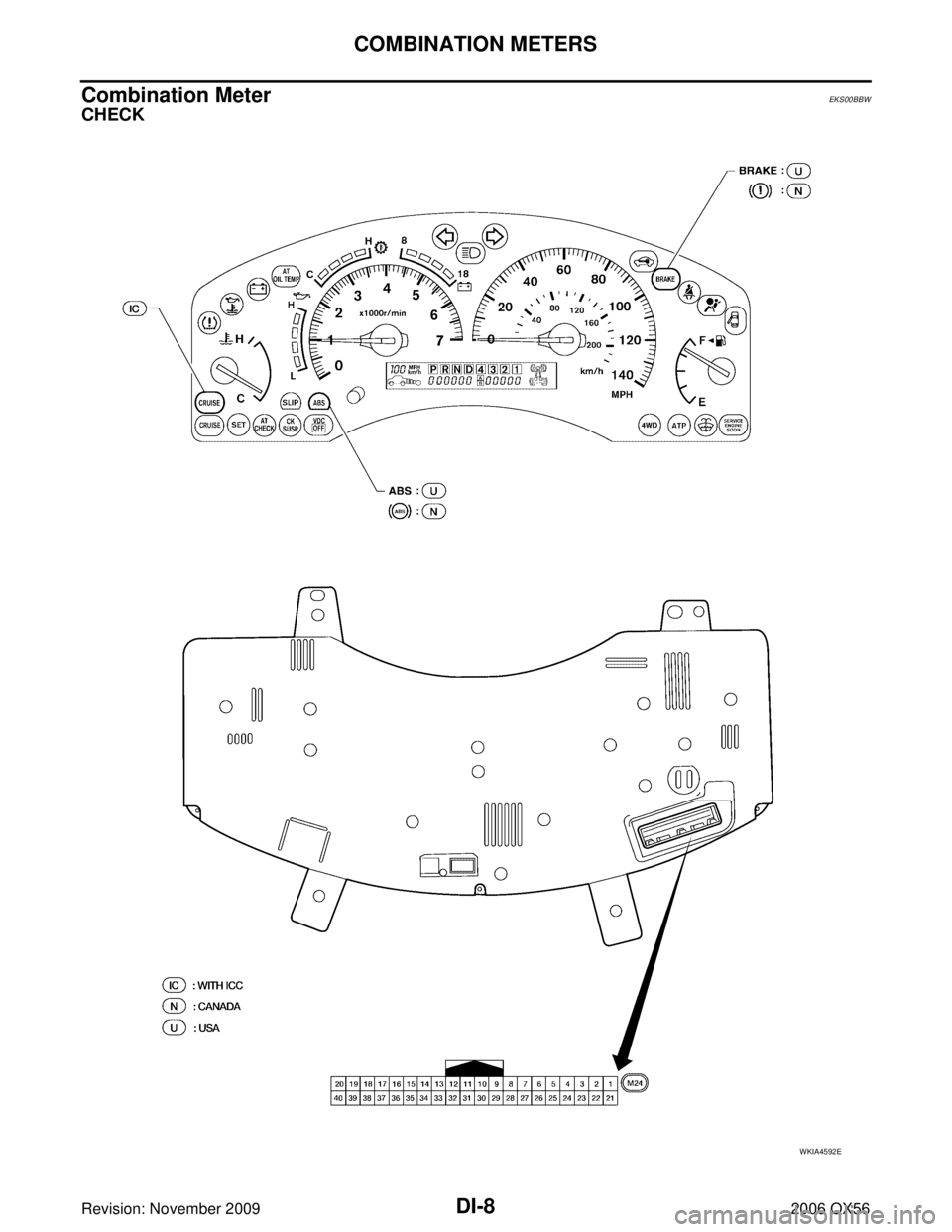

Combination MeterEKS00BBW
CHECK
WKIA4592E

Page 1130 of 3383

INFINITI QX56 2006 Factory Service Manual COMBINATION METERSDI-9
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56

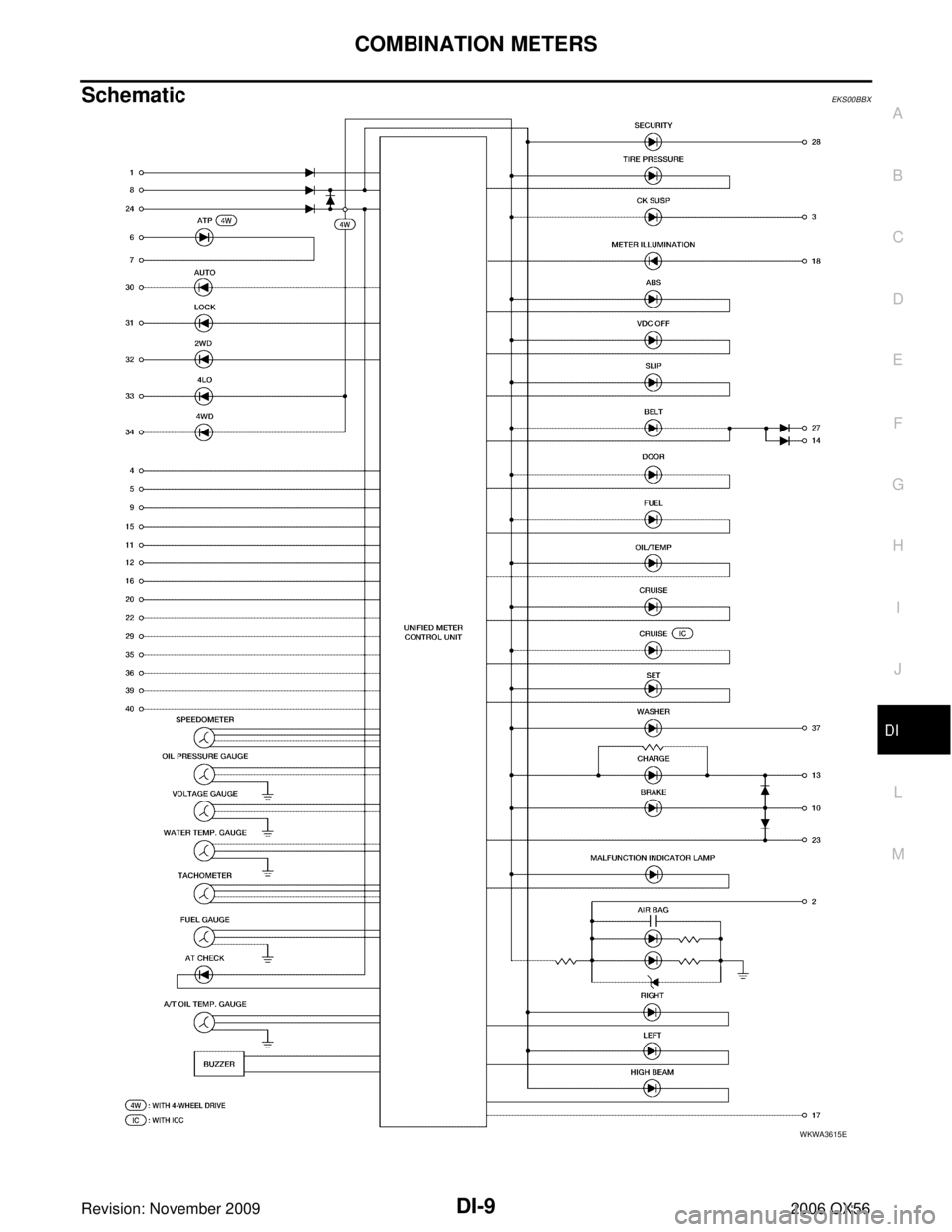

SchematicEKS00BBX
WKWA3615E

Page 1131 of 3383

INFINITI QX56 2006 Factory Service Manual DI-10
COMBINATION METERS
Revision: November 20092006 QX56

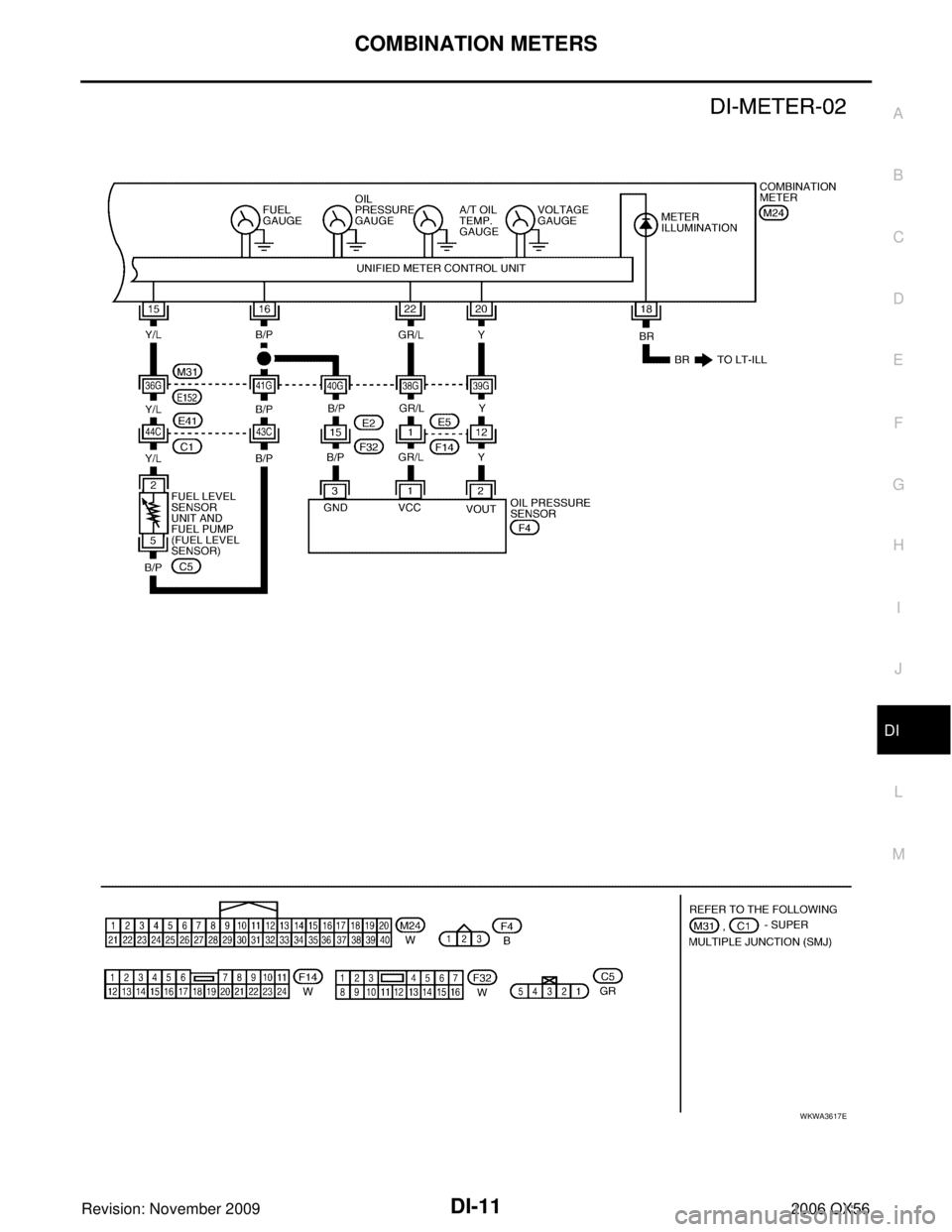

Wiring Diagram — METER —EKS00BBY
WKWA3616E

Page 1132 of 3383

INFINITI QX56 2006 Factory Service Manual COMBINATION METERSDI-11
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
WKWA3617E

Page 1133 of 3383

INFINITI QX56 2006 Factory Service Manual DI-12
COMBINATION METERS
Revision: November 20092006 QX56
Terminals and Reference Value for Combination MeterEKS00BBZ
Terminal
No. Wire
color Item Condition
Reference value (V)
(Approx.)
Ignition
s

Page 1134 of 3383

INFINITI QX56 2006 Factory Service Manual COMBINATION METERSDI-13
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
Meter/Gauge Operation and Odo/Trip MeterEKS00BC0
SELF-DIAGNOSIS FUNCTION
The following items can be checked during C

COMBINATION METERSDI-13
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
Meter/Gauge Operation and Odo/Trip MeterEKS00BC0
SELF-DIAGNOSIS FUNCTION
The following items can be checked during Combination Meter Self-Diagnosis Mode.
Gauge sweep and present gauge values.
Illuminates all odometer, fuel, and engine temperature segments.
Illuminates all micro controlled lamps/LED's regardless of switch configuration.
Displays estimated present battery voltage.
Displays seat belt buckle switch LH status.
HOW TO INITIATE COMBINATION METER SELF- DIAGNOSIS MODE
NOTE:
Once entered, Combination Meter Self-Diagnosis Mode will function with the ignition switch in ON or START.
Combination Meter Self-Diagnosis Mode will exit upon turning the ignition switch to OFF or ACC.
To initiate Combination Meter Self-Diagnosis Mode, refer to the following procedure.
1. Turn the ignition switch ON, while holding the odometer/trip meter switch for 5 - 8 seconds.
NOTE:
If the diagnosis function is activated the odometer/trip meter will display tESt.
COMBINATION METER SELF-DIAGNOSIS MODE FUNCTIONS
To interpret Combination Meter Self-Diagnosis Mode functions, refer to the following table.
Event Odometer Display Description of Test/Data Notes:
Odometer/trip meter A/B
switch held from 5 to 8
seconds (or until
released) tESt
Initiating self-diagnosis mode
Odometer/trip meter A/B
switch engaged and
released = next test
requested rXXXX, FAILReturn to normal opera-
tion of all lamps/LEDs and
displays hex ROM rev. If
a ROM checksum fault
exists, display alternates
between "r XXXX" and
"FAIL".
Next test requested nrXXXX Displays hex ROM rev as
stored in NVM.
Next test requested Sc1XX Displays 8-bit software
configuration value in Hex
format.Bit Coding
7-3 = reserved for future use
2 = TCS/VDC 0 = not present
1 = present
1 = Shift type 0 = Column shift
1 = Floor shift
0 = ICC 0 = not present
1 = present
Next test requested Sc2XX Displays 8-bit software
configuration value in Hex
format.Bit coding
7-0 = Reserved for future use
Next test requested EprXX Displays 8-bit software
configuration value in Hex
format.Bit Coding
7-2 = reserved for future use
1 = A/T Oil Temp (gauge)
0 = not present
1 = present
1 = Odo Units 0 = kilometers
1 = miles
Next test requested 1nFXX Displays 8-bit market info
value in Hex format.$31 = USA
$2A = Canada
Next test requested cYLXX Displays 8-bit engine con-
figuration value in Hex
format.$08 = 8 cylinder
$06 = 6 cylinder

Page 1135 of 3383

INFINITI QX56 2006 Factory Service Manual DI-14
COMBINATION METERS
Revision: November 20092006 QX56
Next test requested bulbIlluminates all micro-con-
trolled lamps/LEDs
regardless of SW configu-
ration.
Next test requested D-HI Meter/LCD Il

DI-14
COMBINATION METERS
Revision: November 20092006 QX56
Next test requested bulbIlluminates all micro-con-
trolled lamps/LEDs
regardless of SW configu-
ration.
Next test requested D-HI Meter/LCD Illumination.
Next test requested (All segments illuminated) Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Full daytime brightness all
LCD segments active
Next test requested N-HI Meter/LCD Illumination.
Next test requested (All segments illuminated) Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Full nighttime brightness all
LCD segments active
Next test requested N-LO Meter/LCD Illumination.
Next test requested (All segments illuminated) Lights all odometer/trip
meter, fuel, and engine
temperature display seg-
ments.Min. nighttime brightness all
LCD segments active
Next test requested dS XX Current dimming step. 1-21
Next test requested EE XX, FAIL Hex EE level. If EE
checksum fault exists,
display alternates
between "EE XX" and
"FAIL".
Next test requested dtXXXX Hex coding of final manu-
facturing test date.
Next test requested GAGE Performs sweep of all
gauges, then displays
present gauge values.
Performs checksum tests
on ROM and EE.Gauges sweep within 10 sec-
onds
Next test requested FFXXXX Displays 16-bit fuel flow
constant "Q" in tenths of
cc/min in Hex format.$0000 - $FFFF
Next test requested tF Displays 16-bit tire factor
"A" in hundredths in Hex
format.$0000 - $FFFF
Next test requested oP Current oil pressure value
in A/D counts in hex for-
mat.
$00 - $FF
Next test requested ot1XX Displays oil pressure tell-
tale "on" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested ot0XX Displays oil pressure tell-
tale "off" threshold in A/D
counts in Hex format.$00 - $FF
Next test requested XXXXX Raw uncompensated
english speed value in
hundredths of MPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Next test requested XXXXX Raw uncompensated
metric speed value in
hundredths of KPH.
Speedometer indicates
present speed.Will display "-----" if message is
not received. Will display
"99999" if data received is
invalid
Event Odometer Display Description of Test/Data Notes:

Page 1136 of 3383

INFINITI QX56 2006 Factory Service Manual COMBINATION METERSDI-15
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
Next test requested tXXXXTachometer value in
RPM. Tachometer indi-
cates present RPM.Will display "-----" if messag

COMBINATION METERSDI-15
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
Next test requested tXXXXTachometer value in
RPM. Tachometer indi-
cates present RPM.Will display "-----" if message is
not received.
Next test requested F1 XXXX Present ratioed fuel level
A/D input 1 in decimal for-
mat. Fuel gauge indicates
present filtered level.000-009 = Short circuit
010-254 = Normal range
255 = Open circuit
--- = Missing 5 seconds
Next test requested F2 XXX Present FLPS. 010-254 normal range
Next test requested FS X Fuel filter rate 0 = Normal
1 = Fast
Next test requested XXXC Last temperature gauge
input value in degrees C.
Temperature gauge indi-
cates present filtered tem-
perature.Will display "---"C if message is
not received.
Will display "999" if data
received is invalid.
Next test requested BAtXX.X Estimated present bat-
tery voltage.
Next test requested rES -X Seat belt buckle switch
LH status.0 = Unbuckled
1 = Buckled
Next test requested PA -XX Hex value port A.
Next test requested Pb -XX Hex value port B.
Next test requested PE -XX Hex value port E.
Next test requested PL -XX Hex value port L.
Next test requested P6 -XX Hex value port K.
Next test requested Pn -XX Hex value port M.
Next test requested PP -XX Hex value port P.
Next test requested PS -XX Hex value port S.
Next test requested Pt -XX Hex value port T.
Next test requested Pu -XX Hex value port U.
Next test requested P4 -XX Hex value port V.
Next test requested Puu -XX Hex value port W.
Next test requested A00XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A01XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A02XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A03XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A04XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A05XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A06XXX A/D port A/D value (non-
ratioed).
0-255
Next test requested A07XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A08XXX A/D port A/D value (non-
ratioed).0-255
Next test requested A09XXX A/D port A/D value (non-
ratioed).
0-255
Event Odometer Display Description of Test/Data Notes:
