Control Valve With TCM and A/T Fluid Temperature Sensor 2ECS00EQ0
COMPONENTS
1. Transmission assembly2. Snap ring 3. Sub-harness
4. Control valve with TCM 5. Bracket 6. A/T fluid temperature sensor 2
7. Oil pan gasket 8. Oil pan 9. Magnets
10. Drain plug 11. Drain plug gasket 12. Oil pan bolt
13. Terminal cord assembly 14. O-ring
SCIA5478E
Page 306 of 3383
ON-VEHICLE SERVICEAT-231
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
CONTROL VALVE WITH TCM REMOVAL AND INSTALLATION
Removal
1. Disconnect negative battery terminal
2. Drain ATF through drain plug.
3. Disconnect A/T assembly harness connector.
4. Remove snap ring from A/T assembly harness connector.
5. Push A/T assembly harness connector.
CAUTION:
Be careful not to damage connector.
6. Remove oil pan and oil pan gasket. Refer to AT- 2 2 8 , "
Removal" .
7. Disconnect A/T fluid temperature sensor 2 connector. CAUTION:
Be careful not to damage connector.
8. Straighten terminal clip to free terminal cord assembly and A/T fluid temperature sensor 2 harness.
SCIA5021E
SCIA5022E
SCIA5023E
SCIA5446E
Page 307 of 3383
AT-232
ON-VEHICLE SERVICE
Revision: November 20092006 QX56
9. Disconnect revolution sensor connector.
CAUTION:
Be careful not to damage connector.
10. Straighten terminal clips to free revolution sensor harness.
11. Remove bolts A, B and C from control valve with TCM.
12. Remove control valve with TCM from transmission case. CAUTION:
Be careful with the manual valve notch and manual plate
height. Remove it vertically.
13. Remove A/T fluid temperature sensor 2 with bracket from con- trol valve with TCM.
SCIA5024E
SCIA7022E
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA5139E
SCIA5142E
SCIA5301E
Page 308 of 3383
ON-VEHICLE SERVICEAT-233
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
14. Remove bracket from A/T fluid temperature sensor 2.
15. Remove O-ring from A/T assembly harness connector.
16. Disconnect TCM connectors.
CAUTION:
Be careful not to damage connectors.
17. Remove A/T assembly harness connector from control valve with TCM using suitable tool.
18. Disconnect TCM connector and park/neutral position switch connector
CAUTION:
Be careful not to damage connectors.
SCIA5264E
SCIA5155E
SCIA5447E
SCIA5448E
SCIA5449E
Page 309 of 3383
AT-234
ON-VEHICLE SERVICE
Revision: November 20092006 QX56
Installation
1. Connect TCM connector and park/neutral position switch con-
nector.
2. Install A/T assembly harness connector to control valve with TCM.
3. Connect TCM connector.
4. Install new O-ring in A/T assembly harness connector. NOTE:
Do not reuse O-ring.
Apply ATF to O-ring.
SCIA5449E
SCIA5450E
SCIA5447E
SCIA5155E
Page 310 of 3383
ON-VEHICLE SERVICEAT-235
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
5. Install A/T fluid temperature sensor 2 to bracket.
6. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to
the specified torque. Refer to AT- 2 5 0 , "
Components" .
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with
TCM.
7. Install control valve with TCM in transmission case. CAUTION:
Make sure that turbine revolution sensor securely installs
turbine revolution sensor hole.
Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.
Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.
Assemble it so that manual valve cutout is engaged with
manual plate projection.
SCIA5264E
SCIA5301E
SCIA5034E
SCIA5142E
Page 311 of 3383
AT-236
ON-VEHICLE SERVICE
Revision: November 20092006 QX56
8. Install bolts A, B and C in control valve with TCM.
9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. Then
tighten them in order (1 → 2 → 3), and then tighten other bolts.
10. Tighten control valve with TCM bolts to the specified torque. Refer to AT- 2 5 0 , "
Components" .
11. Connect A/T fluid temperature sensor 2 connector.
12. Securely fasten terminal cord assembly and A/T fluid tempera- ture sensor 2 harness with terminal clips.
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA5139E
SCIA5140E
SCIA5023E
SCIA5446E
Page 312 of 3383
ON-VEHICLE SERVICEAT-237
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56

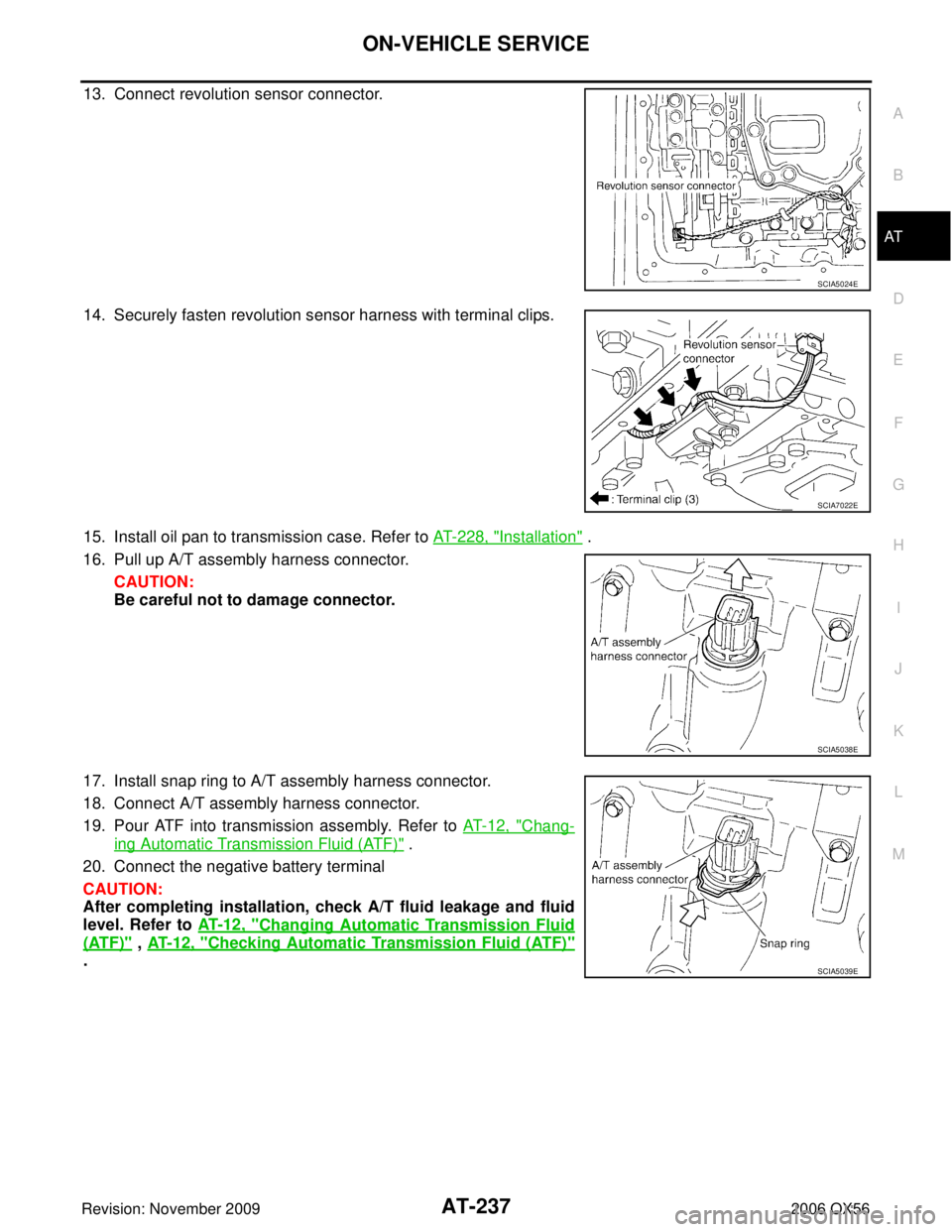

13. Connect revolution sensor connector.
14. Securely fasten revolution sensor harness with terminal clips.
15. Install oil pan to transmission case. Refer to AT- 2 2 8 , "
Installation" .
16. Pull up A/T assembly harness connector. CAUTION:
Be careful not to damage connector.
17. Install snap ring to A/T assembly harness connector.
18. Connect A/T assembly harness connector.
19. Pour ATF into transmission assembly. Refer to AT- 1 2 , "
Chang-
ing Automatic Transmission Fluid (ATF)" .
20. Connect the negative battery terminal
CAUTION:
After completing installation, check A/T fluid leakage and fluid
level. Refer to AT- 1 2 , "
Changing Automatic Transmission Fluid
(ATF)" , AT- 1 2 , "Checking Automatic Transmission Fluid (ATF)"
.
SCIA5024E
SCIA7022E
SCIA5038E
SCIA5039E
