Page 1105 of 3383

INFINITI QX56 2006 Factory Service Manual CO-8Revision: November 2009
COOLING SYSTEM
2006 QX56
COOLING SYSTEMPFP:21020
Cooling CircuitEBS00RE7
WBIA0404E

Page 1106 of 3383

INFINITI QX56 2006 Factory Service Manual COOLING SYSTEMCO-9
C
DE
F
G H
I
J
K L
M A
CO
Revision: November 2009 2006 QX56
System DrawingEBS00RE8
WBIA0463E

Page 1107 of 3383

INFINITI QX56 2006 Factory Service Manual CO-10Revision: November 2009
ENGINE COOLANT
2006 QX56
ENGINE COOLANTPFP:KQ100
InspectionEBS00RE9

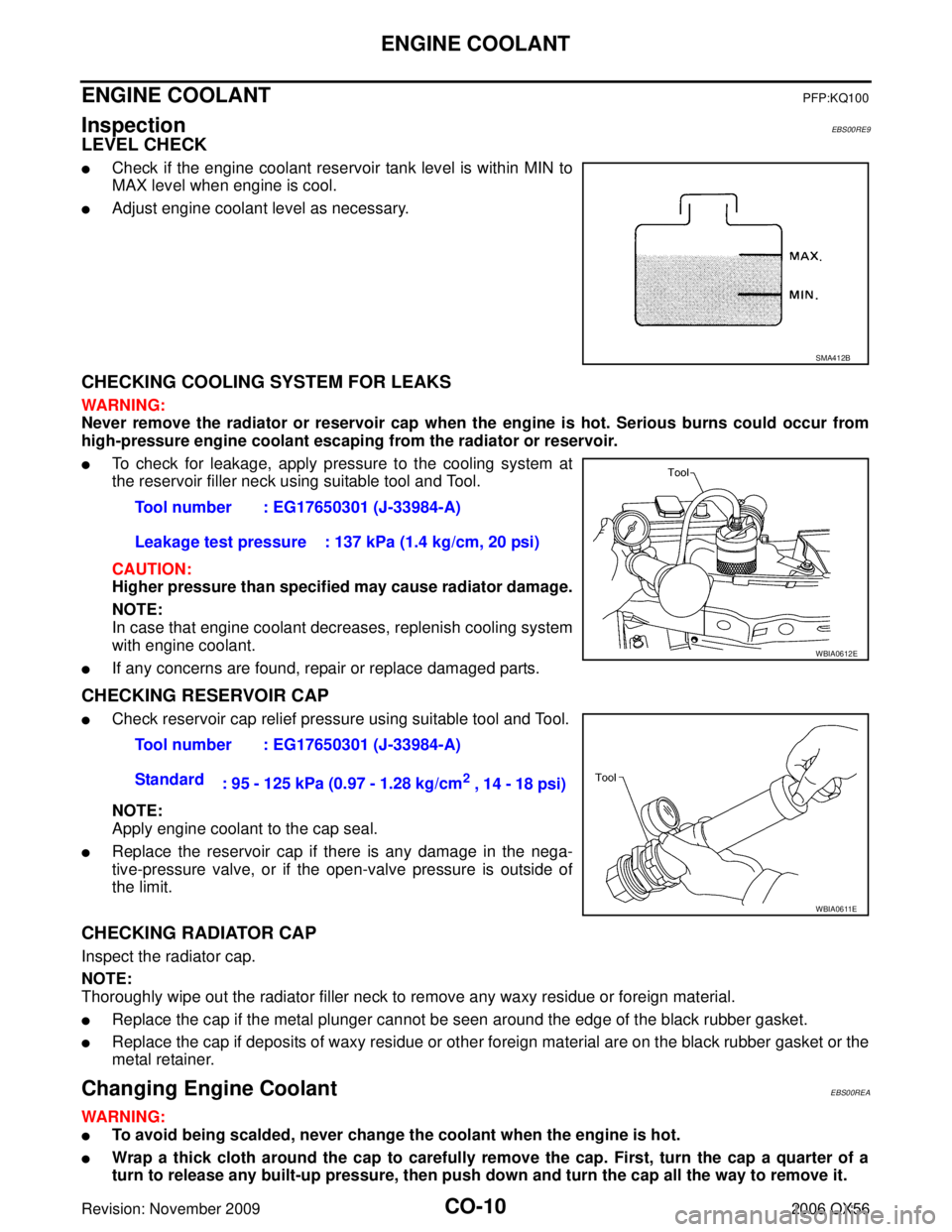

LEVEL CHECK
Check if the engine coolant reservoir tank level is within MIN to
MAX level when engine is

Page 1108 of 3383

INFINITI QX56 2006 Factory Service Manual ENGINE COOLANTCO-11
C
DE
F
G H
I
J
K L
M A
CO
Revision: November 2009 2006 QX56
DRAINING ENGINE COOLANT
1. Turn ignition switch ON and set temperature control lever all the way to HOT position or the

ENGINE COOLANTCO-11
C
DE
F
G H
I
J
K L
M A
CO
Revision: November 2009 2006 QX56

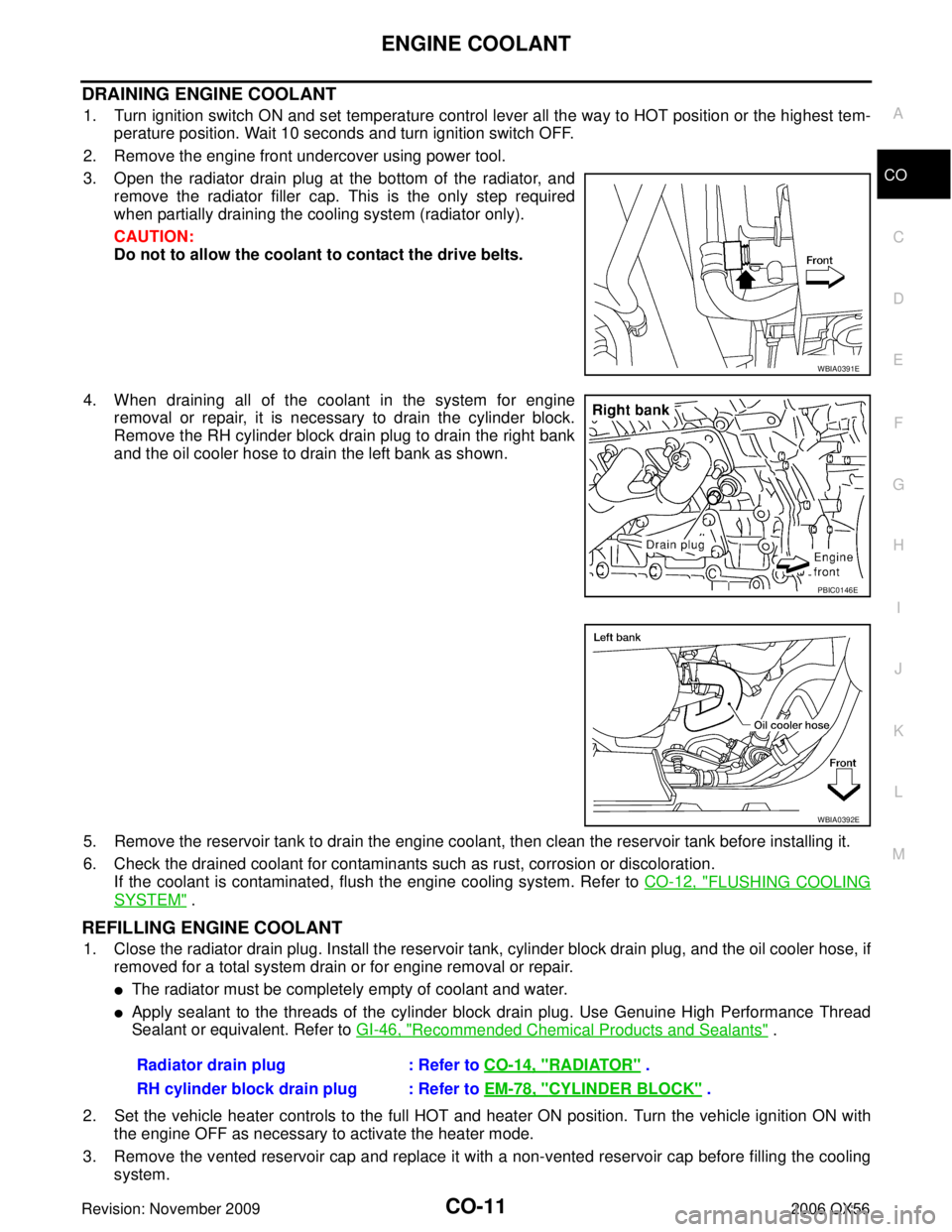

DRAINING ENGINE COOLANT
1. Turn ignition switch ON and set temperature control lever all the way to HOT position or the highest tem-
perature position. Wait 10 seconds and turn ignition switch OFF.
2. Remove the engine front undercover using power tool.
3. Open the radiator drain plug at the bottom of the radiator, and remove the radiator filler cap. This is the only step required
when partially draining the cooling system (radiator only).
CAUTION:
Do not to allow the coolant to contact the drive belts.
4. When draining all of the coolant in the system for engine removal or repair, it is necessary to drain the cylinder block.
Remove the RH cylinder block drain plug to drain the right bank
and the oil cooler hose to drain the left bank as shown.
5. Remove the reservoir tank to drain the engine coolant, then clean the reservoir tank before installing it.
6. Check the drained coolant for contaminants such as rust, corrosion or discoloration. If the coolant is contaminated, flush the engine cooling system. Refer to CO-12, "
FLUSHING COOLING
SYSTEM" .
REFILLING ENGINE COOLANT
1. Close the radiator drain plug. Install the reservoir tank, cylinder block drain plug, and the oil cooler hose, if
removed for a total system drain or for engine removal or repair.
The radiator must be completely empty of coolant and water.
Apply sealant to the threads of the cylinder block drain plug. Use Genuine High Performance Thread
Sealant or equivalent. Refer to GI-46, "
Recommended Chemical Products and Sealants" .
2. Set the vehicle heater controls to the full HOT and heater ON position. Turn the vehicle ignition ON with the engine OFF as necessary to activate the heater mode.
3. Remove the vented reservoir cap and replace it with a non-vented reservoir cap before filling the cooling system.
WBIA0391E
PBIC0146E
WBIA0392E
Radiator drain plug : Refer to CO-14, "RADIATOR" .
RH cylinder block drain plug : Refer to EM-78, "
CYLINDER BLOCK" .

Page 1109 of 3383

INFINITI QX56 2006 Factory Service Manual CO-12Revision: November 2009
ENGINE COOLANT
2006 QX56

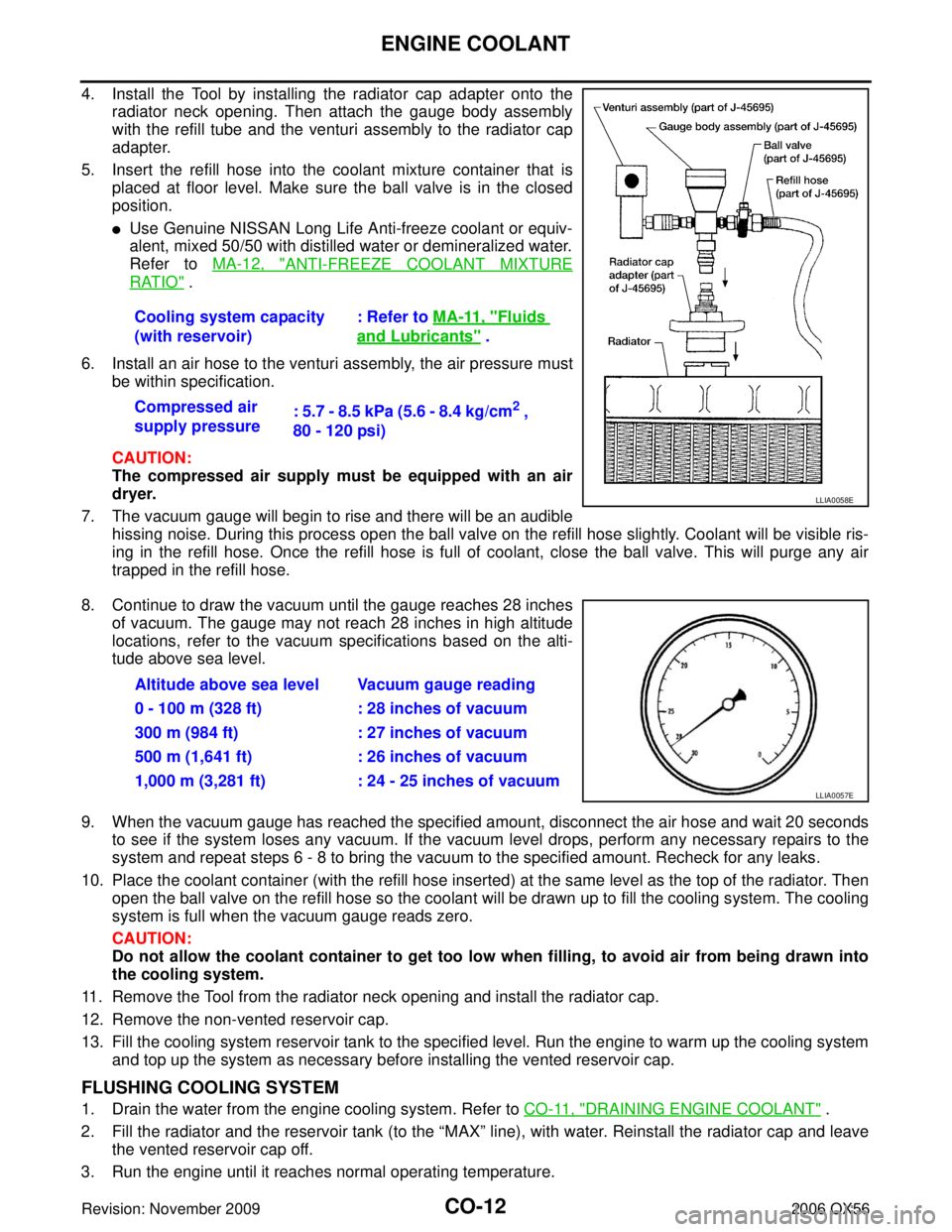

4. Install the Tool by installing the radiator cap adapter onto theradiator neck opening. Then attach the gauge body assembly
with the refill tube

CO-12Revision: November 2009
ENGINE COOLANT
2006 QX56
4. Install the Tool by installing the radiator cap adapter onto theradiator neck opening. Then attach the gauge body assembly
with the refill tube and the venturi assembly to the radiator cap
adapter.
5. Insert the refill hose into the coolant mixture container that is placed at floor level. Make sure the ball valve is in the closed
position.
Use Genuine NISSAN Long Life Anti-freeze coolant or equiv-
alent, mixed 50/50 with distilled water or demineralized water.
Refer to MA-12, "
ANTI-FREEZE COOLANT MIXTURE
RATIO" .
6. Install an air hose to the venturi assembly, the air pressure must be within specification.
CAUTION:
The compressed air supply must be equipped with an air
dryer.
7. The vacuum gauge will begin to rise and there will be an audible hissing noise. During this process open the ball valve on the refill hose slightly. Coolant will be visible ris-
ing in the refill hose. Once the refill hose is full of coolant, close the ball valve. This will purge any air
trapped in the refill hose.
8. Continue to draw the vacuum until the gauge reaches 28 inches of vacuum. The gauge may not reach 28 inches in high altitude
locations, refer to the vacuum specifications based on the alti-
tude above sea level.
9. When the vacuum gauge has reached the specified amount, disconnect the air hose and wait 20 seconds to see if the system loses any vacuum. If the vacuum level drops, perform any necessary repairs to the
system and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for any leaks.
10. Place the coolant container (with the refill hose inserted) at the same level as the top of the radiator. Then open the ball valve on the refill hose so the coolant will be drawn up to fill the cooling system. The cooling
system is full when the vacuum gauge reads zero.
CAUTION:
Do not allow the coolant container to get too low when filling, to avoid air from being drawn into
the cooling system.
11. Remove the Tool from the radiator neck opening and install the radiator cap.
12. Remove the non-vented reservoir cap.
13. Fill the cooling system reservoir tank to the specified level. Run the engine to warm up the cooling system and top up the system as necessary before installing the vented reservoir cap.
FLUSHING COOLING SYSTEM
1. Drain the water from the engine cooling system. Refer to CO-11, "DRAINING ENGINE COOLANT" .
2. Fill the radiator and the reservoir tank (to the “MAX ” line), with water. Reinstall the radiator cap and leave
the vented reservoir cap off.
3. Run the engine until it reaches normal operating temperature. Cooling system capacity
(with reservoir)
: Refer to
MA-11, "
Fluids
and Lubricants" .
Compressed air
supply pressure : 5.7 - 8.5 kPa (5.6 - 8.4 kg/cm
2 ,
80 - 120 psi)
LLIA0058E
Altitude above sea level Vacuum gauge reading
0 - 100 m (328 ft) : 28 inches of vacuum
300 m (984 ft) : 27 inches of vacuum
500 m (1,641 ft) : 26 inches of vacuum
1,000 m (3,281 ft) : 24 - 25 inches of vacuum
LLIA0057E

Page 1110 of 3383

INFINITI QX56 2006 Factory Service Manual ENGINE COOLANTCO-13
C
DE
F
G H
I
J
K L
M A
CO
Revision: November 2009 2006 QX56
4. Press the engine accelerator two or three times under no-load.
5. Stop the engine and wait until it cools down.
6. Dr

Page 1111 of 3383

INFINITI QX56 2006 Factory Service Manual CO-14Revision: November 2009

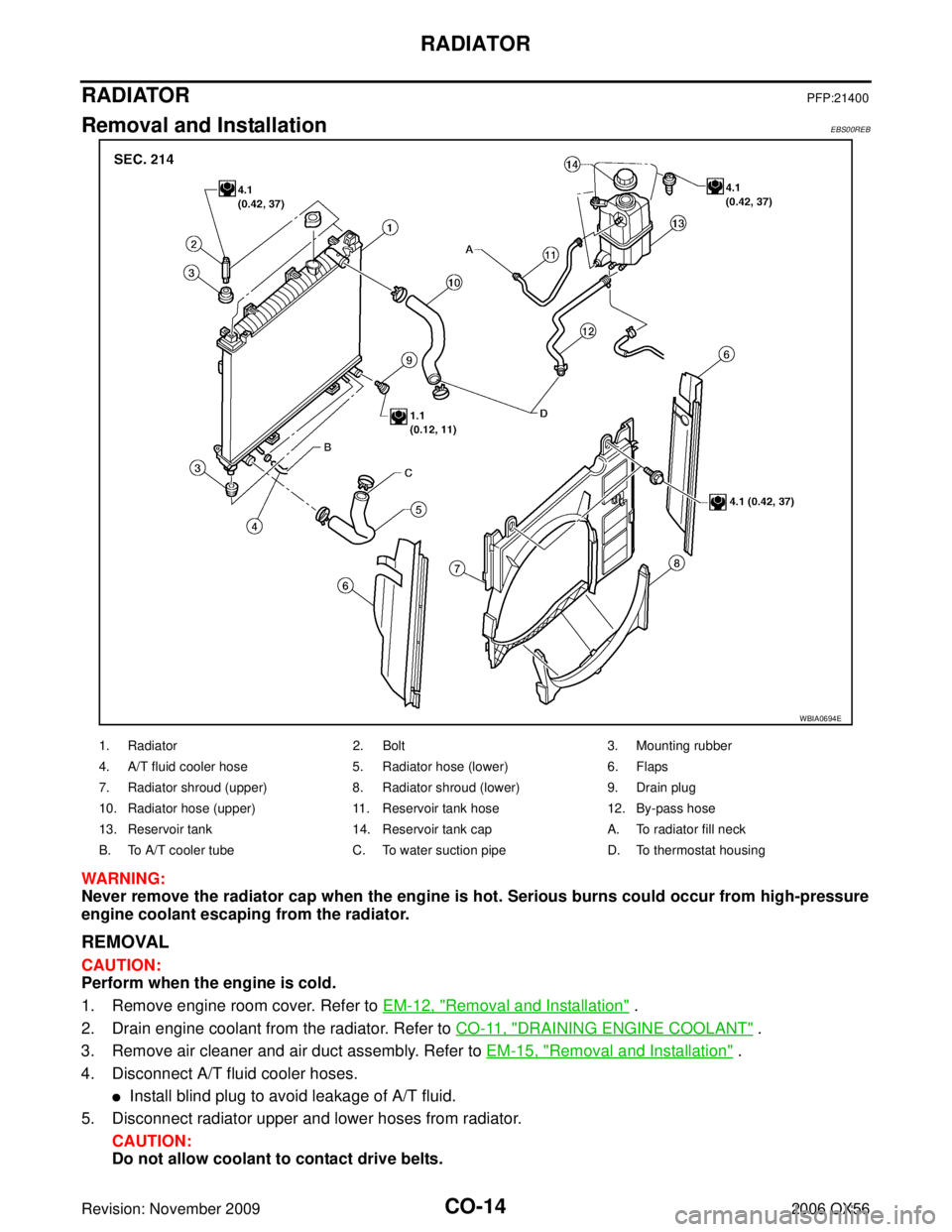

RADIATOR
2006 QX56
RADIATORPFP:21400
Removal and InstallationEBS00REB
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high-pr

Page 1112 of 3383

INFINITI QX56 2006 Factory Service Manual RADIATORCO-15
C
DE
F
G H
I
J
K L
M A
CO
Revision: November 2009 2006 QX56
6. Remove the lower radiator shroud.
Release the tabs, pull lower radiator shroud rearwards and
down to remove.
7. Remove the
