Page 1977 of 3383

INFINITI QX56 2006 Factory Service Manual EM-86Revision: November 2009 CYLINDER BLOCK 2006 QX56 15. Tighten connecting rod bolts using Tool. Apply engine oil to threads and seats of connecting rod bolts. After tightening bolts, make sure t

Page 1978 of 3383

INFINITI QX56 2006 Factory Service Manual CYLINDER BLOCKEM-87 C DE F G H I J K L M A EM Revision: November 2009 2006 QX56 Install drive plate, reinforcement plate and pilot converter (if not installed in step 4) as shown. Face the chamfered

Page 1979 of 3383

INFINITI QX56 2006 Factory Service Manual EM-88Revision: November 2009 CYLINDER BLOCK 2006 QX56 When Cylinder Block is Reused 1. Measure cylinder block bore diameter. 2. Determine the bore grade by comparing the measurement with the values un

Page 1980 of 3383

INFINITI QX56 2006 Factory Service Manual CYLINDER BLOCKEM-89 C DE F G H I J K L M A EM Revision: November 2009 2006 QX56 2. Apply the pin diameter grade stamped on the crankshaft front side to the column in the “Connecting Rod Bearing Sel

Page 1981 of 3383

INFINITI QX56 2006 Factory Service Manual EM-90Revision: November 2009 CYLINDER BLOCK 2006 QX56 Bearing undersize table Unit: mm (in) CAUTION: In grinding the crankshaft pin to use undersize bearings, keep the fillet R (All crankshaft pins

Page 1982 of 3383

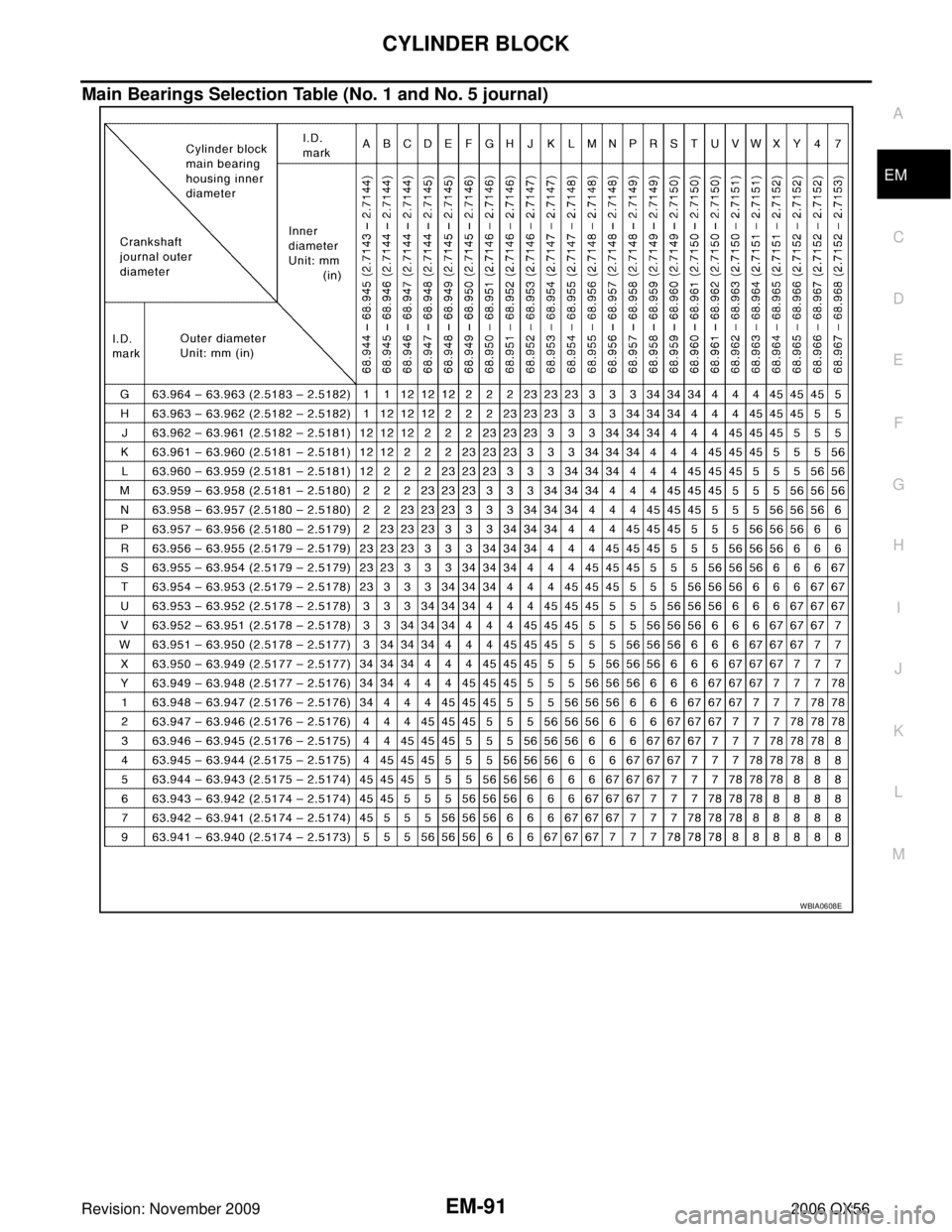

INFINITI QX56 2006 Factory Service Manual CYLINDER BLOCKEM-91 C DE F G H I J K L M A EM Revision: November 2009 2006 QX56 Main Bearings Selection Table (No. 1 and No. 5 journal) WBIA0608E

Page 1983 of 3383

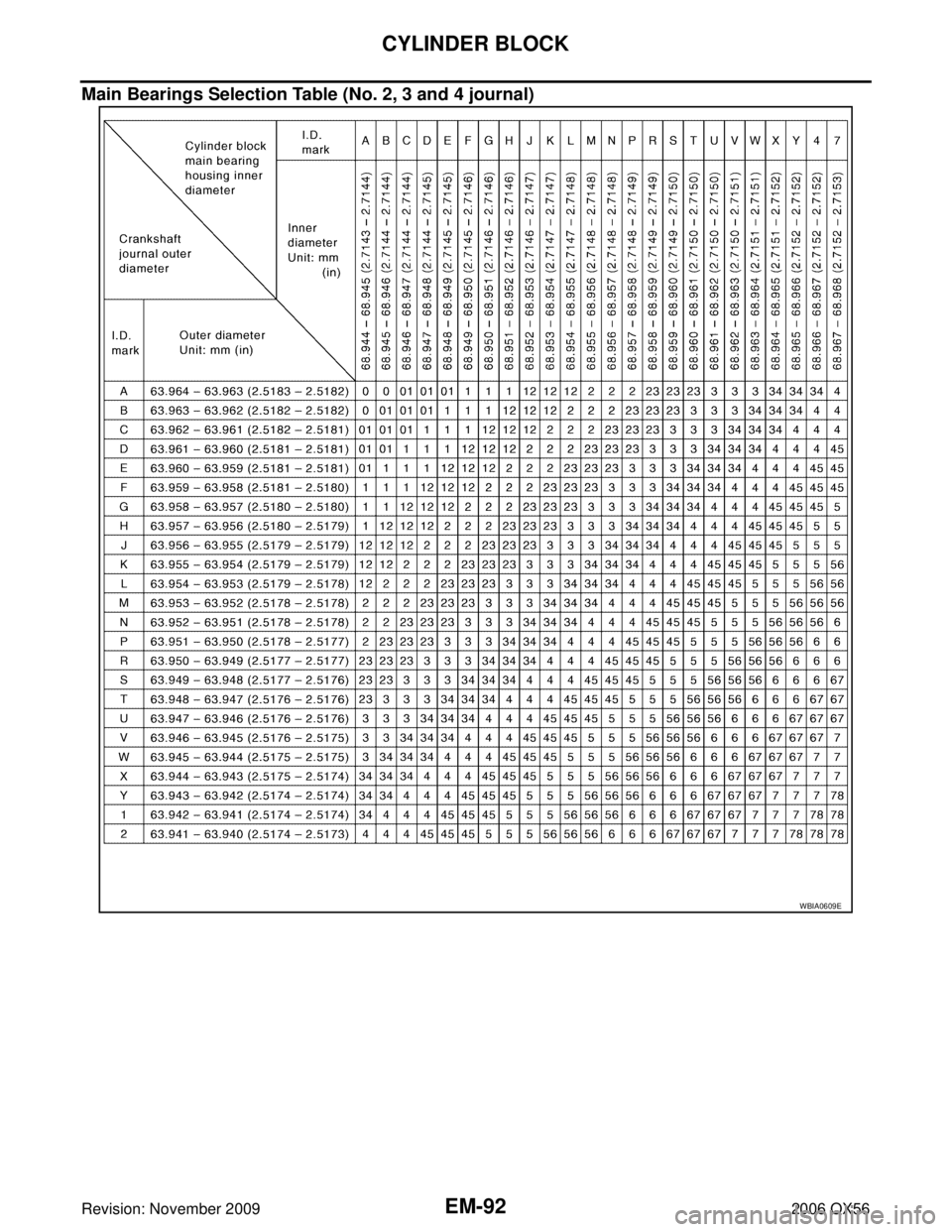

INFINITI QX56 2006 Factory Service Manual EM-92Revision: November 2009 CYLINDER BLOCK 2006 QX56 Main Bearings Selection Table (No. 2, 3 and 4 journal) WBIA0609E

Page 1984 of 3383

INFINITI QX56 2006 Factory Service Manual CYLINDER BLOCKEM-93 C DE F G H I J K L M A EM Revision: November 2009 2006 QX56 Main Bearings Grade Table (All Journals) Unit: mm (in) Use Undersize Bearing Usage Guide Use undersize (US) bearing whe
