DTC P1572 ICC BRAKE SWITCH
2006 QX56
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionUBS00L1W
When the brake pedal is depressed, ICC brake switch is turned OFF
and stop lamp switch is turned ON. ECM detects the state of the
brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeUBS00L1X
Specification data are reference values.
On Board Diagnosis LogicUBS00L1Y
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-457, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
BBIA0470E
MONITOR ITEM CONDITIONSPECIFICATION
BRAKE SW1
(ICC brake switch)
Ignition switch: ON Brake pedal: Fully released
ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(stop lamp switch)
Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble diagnosis
name DTC detecting condition
Possible cause
P1572
1572 ICC brake switch A)
When vehicle speed is above 30 km/h (19
MPH), ON signals from the stop lamp
switch and the ICC brake switch are sent
to ECM at the same time.
Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ICC brake switch circuit is shorted.)
Stop lamp switch
ICC brake switch
ICC brake hold relay
Incorrect stop lamp switch installation
Incorrect ICC brake switch installation
ECM
B)
ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving
Page 1714 of 3383

DTC P1572 ICC BRAKE SWITCHEC-503
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC Confirmation ProcedureUBS00L1Z
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR ” mode with CONSULT-II.
3. Press MAIN switch and make sure that CRUISE lamp lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
If 1st trip DTC is detected, go to EC-505, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to the following step.
5. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
6. If 1st trip DTC is detected, go to EC-505, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
PBIB2386E
VHCL SPEED SEMore than 30 km/h (19 MPH)
Selector lever Suitable position
Driving location Depress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
Page 1715 of 3383
EC-504Revision: November 2009
DTC P1572 ICC BRAKE SWITCH
2006 QX56

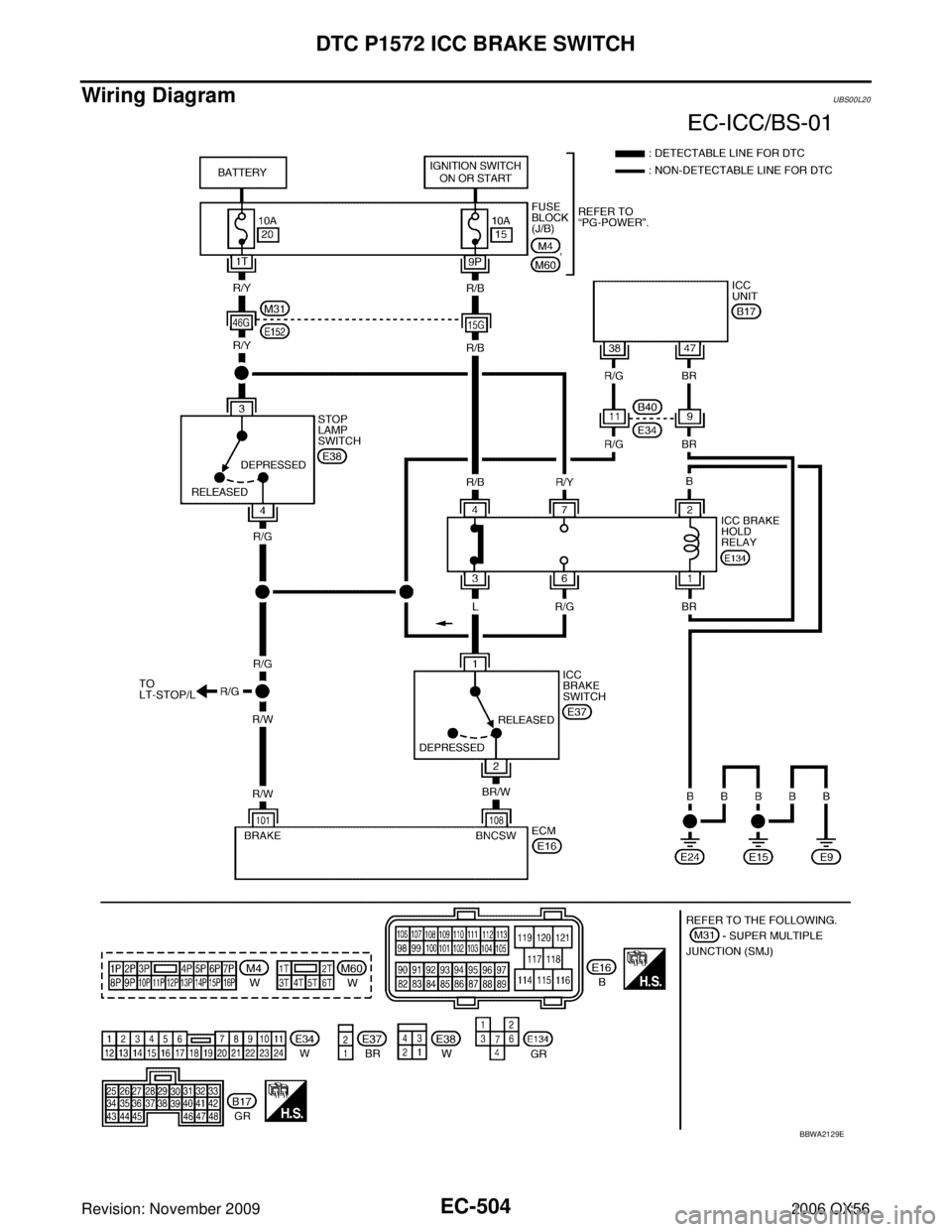

Wiring Diagram UBS00L20
BBWA2129E
Page 1716 of 3383

DTC P1572 ICC BRAKE SWITCHEC-505
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00L21
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1 ” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW1 ” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
101 R/W Stop lamp switch [Ignition switch: OFF]
Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
108 BR/W ICC brake switch [Ignition switch: ON]
Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]
Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
CONDITION
INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
SEC011D
CONDITIONVOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E
Page 1717 of 3383
EC-506Revision: November 2009
DTC P1572 ICC BRAKE SWITCH
2006 QX56
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2 ” indication in “DATA MONITOR ” mode.
Without CONSULT-II
Check voltage between ECM terminal 101 and ground under the fol-
lowing conditions.
OK or NG
OK >> GO TO 14.
NG >> GO TO 10.
3. CHECK DTC WITH ICC UNIT
Refer to .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
CONDITION INDICATION
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
SEC013D
CONDITIONVOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB1537E
Page 1718 of 3383

DTC P1572 ICC BRAKE SWITCHEC-507
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
4. CHECK ICC BRAKE HOLD RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake hold relay.
3. Turn ignition switch ON.
4. Check voltage between ICC brake hold relay terminal 4 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M31, E152
Fuse block (J/B) connector M4
10A fuse
Harness for open or short between ICC brake hold relay and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Check harness continuity between ICC brake hold relay terminal 3 and ICC brake switch terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
BBIA0471E
Voltage: Battery voltage
MBIB0059E
Continuity should exist.
BBIA0470E
Page 1719 of 3383

EC-508Revision: November 2009
DTC P1572 ICC BRAKE SWITCH
2006 QX56
7. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ICC brake switch terminal 2 and ECM terminal 108. Refer Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK ICC BRAKE HOLD RELAY
Refer to EC-509, "
Component Inspection" .
OK >> GO TO 9.
NG >> Replace ICC brake hold relay.
9. CHECK ICC BRAKE SWITCH
Refer to EC-509, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace ICC brake switch.
10. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 3 and ground with CONSULT -II or tester.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11. Continuity should exist.
BBIA0470E
Voltage: Battery voltage
PBIB2102E
Page 1720 of 3383

DTC P1572 ICC BRAKE SWITCHEC-509
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M31, E152
Fuse block (J/B) No. 1 connector M60
10A fuse
Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK STOP LAMP SWITCH
Refer to EC-509, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace stop lamp switch.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionUBS00L22
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Check continuity between ICC brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ICC brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
Continuity should exist.
Condition
Continuity
Brake pedal: Fully released. Should exist.
Brake pedal: Slightly depressed. Should not exist.
PBIB1536E
