Page 2201 of 3383

INFINITI QX56 2006 Factory Service Manual GW-56 POWER WINDOW SYSTEM Revision: November 20092006 QX56 2. CHECK REAR POWER WINDOW SWITCH RH CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect rear power window switch RH and rear power win- dow c

Page 2202 of 3383

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-57 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 2. CHECK LIMIT SWITCH GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect rear power window motor LH or RH. 3

Page 2203 of 3383

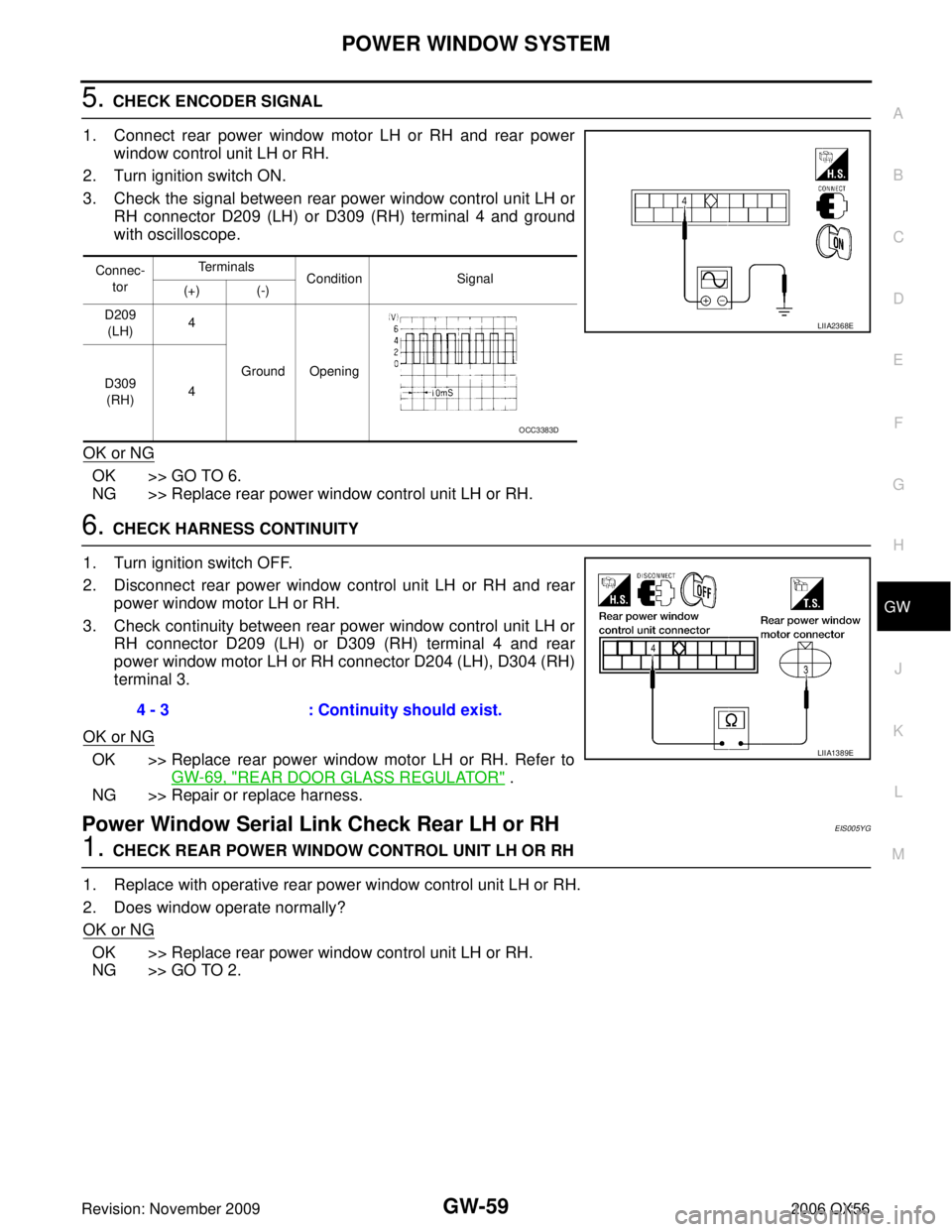

INFINITI QX56 2006 Factory Service Manual GW-58 POWER WINDOW SYSTEM Revision: November 20092006 QX56 Encoder Circuit Check Rear LH or RHEIS005YF 1. CHECK REAR POWER WINDOW MOTOR LH OR RH POWER SUPPLY 1. Turn ignition switch OFF. 2. Disconnect

Page 2204 of 3383

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-59 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 5. CHECK ENCODER SIGNAL 1. Connect rear power window motor LH or RH and rear power window control unit LH or RH. 2.

Page 2205 of 3383

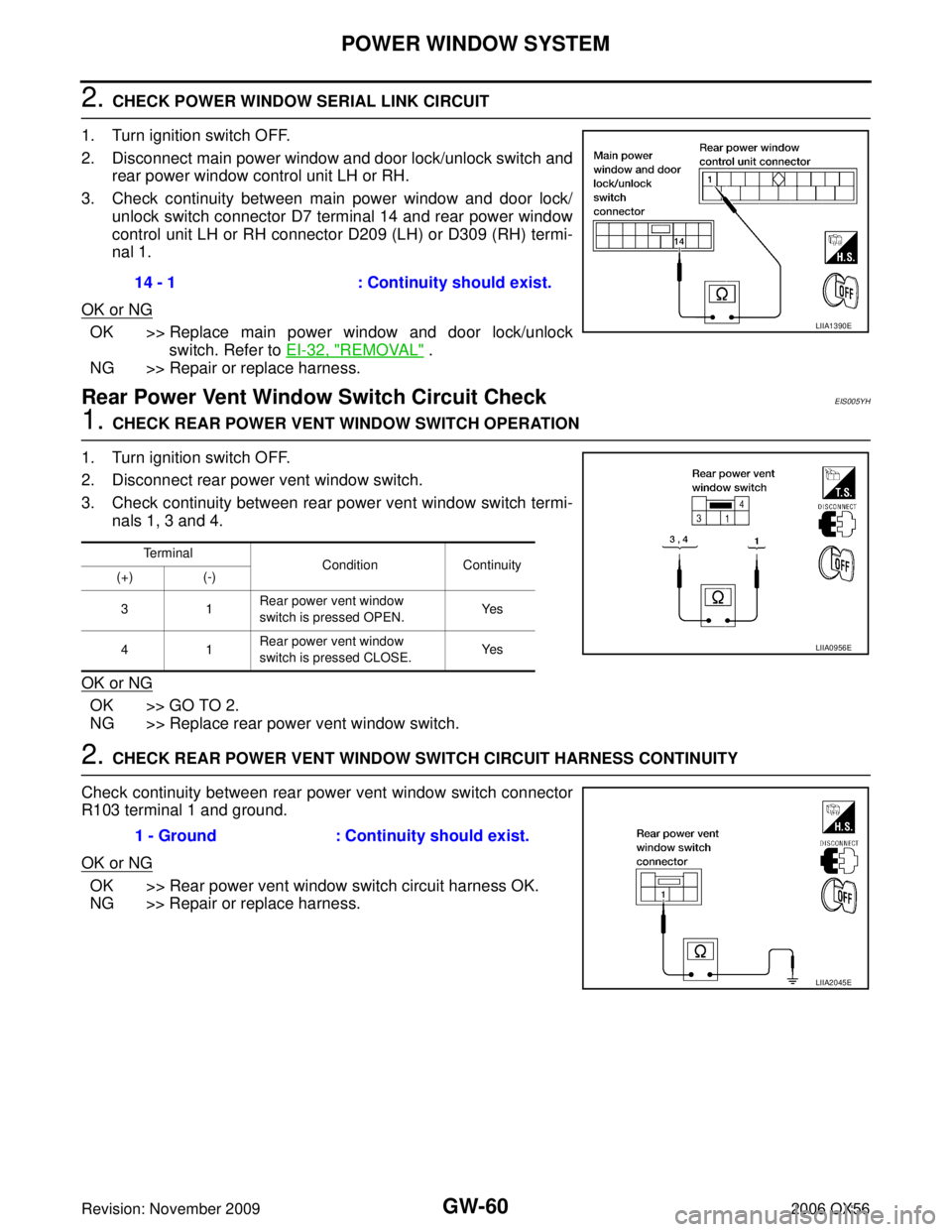

INFINITI QX56 2006 Factory Service Manual GW-60 POWER WINDOW SYSTEM Revision: November 20092006 QX56 2. CHECK POWER WINDOW SERIAL LINK CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect main power window and door lock/unlock switch and rear p

Page 2206 of 3383

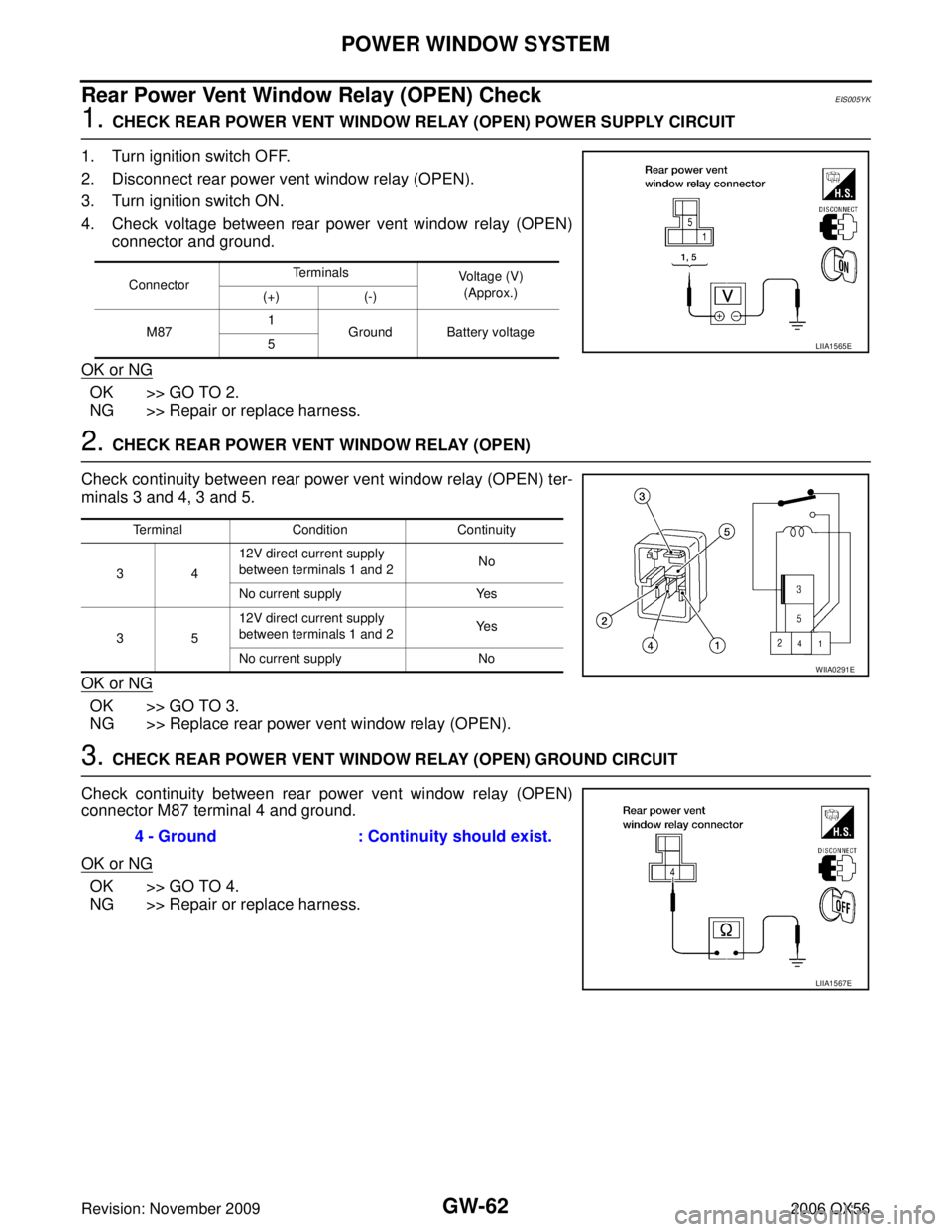

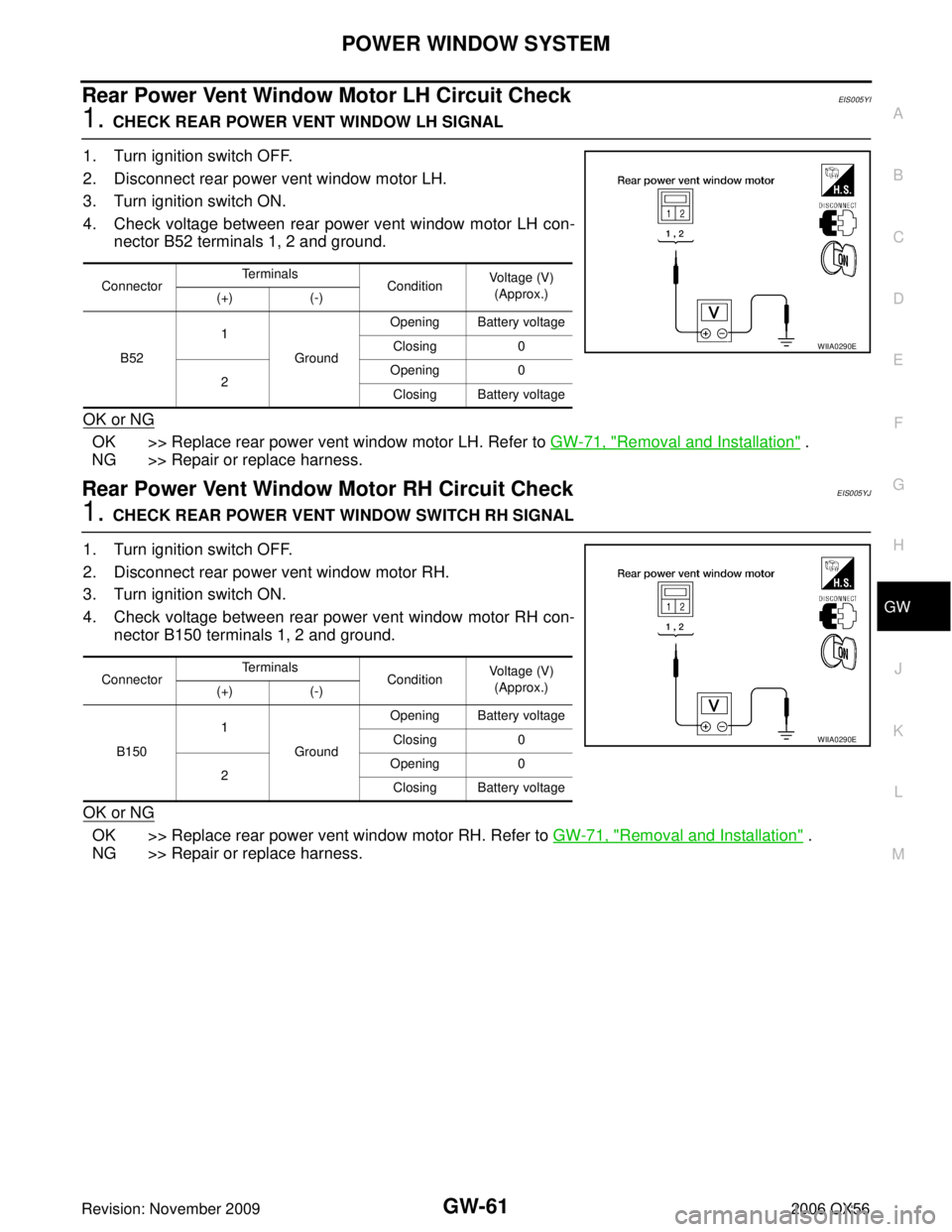

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-61 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 Rear Power Vent Window Motor LH Circuit CheckEIS005YI 1. CHECK REAR POWER VENT WINDOW LH SIGNAL 1. Turn ignition sw

Page 2207 of 3383

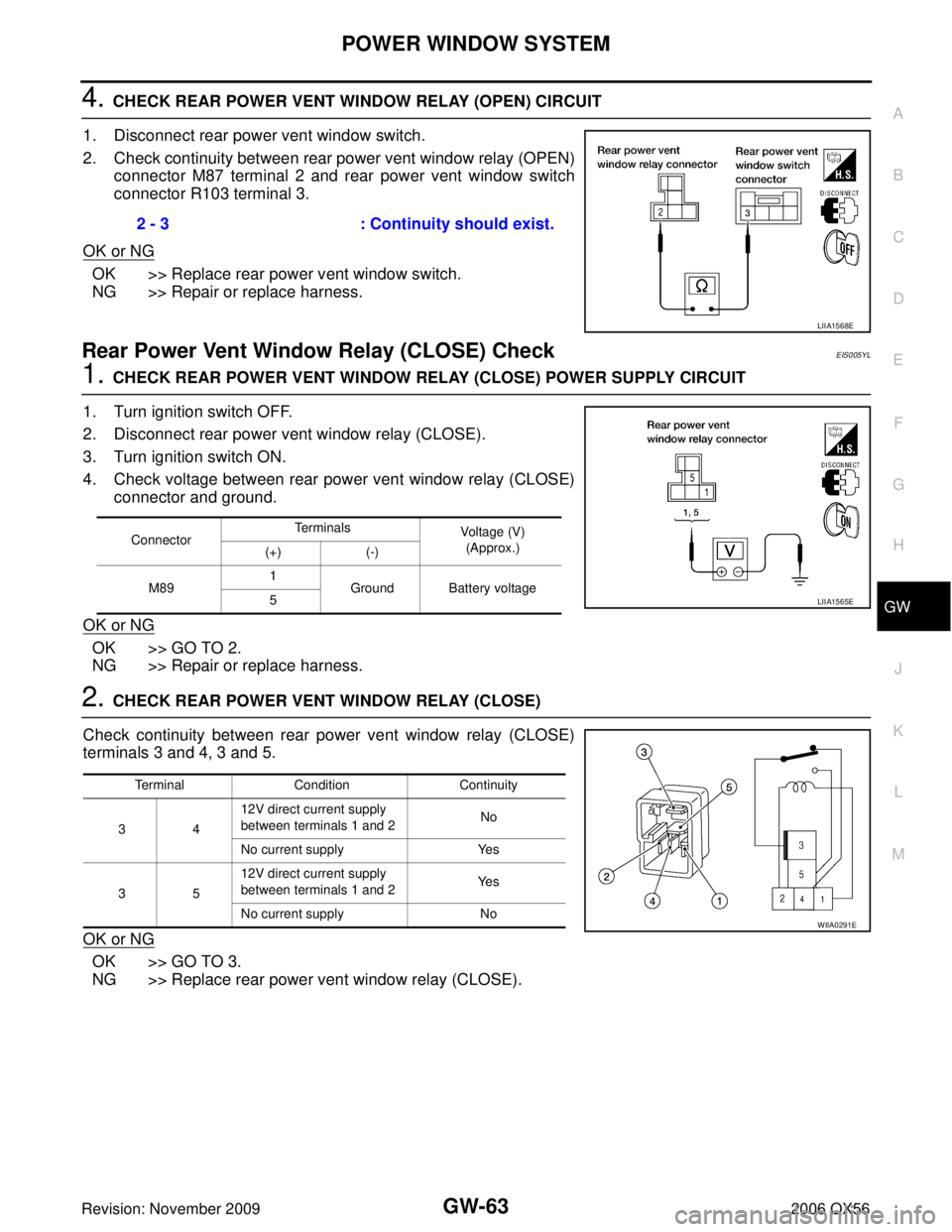

INFINITI QX56 2006 Factory Service Manual GW-62 POWER WINDOW SYSTEM Revision: November 20092006 QX56 Rear Power Vent Window Relay (OPEN) CheckEIS005YK 1. CHECK REAR POWER VENT WINDOW RELAY (OPEN) POWER SUPPLY CIRCUIT 1. Turn ignition switch O

Page 2208 of 3383

INFINITI QX56 2006 Factory Service Manual POWER WINDOW SYSTEMGW-63 C DE F G H J K L M A B GW Revision: November 2009 2006 QX56 4. CHECK REAR POWER VENT WINDOW RELAY (OPEN) CIRCUIT 1. Disconnect rear power vent window switch. 2. Check continui
