Page 3257 of 3383

INFINITI QX56 2006 Factory Service Manual TF-152 TRANSFER ASSEMBLY Revision: November 20092006 QX56 21. Remove the sun gear assembly and planetary carrier assembly from the front case using Tool. 22. Remove the snap ring and internal gear usi

Page 3258 of 3383

INFINITI QX56 2006 Factory Service Manual TRANSFER ASSEMBLYTF-153 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 26. Remove the snap ring from the planetary carrier assembly using suitable tool. 27. Remove the sun gear assembly f

Page 3259 of 3383

INFINITI QX56 2006 Factory Service Manual TF-154 TRANSFER ASSEMBLY Revision: November 20092006 QX56 31. Remove the metal bushing from the sun gear using Tools. Center Case 1. Remove the rear case assembly. Refer to TF-148, "Rear Case" . 2. Re

Page 3260 of 3383

INFINITI QX56 2006 Factory Service Manual TRANSFER ASSEMBLYTF-155 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 6. Remove the neutral-4LO and ATP switches. 7. Remove the bolts and main oil pump cover. 8. Remove the outer gear, i

Page 3261 of 3383

INFINITI QX56 2006 Factory Service Manual TF-156 TRANSFER ASSEMBLY Revision: November 20092006 QX56 11. Remove the snap ring and washer holder from the mainshaft. 12. Remove the C-rings from the mainshaft using suitable tool. 13. Set the cent

Page 3262 of 3383

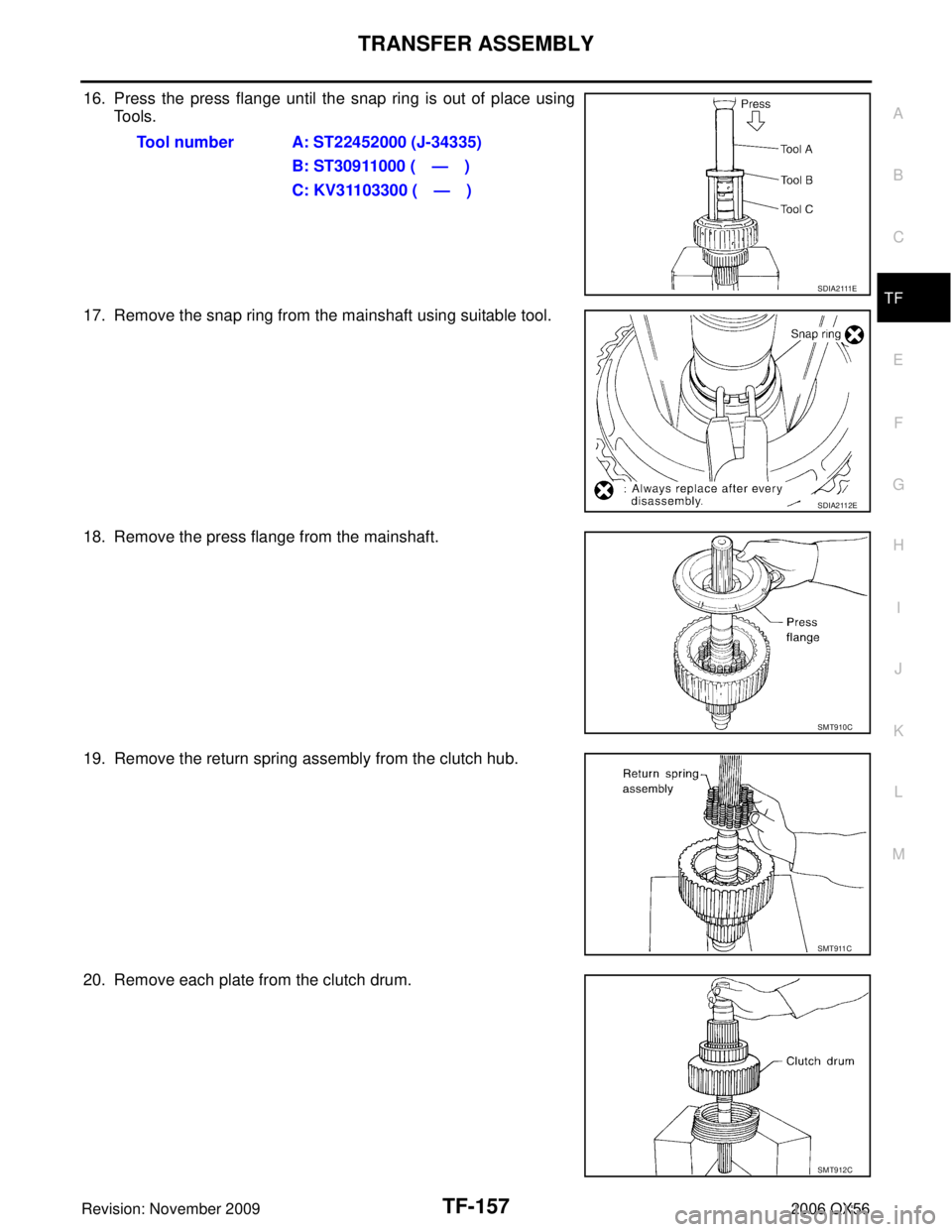

INFINITI QX56 2006 Factory Service Manual TRANSFER ASSEMBLYTF-157 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 16. Press the press flange until the snap ring is out of place using To o l s . 17. Remove the snap ring from the ma

Page 3263 of 3383

INFINITI QX56 2006 Factory Service Manual TF-158 TRANSFER ASSEMBLY Revision: November 20092006 QX56 21. Remove the snap ring from the mainshaft. 22. Remove the mainshaft from the clutch drum and clutch hub using suitable tool. 23. Remove the

Page 3264 of 3383

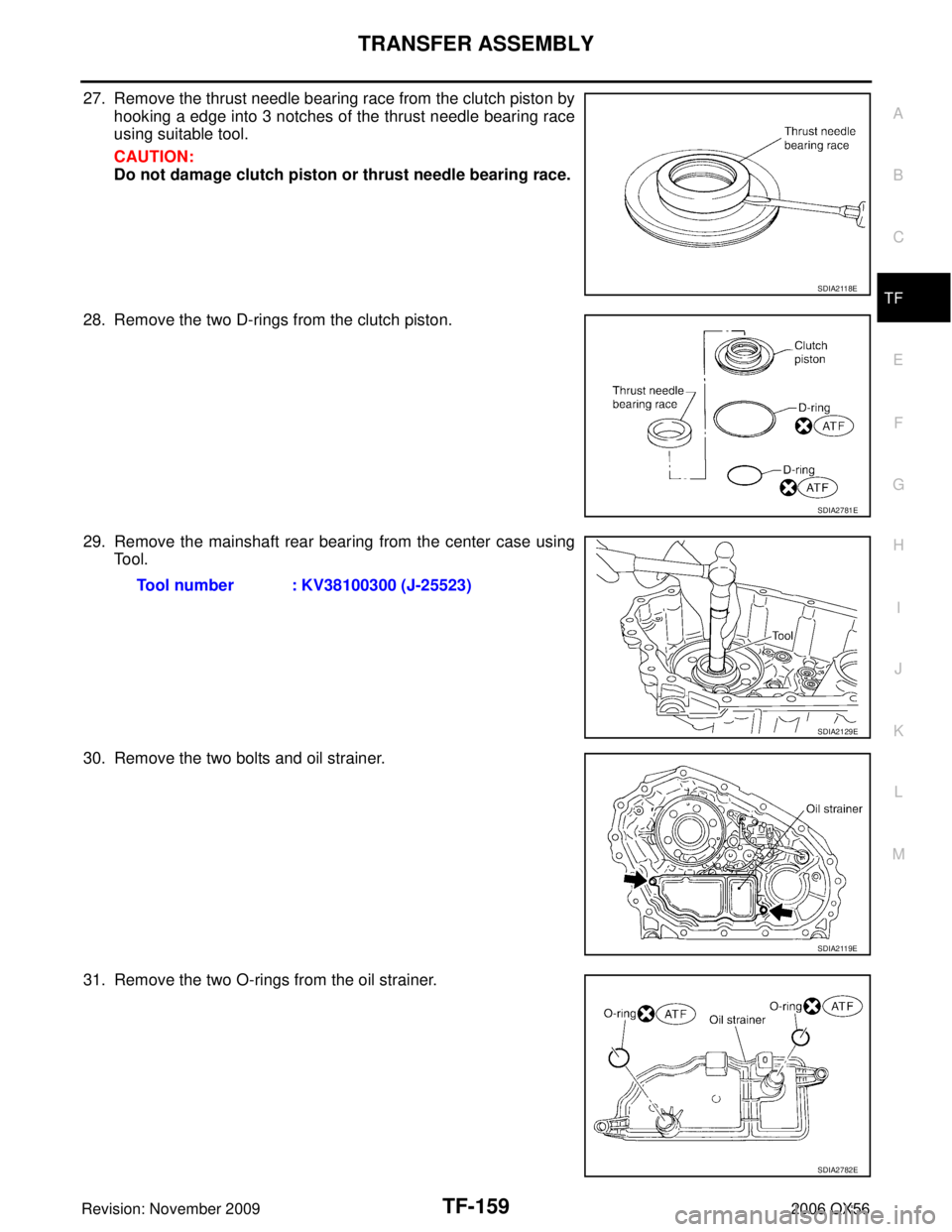

INFINITI QX56 2006 Factory Service Manual TRANSFER ASSEMBLYTF-159 CE F G H I J K L M A B TF Revision: November 2009 2006 QX56 27. Remove the thrust needle bearing race from the clutch piston by hooking a edge into 3 notches of the thrust need
