Page 2505 of 3383
LT-98
LIGHTING AND TURN SIGNAL SWITCH
Revision: November 20092006 QX56
LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationEKS00BA5
REMOVAL
1. Remove steering column cover.
2. While pressing tabs, pull lighting and turn signal switch toward
driver door and disconnect from the base.
INSTALLATION
Installation is in the reverse order of removal.
LKIA0013E
Page 2506 of 3383
HAZARD SWITCHLT-99
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
HAZARD SWITCHPFP:25290
Removal and InstallationEKS00BA6
REMOVAL
1. Remove cluster lid C. Refer to IP-12, "Removal" .
2. Remove screws and remove the hazard switch.
INSTALLATION
Installation is in the reverse order of removal.
WKIA1897E
Page 2507 of 3383
LT-100
COMBINATION SWITCH
Revision: November 20092006 QX56
COMBINATION SWITCHPFP:25567

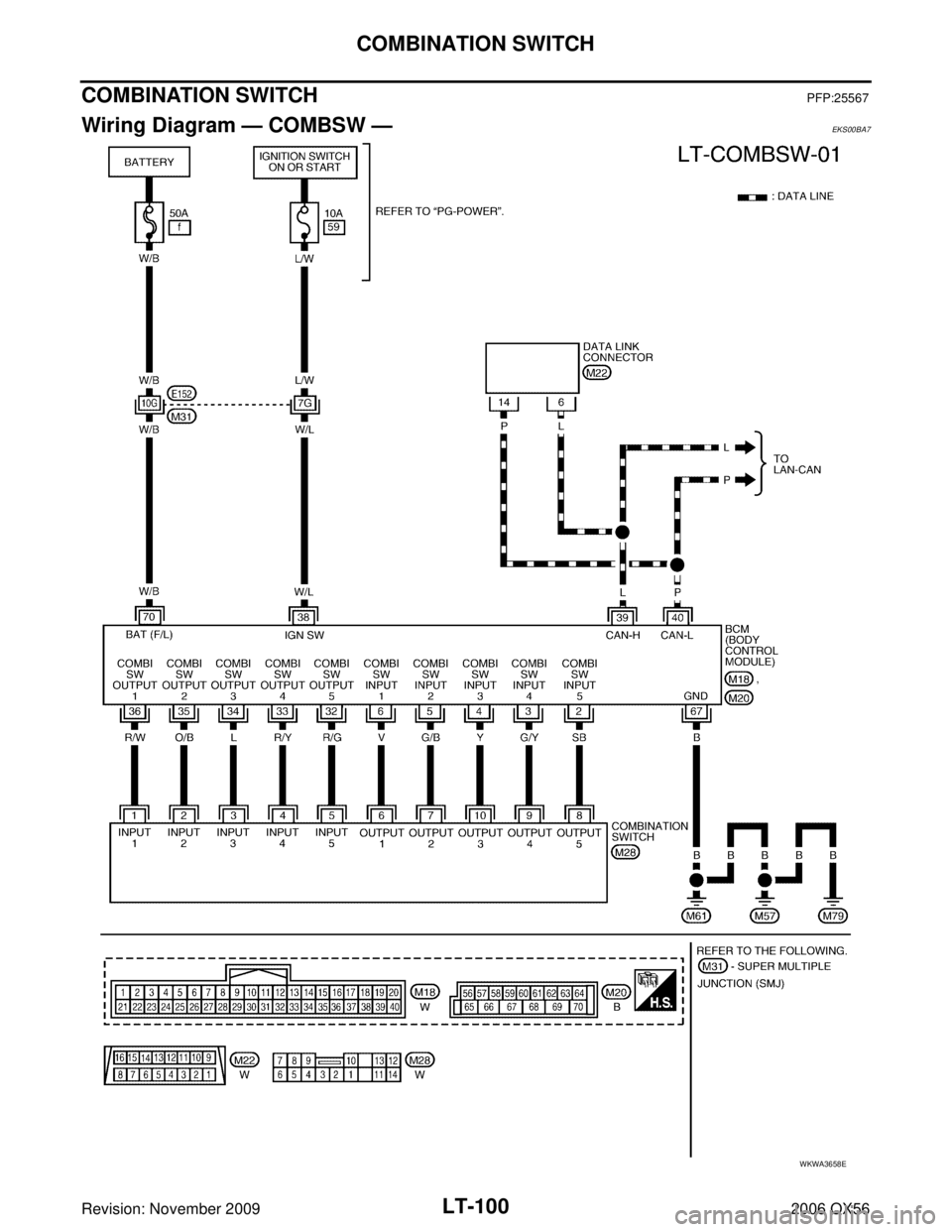

Wiring Diagram — COMBSW —EKS00BA7
WKWA3658E
Page 2508 of 3383

COMBINATION SWITCHLT-101
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Combination Switch Reading FunctionEKS00BA8
For details, refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CONSULT-II Function (BCM)EKS00BA9
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
BCM diagnostic
test item Diagnostic mode
Description
Inspection by part WORK SUPPORT
Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. ECU PART NUMBER BCM part number can be read.CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E
BCIA0030E
Page 2509 of 3383

LT-102
COMBINATION SWITCH
Revision: November 20092006 QX56
4. Touch "COMB SW" on "SELECT TEST ITEM" screen.
DATA MONITOR
Operation Procedure
1. Touch "COMB SW" on "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.
4. Touch "START".
5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is
selected, all the signals will be monitored.
6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".
Display Item List
LKIA0183E
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors individual signal.
Monitor item name
"OPERATION OR UNIT" Contents
TURN SIGNAL R "ON/OFF" Displays "Turn Right (ON)/Other (OFF)" status, determined from lighting switch signal.
TURN SIGNAL L "ON/OFF" Displays "Turn Left (ON)/Other (OFF)" status, determined from lighting switch signal.
HI BEAM SW "ON/OFF" Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 "ON/OFF" Displays "Headlamp switch 1 (ON)/Other (OFF)" status, determined from lighting switch signal.
HEAD LAMP SW 2 "ON/OFF" Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from lighting
switch signal.
LIGHT SW 1ST "ON/OFF" Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from lighting
switch signal.
PASSING SW "ON/OFF" Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from lighting
switch signal.
AUTO LIGHT SW "ON/OFF" Displays "Auto light switch (ON)/Other (OFF)" status, determined from lighting switch signal.
FR FOG SW "ON/OFF" Displays "Front fog lamp switch (ON)/Other (OFF)" status, determined from lighting switch signal.
FR WIPER HI "ON/OFF" Displays "Front Wiper HI (ON)/Other (OFF)" status, determined from wiper switch signal.
FR WIPER LOW "ON/OFF" Displays "Front Wiper LOW (ON)/Other (OFF)" status, determined from wiper switch signal.
FR WIPER INT "ON/OFF" Displays "Front Wiper INT (ON)/Other (OFF)" status, determined from wiper switch signal.
FR WASHER SW "ON/OFF" Displays "Front Washer Switch (ON)/Other (OFF)" status, determined from wiper switch signal.
INT VOLUME [1 - 7] Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON "ON/OFF" Displays "Rear Wiper (ON)/(OFF)" status, determined from wiper switch signal.
RR WIPER INT "ON/OFF" Displays "Rear Wiper INT (ON)/(OFF)" status, determined from wiper switch signal.
RR WASHER SW "ON/OFF" Displays "Rear Washer (ON)/(OFF)" status, determined from wiper switch signal.
Page 2510 of 3383

COMBINATION SWITCHLT-103
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Combination Switch InspectionEKS00BAA
1. SYSTEM CHECK
1. Referring to table below, check which system the malfunctioning switch belongs.
>> GO TO 2.
2. SYSTEM CHECK
With CONSULT-II
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Connect CONSULT-II, and select "COMB SW" on "SELECT TEST ITEM" screen.
2. Select "DATA MONITOR".
3. Select "START", and confirm that other switches in malfunction- ing system operate normally.
Example: When auto light switch is malfunctioning, confirm that
"FRONT WIPER LOW" and "FRONT WIPER INT" in System 3,
to which the auto light switch belongs, turn ON-OFF normally.
Without CONSULT-II
Operate combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER
INT" in System 3, to which the auto light switch belongs, operate normally.
Check results
Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.
System 1 System 2 System 3System 4System 5
— FR WASHER FR WIPER LO TURN LHTURN RH
FR WIPER HI —FR WIPER INT PASSINGHEAD LAMP1
INT VOLUME 1 RR WASHER —HEAD LAMP2 HI BEAM
RR WIPER INT INT VOLUME 3 AUTO LIGHT—TAIL LAMP
INT VOLUME 2 RR WIPER ON —FR FOG —
SKIA7075E
Page 2511 of 3383
LT-104
COMBINATION SWITCH
Revision: November 20092006 QX56
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding com- bination switch connector terminals.
4. Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Sus- pect
system Terminals
Continuity
BCM Combination switch
Connector Terminal Connector Terminal
1
M18 Input 1 6
M286
Ye s
Output 1 36 1
2 Input 2 5 7
Output 2 35 2
3 Input 3 4
10
Output 3 34 3
4 Input 4 3
9
Output 4 33 4
5 Input 5 2
8
Output 5 32 5
Suspect system Terminals
Continuity
BCM
Connector Terminal
1
M18 Input 1
6
Ground No
Output 1
36
2 Input 2
5
Output 2 35
3 Input 3
4
Output 3 34
4 Input 4
3
Output 4 33
5 Input 5
2
Output 5 32
LKIA0284E
Page 2512 of 3383

COMBINATION SWITCHLT-105
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
4. BCM OUTPUT TERMINAL INSPECTION
1. Turn lighting switch and wiper switch to OFF.
2. Set wiper dial to position 4.
3. Connect BCM and combination switch connectors.
4. Turn ignition switch on.
5. Check BCM output terminal voltage waveform of suspect mal- functioning system.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-20, "
BCM" .
5. COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> Inspection End.
Removal and InstallationEKS00BAB
Refer to LT- 9 8 , "Removal and Installation" .
Switch Circuit InspectionEKS00BAC
Refer to LT- 1 0 3 , "Combination Switch Inspection" .
Suspect system Terminals
Combination switch (+)
Connector Terminal
1
M28Input 1
1
2 Input 22
3 Input 33
4 Input 44
5 Input 55
SKIA4976E
Procedure
12 34567
Replace lighting
switch. Confirm
check
results. OK INSPECTION END
Confirm
check
results.OK INSPECTION END
Confirm
check
results.OK INSPECTION END
NG Replace wiper
switch.
NGReplace switch
base.
NGConfirm symptom
again.
