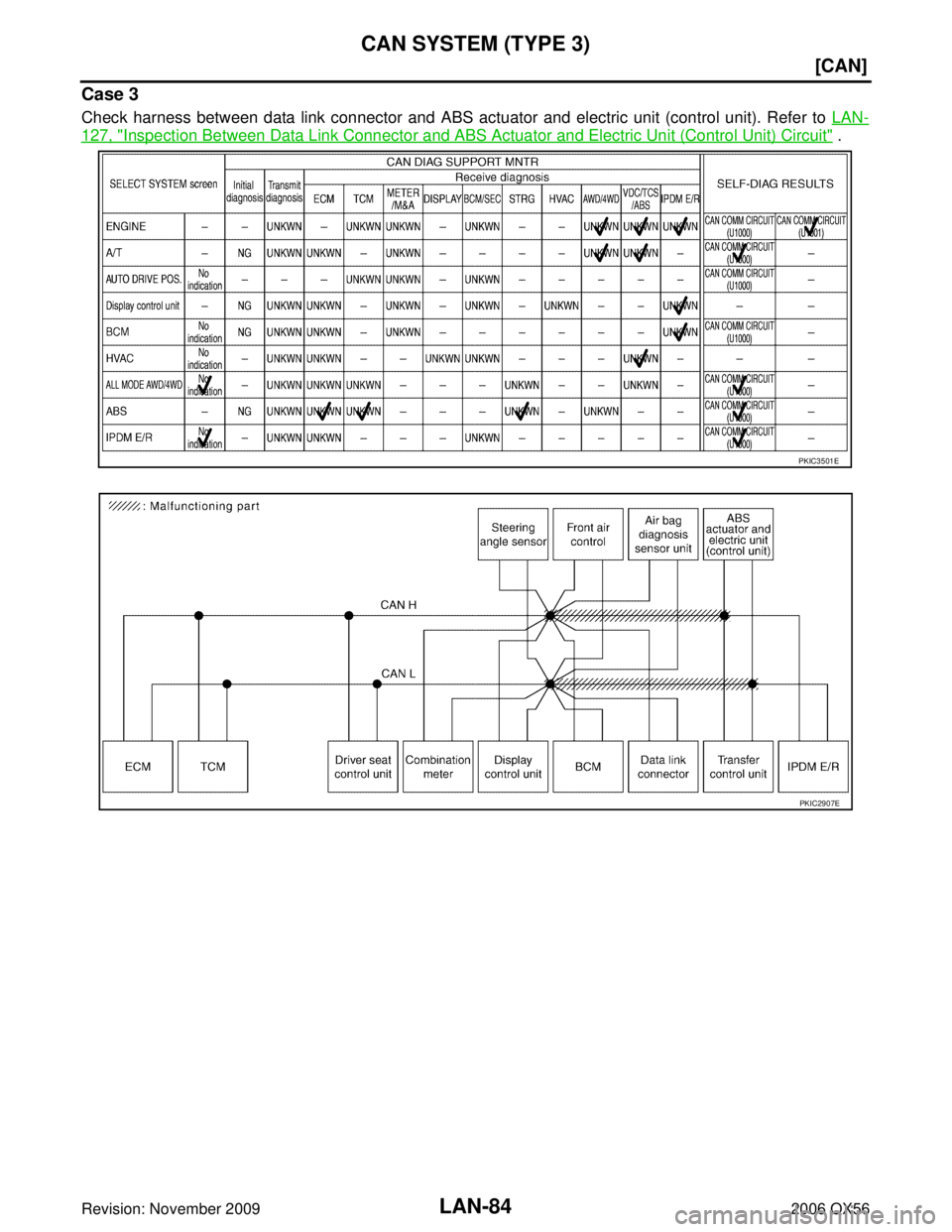

INFINITI QX56 2006 Factory Service Manual LAN-84 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Case 3 Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to LAN- 127, "Inspection Be

Page 2354 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-85 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 4 Check ECM circuit. Refer to LAN-128, "ECM Circuit Inspection" . PKIC3502E PKIC2908E

Page 2355 of 3383

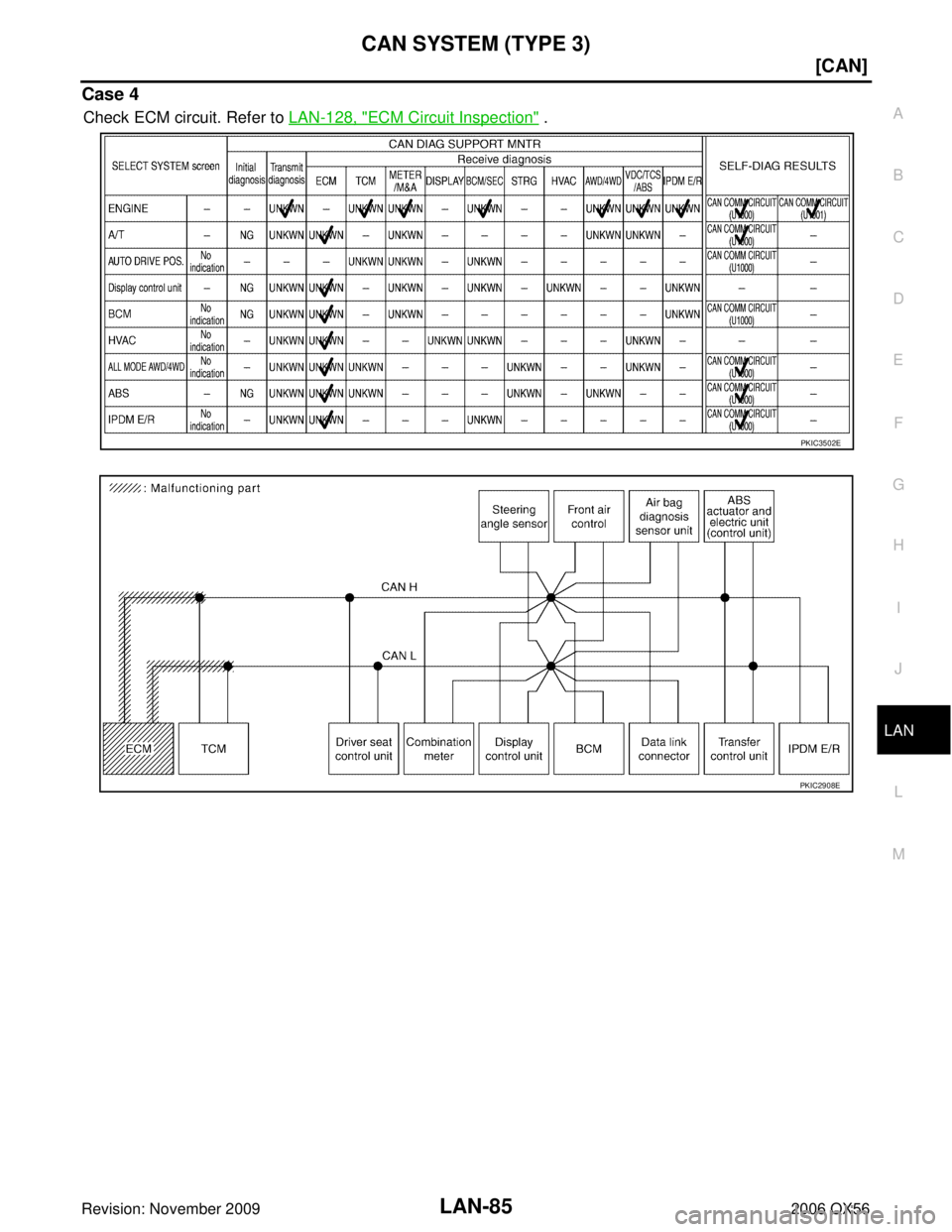

INFINITI QX56 2006 Factory Service Manual LAN-86 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Case 5 Check TCM circuit. Refer to LAN-129, "TCM Circuit Inspection" . PKIC3503E PKIC2909E

Page 2356 of 3383

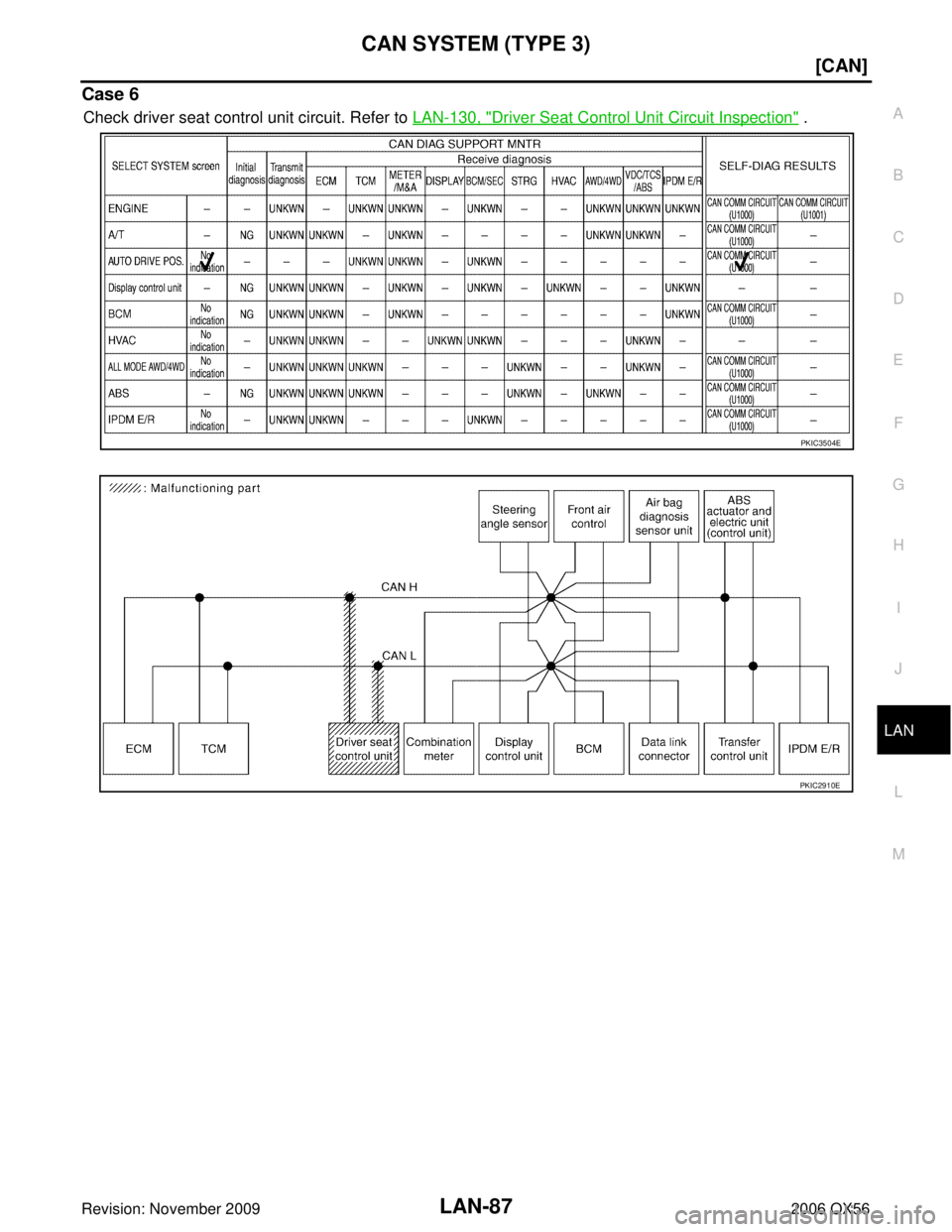

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-87 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 6 Check driver seat control unit circuit. Refer to LAN-130, "Driver Seat Control Unit Circuit Inspecti

Page 2357 of 3383

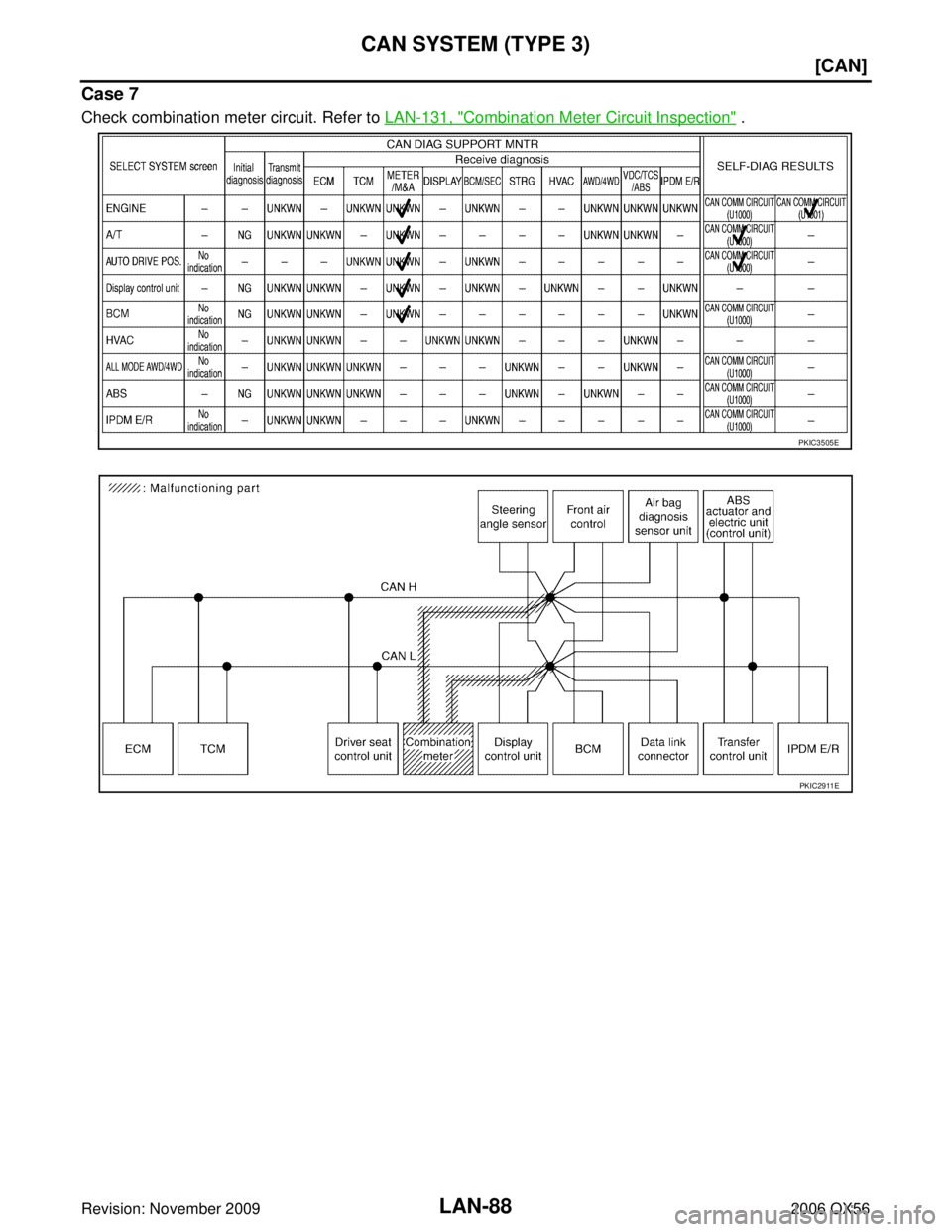

INFINITI QX56 2006 Factory Service Manual LAN-88 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Case 7 Check combination meter circuit. Refer to LAN-131, "Combination Meter Circuit Inspection" . PKIC3505E PKIC2911E

Page 2358 of 3383

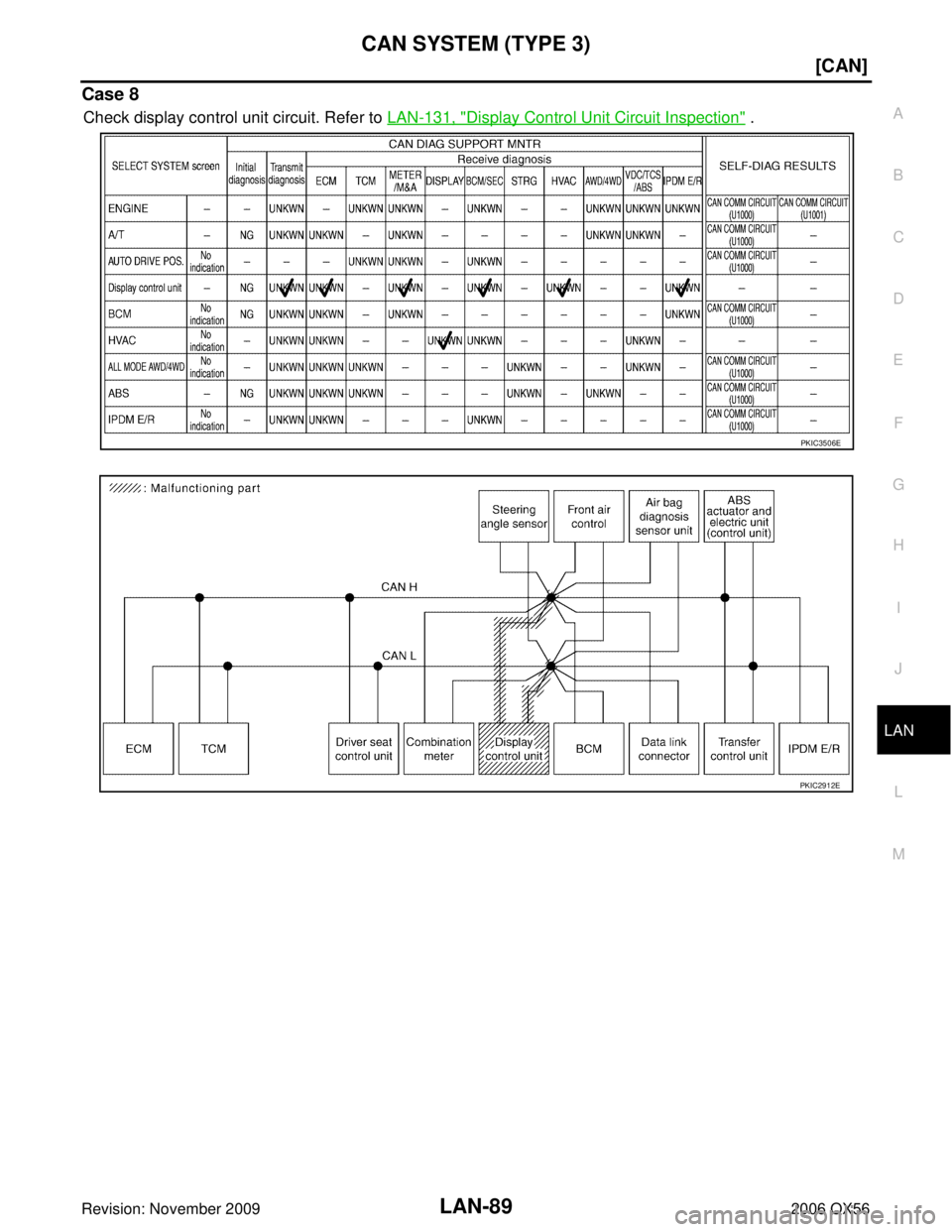

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-89 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 8 Check display control unit circuit. Refer to LAN-131, "Display Control Unit Circuit Inspection" . PK

Page 2359 of 3383

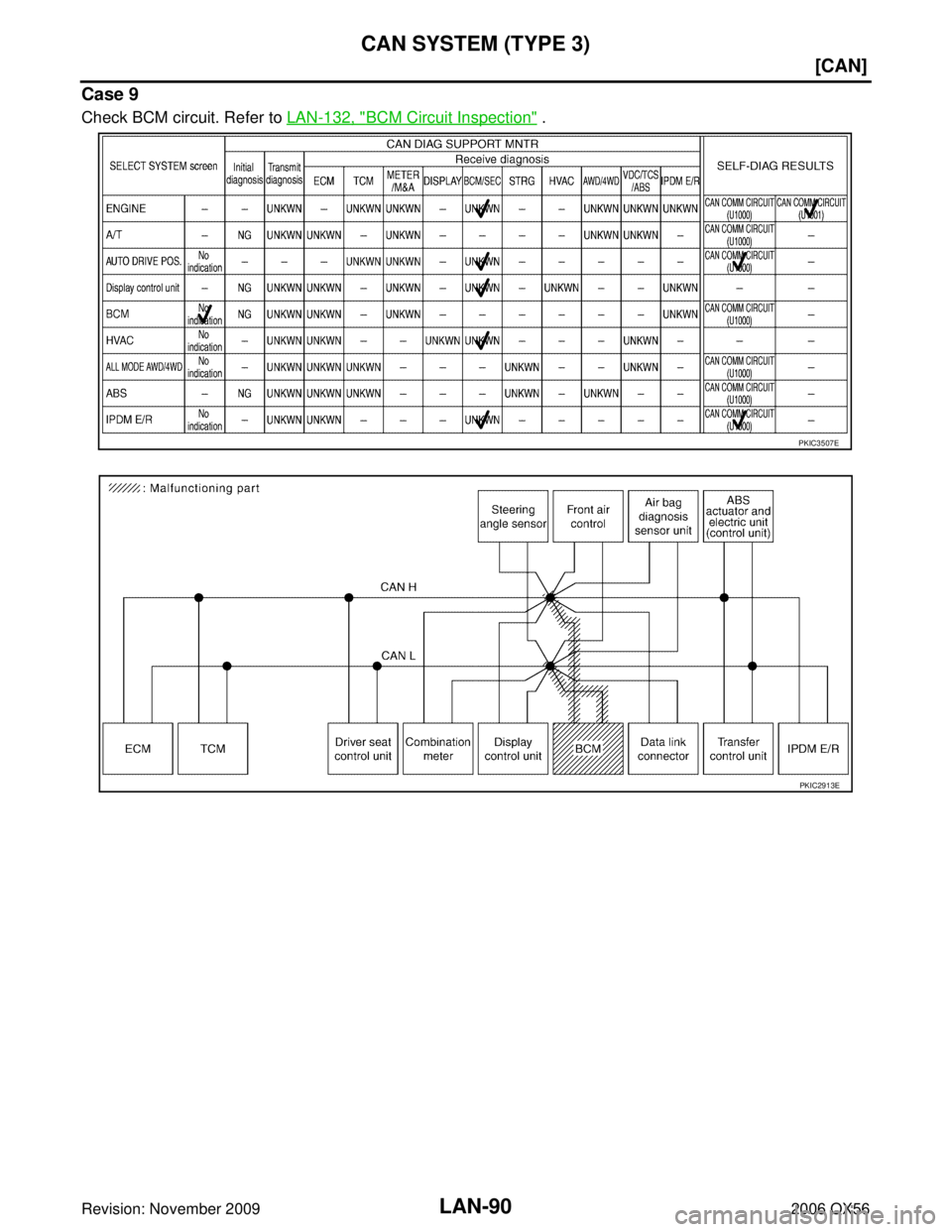

INFINITI QX56 2006 Factory Service Manual LAN-90 [CAN] CAN SYSTEM (TYPE 3) Revision: November 20092006 QX56 Case 9 Check BCM circuit. Refer to LAN-132, "BCM Circuit Inspection" . PKIC3507E PKIC2913E

Page 2360 of 3383

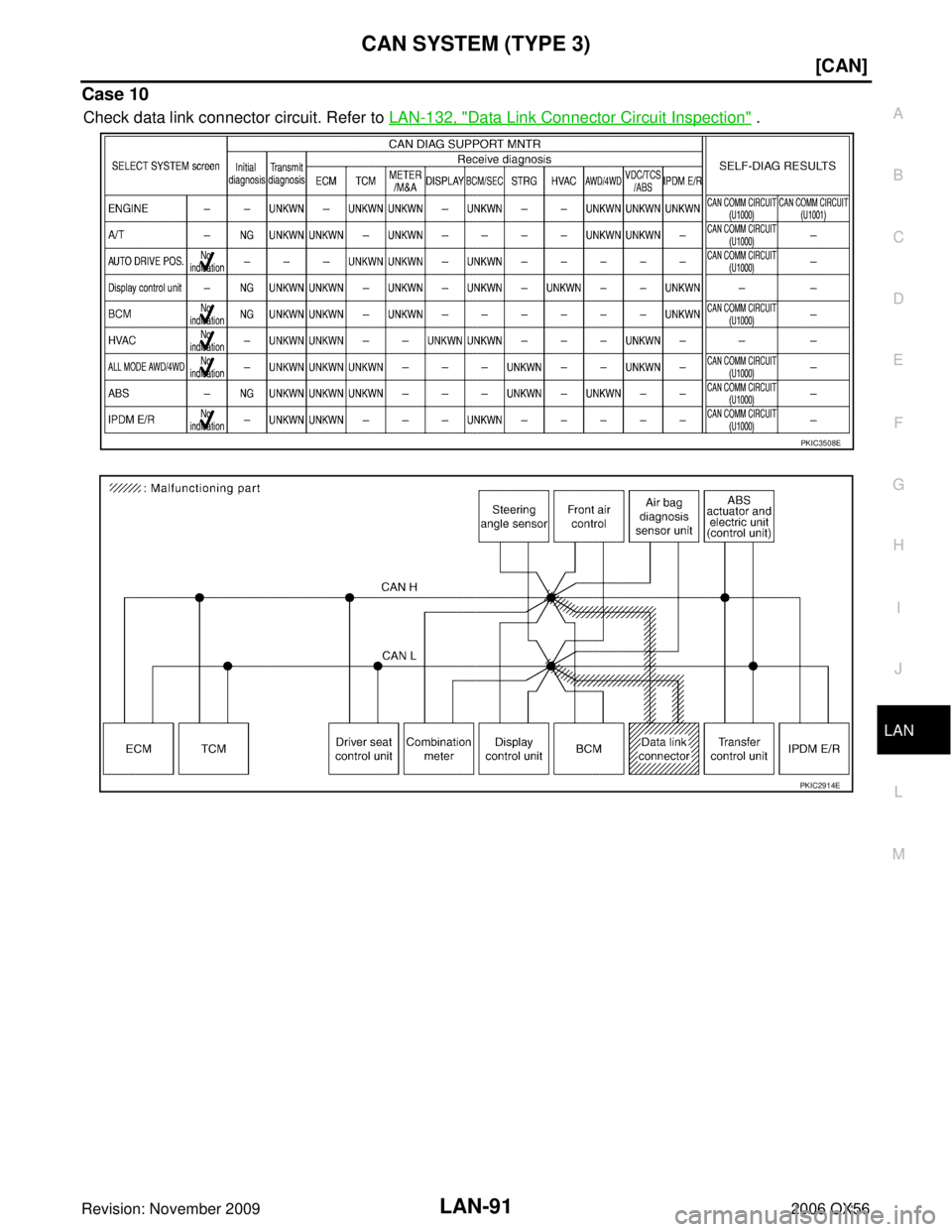

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 3)LAN-91 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 10 Check data link connector circuit. Refer to LAN-132, "Data Link Connector Circuit Inspection" . PKI
