INFINITI QX56 2006 Factory Service Manual EC-262Revision: November 2009
DTC P0137, P0157 HO2S2
2006 QX56
5. CHECK HEATED OXYGEN SENSOR 2
Refer to EC-262, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning heated o

Page 1474 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0137, P0157 HO2S2EC-263
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43

Page 1475 of 3383

INFINITI QX56 2006 Factory Service Manual EC-264Revision: November 2009
DTC P0138, P0158 HO2S2
2006 QX56
DTC P0138, P0158 HO2S2PFP:226A0
Component DescriptionUBS00N6Y
The heated oxygen sensor 2, after three way catalyst (manifold),
monitors t

Page 1476 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0138, P0158 HO2S2EC-265
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC Confirmation ProcedureUBS00N71
Perform PROCEDURE FOR MALFUNCTION A first.
If DTC cannot be confirmed, perfo

DTC P0138, P0158 HO2S2EC-265
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC Confirmation ProcedureUBS00N71
Perform PROCEDURE FOR MALFUNCTION A first.
If DTC cannot be confirmed, perform PROCEDURE FOR MALFUNCTION B.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera- ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 2 minutes.
6. If 1st trip DTC is detected, go to EC-270, "
PROCEDURE FOR
MALFUNCTION A" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
TESTING CONDITION:
For better results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30 °C (32 to 86 ° F).
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera- ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 1 minute.
6. Make sure that “COOLAN TEMP/S ” indicates more than 70°C
(158 °F).
If not, warm up engine and go to next step when “COOLAN
TEMP/S ” indication reaches to 70 °C (158 °F).
7. Open engine hood.
8. Select “HO2S2 (B1) P1146 ” (for DTC P0138) or “HO2S2 (B2) P1166” (for DTC P0158) of “HO2S2 ” in
“DTC WORK SUPPORT ” mode with CONSULT-II.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0138
0138
(Bank 1)
Heated oxygen sensor
2 circuit high voltage A)
An excessively high voltage from the sen-
sor is sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted)
Heated oxygen sensor 2
P0158
0158
(Bank 2) B)
The minimum voltage from the sensor is
not reached to the specified voltage.
Harness or connectors
(The sensor circuit is open or shorted)
Heated oxygen sensor 2
Fuel pressure
Fuel injector
SEF174Y
SEF174Y

Page 1477 of 3383

INFINITI QX56 2006 Factory Service Manual EC-266Revision: November 2009
DTC P0138, P0158 HO2S2
2006 QX56
9. Start engine and following the instruction of CONSULT-II.NOTE:
It will take at most 10 minutes until “COMPLETED” is displayed.
10

Page 1478 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0138, P0158 HO2S2EC-267
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

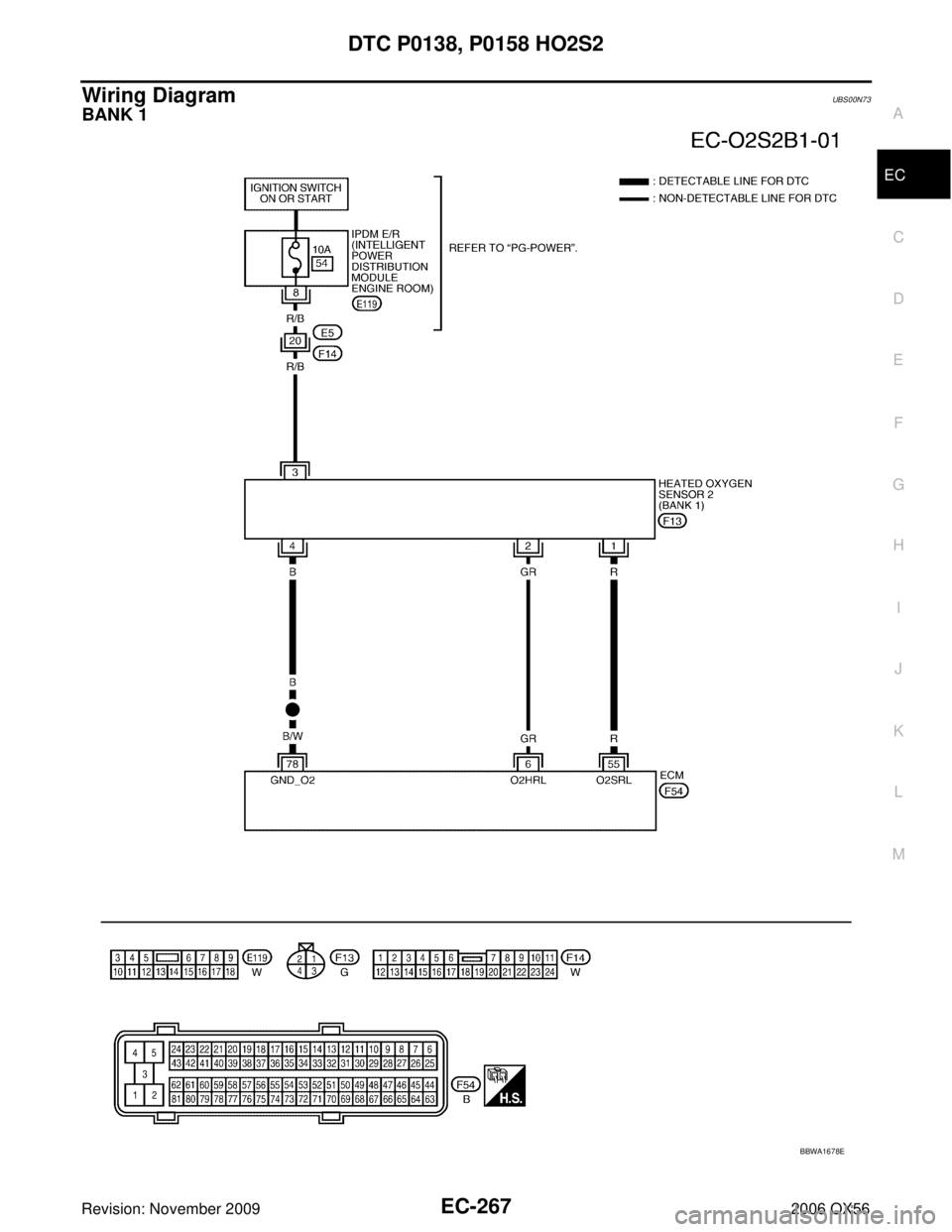

Wiring DiagramUBS00N73
BANK 1
BBWA1678E

Page 1479 of 3383

INFINITI QX56 2006 Factory Service Manual EC-268Revision: November 2009
DTC P0138, P0158 HO2S2
2006 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when

Page 1480 of 3383

INFINITI QX56 2006 Factory Service Manual DTC P0138, P0158 HO2S2EC-269
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

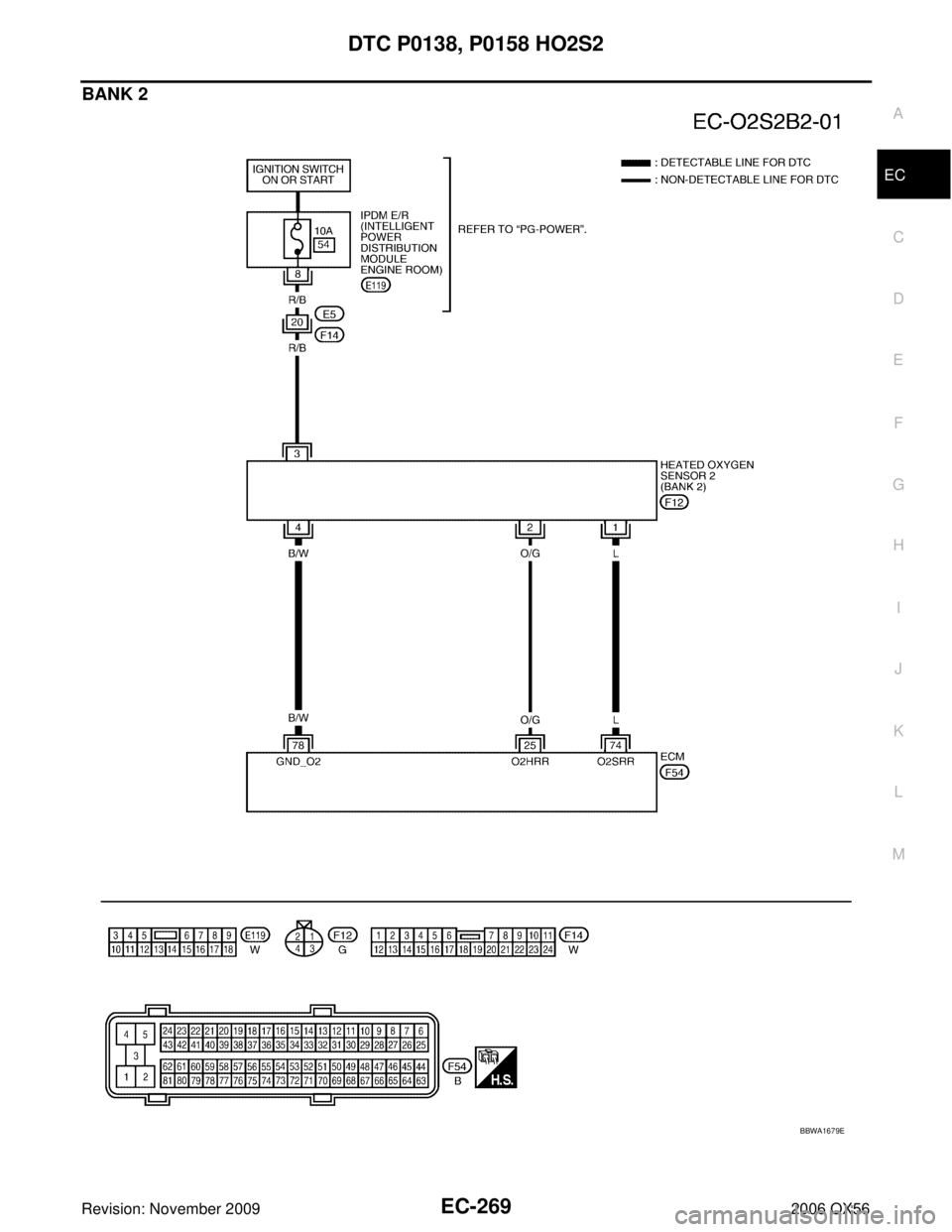

BANK 2
BBWA1679E
