Page 2329 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-60 [CAN] CAN SYSTEM (TYPE 2) Revision: November 20092006 QX56 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis) ”, replace the contro

Page 2330 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 2)LAN-61 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 2 Check harness between ICC sensor and ICC unit. Refer to LAN-125, "Inspection Between ICC Sensor and

Page 2331 of 3383

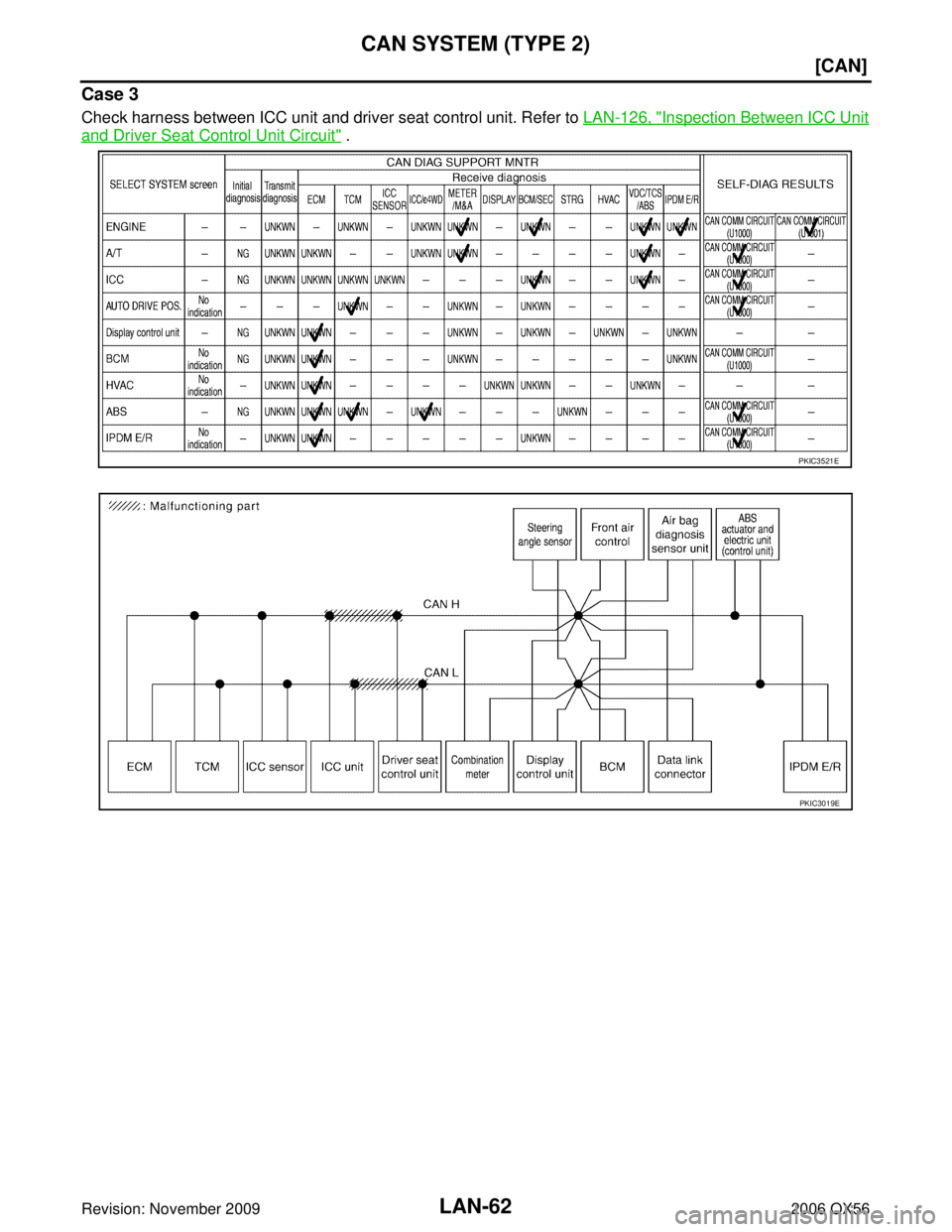

INFINITI QX56 2006 Factory Service Manual LAN-62 [CAN] CAN SYSTEM (TYPE 2) Revision: November 20092006 QX56 Case 3 Check harness between ICC unit and driver seat control unit. Refer to LAN-126, "Inspection Between ICC Unit and Driver Seat Con

Page 2332 of 3383

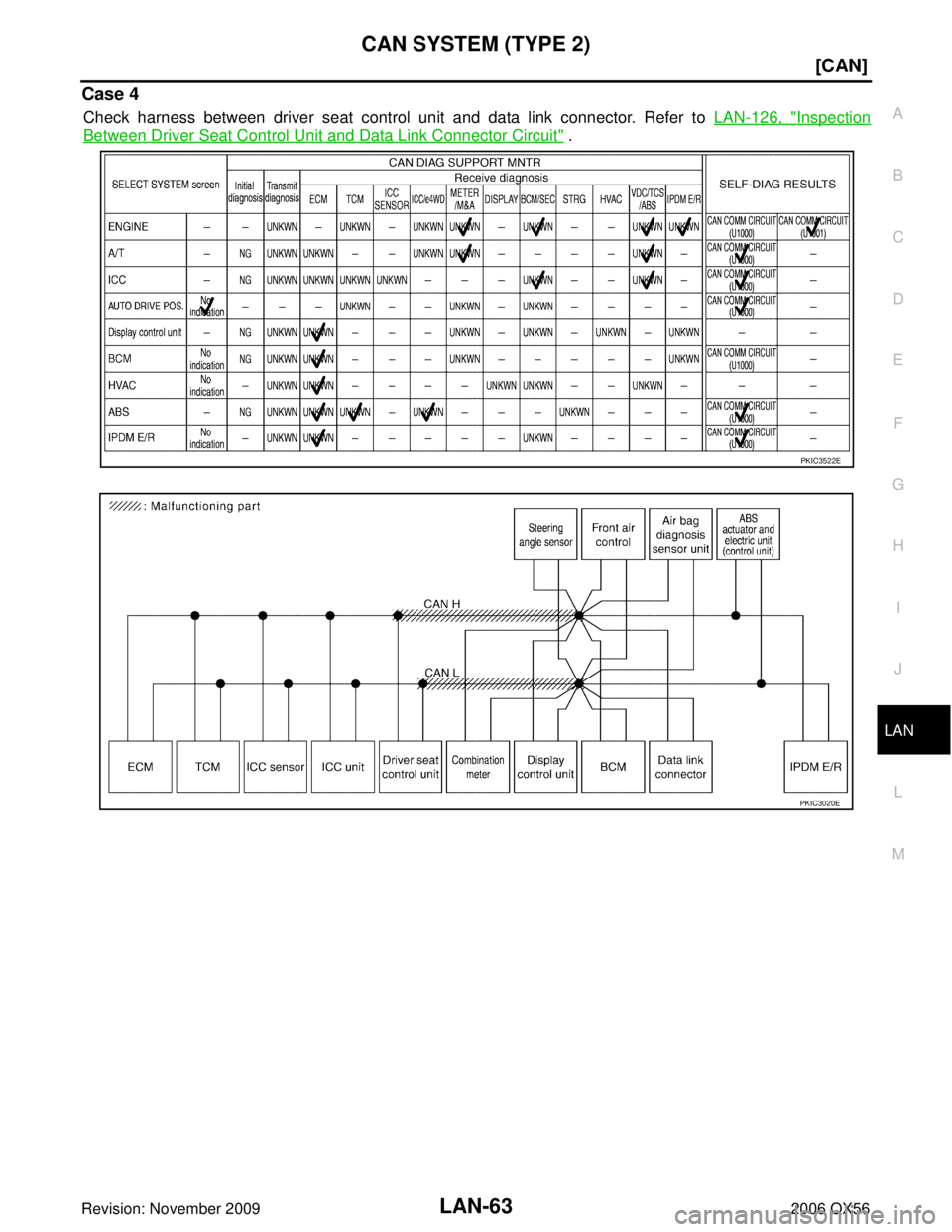

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 2)LAN-63 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 4 Check harness between driver seat control unit and data link connector. Refer to LAN-126, "Inspectio

Page 2333 of 3383

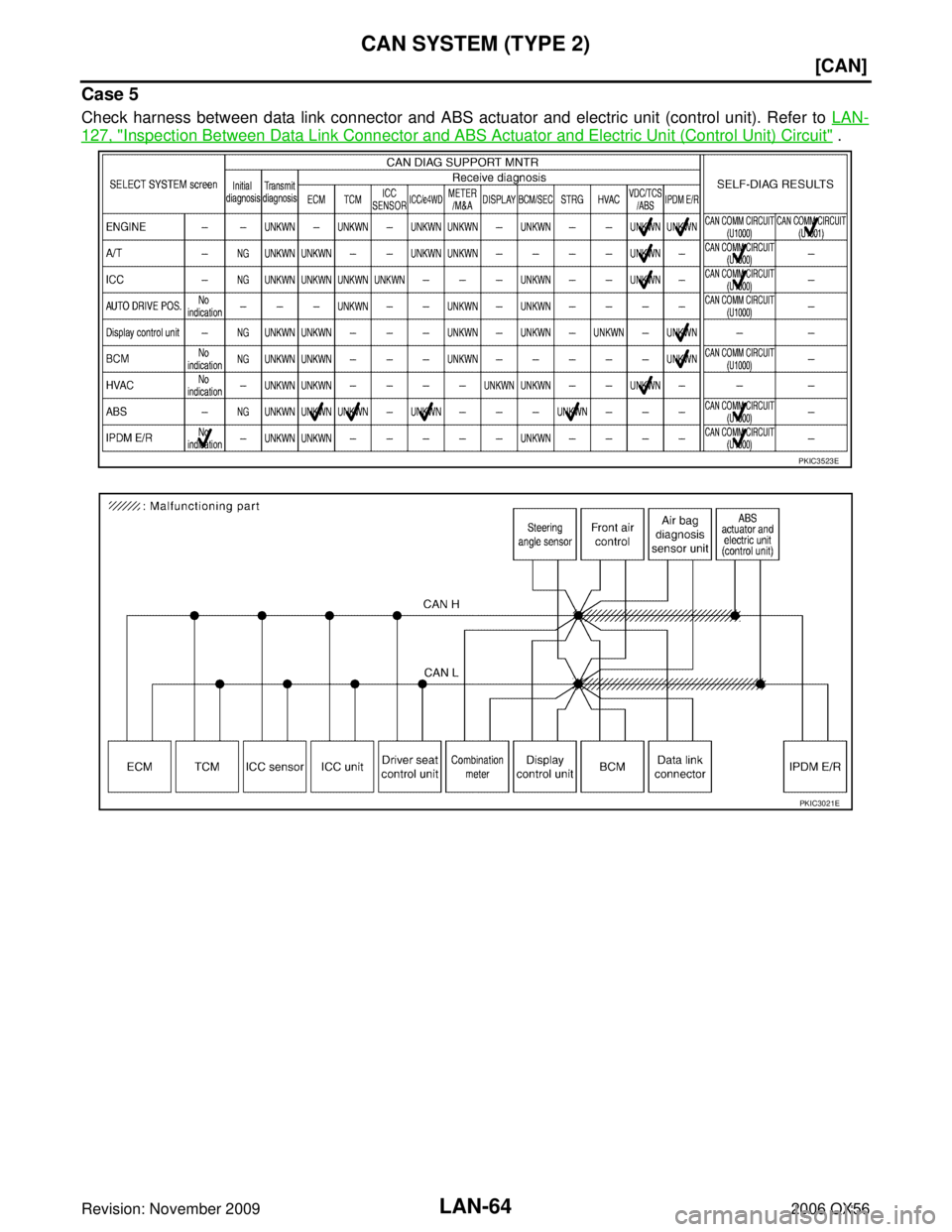

INFINITI QX56 2006 Factory Service Manual LAN-64 [CAN] CAN SYSTEM (TYPE 2) Revision: November 20092006 QX56 Case 5 Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to LAN- 127, "Inspection Be

Page 2334 of 3383

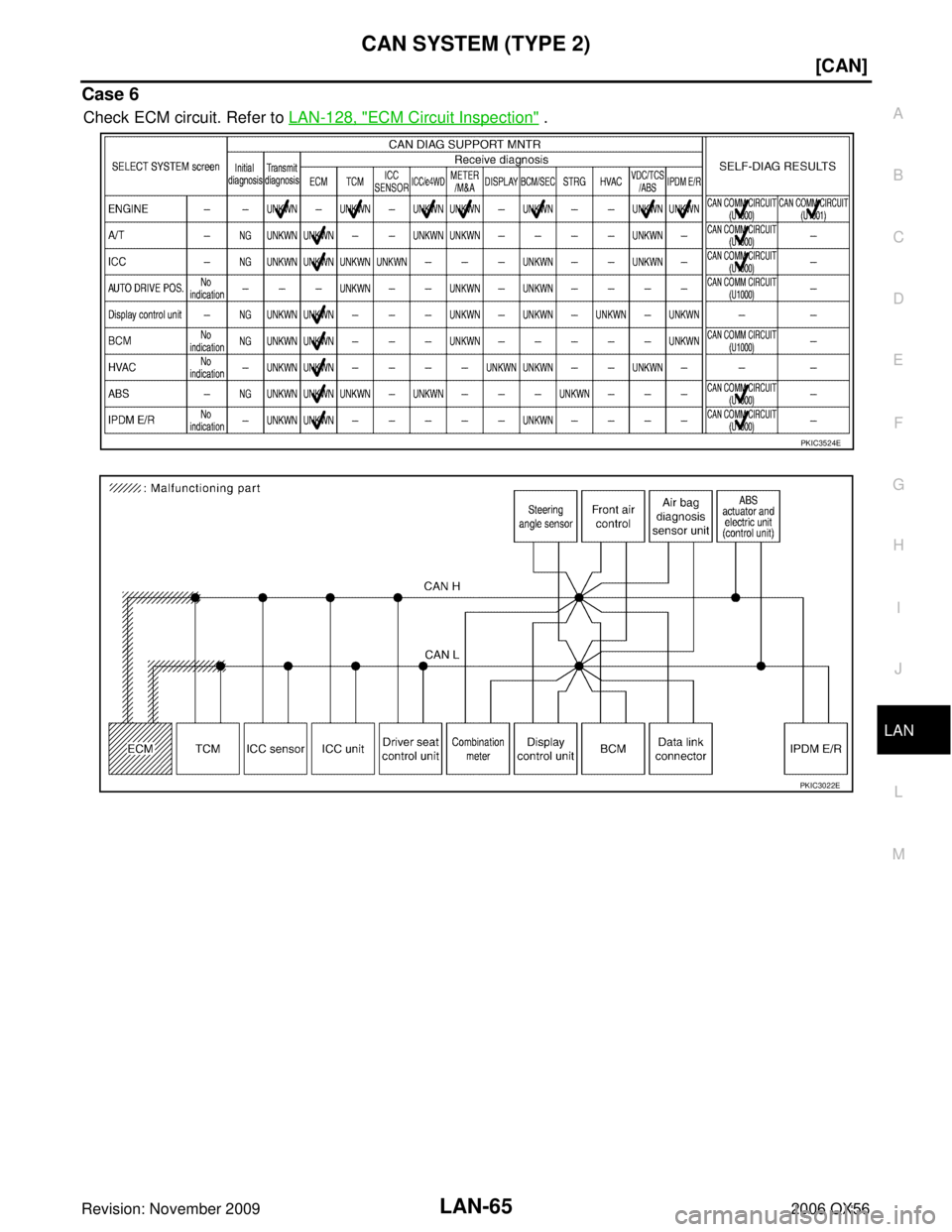

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 2)LAN-65 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 6 Check ECM circuit. Refer to LAN-128, "ECM Circuit Inspection" . PKIC3524E PKIC3022E

Page 2335 of 3383

INFINITI QX56 2006 Factory Service Manual LAN-66 [CAN] CAN SYSTEM (TYPE 2) Revision: November 20092006 QX56 Case 7 Check TCM circuit. Refer to LAN-129, "TCM Circuit Inspection" . PKIC3525E PKIC3023E

Page 2336 of 3383

INFINITI QX56 2006 Factory Service Manual CAN SYSTEM (TYPE 2)LAN-67 [CAN] C DE F G H I J L M A B LAN Revision: November 2009 2006 QX56 Case 8 Check ICC sensor circuit. Refer to LAN-129, "ICC Sensor Circuit Inspection" . PKIC3526E PKIC3024E
