Page 3361 of 3383

WW-34
REAR WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56
The BCM controls rear wiper motor operation by switching direction of current flow between the two rear wiper
motor output circuits.
Power is supplied to output circuit 1 for forward operation (counterclockwise sweep),
through BCM terminal 55
to rear wiper motor terminal 4.
Ground is supplied
to rear wiper motor terminal 6
through BCM terminal 54
through BCM terminal 67
through grounds M57, M61 and M79.
With output circuit 1 power and ground supplied, the rear wiper motor operates in a counterclockwise sweep
direction until auto stop switch 1 closes (full sweep position). Auto stop switch 1 supplies ground
to BCM terminal 44
through rear wiper motor terminal 2
through rear wiper motor terminal 5
through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 1 and turns on output circuit 2.
Power is supplied to output circuit 2 for reverse operation (clockwise sweep),
through BCM terminal 54
to rear wiper motor terminal 6.
Ground is supplied
to rear wiper motor terminal 4
through BCM terminal 55
through BCM terminal 67
through grounds M57, M61 and M79.
With output circuit 2 power and ground supplied the rear wiper motor operates in a clockwise sweep direction
until auto stop switch 2 closes (full sweep position). Auto stop switch 2 supplies ground
to BCM terminal 26
through rear wiper motor terminal 1
through rear wiper motor terminal 3
through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 2 and starts the timing function of 7 sec-
onds. After approximately 7 seconds the BCM turns on output circuit 1. This process repeats until the rear
wiper switch or ignition switch is turned off.
AUTO STOP OPERATION
When the rear wiper switch is turned off, the BCM will continue the cycle of output circuit 1 or output circuit 2
until auto stop switch 1 and auto stop switch 2 are both in the closed position. When the BCM receives ground
signals from auto stop switch 1 and auto stop switch 2 simultaneously, output circuit 1 and output circuit 2 are
both turned off.
REAR WASHER OPERATION
When the ignition switch is in the ON or START position, and the front and rear washer switches are OFF, the
front and rear washer motor is supplied power
through 10A fuse (No. 9, located in the fuse block J/B)
through combination switch (wiper switch) terminal 14
through combination switch (wiper switch) terminal 11
to front and rear washer motor terminal 2, and
through combination switch (wiper switch) terminal 13
to front and rear washer motor terminal 1.
When the rear wiper switch is in rear washer position, the BCM detects a rear washer signal by BCM wiper
switch reading function. Combination switch ground is supplied
to front and rear washer motor terminal 1
Page 3362 of 3383
REAR WIPER AND WASHER SYSTEMWW-35
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
through combination switch (wiper switch) terminal 13
through combination switch (wiper switch) terminal 12
through grounds M57, M61 and M79.
With ground supplied, the front and rear washer motor is operated in the rear direction.
When the BCM detects that the rear washer motor has operated for 0.4 seconds or longer, BCM operates the
rear wiper motor.
When the BCM detects that the rear washer switch is in OFF, the rear wiper motor cycles approximately 3
times and then stops.
If the rear washer is operated with the rear wiper switch in the INT position, normal rear wiper operation will
take over. Once the rear washer switch is released the rear wiper will return to INT operation.
BCM WIPER SWITCH READING FUNCTION
Refer to WW-6, "COMBINATION SWITCH READING FUNCTION" .
Page 3363 of 3383
WW-36
REAR WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56

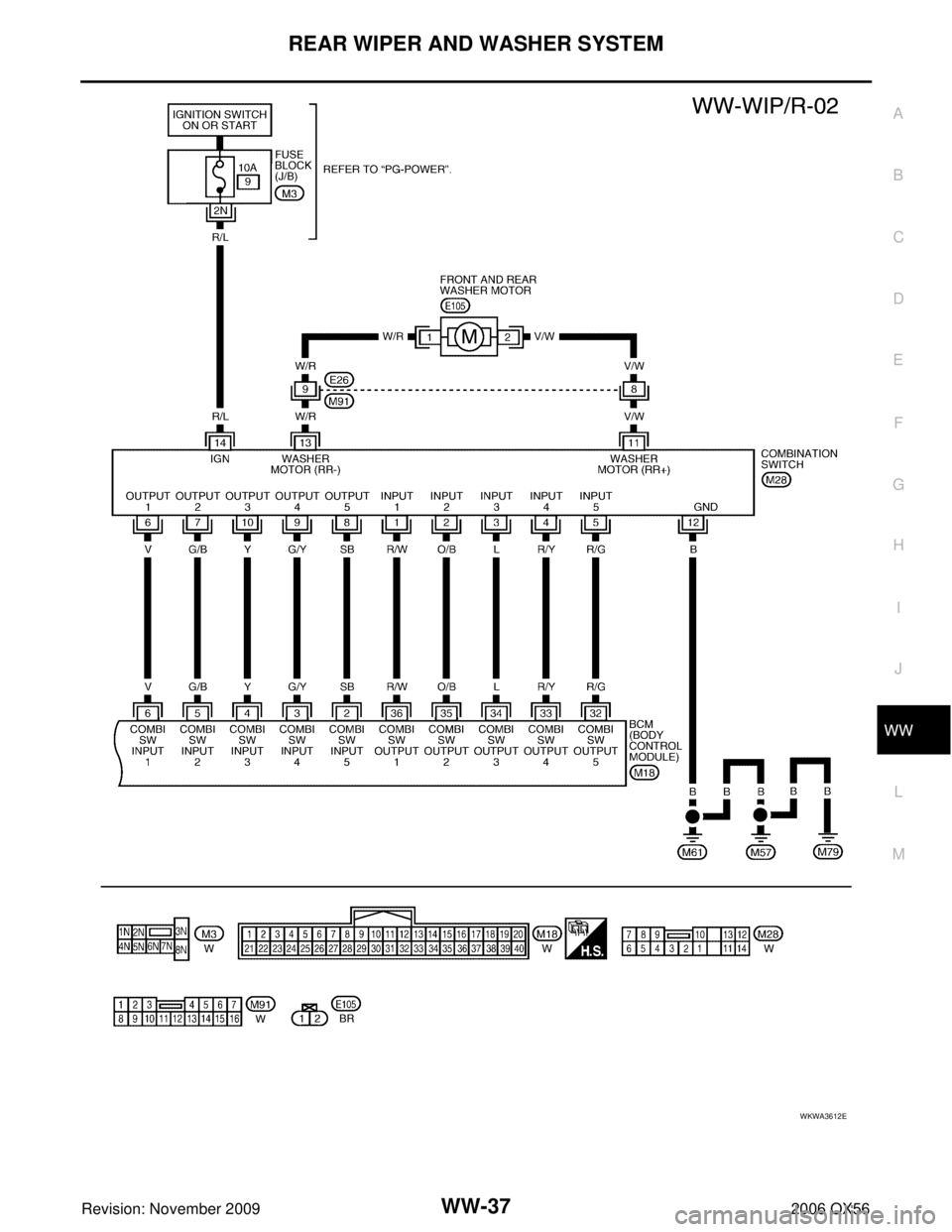

Wiring Diagram — WIP/R —EKS00BED
WKWA2328E
Page 3364 of 3383
REAR WIPER AND WASHER SYSTEMWW-37
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
WKWA3612E
Page 3365 of 3383

WW-38
REAR WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56
Terminals and Reference Values for BCMEKS00BEE
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference Value (V)
(Approx.)
Ignition
switch Operation or condition
2 SB Combination switch input 5 ON
Light switch and wiper switch OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ON
Light switch and wiper switch OFF
Wiper dial position 4
4 Y Combination switch input 3 ON
Light switch and wiper switch OFF
Wiper dial position 4
5 G/B Combination switch input 2 ON
Light switch and wiper switch OFF
Wiper dial position 4
6 V Combination switch input 1 ON
26 Y/L Rear wiper auto stop
switch 2
ONRise up position (rear wiper arm on
stopper) 0V
A Position (full clockwise stop position) 0V
Forward sweep (counterclockwise direction) Fluctuating
B Position (full counterclockwise stop position) Battery voltage
Reverse sweep (clockwise direction) Fluctuating
32 R/G Combination switch output 5 ON
Light switch and wiper switch OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
Page 3366 of 3383

REAR WIPER AND WASHER SYSTEMWW-39
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
33 R/Y Combination switch output 4 ONLight switch and wiper switch OFF
Wiper dial position 4
34 L Combination switch output 3 ON
Light switch and wiper switch OFF
Wiper dial position 4
35 O/B Combination switch output 2 ON
Light switch and wiper switch OFF
Wiper dial position 4
36 R/W Combination switch output 1 ON
38 W/L Ignition switch (ON) ON— Battery voltage
42 GR Glass hatch ajar switch
signal ONHatch glass closed
Battery voltage
Hatch glass open 0V
44 O Rear wiper auto stop
switch 1 ONRise up position (rear wiper arm on
stopper) 0V
A Position (full clockwise stop position) Battery voltage
Forward sweep (counterclockwise direction) Fluctuating
B Position (full counterclockwise stop position) 0V
Reverse sweep (clockwise direction) Fluctuating
54 Y Rear wiper output circuit 2 ON Rise up position (rear wiper arm on
stopper) 0V
A Position (full clockwise stop position) 0V
Forward sweep (counterclockwise direction) 0V
B Position (full counterclockwise stop position) Battery voltage
Reverse sweep (clockwise direction) Battery voltage
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference Value (V)
(Approx.)
Ignition
switch Operation or condition
SKIA5292E
SKIA5291E
SKIA5292E
Page 3367 of 3383

WW-40
REAR WIPER AND WASHER SYSTEM
Revision: November 20092006 QX56
How to Proceed With Trouble DiagnosisEKS00BEF
1. Confirm the symptoms and customer complaint.
2. Understand operation description and function description. Refer to WW-32, "
System Description" .
3. Perform the Preliminary Check. Refer to WW-40, "
Preliminary Inspection" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the rear wiper operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary InspectionEKS00BEG
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT
Inspection procedure
1. CHECK FUSE
Check if wiper or washer fuse is blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to PG-4,
"POWER SUPPLY ROUTING CIRCUIT" .
55 SB Rear wiper output circuit 1 ONRise up position (rear wiper arm on
stopper) 0V (except battery voltage at ini-
tial rear wiper ON to lift arm off
stop)
A Position (full clockwise stop position) Battery voltage
Forward sweep (counterclockwise direction) Battery voltage
B Position (full counterclockwise stop position) 0V
Reverse sweep (clockwise direction) 0V
67 B Ground ON— 0V
70 W/B Battery power OFF— Battery voltage
Te r m i -
nal No. Wire
color Signal name Measuring condition
Reference Value (V)
(Approx.)
Ignition
switch Operation or condition
Unit
Power source Fuse No.
Front and rear washer motor Ignition ON or START 9
BCM Ignition ON or START
59
Battery f
Page 3368 of 3383
REAR WIPER AND WASHER SYSTEMWW-41
C
DE
F
G H
I
J
L
M A
B
WW
Revision: November 2009 2006 QX56
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between BCM and fuse.
3. GROUND CIRCUIT INSPECTION (BCM)
Check for continuity between the BCM terminal and ground.
OK or NG
OK >> Inspection End.
NG >> Repair/replace BCM ground circuit.
Terminals Ignition switch position
(+) (– )O FF O N
Connector Terminal
M18 38 Ground0V
Battery voltage
M20 70 Battery voltage Battery voltage
WKIA2089E
Terminals
Ignition switch
condition Continuity
Connector Terminal
M20 67 Ground OFF Yes
WKIA2090E
